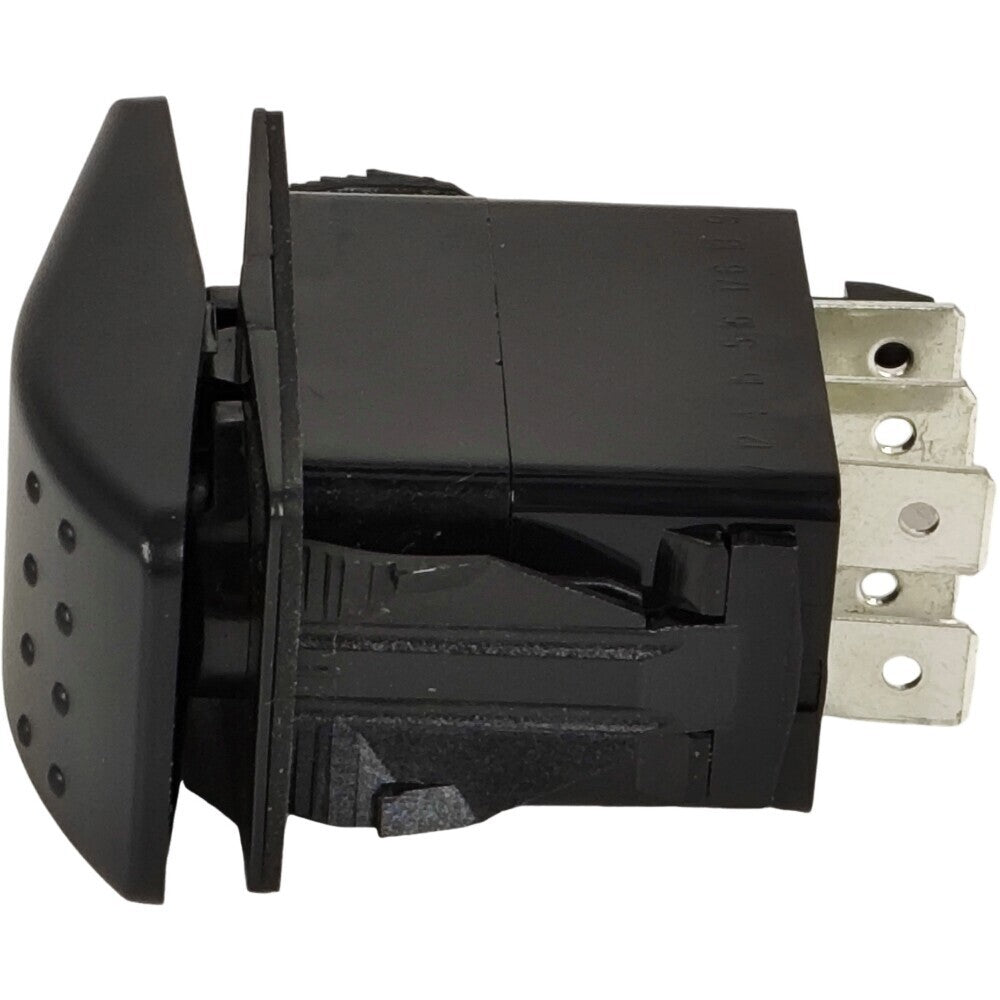

Carling Contura V DPDT Momentary Rocker Switch VLD2S00B-AZC00-000
$29.99
In Stock
$29.99
Sale price
$29.99
Regular price
This new aftermarket-compatible black sealed rocker switch matches Carling Technologies VLD2S00B-AZC00-000: DPDT, momentary (ON)-OFF-(ON), 20 A at 12 VDC, with quick-connect terminals.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Marine and vehicle control panels using the exact Carling V-Series circuit
- Reversing actuators, trim systems, hatches, winches, and accessories within the specified electrical design
- Custom equipment only after panel, pinout, current, and environmental requirements are confirmed
Product Overview
A winch, trim tab, hatch, actuator, or reversing motor may stop in one direction when one pole of its momentary rocker burns or the actuator breaks. The load, fuse, relays, wiring, motor, and connector should be tested because a switch can be damaged by the fault it was controlling.
DPDT momentary action reverses two circuits while spring return brings the rocker to center OFF. The switch rating does not make it suitable for every motor load; high-inrush devices may require relays.
Match the complete VLD2S00B-AZC00-000 suffix, DPDT circuit, momentary action on both sides, terminal count and base, panel cutout, actuator style, seal, and current load. Manufacturer data may show a ten-position base even when only required terminals are populated.
Key Features & Performance
- DPDT momentary (ON)-OFF-(ON) switching
- 20 A at 12 VDC catalog rating; verify load category
- 0.250-inch quick-connect terminal style
- Black sealed Contura II / V-Series panel rocker configuration
Replaces Part Numbers
- VLD2S00B-AZC00-000
Common Uses
- Replacing a spring-return direction switch
- Repairing one-direction actuator control
- Building a matched reversing-control panel
Technical Specifications
- Product Type: Sealed panel rocker switch
- Circuit: DPDT, momentary (ON)-OFF-(ON)
- Rating: 20 A at 12 VDC; not horsepower rated
- Condition: New aftermarket-compatible component
Installation & Fitment
- Disconnect the battery or DC supply
- Record the original pinout wire by wire
- Confirm motor inrush and relay requirements
- Seat the switch in the correct panel cutout
- Test both momentary directions and center return
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Is this a maintained ON-OFF-ON switch? A: No. Both ON positions are momentary and should spring back to center OFF.
Q: Can it run a 20-amp motor directly? A: Not automatically. Motor inrush and inductive load can exceed switch limits; a relay circuit may be required.
Q: Why must the full suffix match? A: Carling V-Series switches can share the same body while differing in circuit, actuator, terminals, seals, and lamps.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
