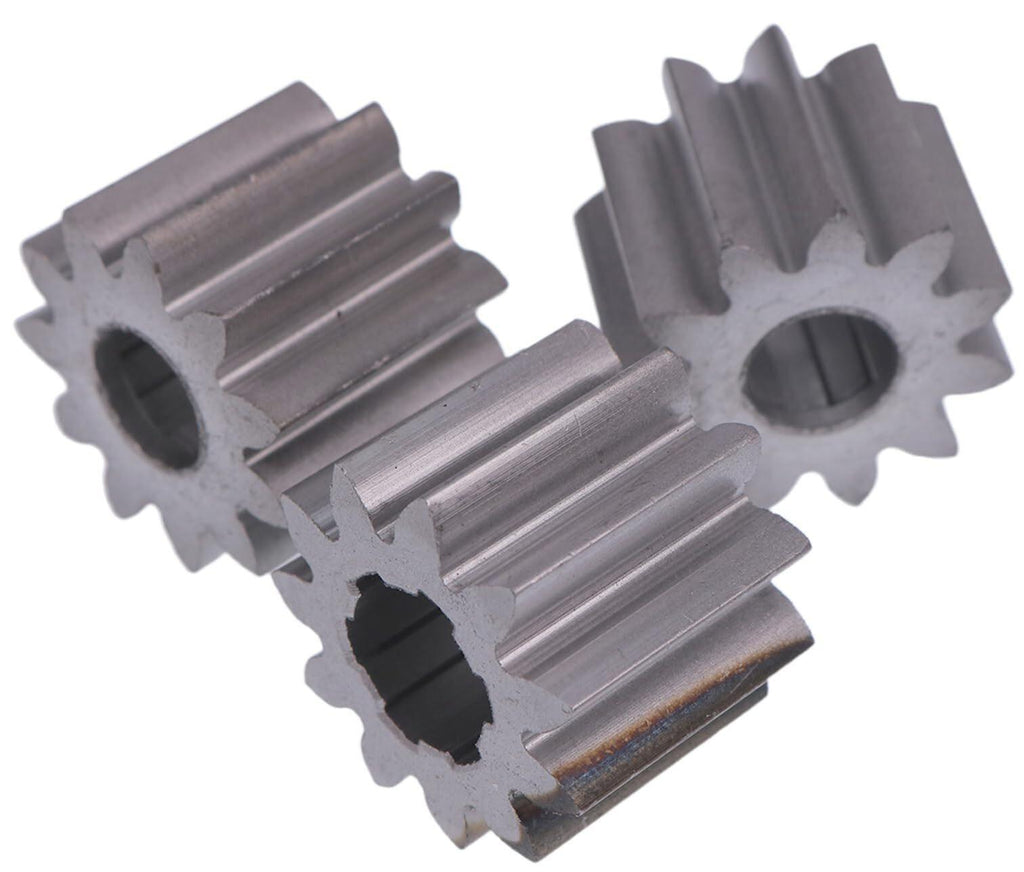

John Deere Steering Sector Gear Kit GX20053 GX25785 3-Piece
$34.99
In Stock
$34.99
Sale price
$34.99
Regular price
This three-piece steering gear kit services compatible John Deere lawn tractors using pinion GX20053 and sector-gear references GX21924BLE or GX25785BLE.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere 102, 105, 107S, 108, 115, 125, 135, 145, 1545, 155C, 190C, and 92H
- John Deere D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, and D170
- John Deere G110
- John Deere L17.542, L100, L105, L107, L108, L110, L111, L118, L120, L130, L1742, L2048, and L2548
- John Deere LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, and LA175
- John Deere S240
- John Deere X105, X110, X115R, X120, X125, X130R, X135R, X140, X145, X155R, and X165; verify serial-number break
Product Overview
A steering wheel that skips, turns without moving the front tires, or develops a wide dead spot often points to stripped teeth—but worn shaft bushings are frequently what damaged the gears in the first place. Replacing the gear set and checking the supports helps keep the new teeth meshing correctly.
The kit is intended for the listed 100-, D-, L-, LA-, S-, and X-series tractors. John Deere uses serial-number breaks on several D105-D170 and X-series models, so confirm the tractor PIN and every gear number before disassembly.
Key Features & Performance
- Three-piece steering repair set
- Includes GX20053-style pinion gear
- Crosses to current and earlier sector-gear numbers
- Addresses stripped teeth and excessive steering free play
- Steel gear construction
Replaces Part Numbers
- GX20053
- GX20054
- GX20057
- GX21924
- GX21924BLE
- GX25785
- GX25785BLE
- M153513
- UC13360
Common Uses
- Repairing a steering wheel that jumps over damaged gear teeth
- Removing excessive play traced to the pinion and sector gears
- Servicing steering after a bent or seized linkage overloaded the gear set
Technical Specifications
- Product Type: Steering Sector Gear Kit
- Primary Application: John Deere lawn tractors with listed steering gears
- Package Quantity: 3 pieces
- Condition: New
- Replacement Type: Aftermarket
- Kit Quantity: 3 pieces
- Primary Pinion Reference: GX20053
- Sector References: GX21924BLE; GX25785BLE
- Application: Lawn tractor steering gear
- Condition: New aftermarket
Installation & Fitment
- Park the tractor safely and support the front end
- Inspect upper and lower steering-shaft bushings before fitting new gears
- Center the steering wheel and front wheels before meshing the teeth
- Lubricate and torque the assembly to the tractor service specification
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Why do new steering gears strip again? A: Worn bushings, a binding axle, bent tie rods, or incorrect gear mesh can overload the replacement teeth.
Q: Does GX25785BLE replace GX21924BLE? A: Yes, GX25785BLE is a listed supersession in compatible applications.
Q: How do I confirm this is the correct part? A: Use the tractor PIN, original pinion and sector numbers, tooth profile, shaft diameter, and serial-number break.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
