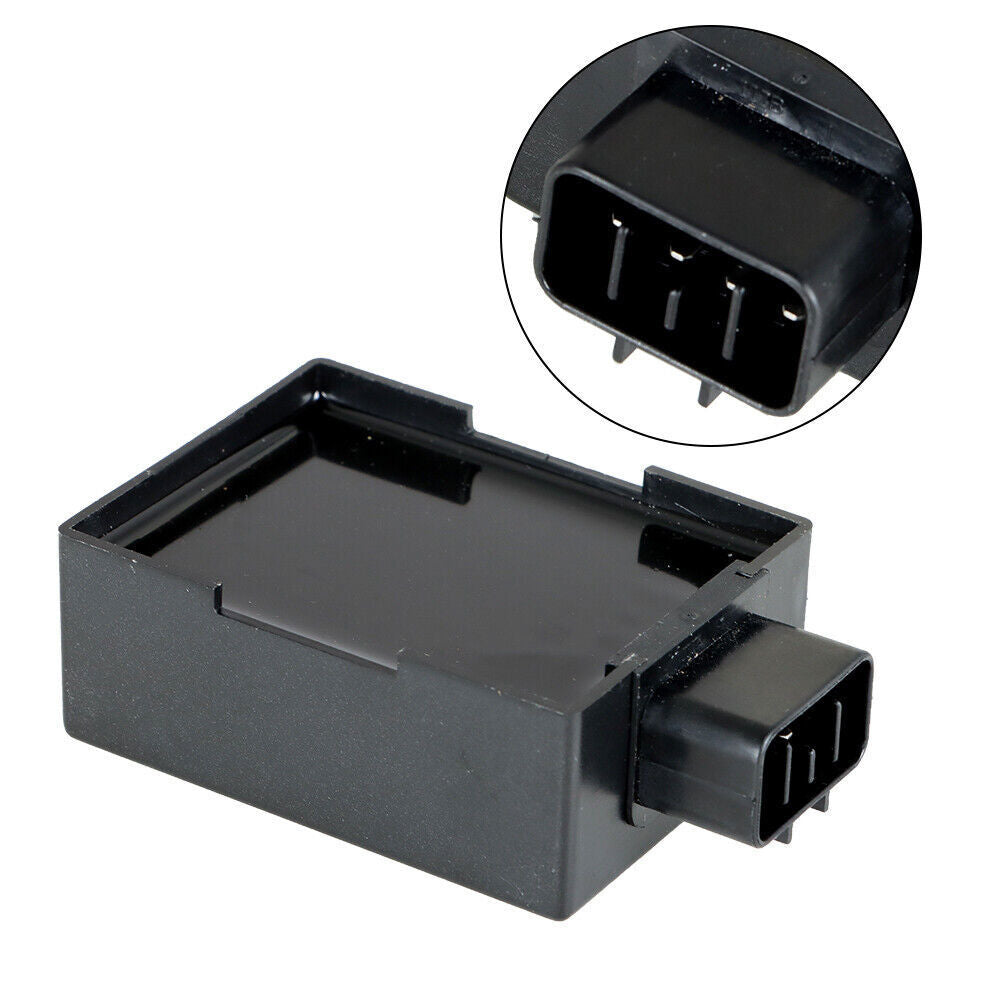

CDI Ignition Module 3087169 for Polaris Sportsman Magnum Scrambler Ranger
$64.99
In Stock
$64.99
Sale price
$64.99
Regular price
This aftermarket CDI ignition module replaces Polaris 3087169 for compatible carbureted Sportsman, Magnum, Scrambler, Ranger, and ATP 500 applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris Scrambler 500 2x4 / 4x4 (select 1997-2002 applications)
- Polaris Ranger 500 6x6 (select 1999-2004 applications)
- Polaris Magnum 500 (2002-2003)
- Polaris Sportsman 400 (2003-2004)
- Polaris Sportsman 500 / 500 HO / 6x6 (select 2002-2004 applications)
- Polaris ATP 500 (2004)
Product Overview
Intermittent spark, an engine that shuts off hot, weak ignition timing, or a no-start with fuel and compression can put the CDI module under suspicion. It should be replaced only after the stator, pickup coil, ignition coil, grounds, stop circuit, connectors, and spark plug have been tested.
This module is built around the 3087169 interchange used on select carbureted Polaris 500 models. Polaris changed ignition systems within the same model name, so compare every connector, wire position, original number, year, and submodel before plugging it in.
Key Features & Performance
- Electronic ignition control module for compatible carbureted Polaris machines
- Cross-references Polaris 3087169
- Replacement option for a heat-failing or internally damaged CDI
- Sealed module body for powersports use
- Supports the listed ignition layout when all connected components are correct
Replaces Part Numbers
- 3087169
Common Uses
- Replacing a CDI that loses spark when warm
- Repairing a confirmed no-trigger ignition condition
- Addressing internal module damage or connector corrosion
- Restoring ignition control after stator and coil tests pass
Technical Specifications
- Product Type: CDI / ignitor module
- Ignition Type: Compatible carbureted Polaris system
- Primary Reference: 3087169
- Condition: New aftermarket replacement
Installation & Fitment
- Verify 3087169 and the exact connector layout before purchase
- Disconnect the battery and inspect grounds and harness terminals
- Do not force a similar-looking plug into the module
- Secure the unit away from water pooling and excess heat
- Test spark and timing behavior before replacing other ignition parts
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and the product photos before purchase.
Frequently Asked Questions
Q: Can a bad CDI make the engine die when hot? A: Yes, but the stator, pickup, coil, stop switch, and wiring can cause the same behavior.
Q: Will this fit every Sportsman 500? A: No. Only select years and carbureted ignition layouts use 3087169.
Q: Why is matching the connector not enough? A: Modules can share a connector shape but use different pin assignments and ignition curves.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
