3-Piece Hydraulic U-Cup Rod Seal Installation Tool Set 22-165mm
$35.99
In Stock
$35.99
Sale price
$35.99
Regular price
This three-piece hydraulic rod-seal installation set folds flexible U-cup seals into an omega shape for compatible gland openings covering approximately 22-165mm rod sizes.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview
Improvised picks can cut, pinch, or overstretch a flexible rod seal while it is being worked into an internal gland. These three twistor tools temporarily fold the seal into an omega shape so it can pass through a smaller opening.
Each twistor temporarily reduces the seal profile so it can be guided into its internal groove. Seal cross-section and gland size must remain within the chosen tool range.
Key Features & Performance

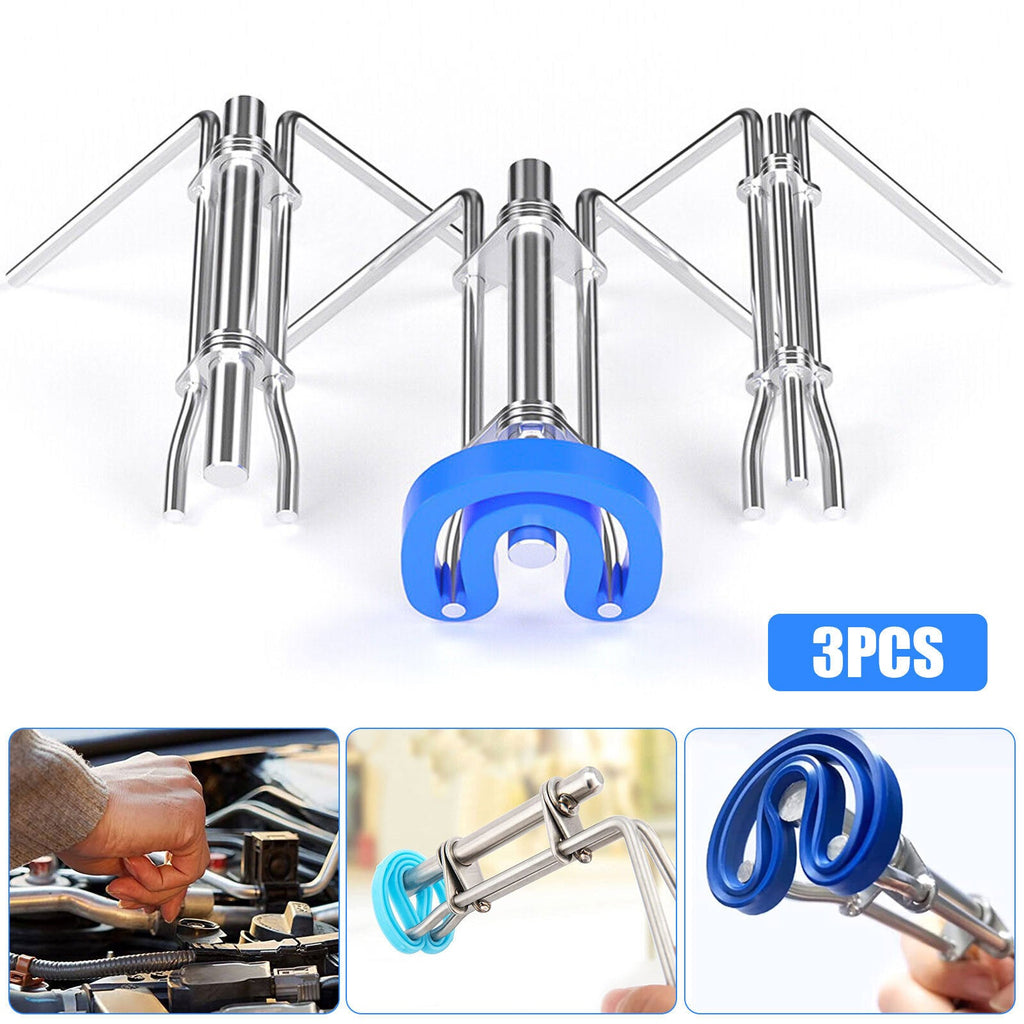

- Three sizes cover many flexible rod seals
- Omega-fold method reduces installation damage

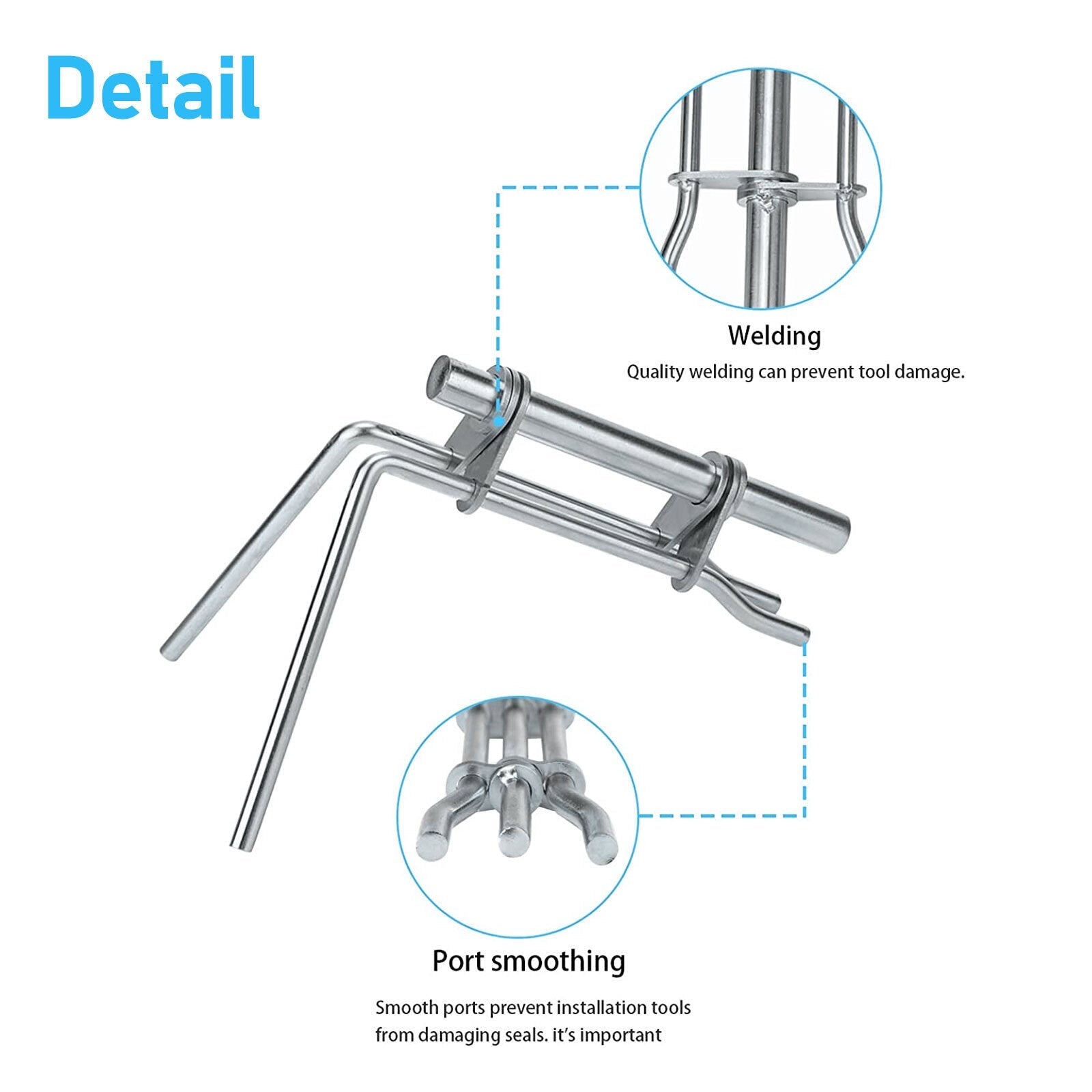

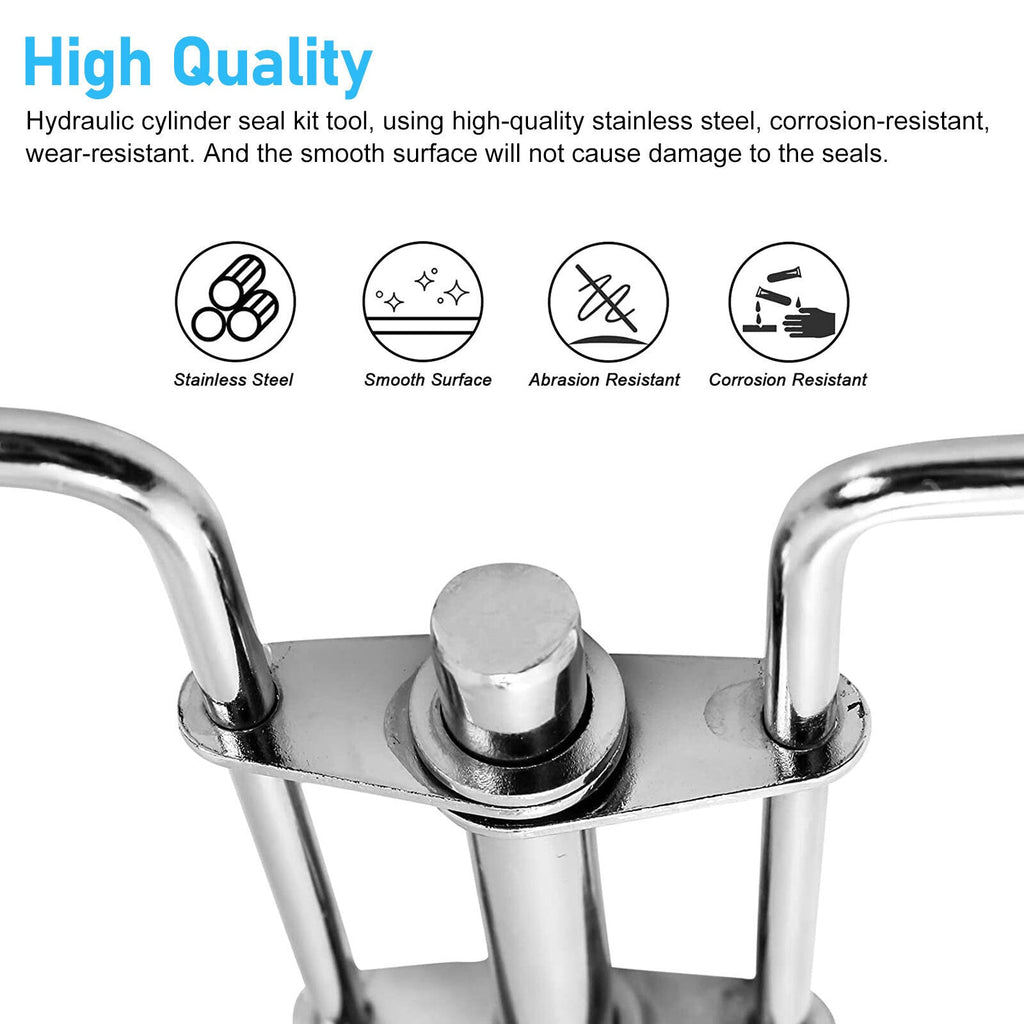

- Smooth surfaces protect seal lips and gland bores
Common Uses
- Installing U-cups in cylinder glands
- Rebuilding loader or marine cylinders
- Avoiding sharp improvised tools
Technical Specifications
- Product Type: Hydraulic rod seal tool set

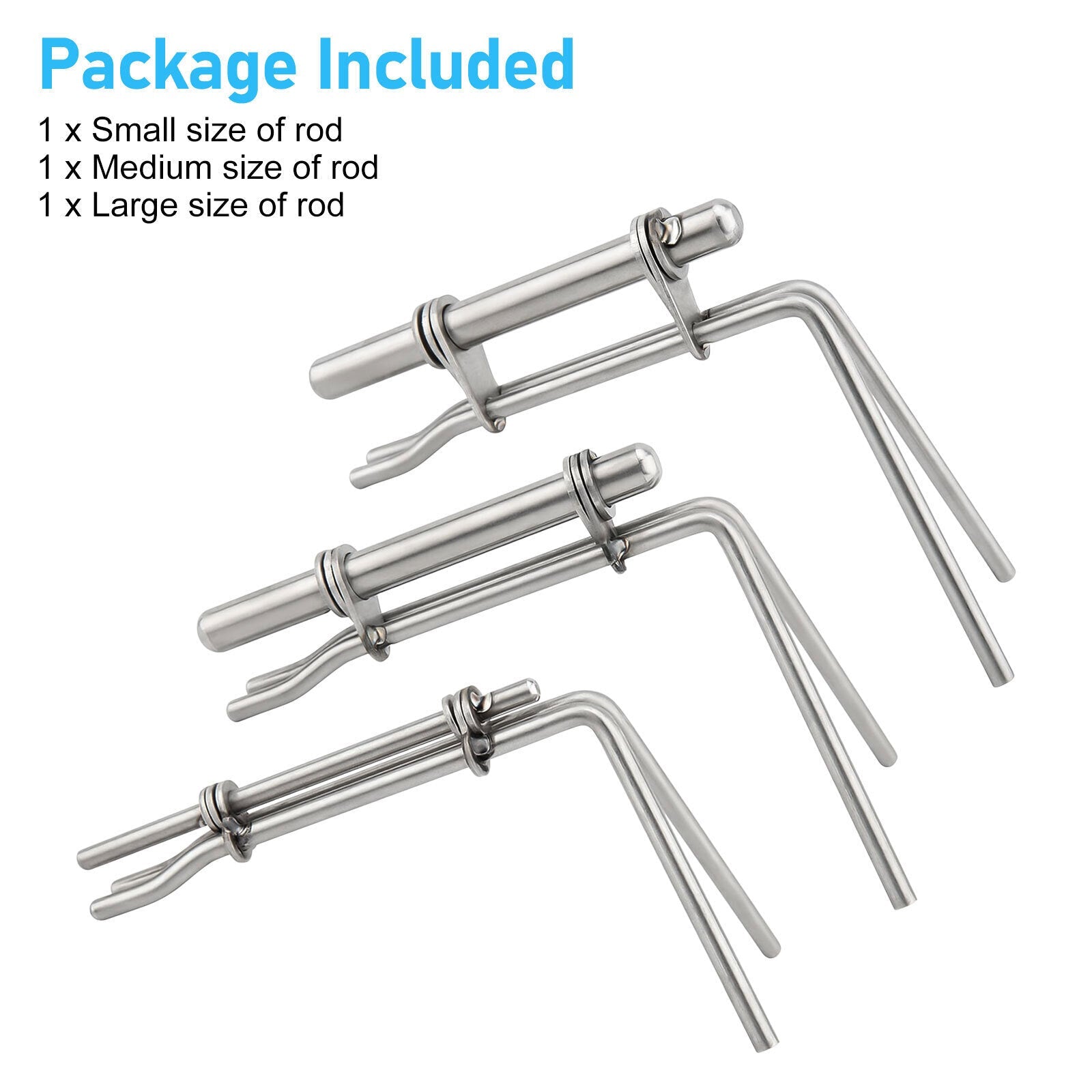

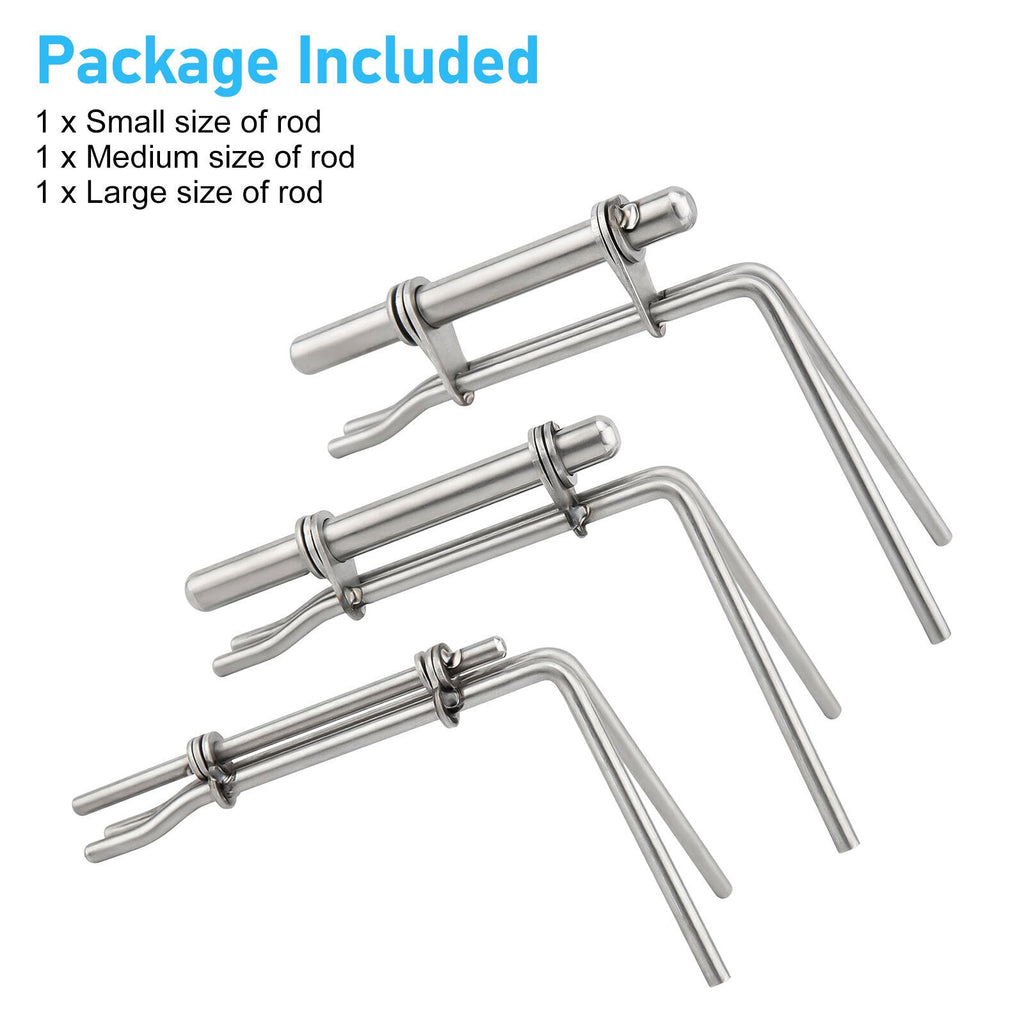

- Quantity: 3

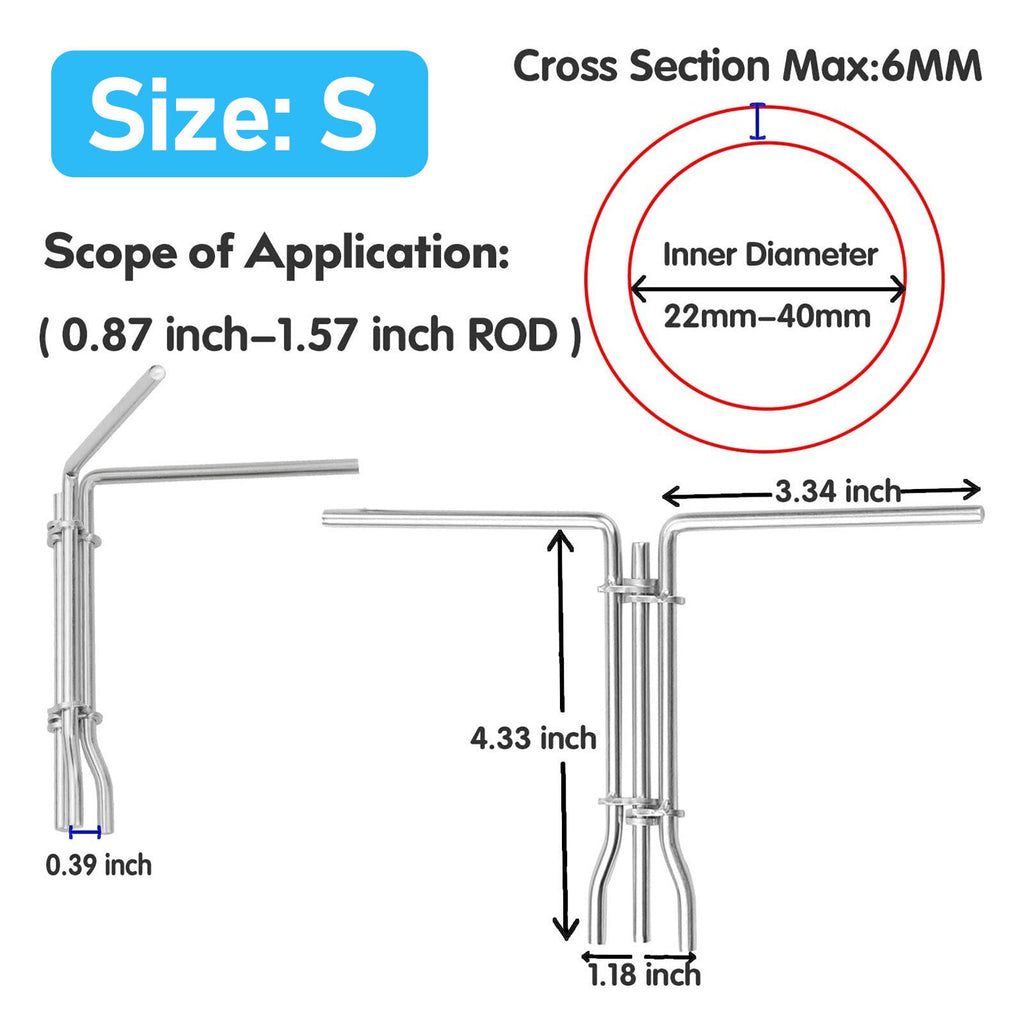

- Small: 22-40mm / 6mm max

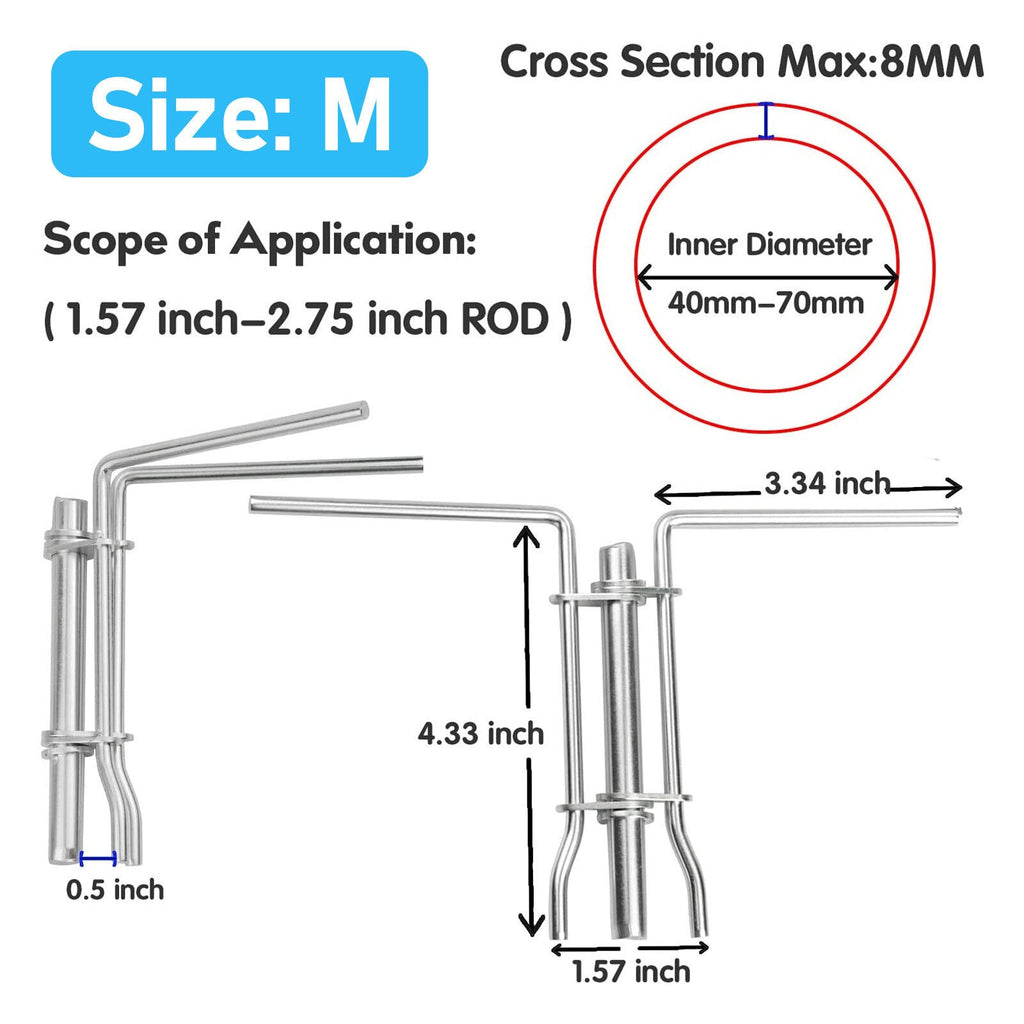

- Medium: 40-70mm / 8mm max
- Large: 70-165mm / 10mm max
- Application: Flexible U-cup and rod seals
Installation & Fitment
- Choose the correct size
- Lubricate with compatible hydraulic fluid

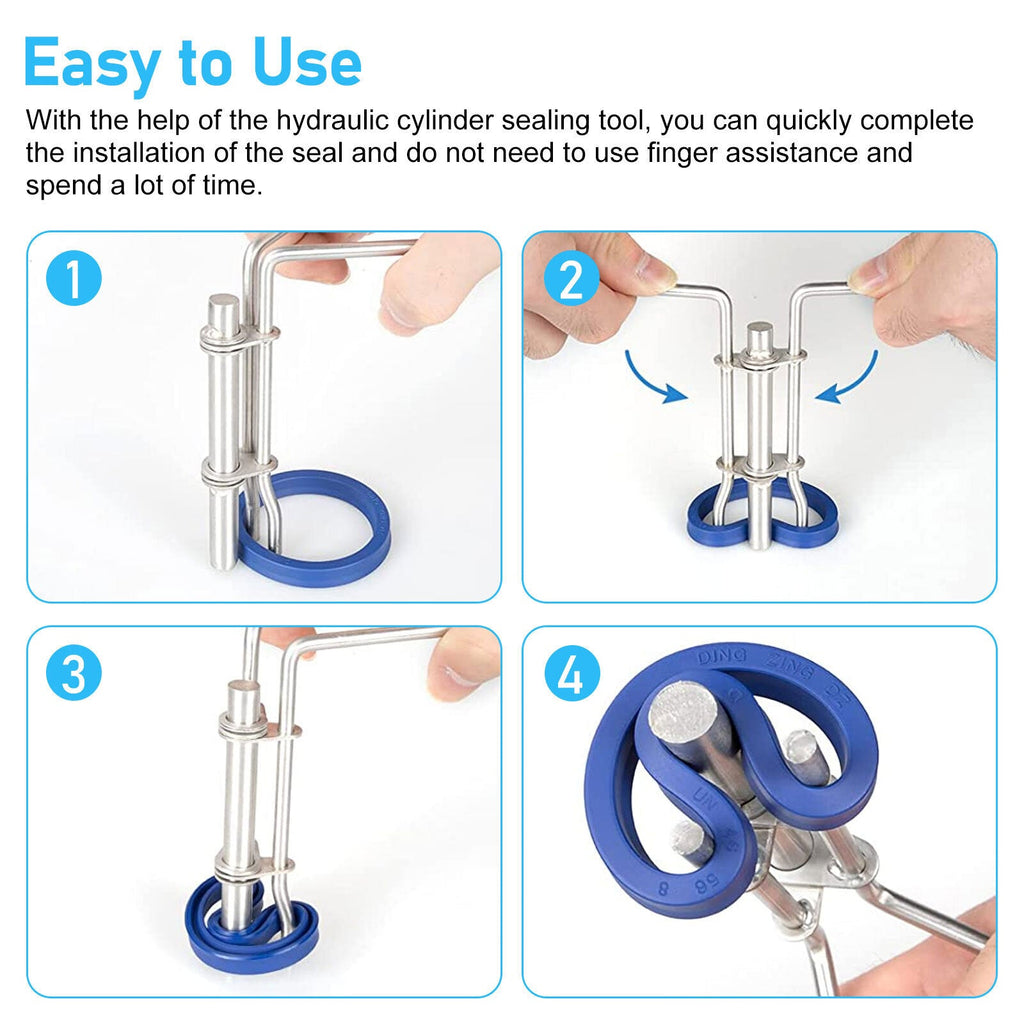

- Fold gradually into omega shape
- Guide without scraping the lip
- Release gently and verify orientation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Select by gland/rod range and maximum seal cross-section. Do not force hard PTFE seals or sizes outside the tool rating.
Frequently Asked Questions
Q: Why use an omega fold? A: It reduces seal profile so the seal can pass through a smaller opening.
Q: Can it install hard PTFE seals? A: Usually not; stiff seals may need sizing cones or dedicated tools.
Q: Which size should be used? A: Use the stated gland/rod range and maximum cross-section.
Q: Can the seal remain twisted? A: No. Verify it returns fully and faces the correct direction.
Part Summary
keywords: hydraulic U-cup installer, 22-165mm rod seal tools, omega twistor set, cylinder gland seal kit, piston rod installer
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
