135-175 PSI Pressure Switch with Unloader for Ingersoll Rand 2340 2475 2545 7100 Replaces 23474570
$113.99
In Stock
$113.99
Sale price
$113.99
Regular price
This aftermarket compressor pressure switch replaces 23474570 for compatible Ingersoll Rand two-stage reciprocating air compressors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer

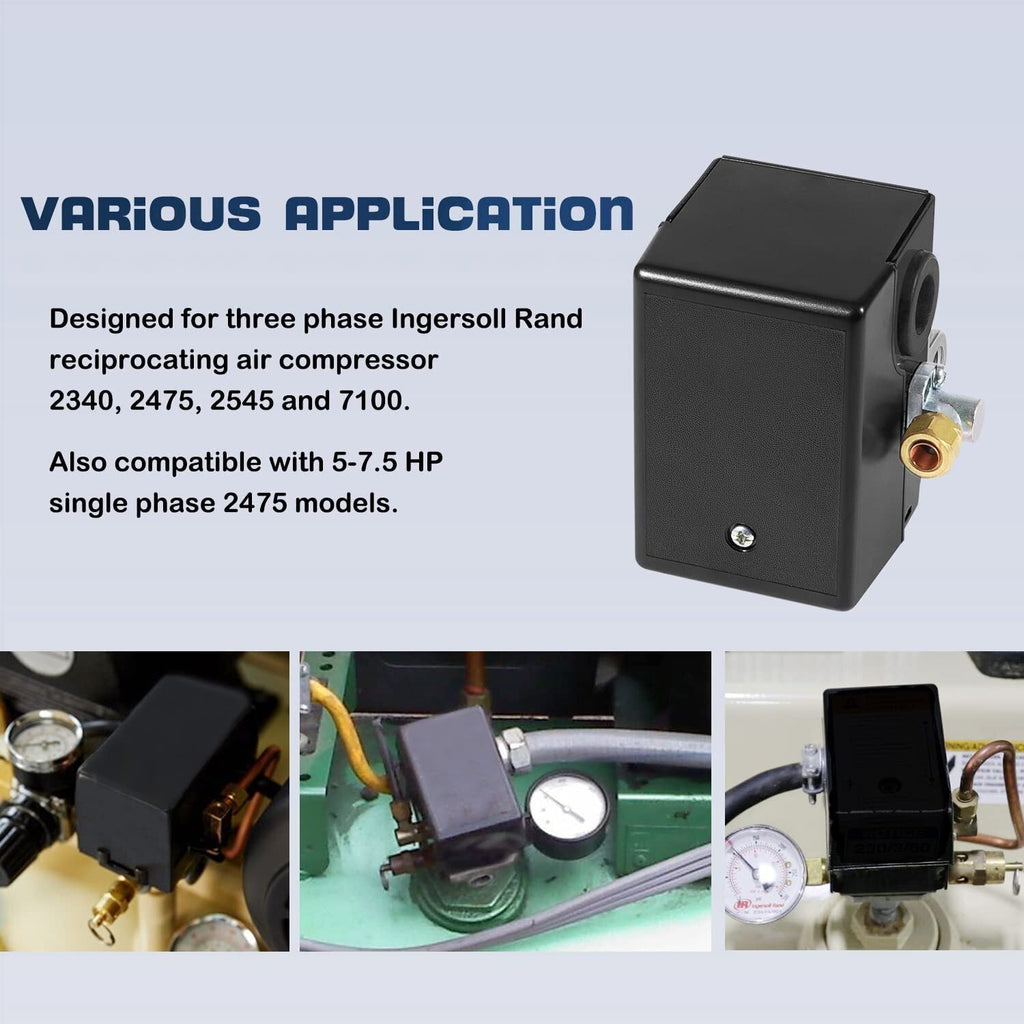

Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ingersoll Rand 2340 series
- Ingersoll Rand 2475 series
- Ingersoll Rand 2545 series
- Ingersoll Rand 7100 series
Product Overview
If the compressor will not start at low tank pressure, will not shut off near full pressure, or hisses continuously at the unloader, the pressure switch deserves a close test.
For the repair to hold up, the part still has to match the original application. This assembly controls motor cycling between approximately 135 PSI cut-in and 175 PSI cut-out and includes the manual lever and unloader function used on compatible systems. Verify motor phase, wiring, manifold, and pressure ratings first.
Key Features & Performance
- Approximate 135 PSI cut-in and 175 PSI cut-out
- Manual on/off lever
- Integrated unloader connection
- Made for compatible two-stage compressor systems
Replaces Part Numbers
- 23474570
Common Uses
- Replacing a confirmed failed or damaged air compressor pressure switch
- Correcting the symptoms described in the product overview after testing related parts
- Restoring dependable operation during repair or scheduled service
- Matching one of the listed reference numbers or compatible applications
Technical Specifications
- Cut-In Pressure: Approximately 135 PSI
- Cut-Out Pressure: Approximately 175 PSI
- Enclosure: NEMA 1 style
- Replacement Type: Aftermarket
Installation & Fitment
- Lock out electrical power and drain tank pressure
- Record every wire and tube location
- Confirm voltage, phase, port arrangement, and pressure rating
- Test cut-in, cut-out, and unloader operation while watching the gauge
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model names alone do not guarantee fitment. Production dates, serial-number breaks, engine packages, wiring, and installed options can change the part used on otherwise similar equipment.
Frequently Asked Questions
Q: What problem is this part commonly used to address? A: If the compressor will not start at low tank pressure, will not shut off near full pressure, or hisses continuously at the unloader, the pressure switch deserves a close test.
Q: How should fitment be confirmed? A: Match the original part number first, then compare the connector or fittings, mounting points, dimensions, and machine or engine serial information.
Q: Is this an original equipment manufacturer part? A: No. This is an aftermarket replacement part for compatible applications.
Q: Can another fault cause similar symptoms? A: Yes. Wiring, grounds, hoses, filters, related controls, and mechanical wear should be tested as part of the diagnosis.
Q: What should be checked after installation? A: Confirm secure connections, normal operation, and no leaks, heat, binding, or warning indications before returning the equipment to service.
Part Summary
keywords: 23474570 pressure switch replacement, Ingersoll Rand 2475 pressure control, 175 PSI compressor switch, 2340 compressor no-start repair, air compressor unloader switch, aftermarket compressor pressure switch
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
