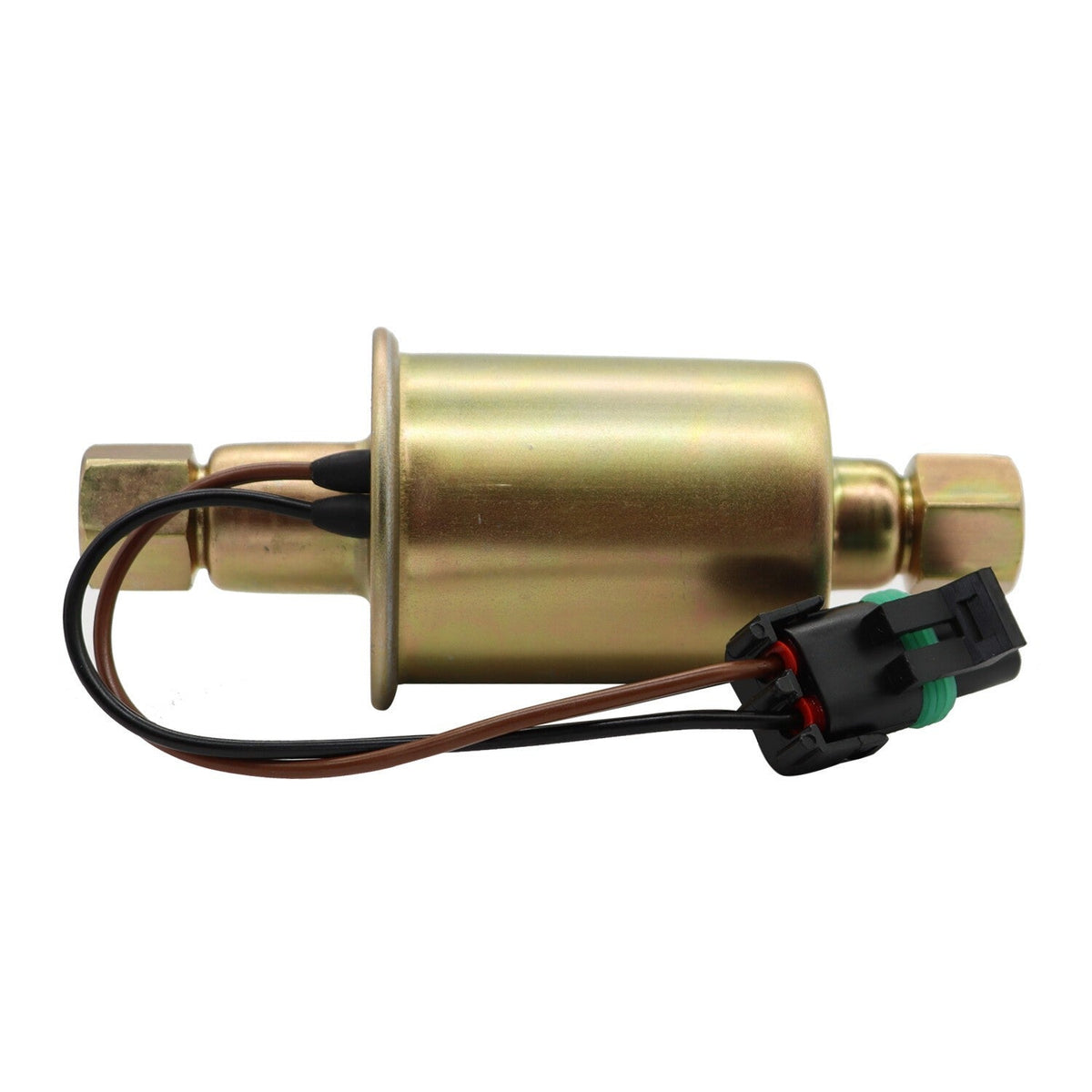

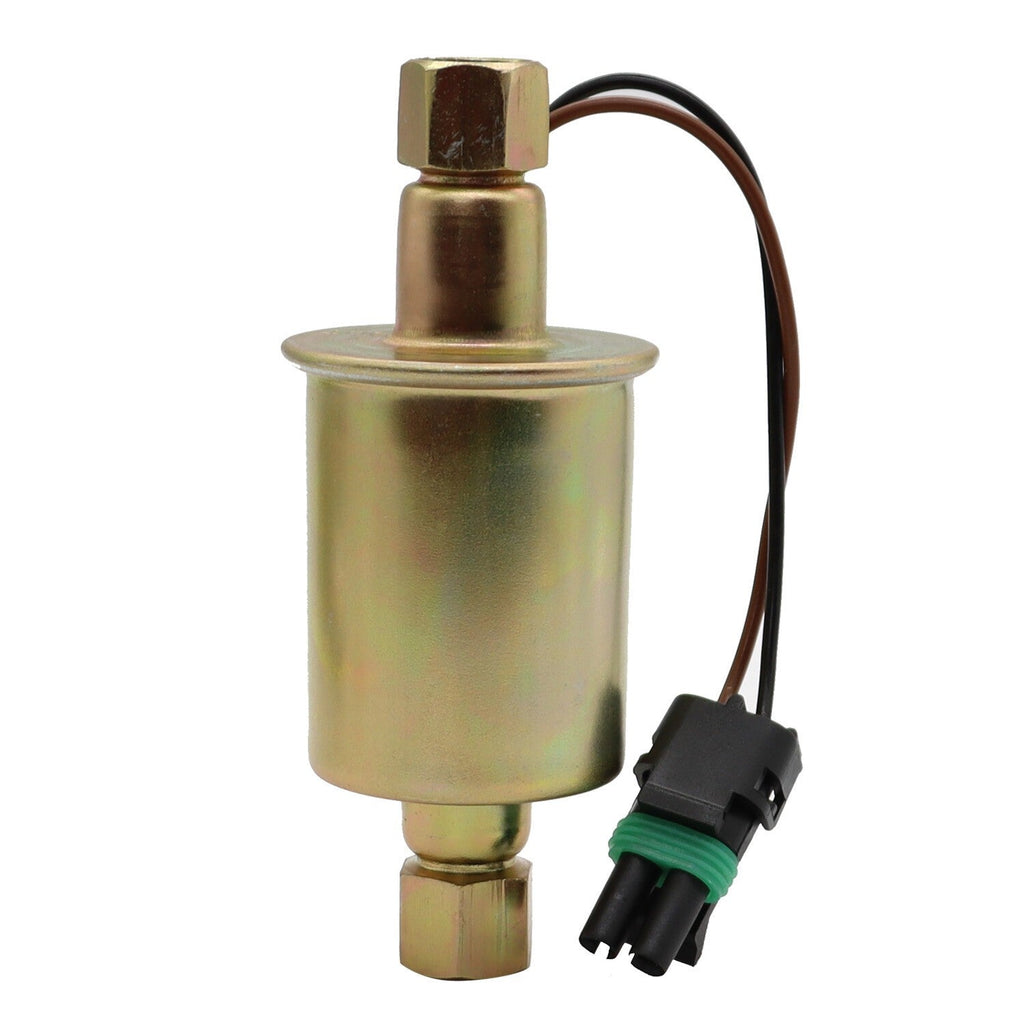

Electric Fuel Lift Pump for 1992–2002 GM 6.5L Diesel – E8413
$42.99
In Stock
$42.99
Sale price
$42.99
Regular price
New aftermarket electric frame-rail fuel lift pump for compatible 1992–2002 Chevrolet and GMC 6.5L diesel trucks and SUVs; cross-reference E8413.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1992–2002 Chevrolet C/K and GMC C/K trucks with 6.5L diesel
- 1992–2002 Chevrolet/GMC Suburban with 6.5L diesel
- Compatible 6.5L diesel utility and chassis-cab applications using E8413-style pump
Product Overview
Long cranking, stalling, air in the fuel filter, low transfer pressure, or a dry injection-pump inlet can point to a failed lift pump after the oil-pressure switch, relay, wiring, filter, tank pickup, and hoses are checked. This pump restores low-pressure fuel supply to the 6.5L system.
GM used different pump strategies in early and later years. Verify the connector, inlet and outlet size, mounting, flow direction, and original pump number.
Key Features & Performance
- Electric low-pressure diesel lift pump
- Frame-rail mounting for matching GM applications
- Supports fuel delivery to the injection pump
- E8413 aftermarket cross-reference
Replaces Part Numbers
- E8413
Common Uses
- Repairing a no-fuel or low-transfer-pressure condition
- Replacing a leaking or noisy lift pump
- Restoring prime after wiring and filter issues are corrected
Technical Specifications
- Product Type: Electric diesel fuel lift pump
- Engine: GM 6.5L diesel
- Mounting: Inline/frame rail
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Confirm voltage at the pump during crank and run conditions
- Replace a restricted fuel filter and inspect the tank pickup
- Observe the flow arrow and use diesel-rated hose and seals
- Prime the system, check for leaks, and verify transfer pressure
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
1992–1993 and 1994-up systems can use different controls and pump references. Electrical diagnosis and physical comparison are required before ordering.
Frequently Asked Questions
Q: Can a bad oil-pressure switch stop the lift pump? A: Yes. On many 6.5L systems the switch or relay circuit can interrupt pump power.
Q: Will this fix every 6.5L stalling problem? A: No. Air leaks, PMD/FSD faults, injection-pump issues, filters, and wiring can create similar symptoms.
Q: Where is the pump mounted? A: The matching application uses an inline electric pump along the chassis/fuel line.
Q: What does E8413 identify? A: It is an aftermarket pump cross-reference used for compatible applications.
Part Summary
keywords: E8413 fuel pump, 6.5 diesel lift pump replacement, Chevy 6.5 long crank repair, GMC diesel frame rail pump, 1992 2002 GM lift pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
