1600141 Single-Axis 9-Pin Joystick Controller for JLG Boom Lifts
$324.99
In Stock
$324.99
Sale price
$324.99
Regular price
Replace a worn single-axis 9-pin platform control joystick on compatible JLG boom lifts using part reference 1600141.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- JLG 40H
- JLG 40H+6
- JLG 40HA
- JLG 45HA
- JLG 60H
- JLG 60H+6
- JLG 60HA
- JLG 70H
- JLG 80H
- JLG 80HX
- JLG 80HX+6
- JLG 86HX
- JLG 150HAX before serial number 74463, when using 1600141
Product Overview
A lift that creeps, responds only in part of the handle travel, or will not command one motion can have a worn joystick—but wiring, enable switches, valves, and calibration should be checked first. This controller matches the 9-pin version used on the listed machines.
JLG also used a similar 6-pin controller under a different number. Pin count and machine serial number are critical on this safety-related part.
This is an aftermarket replacement part and is not manufactured or supplied by the original equipment brand.
Key Features & Performance
- Single-axis joystick controller

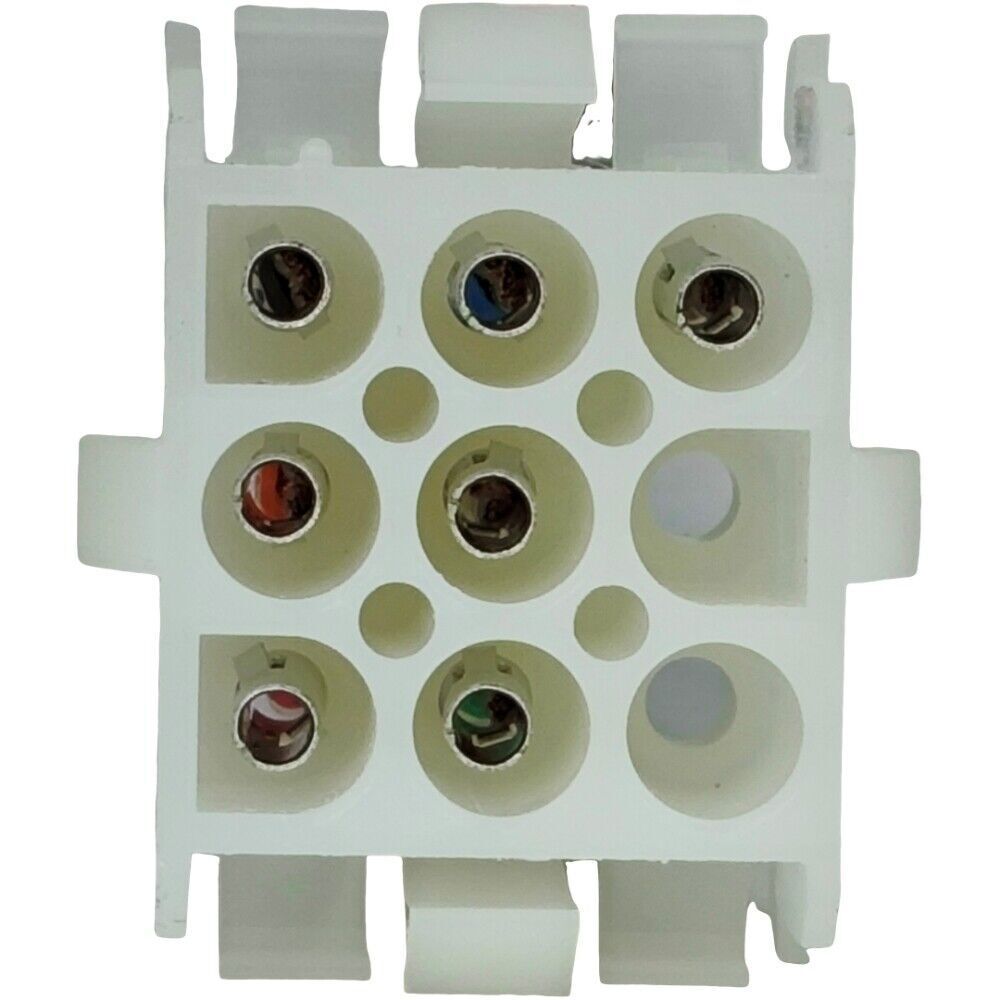

- Nine-pin connector configuration
- Replaces JLG reference 1600141
- For compatible boom-lift platform control stations
Replaces Part Numbers
- 1600141
Common Uses
- Repairing dead spots in joystick travel
- Correcting an erratic command after circuit diagnosis
- Replacing a physically broken handle or controller
- Restoring proper single-axis platform input
Technical Specifications
- Product Type: Boom-lift joystick controller
- Control Style: Single axis
- Connector: 9 pin
- Application: Compatible JLG platform controls
Installation & Fitment
- Lower and secure the lift and follow lockout procedures
- Confirm 1600141, nine pins, and the machine serial range
- Label connections and inspect the harness before replacement
- Perform the required controller setup or calibration
- Complete ground-level and platform function tests before service
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Model names alone may not guarantee fitment. Compare the original component, reference number, connector or mounting design, dimensions, and any serial-number or production-date break before purchase.
Frequently Asked Questions
Q: What is the difference between 1600141 and 1600094? A: 1600141 is the 9-pin style; 1600094 is commonly listed as a similar 6-pin controller.
Q: Can a bad valve feel like a bad joystick? A: Yes. Wiring, enable switches, modules, and hydraulic controls should be tested before replacement.
Q: Can the lift go straight back to work after installation? A: No. Required calibration and full safety/function checks must be completed first.
Part Summary
keywords: JLG 1600141 joystick, 9 pin boom lift controller, 80HX platform control repair, 60HA joystick replacement, JLG lift dead spot fix, single axis aerial control
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
