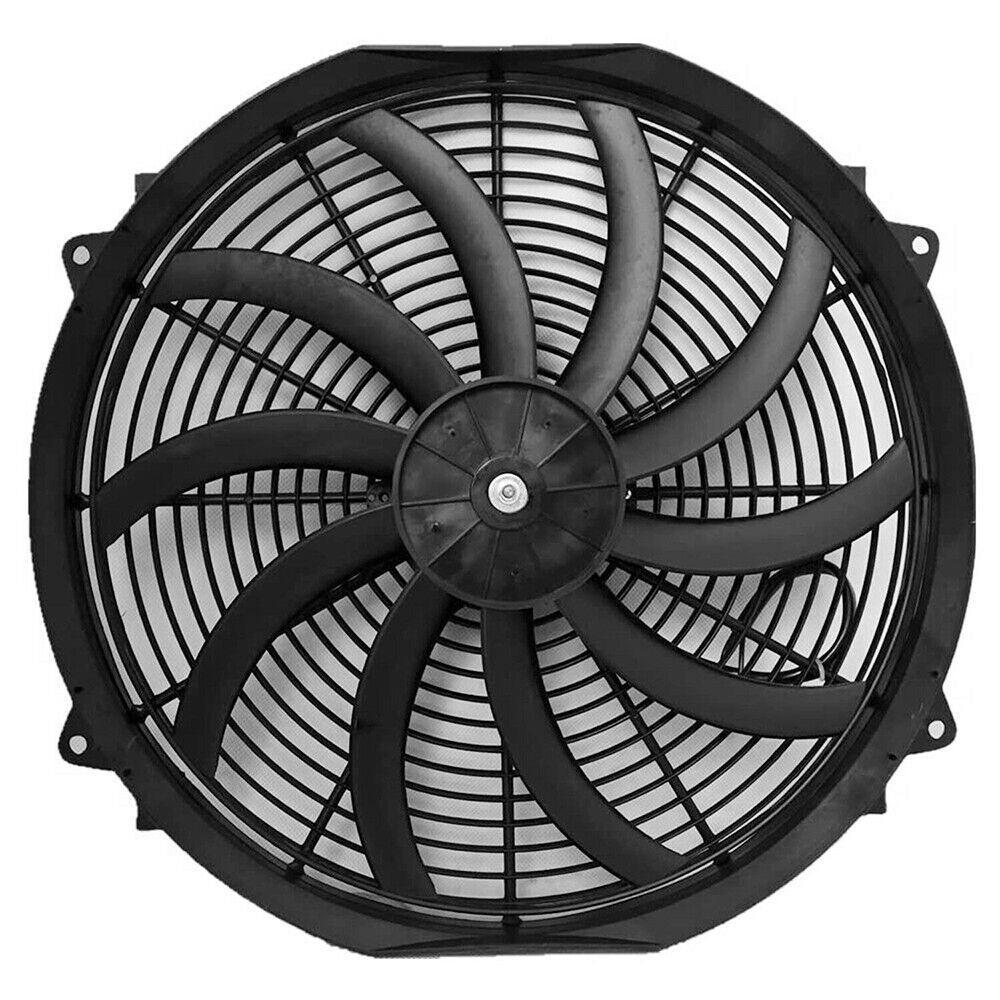

16in Electric Radiator Fan 3000 CFM with Thermostat Relay Kit
$104.99
In Stock
$104.99
Sale price
$104.99
Regular price

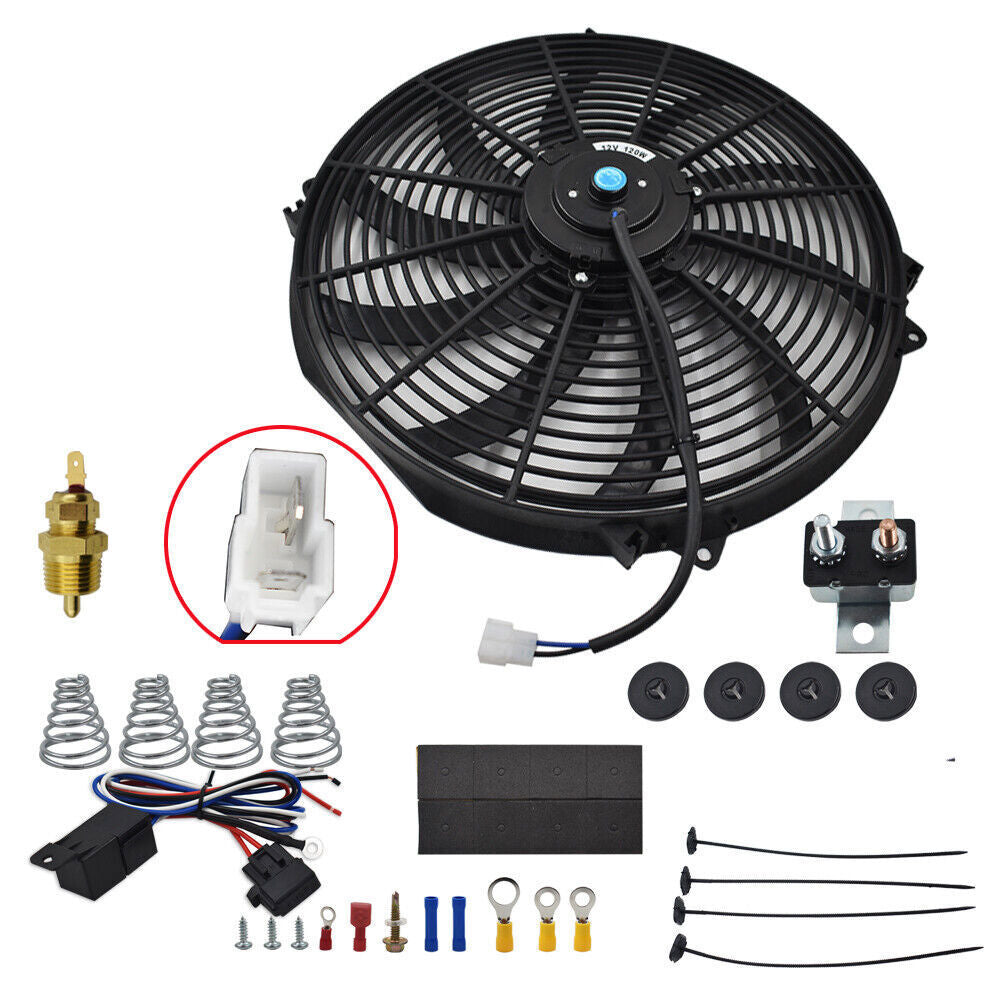

This universal 16-inch electric radiator fan kit includes a 3/8-inch NPT thermostat switch, relay harness, circuit breaker, and 1/2-inch NPT adapter.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview
Slow-speed overheating, an engine swap with no room for a mechanical fan, or an air-conditioning upgrade can create the need for controlled electric airflow. A fan helps only when the radiator, water pump, thermostat, cap, and coolant circulation are already correct.
The curved-blade fan is rated at 3000-plus CFM and can be arranged as a pusher or puller when blade and motor direction permit. It is universal: radiator coverage, current draw, alternator capacity, shroud design, polarity, switch temperature, and mounting clearance must be engineered for the vehicle.
Key Features & Performance
- 16-inch curved-blade electric cooling fan
- Advertised airflow of 3000-plus CFM
- 3/8-inch NPT temperature switch with 1/2-inch adapter
- 40A relay harness and 30A circuit breaker included
- Supports compatible pusher or puller custom installations
Common Uses
- Adding low-speed airflow to a custom radiator
- Replacing a failed universal electric fan and controller
- Creating clearance after an engine or radiator swap
Technical Specifications
- Product Type: Universal electric radiator fan kit
- Fan Diameter: 16 in
- Advertised Airflow: 3000+ CFM
- Relay: 40A
- Circuit Protection: 30A circuit breaker
- Thermostat Thread: 3/8 in NPT with 1/2 in NPT adapter
Installation & Fitment
- Measure radiator core coverage and fan depth with the engine moving on its mounts

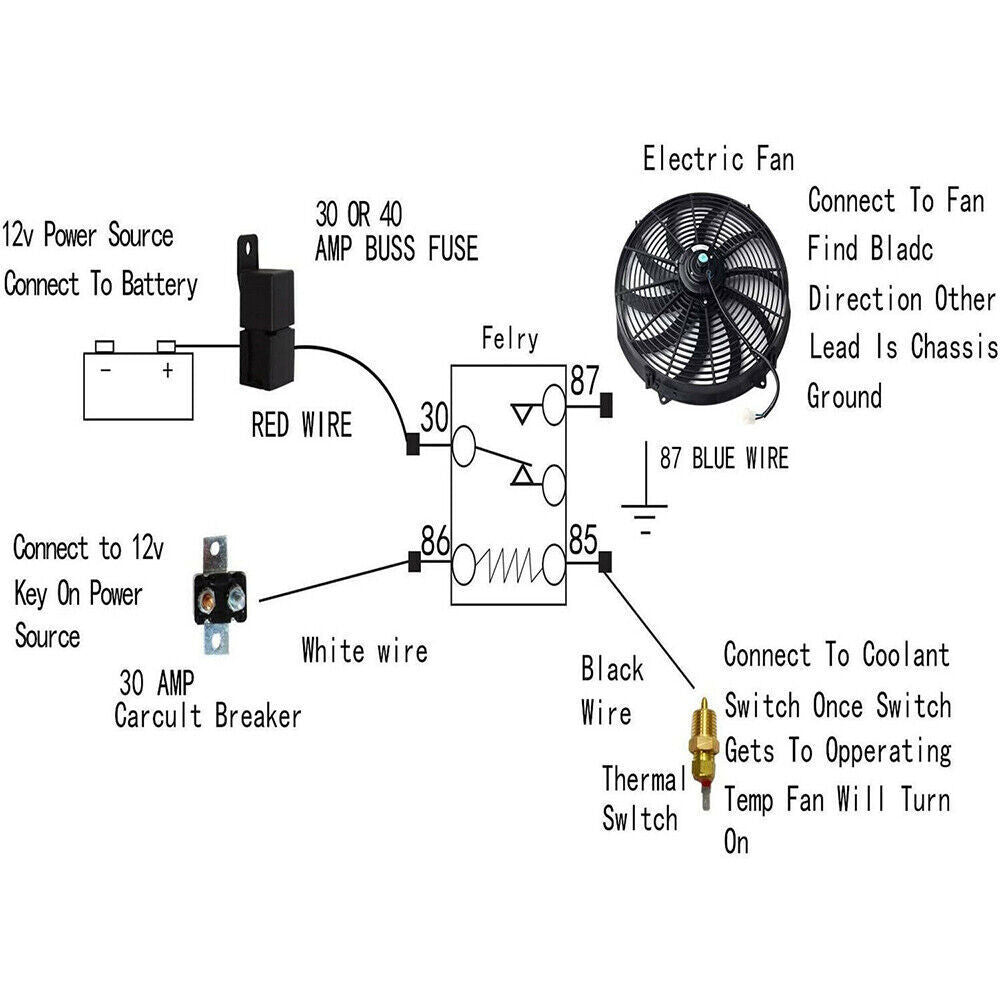

- Use the supplied relay circuit rather than routing motor current through a dash switch
- Confirm polarity and airflow direction before final mounting
- Verify alternator output, fan current draw, thermostat temperature, and fuse protection
Compatibility Notice
This is a universal or service-tool item, not a guaranteed bolt-on part for every vehicle or machine. Measure and compare all dimensions, connections, operating limits, and the intended system before purchase. Custom installation may be required.
Frequently Asked Questions
Q: Should the fan be a pusher or puller? A: A puller behind the radiator is usually more efficient when space allows, but the build determines placement.
Q: Will 3000 CFM cure an overheating engine? A: Not if coolant flow, head gasket, tune, radiator capacity, or airflow sealing is the real problem.
Q: Can the motor be wired directly to a small toggle switch? A: No. Use a properly rated relay and circuit protection.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: 16 inch electric radiator fan, 3000 CFM cooling fan kit, thermostat relay fan wiring, universal pusher puller fan, engine swap radiator cooling
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
