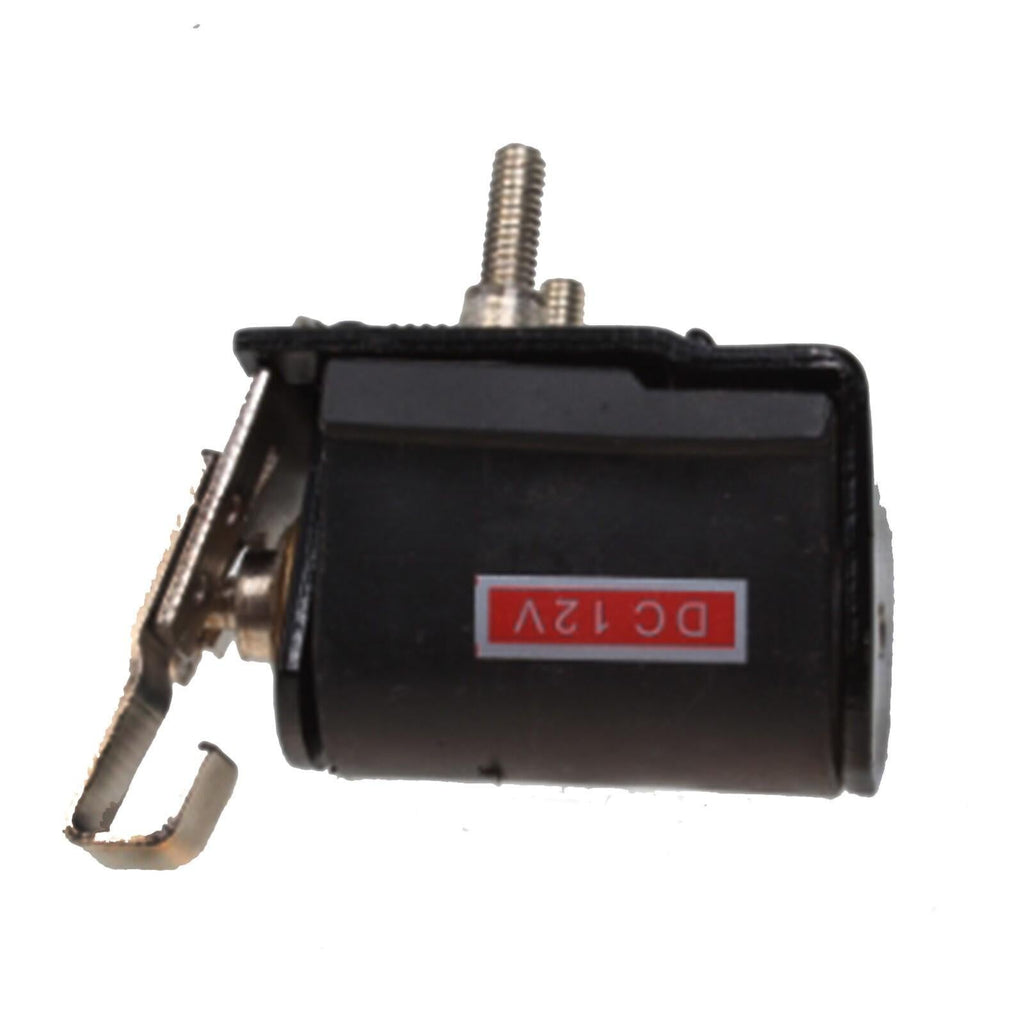

Ford 6.9L 7.3L IDI 12V Injection Pump Shutoff Solenoid 26214
$38.99
In Stock
$38.99
Sale price
$38.99
Regular price
This 12-volt energized-to-run shutoff solenoid replaces Stanadyne 26214 on compatible 1983-1993 Ford 6.9L and 7.3L IDI diesel injection pumps.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1983-1987 Ford trucks with 6.9L IDI diesel and compatible DB2 pump
- 1988-1993 Ford trucks with 7.3L IDI diesel and compatible DB2 pump
- Other 12V Stanadyne automotive DB2 pumps specifying 26214
- Does not apply to 24V systems or DE-series electronic pumps
Product Overview
An IDI that cranks strongly but produces no smoke may not be receiving fuel because the internal DB2 pump solenoid is not opening. The same part can also cause an engine that will not stop from the key when its plunger sticks.
The solenoid installs beneath the injection-pump top cover and must be connected without pinching wires or misplacing the linkage. It is for 12-volt energized-to-run systems; many military or industrial pumps use 24 volts and are not interchangeable.
Key Features & Performance
- 12V energized-to-run operation
- Fits compatible Stanadyne / Roosa Master DB2 pumps
- Replaces 26214
- For 6.9L and 7.3L Ford IDI applications
- Internal injection-pump service part
Replaces Part Numbers
- 26214
Common Uses
- Repairing a crank/no-fuel condition with no voltage or movement at the pump solenoid
- Replacing a sticking solenoid that prevents key-off shutdown
- Servicing a DB2 top cover after degraded fuel damages internal parts
Technical Specifications
- Product Type: Injection Pump Shutoff Solenoid
- Primary Application: Ford IDI diesel engines with Stanadyne / Roosa Master DB2 pump
- Package Quantity: 1 solenoid
- Condition: New
- Replacement Type: Aftermarket
- Voltage: 12V
- Operation: Energized to run
- Pump Family: Stanadyne / Roosa Master DB2
- Reference: 26214
- Location: Inside injection-pump top cover
Installation & Fitment
- Clean the injection pump exterior thoroughly
- Disconnect the battery and keep dirt out of the open pump
- Position the solenoid and linkage exactly as the pump manual specifies
- Confirm key-on click, fuel delivery, and clean key-off shutdown
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Will this fit a 24-volt military truck? A: No. The listed solenoid is 12 volts and can be damaged by a 24-volt system.
Q: Can the pink wire cause the same no-start? A: Yes. The solenoid needs key-on power, so test the feed and connector before opening the pump.
Q: How do I confirm this is the correct part? A: Match 26214, 12V system, DB2 pump tag, top-cover style, connector, and engine/pump application.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Stanadyne 26214 solenoid, Ford 6.9 IDI no fuel, 7.3 IDI DB2 shutoff, 12V Roosa Master solenoid, IDI injection pump cutoff
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
