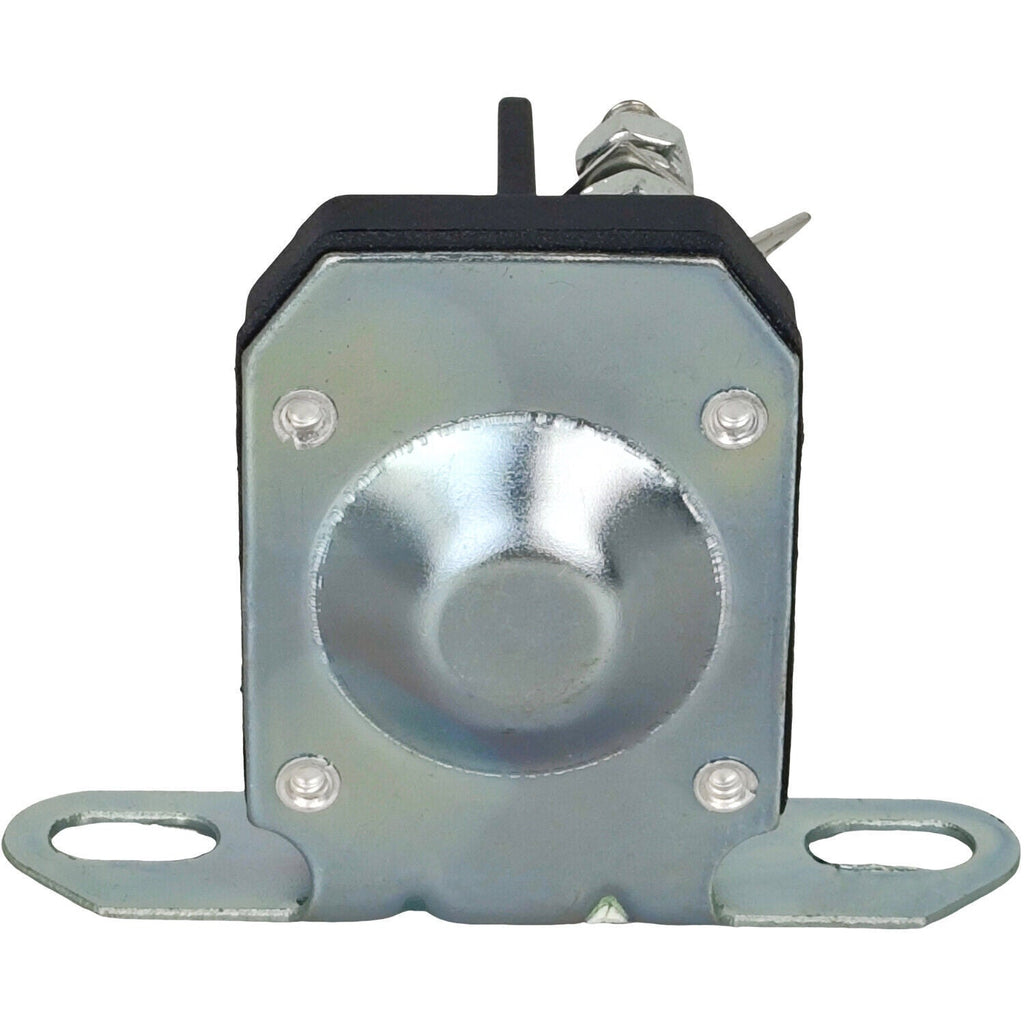

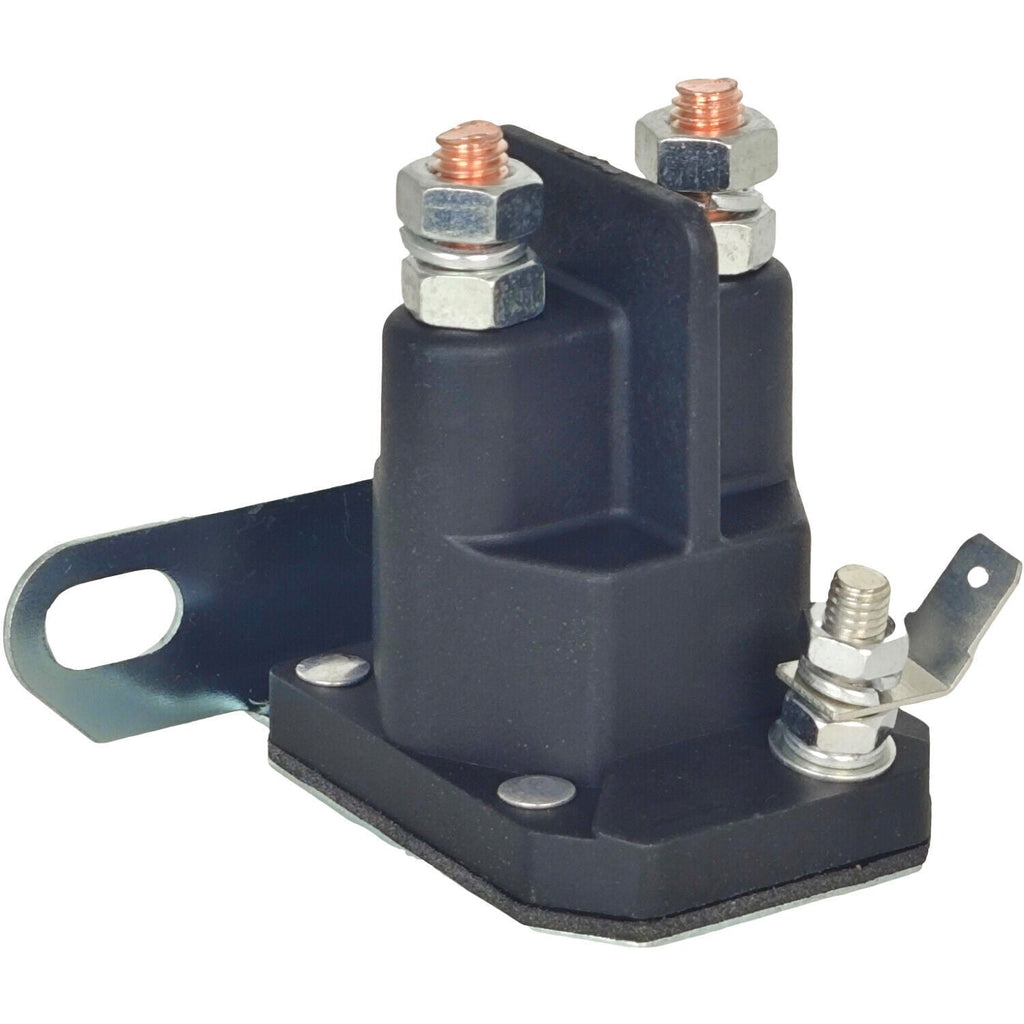

Hustler Zero-Turn 12V Starter Solenoid 030817 832-1211-210
$33.99
In Stock
$33.99
Sale price
$33.99
Regular price
This new aftermarket 12-volt three-terminal starter solenoid replaces Hustler 030817 and Trombetta 832-1211-210 for compatible Raptor, FasTrak, and related zero-turn mowers.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Hustler Raptor, Raptor SD, Raptor SDX, and Raptor Flip-Up applications using 030817
- Hustler FasTrak zero-turn mowers using the matching three-terminal solenoid
- Other Hustler / Trombetta mower applications only after terminal and bracket comparison
Product Overview
A mower that produces one solid click, cranks only after repeated key turns, or shows excessive voltage drop across the large studs may have burnt internal contacts. A weak battery, corroded ground, safety interlock, key switch, or starter can sound exactly the same.
The solenoid closes the high-current path from the battery to the starter when the small control terminal is energized. It does not bypass the seat, PTO, brake, or neutral interlocks.
Match 030817 or 832-1211-210, 12-volt coil, three terminals, one-hole bracket, cable-stud size, and mower model. Check the wiring diagram before moving cables.
Key Features & Performance
- 12-volt starter control coil
- Two high-current studs plus control terminal
- Single-hole mounting bracket for matching mowers
- Replacement for pitted contacts, open coil, or heat-damaged terminals
Replaces Part Numbers
- 030817
- 832-1211-210
- 8321211210
Common Uses
- Repairing a click-no-crank complaint
- Replacing a solenoid with loose or burnt studs
- Correcting intermittent starter engagement after circuit testing
Technical Specifications
- Product Type: Starter solenoid / relay switch
- Voltage: 12 V DC
- Terminal Count: 3
- Condition: New aftermarket replacement
Installation & Fitment
- Set the parking brake and remove the key
- Disconnect the battery negative cable
- Label and clean each terminal connection
- Mount securely and keep cables away from moving parts
- Test every safety interlock before mowing
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can I jump the solenoid to test it? A: High-current bypass tests can cause arcing or unexpected cranking. Use a safe electrical test procedure and keep interlocks functional.
Q: Will it fix a mower that only clicks? A: Only if the solenoid is faulty; battery, cables, grounds, starter, and safety circuit must also pass testing.
Q: Is this continuous duty? A: This listing is a starter solenoid for the matching mower circuit; use only the duty type specified for the original application.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Hustler 030817 starter solenoid, 832-1211-210 replacement, Raptor SD click no crank, FasTrak starter relay, zero turn mower solenoid switch
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
