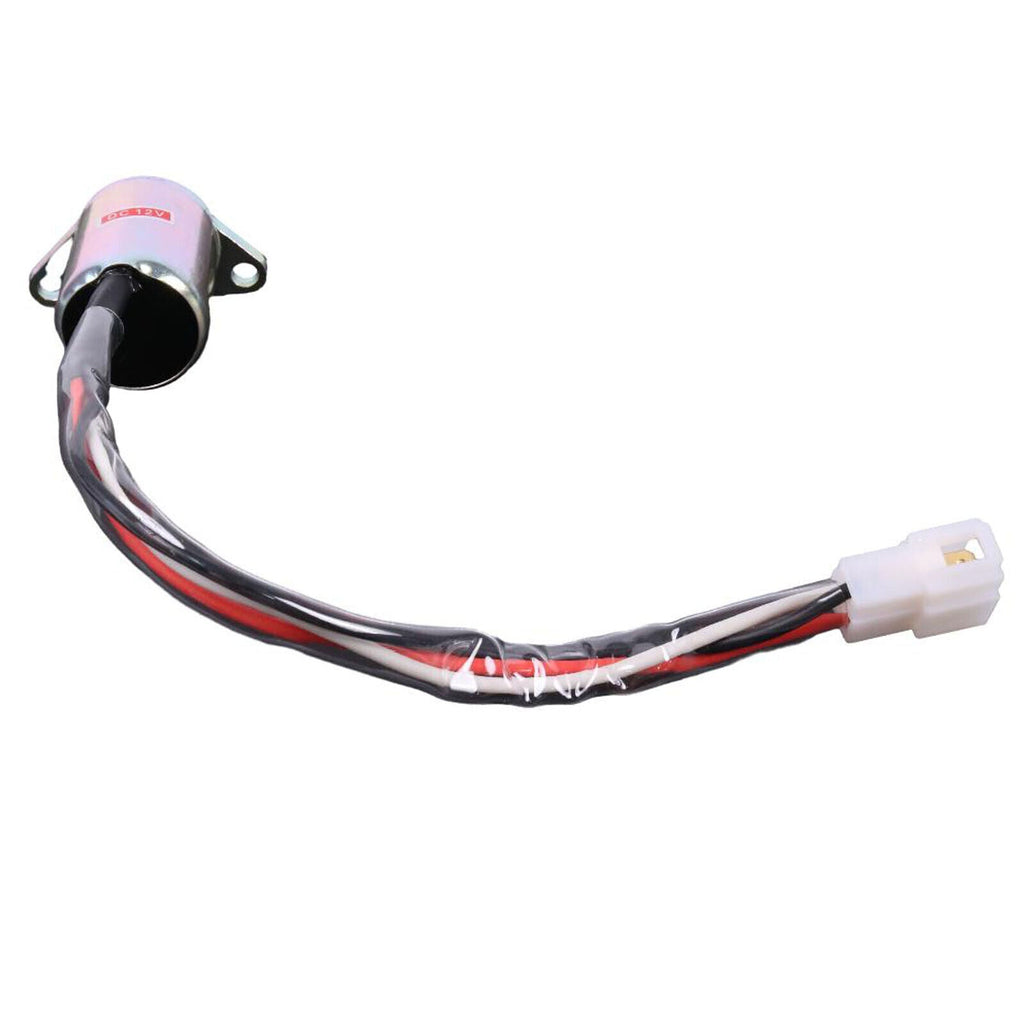

Yanmar 12V Fuel Shutoff Solenoid 119653-77950
$39.99
In Stock
$39.99
Sale price
$39.99
Regular price
This new aftermarket 12-volt fuel-shutoff solenoid replaces Yanmar 119653-77950, M806808, and 1503ES-12S5SUC5S for compatible industrial diesel engines and equipment.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yanmar 3TNE84 and 3TNE88 engines
- Yanmar 4TNE84 engine
- Yanmar 3TNV70 and 3TNV76 engines
- Yanmar 4TNV84 engine
- Yanmar 4TNV94L-SFN and 4TNV98L-SFN engines
- Yanmar 4TNV106-GGE engine
- Equipment applications using M806808 or 119653-77950; verify host-machine linkage
Product Overview
An engine that cranks but the stop lever never moves, starts and immediately dies, or will not shut off with the key may have a failed pull or hold circuit. Low cranking voltage, a bad relay, weak ground, broken linkage, or a controller fault must be ruled out.
The dual-function solenoid pulls the fuel control into RUN during starting and holds it there while the engine operates, then releases it for shutdown. It does not repair the injection pump or provide fuel pressure.
Match 12 volts, all reference numbers, mounting centers, rod and clevis length, connector and wire count, stroke, engine code, host machine, and linkage direction. Several Yanmar engines use similar-looking solenoids with different geometry.
Key Features & Performance
- 12-volt pull-and-hold diesel shutdown solenoid
- Rod-style actuation for matching fuel-control linkage
- Cross-references common Yanmar and equipment numbers
- Replacement for an electrically open, weak, or seized unit
Replaces Part Numbers
- 119653-77950
- M806808
- 1503ES-12S5SUC5S
- SA-4562
- SA-4562T
- 5864004350
Common Uses
- Repairing an engine that starts only while the key is held
- Restoring key-off shutdown after linkage inspection
- Replacing a solenoid that gets hot because the pull circuit stays energized
Technical Specifications
- Product Type: Diesel fuel-shutoff solenoid
- Voltage: 12 volts
- Control Style: Pull and hold; verify wiring
- Condition: New aftermarket replacement
Installation & Fitment
- Disconnect battery power
- Measure voltage at the solenoid while cranking and in RUN
- Record rod adjustment and linkage position
- Confirm the pull circuit drops out after engagement
- Test start, hold, and shutdown without binding
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Why does the engine start and then die? A: The hold winding or its power feed may fail after the pull winding engages, but fuel supply and controller inputs should also be tested.
Q: Can I test it by applying power? A: Only with the correct pinout and fused 12-volt procedure; incorrect power can overheat the pull winding.
Q: Does M806808 confirm fit by itself? A: It is a useful reference, but rod length, connector, mount, engine, and machine configuration still need comparison.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Yanmar 119653-77950 shutoff solenoid, M806808 fuel solenoid replacement, 1503ES-12S5SUC5S 12V solenoid, Yanmar starts then dies, 3TNE88 engine stop solenoid
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
