Cam Phaser Lockout Kit for Ford 5.4L 3-Valve Engines
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This aftermarket cam phaser lockout kit is intended for compatible Ford 5.4L three-valve engines when paired with the required engine calibration.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford F-150 5.4L 3V 2004-2010
- Ford F-250/F-350 5.4L 3V 2005-2010
- Ford Expedition 5.4L 3V 2004-2014
- Lincoln Navigator 5.4L 3V 2004-2014
- Lincoln Mark LT 5.4L 3V 2006-2008
- Other Ford 5.4L 3V applications using the matching phaser design and calibration
Product Overview
A worn 5.4L three-valve timing system can rattle, lose commanded cam control, or set correlation faults, but lockouts are not a shortcut around failed chains, guides, tensioners, low oil pressure, or damaged phasers. These inserts mechanically hold compatible phasers at a fixed position. Full lockout changes variable cam timing operation and requires suitable tuning; it should be part of a correctly diagnosed repair.
For a machine that needs to return to work, careful identification now prevents another round of disassembly later. Confirm three-valve engine family, phaser design, tune availability, and whether the kit is full-lockout or limiter style.
Key Features & Performance

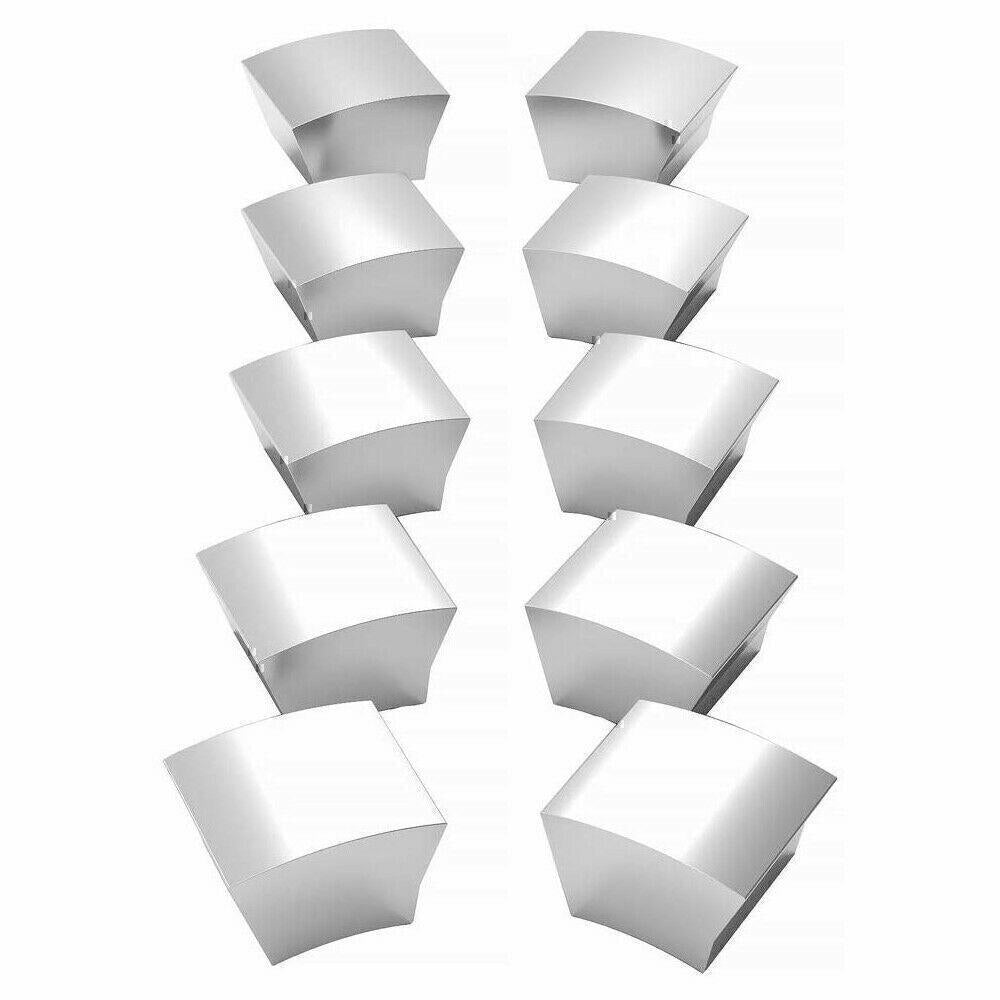

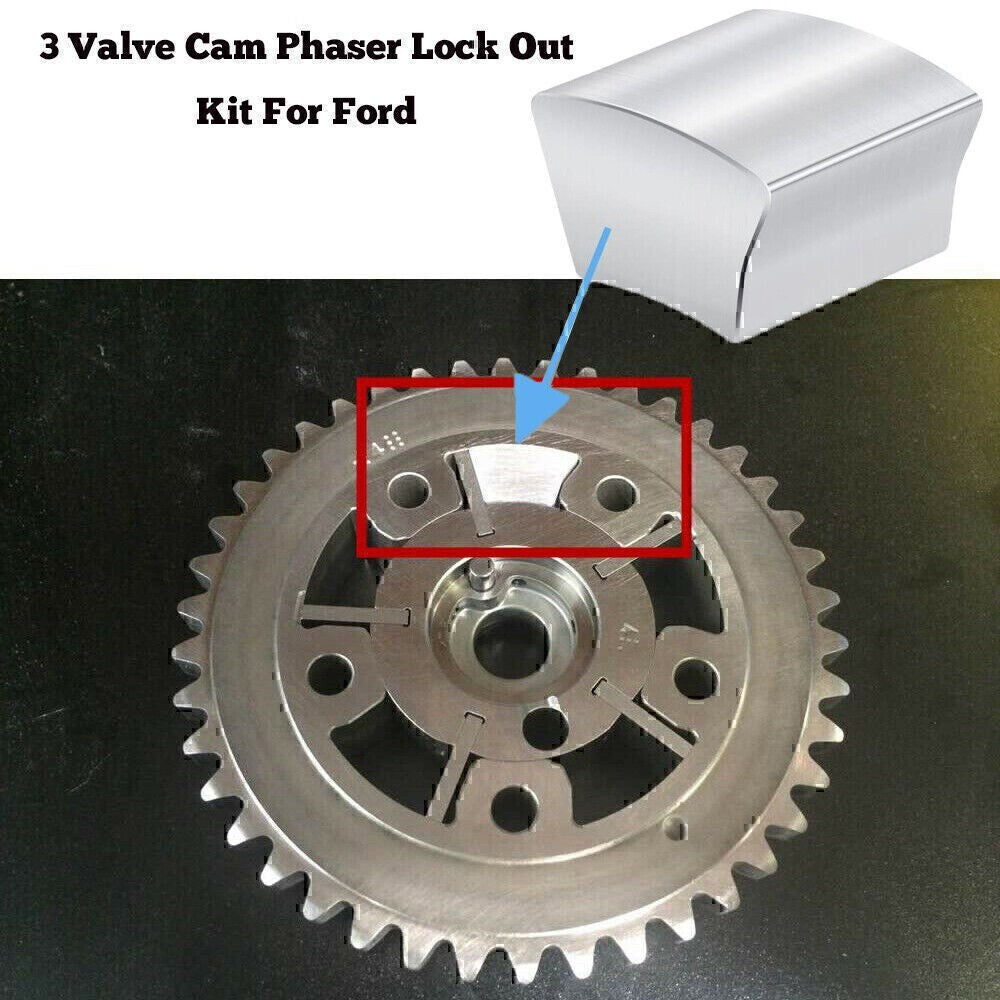

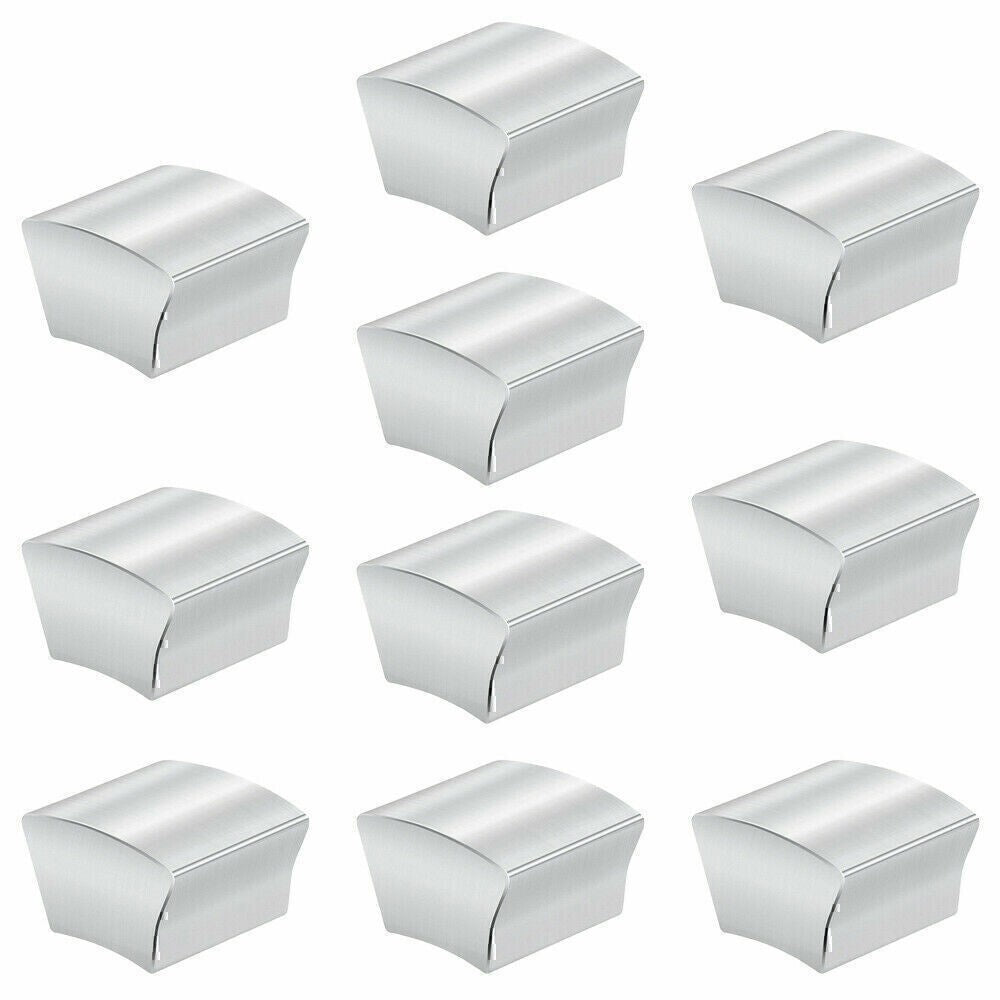

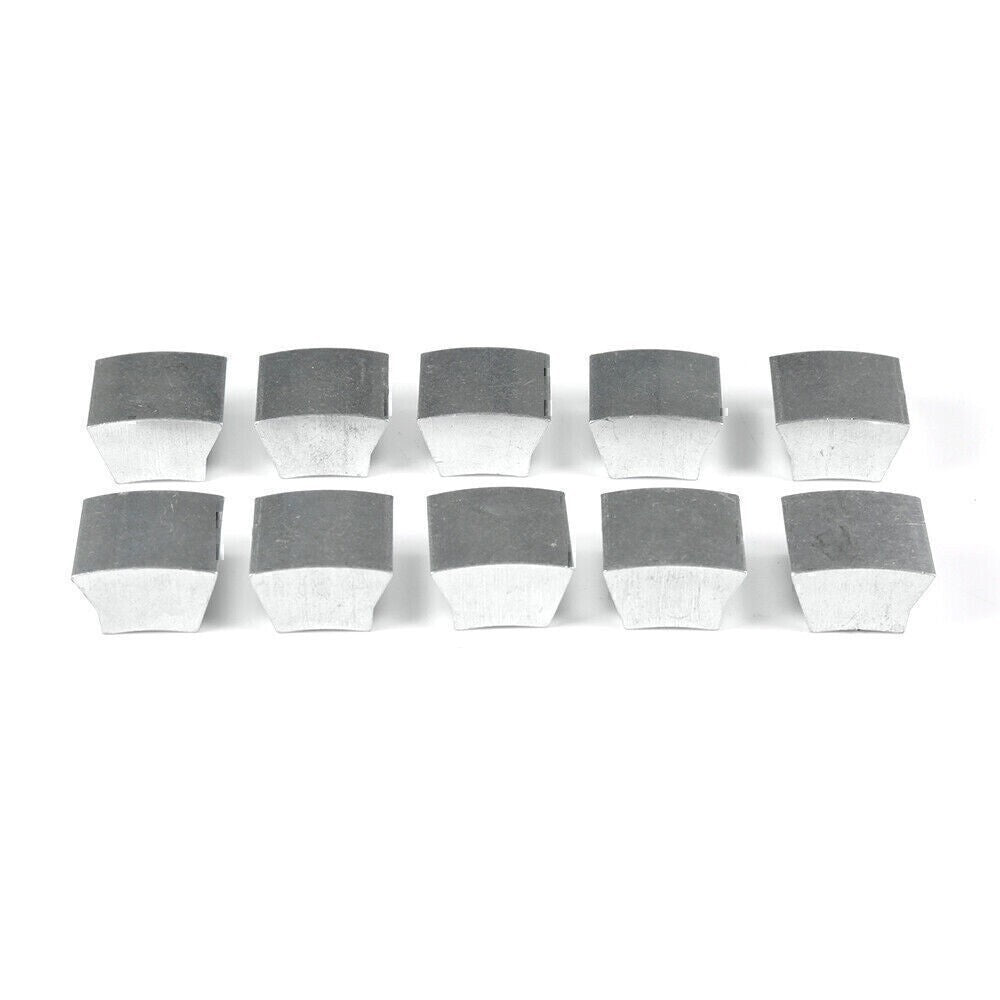

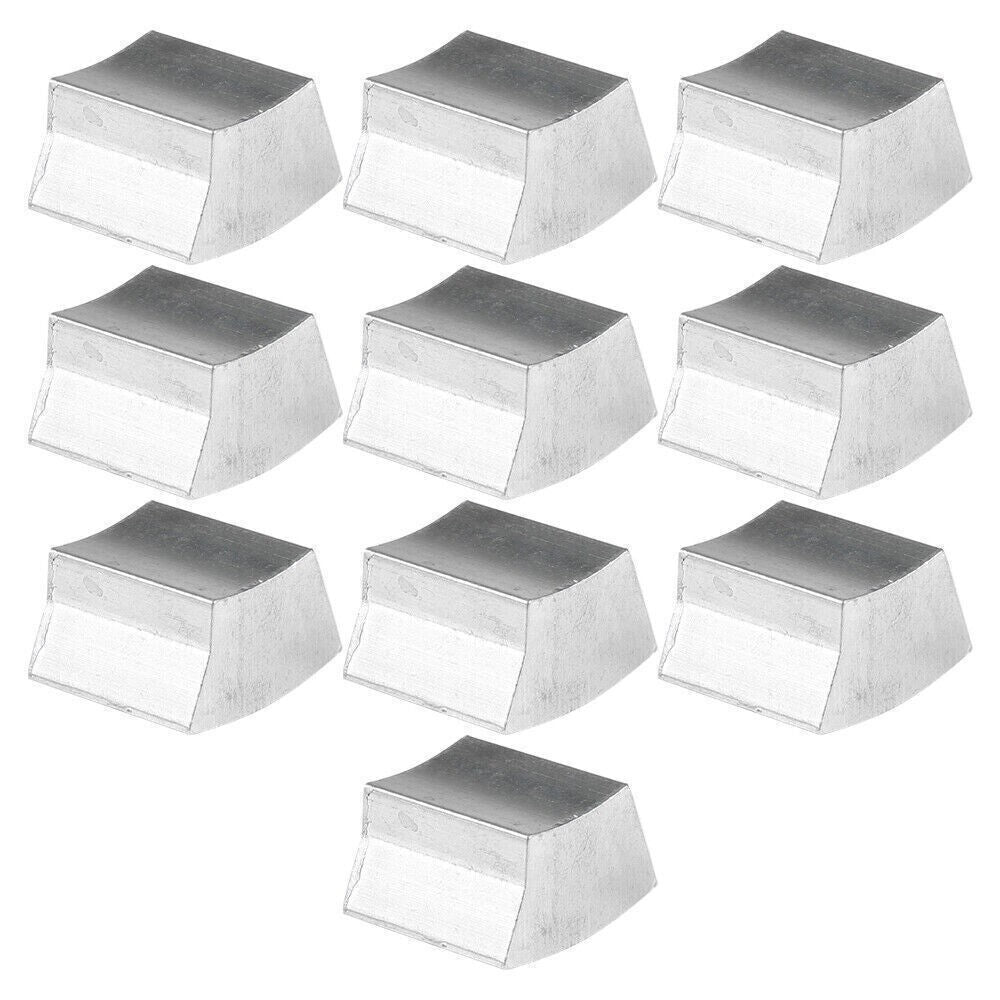

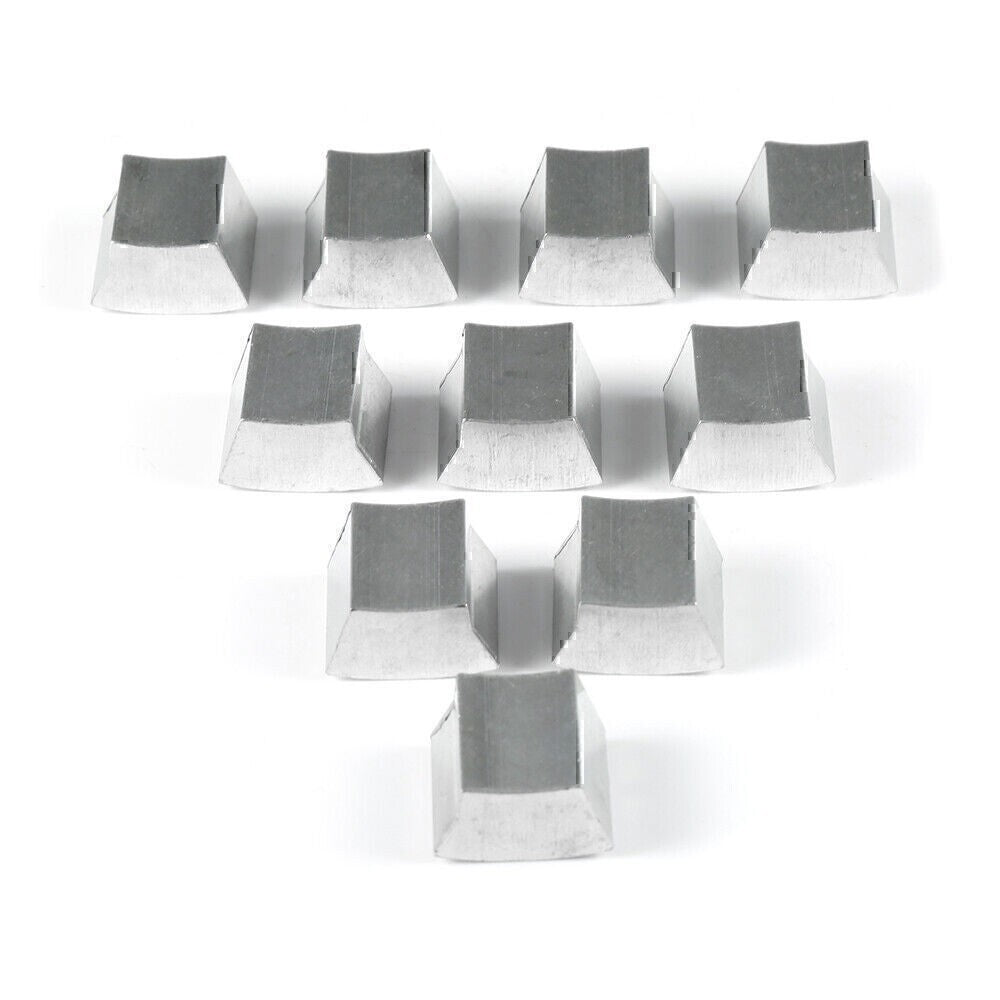

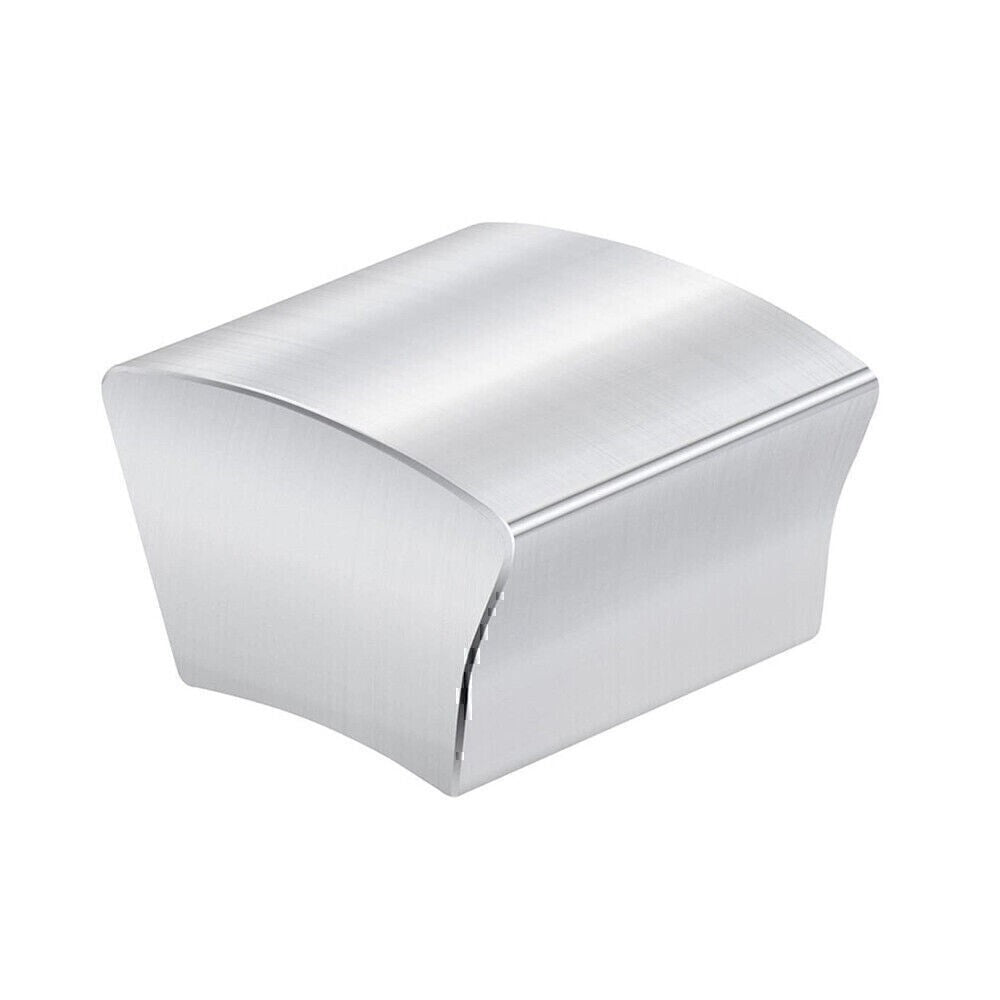

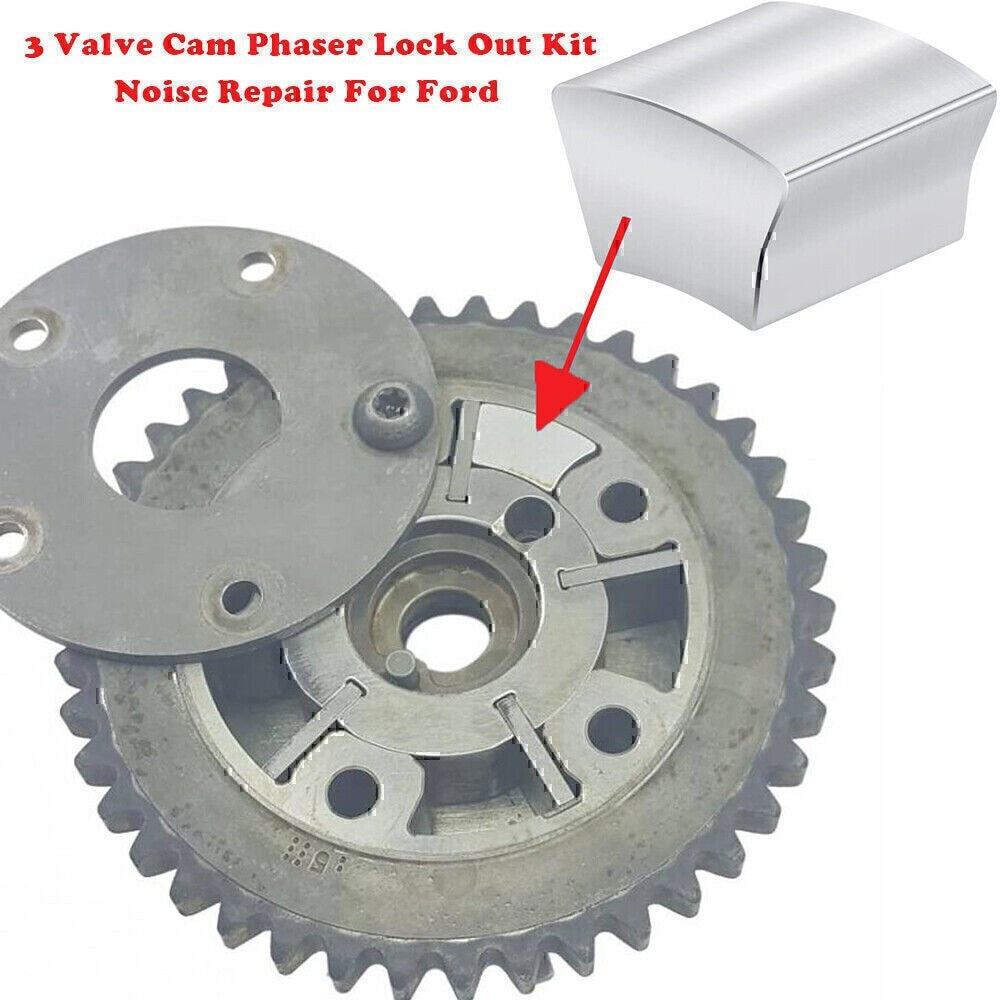

- Mechanical inserts hold compatible cam phasers fixed
- Used during a complete three-valve timing-system strategy
- Billet-style lockout components
- Alternative to retaining active phaser movement in a tuned application
Common Uses
- Building a diagnosed 5.4L 3V timing repair
- Eliminating phaser movement after tuning plans are confirmed
- Performance or fleet build using fixed cam timing
- Replacing improvised or worn lockout components
Technical Specifications
- Product Type: Cam Phaser Lockout Kit
- Engine: Ford 5.4L 3-Valve
- System: Variable Cam Timing
- Calibration: ECU Tuning Required for Full Lockout
- Replacement Type: Aftermarket Performance
Installation & Fitment
- Measure hot oil pressure and diagnose the complete timing system
- Replace failed chains, guides, tensioners, solenoids, and phasers as required
- Set crank and cam timing with correct holding tools
- Do not rotate the engine out of sequence during assembly
- Install the appropriate calibration before normal operation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Confirm three-valve engine family, phaser design, tune availability, and whether the kit is full-lockout or limiter style.
Frequently Asked Questions
Q: Will lockouts repair a broken timing guide? A: No. Mechanical timing damage must be repaired separately.
Q: Is tuning required? A: A full phaser lockout normally requires a compatible calibration to disable or revise variable-cam commands.
Q: Will this restore factory variable valve timing? A: No. A full lockout fixes the phaser position rather than preserving normal VCT operation.
