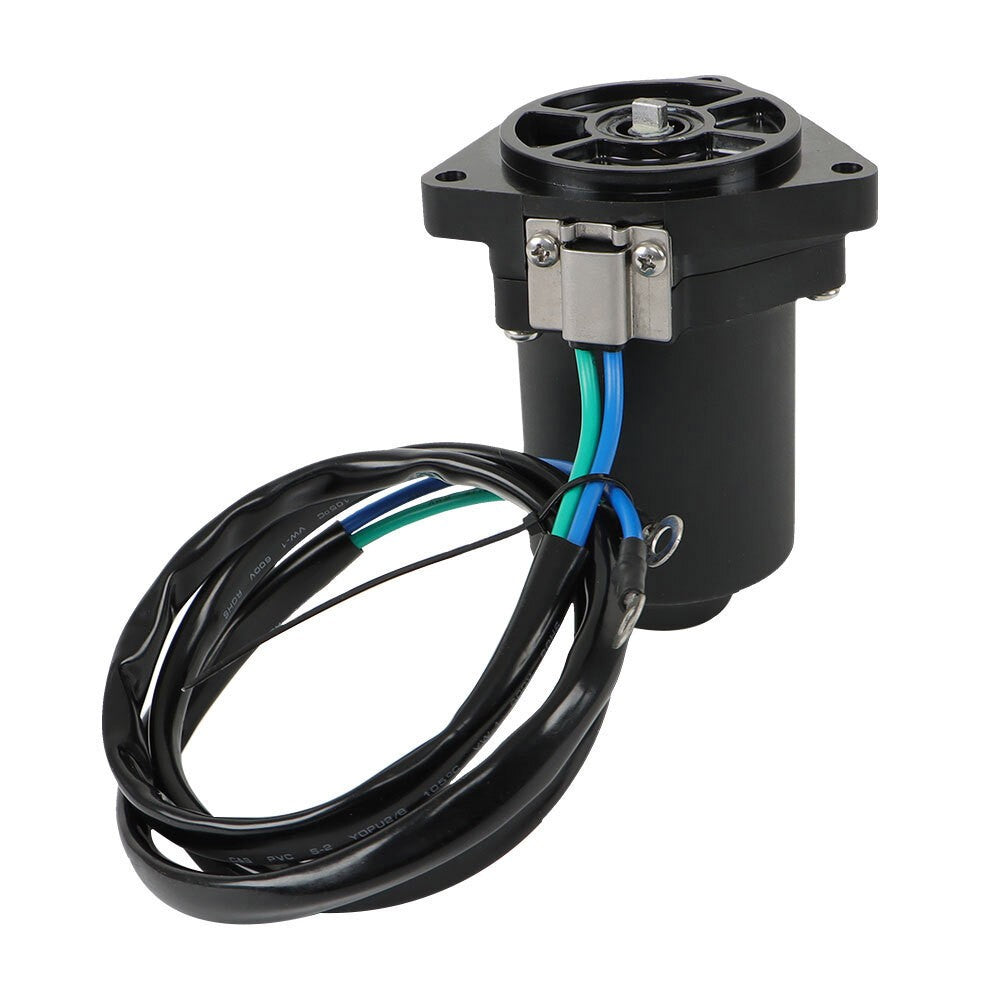

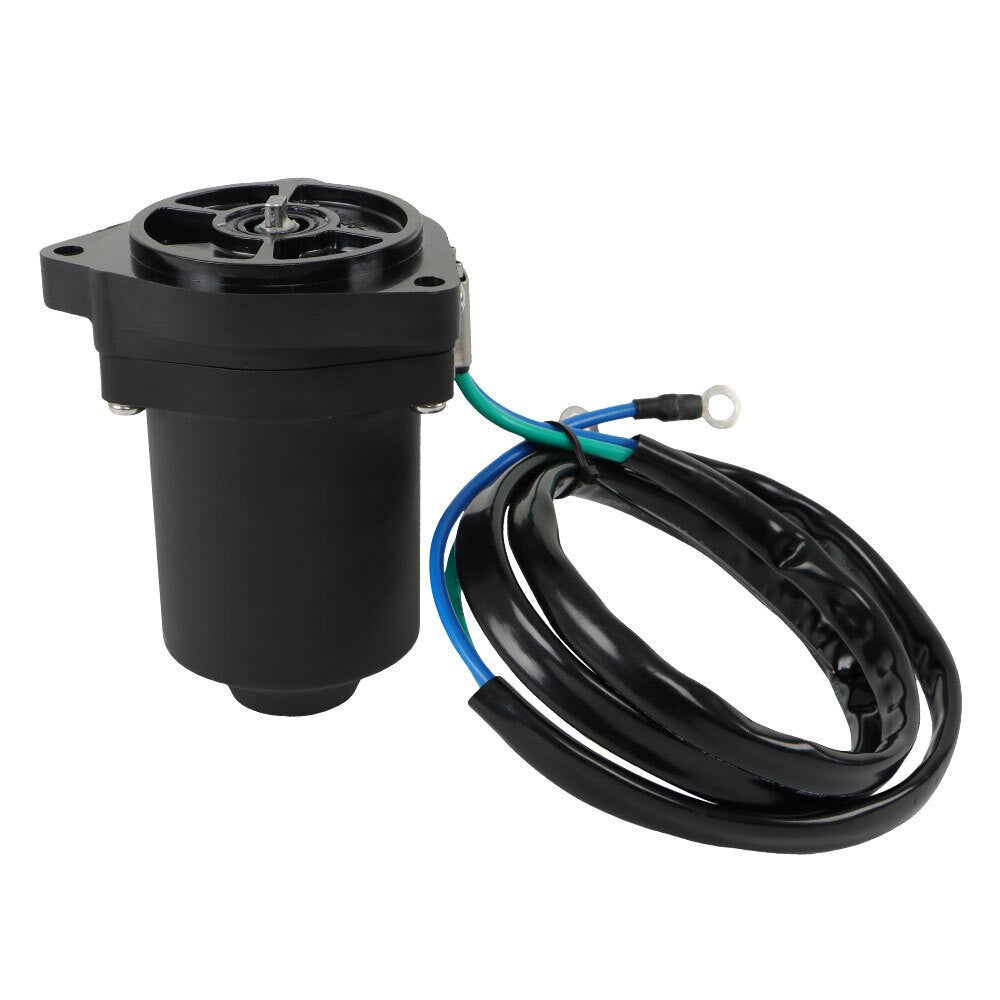

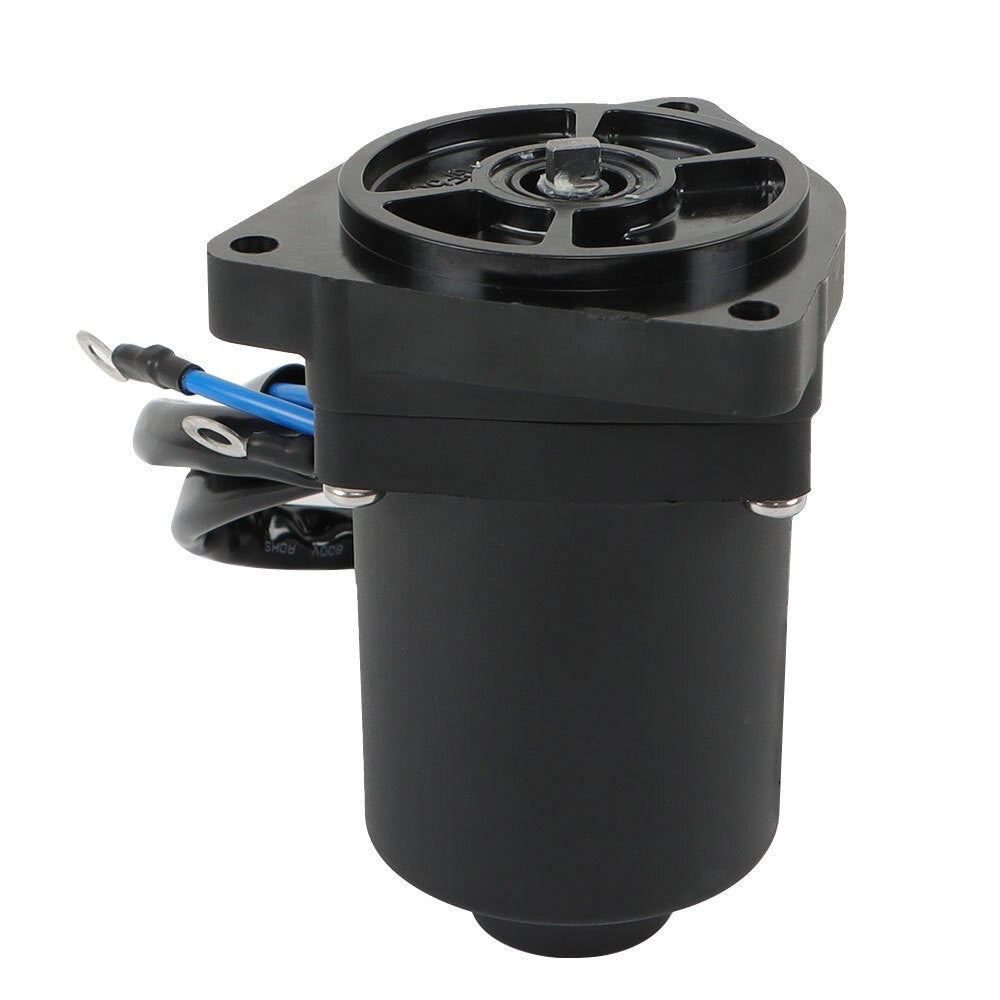

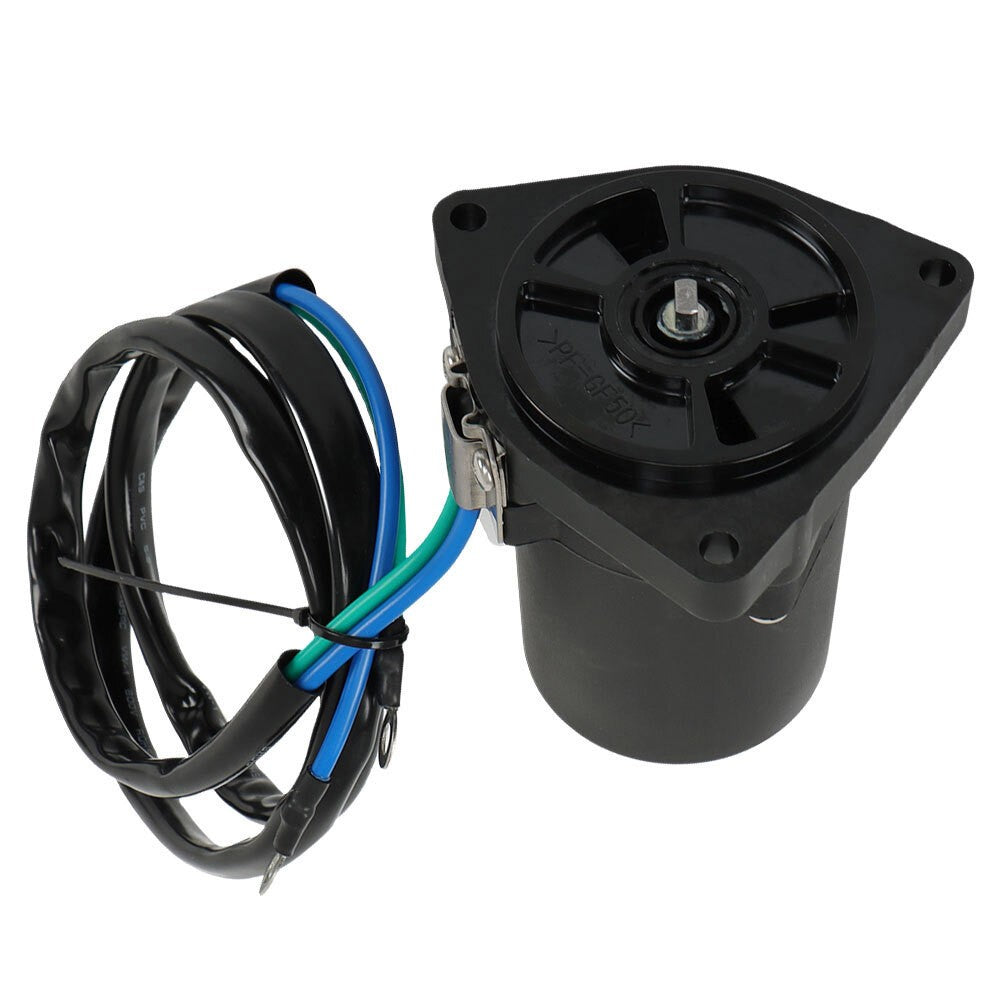

12V Power Trim Tilt Motor for 2011-2018 Yamaha F150 Outboards - 63P-43880-10-00
$155.99
In Stock
$155.99
Sale price
$155.99
Regular price
This 12-volt two-wire power trim and tilt motor replaces 63P-43880-10-00 on compatible 2011-2018 Yamaha F150 outboards.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yamaha F150TJR (2011)
- Yamaha F150TLR (2012)
- Yamaha F150JA / F150LA / F150XA (2013-2018, verify production code)
- Yamaha F150JB / F150LB / F150XB (2015-2018, verify production code)
- Yamaha LF150XA / LF150XB counter-rotation models using 63P-43880-10-00
Product Overview
A trim system that clicks but will not move, runs only in one direction, or needs tapping to operate may have a worn motor after relays, wiring, hydraulic fluid, and mechanical binding are ruled out. This reversible two-wire motor restores the electric drive that powers the trim/tilt pump.
Yamaha F150 model codes and production dates matter more than horsepower alone. Match the 63P number, two-wire connection, four-bolt flange, shaft tang, and motor body before draining or opening the hydraulic assembly.
Key Features & Performance
- 12-volt reversible trim/tilt motor
- Two-wire electrical connection
- Four-bolt mounting pattern for compatible Yamaha pumps
- Replacement for a slow, intermittent, or non-running trim motor
- Fits multiple F150 model-code variations
Replaces Part Numbers
- 63P-43880-10-00
- 63P-43880-21-00
- 63P-43880-01-01
Common Uses
- Repairing a trim motor that runs intermittently
- Restoring tilt after worn brushes or internal corrosion
- Replacing a water-damaged motor housing
- Servicing an F150 that clicks at the relay but has power and ground at the motor
Technical Specifications
- Product Type: Power trim and tilt motor
- Voltage: 12 V

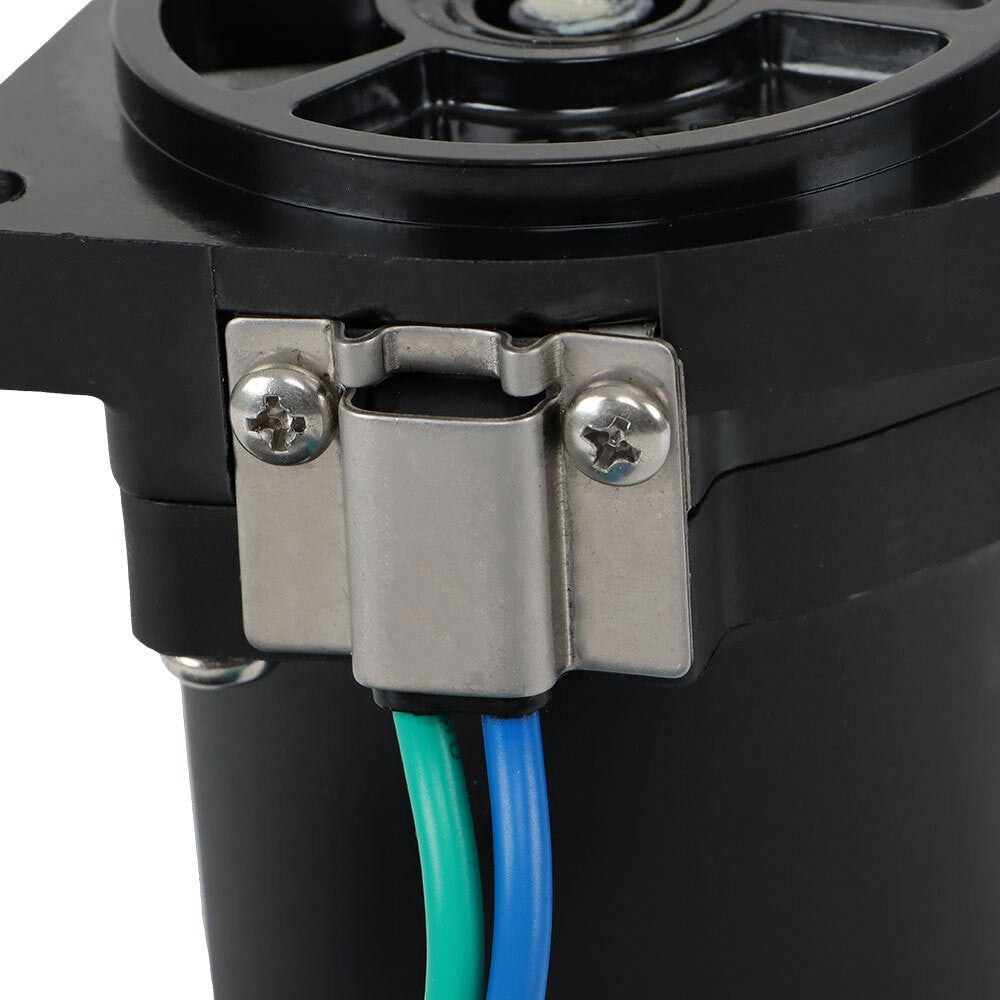

- Wiring: Two wire
- Rotation: Reversible
- Mounting: Four bolt
- Reference Number: 63P-43880-10-00
Installation & Fitment
- Support the outboard safely and disconnect battery power before service
- Test relay output, voltage drop, grounds, and pump movement before replacing the motor
- Keep dirt and water out of the hydraulic unit while the motor is removed
- Transfer or replace seals as required and align the drive tang without forcing it
- Refill and bleed the trim system to the Yamaha procedure, then inspect for leaks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Match the exact Yamaha model code, 63P reference number, two-wire lead, four-bolt flange, shaft tang, and motor dimensions. Model year, production date, serial number, trim, engine, installed options, and previous repairs can affect fitment.
Frequently Asked Questions
Q: Can a bad relay look like a failed trim motor? A: Yes. Check both trim relays, battery voltage, grounds, and power at the motor before replacing it.
Q: Why does the engine need to be supported? A: The trim system may lose its ability to hold or move the engine during service, so a mechanical support is required for safety.
Q: What should I compare before ordering? A: Match the exact Yamaha model code, 63P reference number, two-wire lead, four-bolt flange, shaft tang, and motor dimensions.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket part. Brand names and reference numbers identify fitment only.

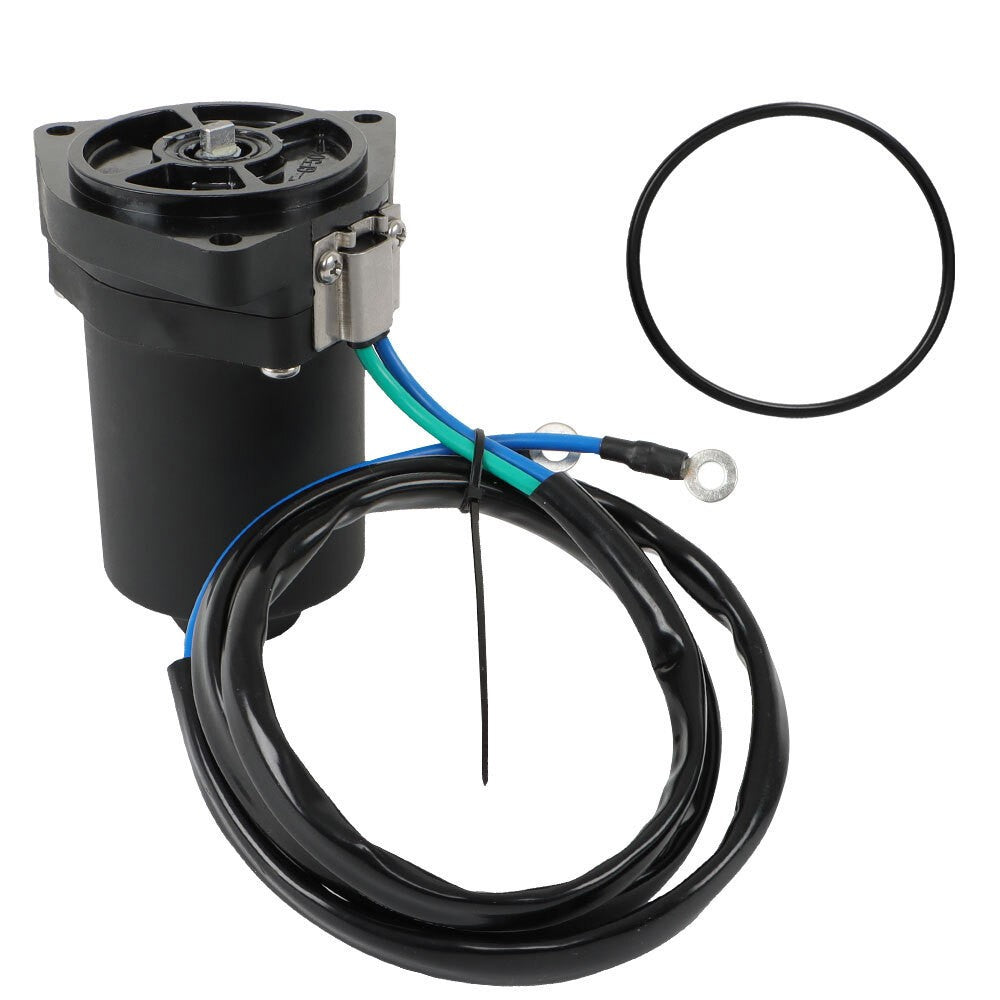

Package note: One 12-volt trim/tilt motor is included; hydraulic pump parts, relays, and fluid are not included unless pictured.
