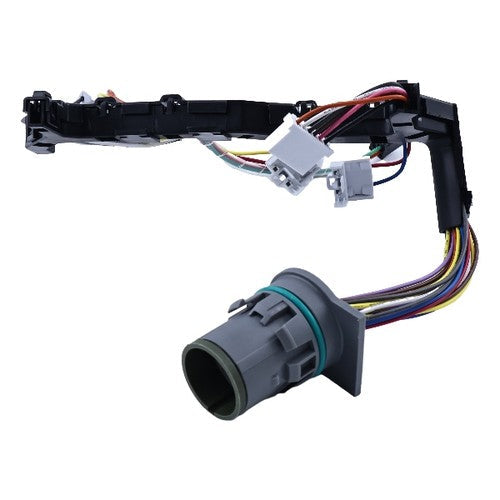

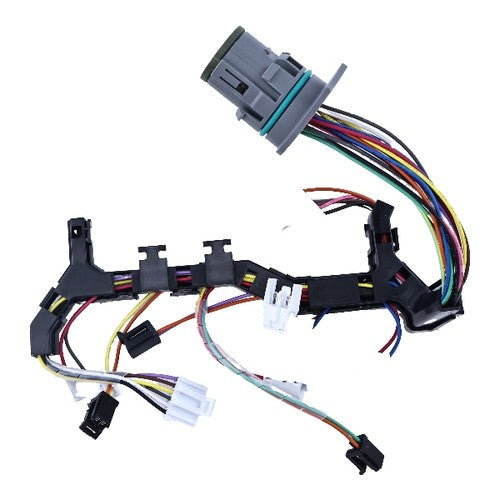

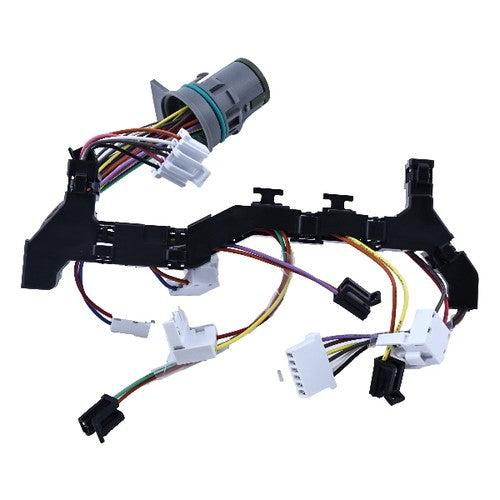

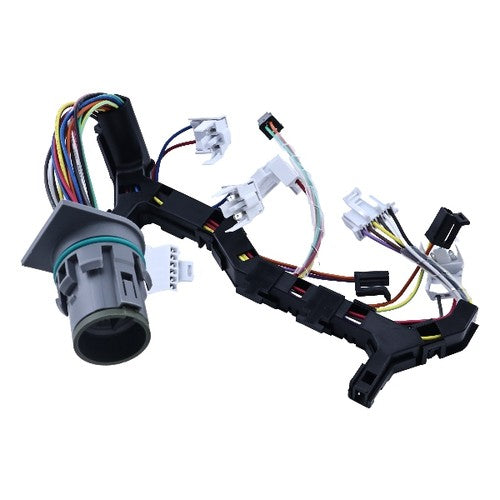

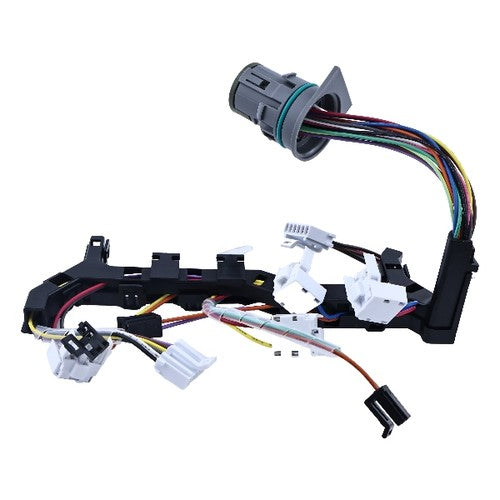

Allison 1000 Internal Wiring Harness 29545307 for 2011-2019 LML/L5P Duramax 6-Speed
$88.49
In Stock
$88.49
Sale price
$88.49
Regular price
Internal transmission wiring harness 29545307 for supported 2011-2019 GM 6.6L Duramax trucks using the Allison 1000 six-speed automatic.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2011-2016 Chevrolet Silverado / GMC Sierra 2500HD and 3500HD with 6.6L LML Duramax and Allison 1000
- 2017-2019 Silverado / Sierra HD with 6.6L L5P Duramax and Allison six-speed configuration
Product Overview
The internal harness carries electrical signals between transmission solenoids/sensors and the external connector. Heat, age, connector issues or fluid intrusion can create intermittent electrical faults, range/solenoid codes or erratic transmission behavior that may be mistaken for a mechanical failure.
29545307 is cataloged for Allison 1000 six-speed applications used behind 2011-2016 LML and 2017-2019 L5P Duramax engines in Silverado/Sierra 2500HD and 3500HD trucks.
Diagnosis matters before opening the transmission. Inspect external wiring and connector pins and review DTCs; once inside, keep the valve-body area clean and follow Allison/GM connector-routing procedures.
Key Features & Performance
- Internal Allison 1000 transmission harness
- Reference 29545307
- 2011-2019 six-speed Duramax application range
- Connects internal electrical components to transmission controls
Reference Numbers
- 29545307
Frequently Asked Questions
What should I verify before ordering?
Verify VIN, transmission model and production year. Diagnose external harness/connector problems before replacing the internal harness.
Is this a genuine equipment-manufacturer part?
This listing is for a replacement component identified by the application and reference numbers above. It is not represented as a genuine equipment-manufacturer part unless that is explicitly stated on the product packaging or elsewhere in this listing.
