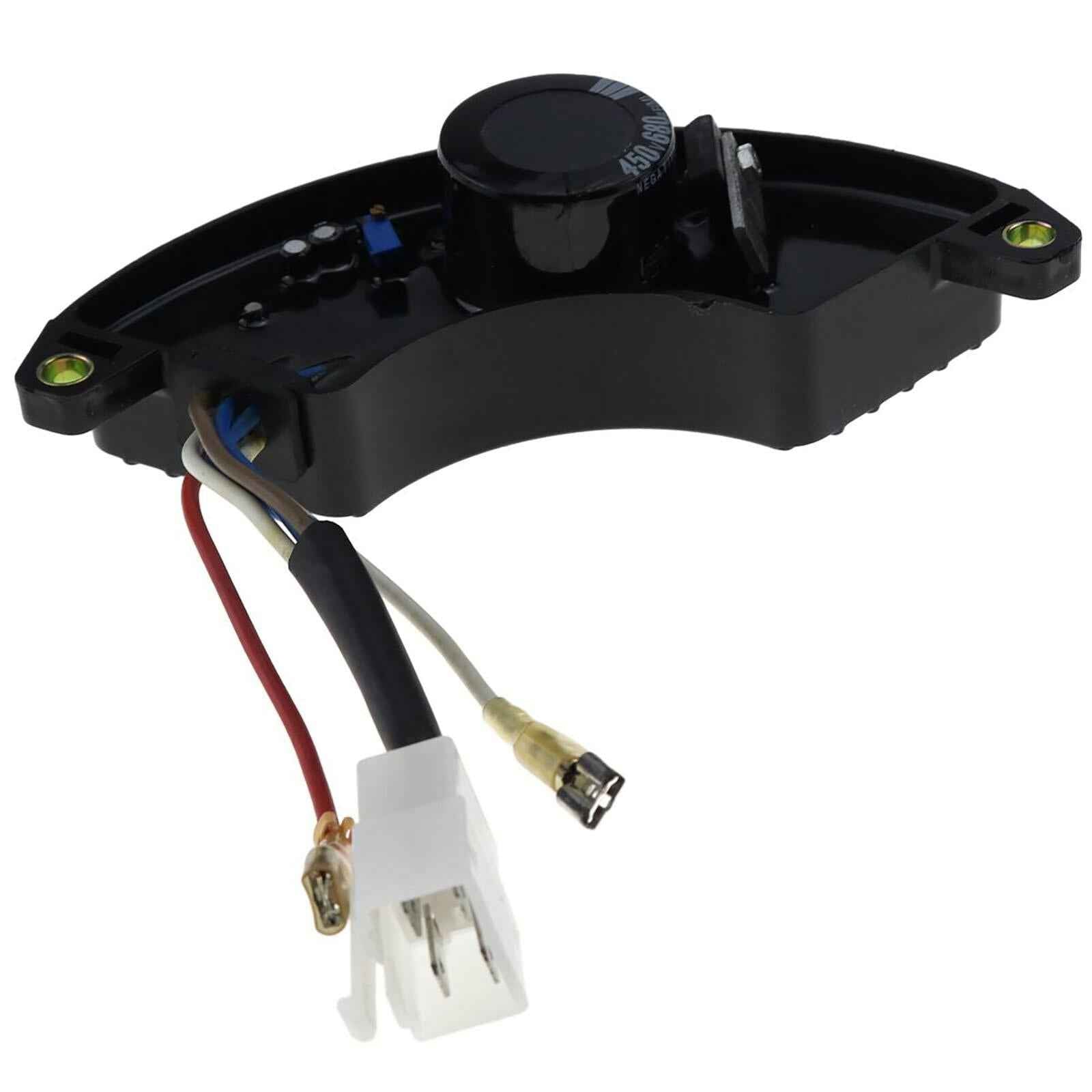

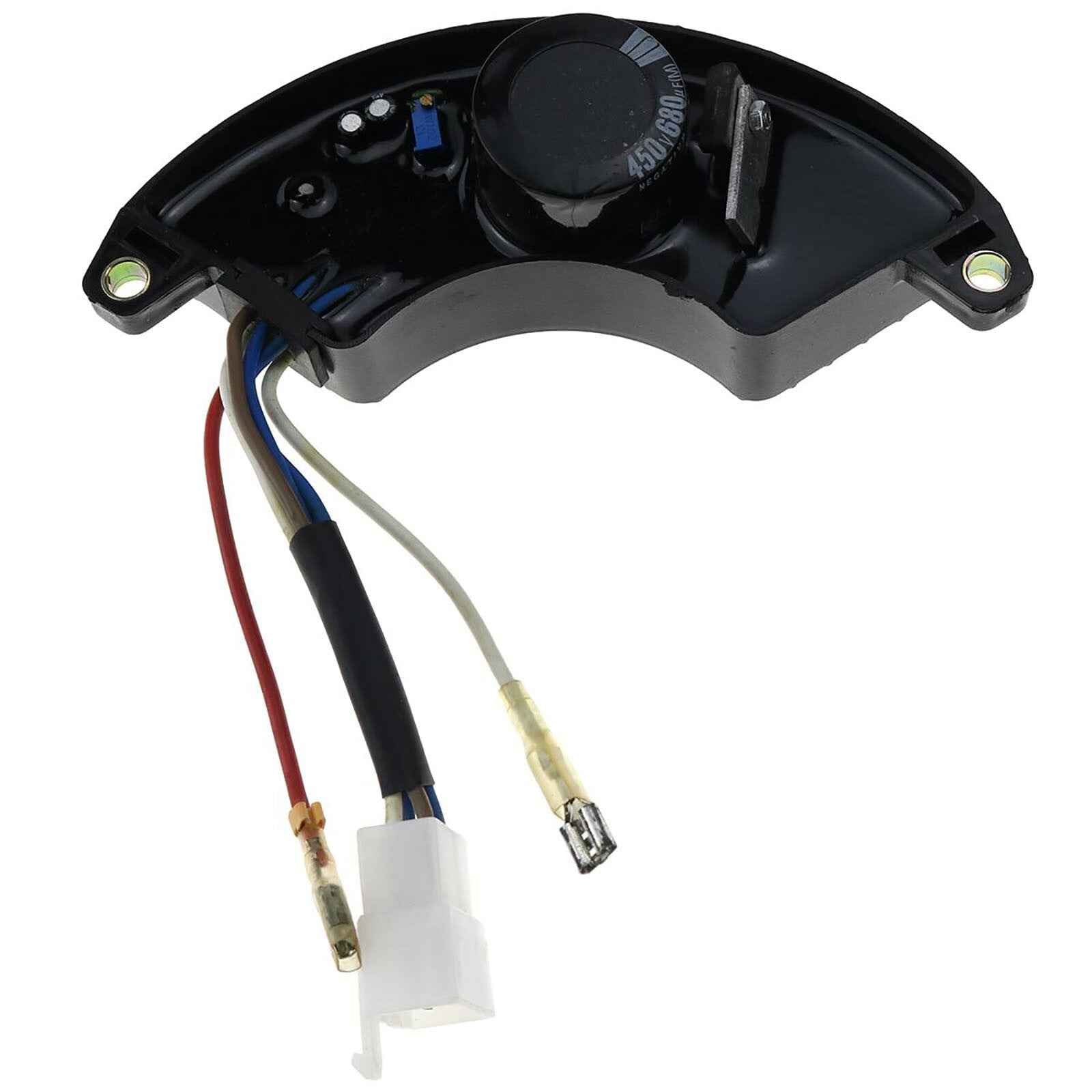

Automatic Voltage Regulator AVR for BlackMax PM0496500 PM0496500.02 Generators
$41.99
In Stock
$41.99
Sale price
$41.99
Regular price
This aftermarket automatic voltage regulator fits compatible BlackMax PM0496500 and PM0496500.02 generators.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- BlackMax PM0496500 generator
- BlackMax PM0496500.02 generator
- Coleman Powermate applications using the same 62126971 regulator and connector layout
Product Overview
This regulator controls generator field excitation on compatible 6500-running-watt / 8125-surge-watt units. Test breakers, brushes, rotor, stator, wiring, and residual magnetism before ordering.
When the engine runs normally but the outlets show no voltage, low voltage, or voltage that jumps with load, the AVR is one possible cause—not the only one.
Key Features & Performance
- Automatic output-voltage regulation
- Connector-based replacement design
- 50/60 Hz compatible application
- Built for matching BlackMax generator heads
Replaces Part Numbers
- 62126971
Common Uses
- Replacing a confirmed failed or damaged generator voltage regulator
- Correcting the symptoms described in the product overview after testing related parts
- Restoring dependable operation during repair or scheduled service
- Matching one of the listed reference numbers or compatible applications
Technical Specifications
- Generator Rating: 6500 running / 8125 surge watts
- Frequency: 50/60 Hz compatible
- Excitation Input: Approximately 90-100V
- Average Feedback: Approximately 18V
Installation & Fitment
- Shut down the engine and disconnect spark plug and battery
- Discharge electrical components safely

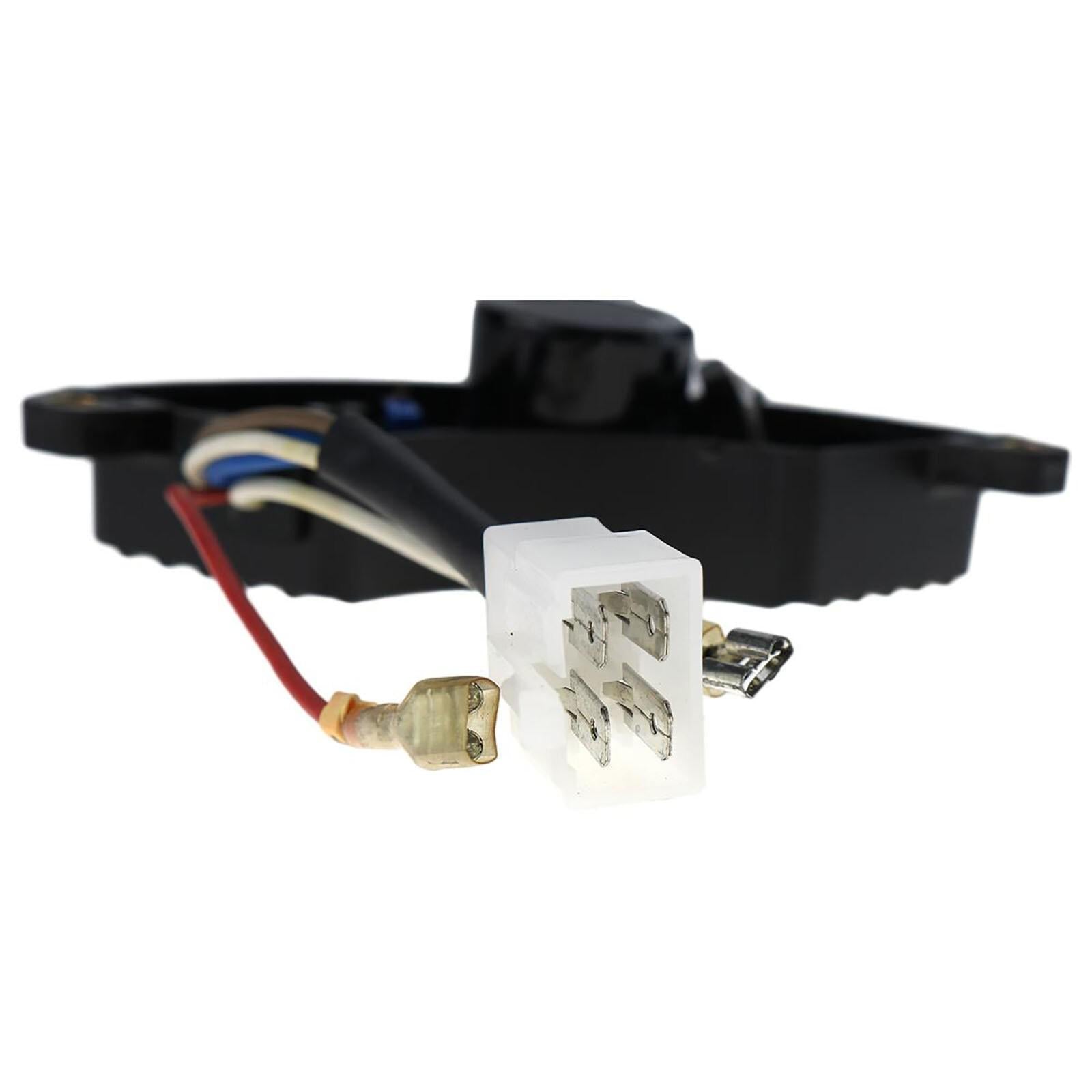

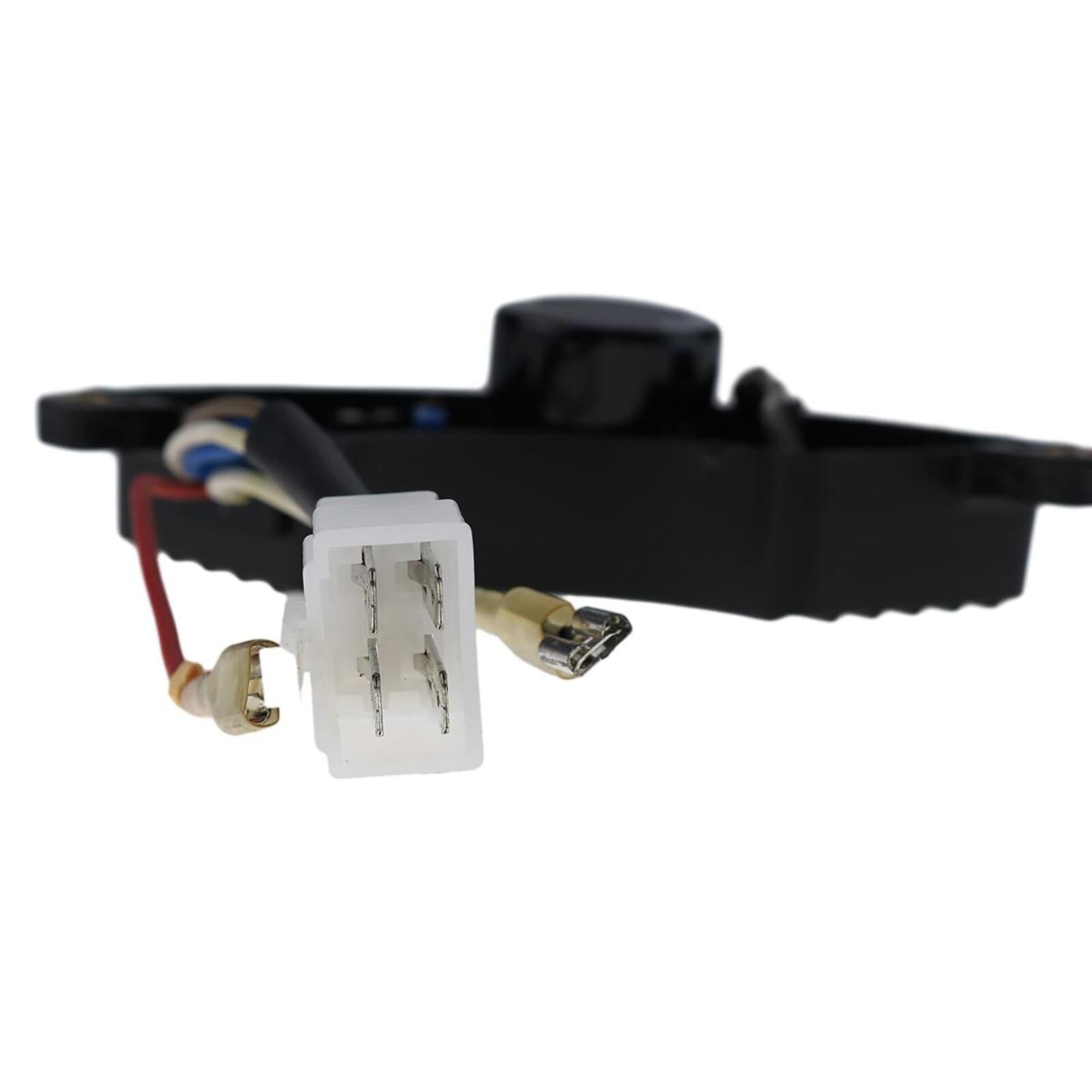

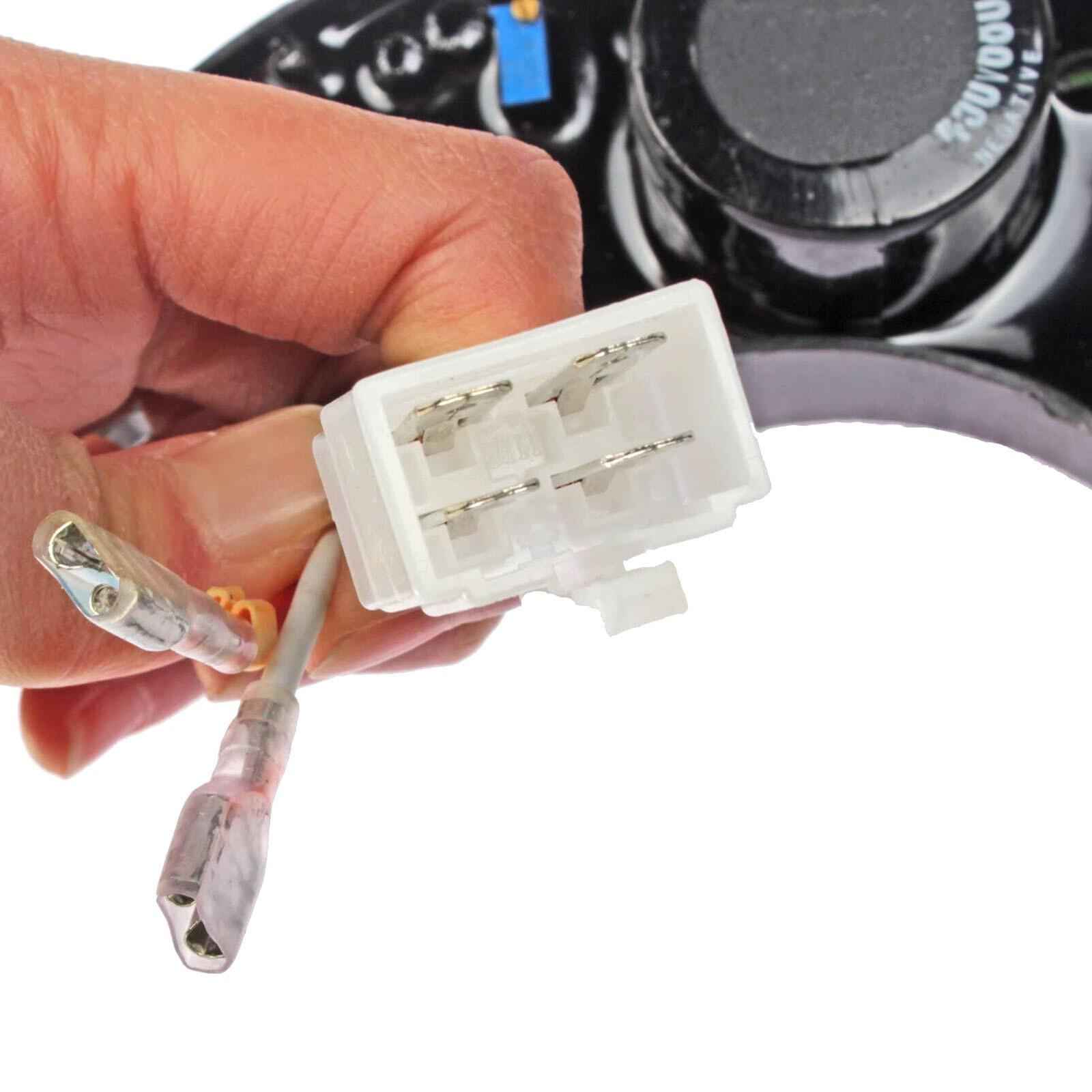

- Compare plug shape, mounting holes, and wire colors
- Measure output with a reliable meter before connecting appliances
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model names alone do not guarantee fitment. Production dates, serial-number breaks, engine packages, wiring, and installed options can change the part used on otherwise similar equipment.
Frequently Asked Questions
Q: What problem is this part commonly used to address? A: When the engine runs normally but the outlets show no voltage, low voltage, or voltage that jumps with load, the AVR is one possible cause—not the only one.
Q: How should fitment be confirmed? A: Match the original part number first, then compare the connector or fittings, mounting points, dimensions, and machine or engine serial information.
Q: Is this an original equipment manufacturer part? A: No. This is an aftermarket replacement part for compatible applications.
Q: Can another fault cause similar symptoms? A: Yes. Wiring, grounds, hoses, filters, related controls, and mechanical wear should be tested as part of the diagnosis.
Q: What should be checked after installation? A: Confirm secure connections, normal operation, and no leaks, heat, binding, or warning indications before returning the equipment to service.
Part Summary
keywords: BlackMax PM0496500 AVR, generator no voltage repair, 62126971 regulator replacement, 6500 watt generator voltage control, PM0496500.02 electrical part, aftermarket generator AVR
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
