CVT Transmission Filter and Pan Gasket Kit for 2012-2019 Nissan Sentra Versa
$27.99
In Stock
$27.99
Sale price
$27.99
Regular price
This aftermarket CVT service kit includes transmission filters and a pan gasket for compatible 2012-2019 Nissan Sentra and Versa applications using the matching CVT design.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Nissan Versa sedan with compatible CVT (2012-2019)
- Nissan Sentra with compatible CVT (2013-2019)
- Nissan Versa Note with compatible CVT (select 2014-2019 applications)
Product Overview
Dark fluid, debris in the pan, a leaking gasket, or scheduled CVT service can lead to the filters once the transmission code and service procedure are confirmed. This kit lets you service the sump screen and filter arrangement while the pan is removed.
Nissan used more than one CVT and pan pattern across Sentra, Versa, and Versa Note models. Match the transmission code, pan shape, bolt pattern, filter outlets, gasket, and original numbers before ordering. A filter change will not repair belt, pulley, valve-body, or bearing damage.
Key Features & Performance

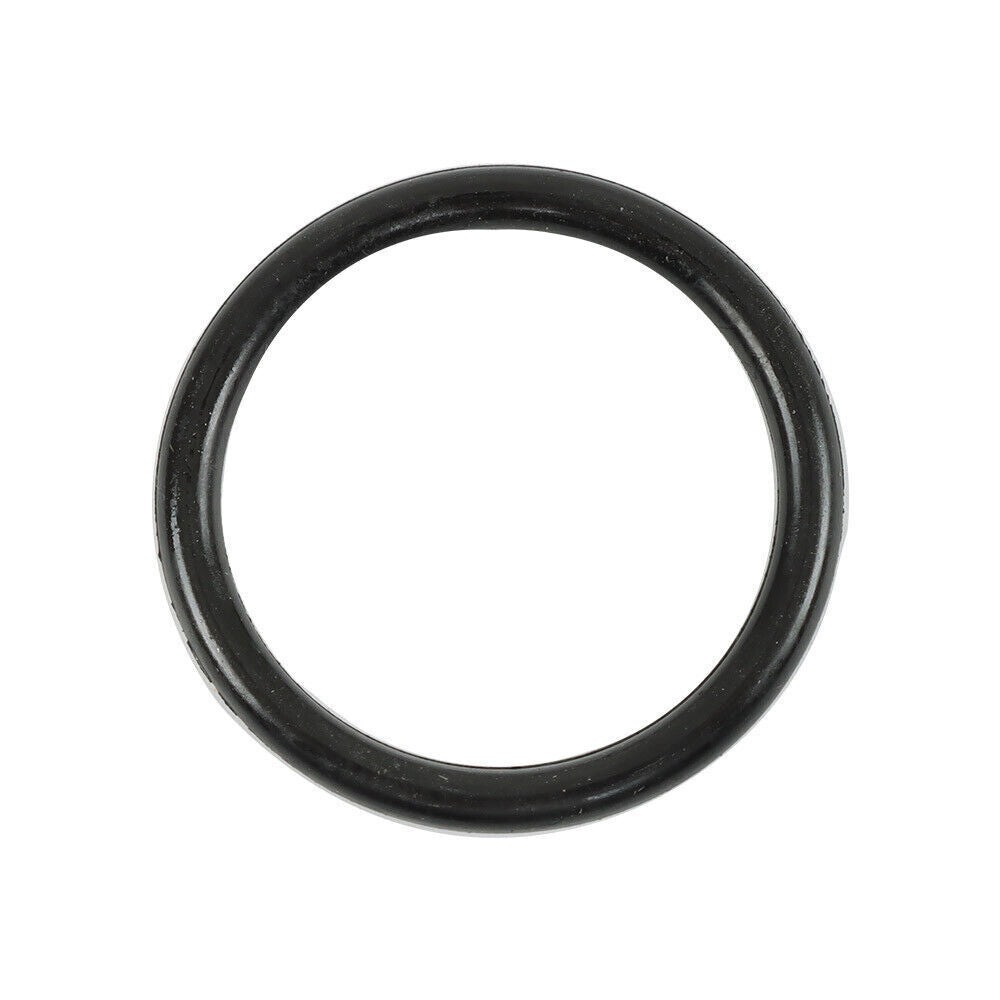

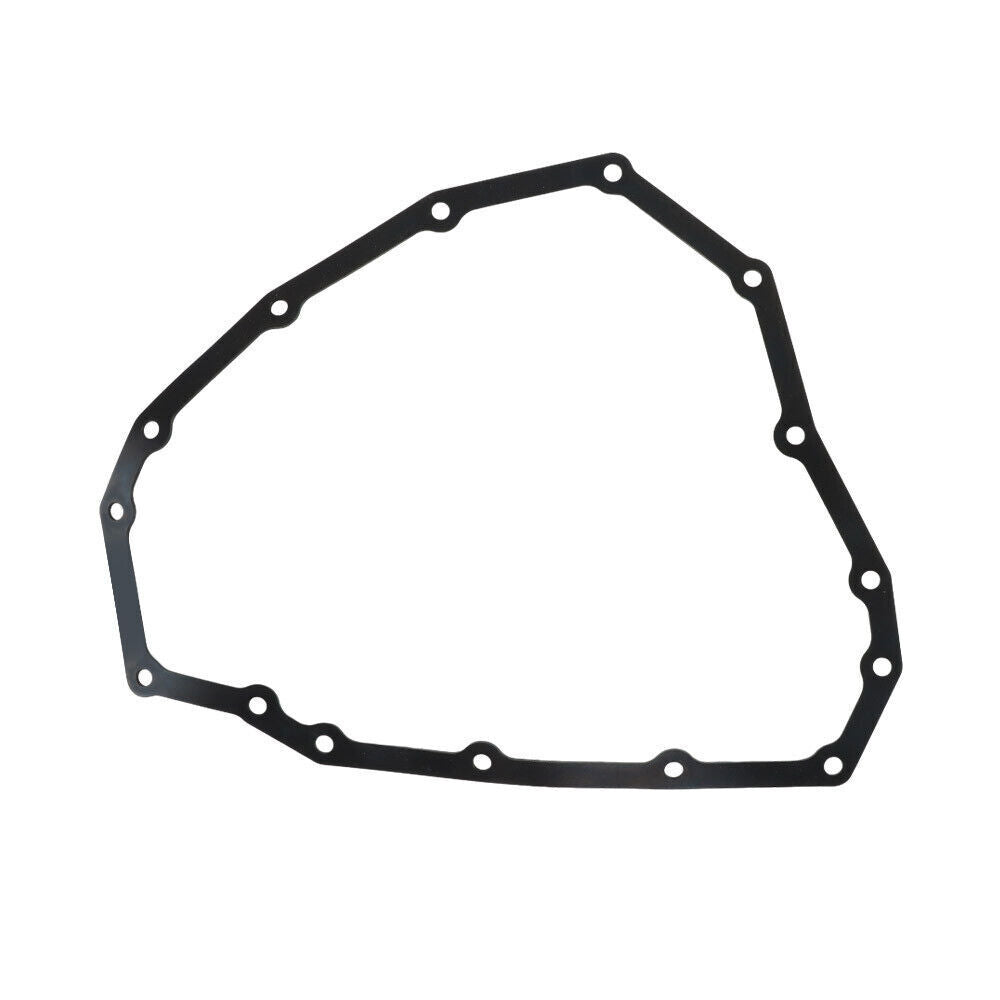

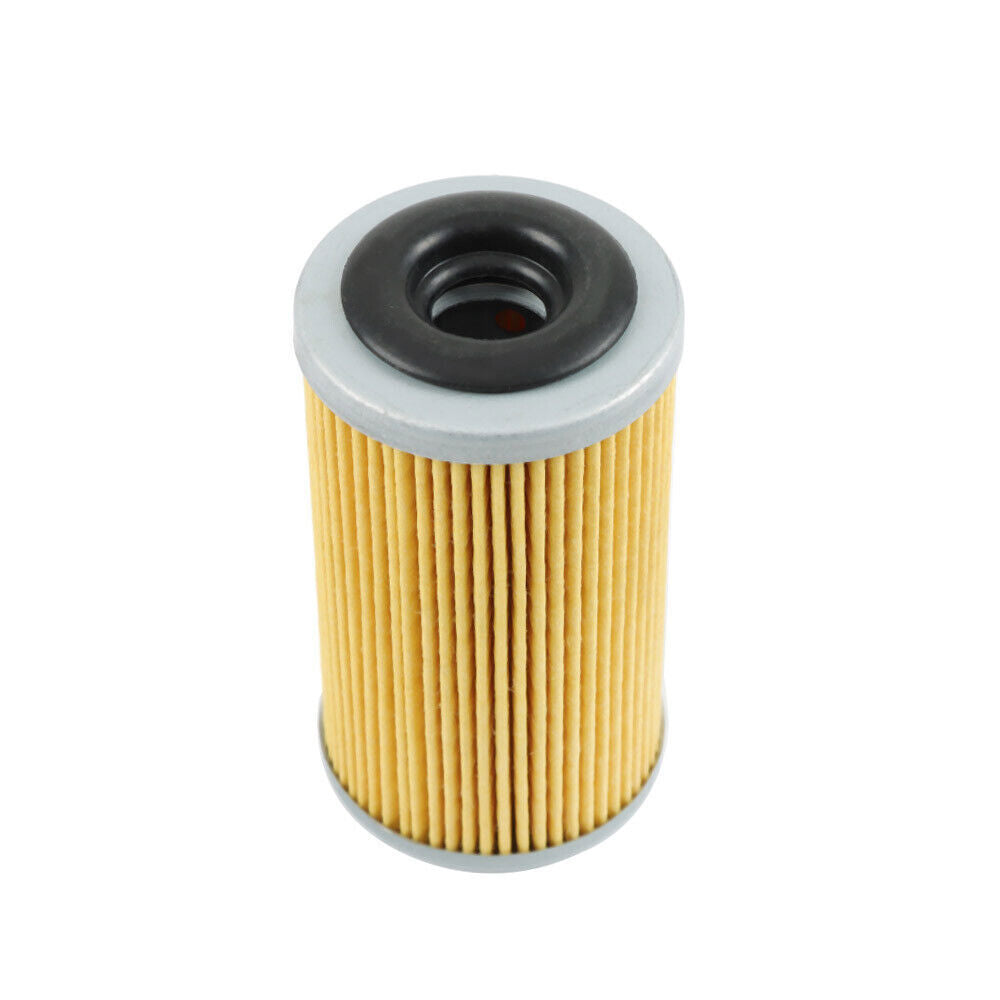

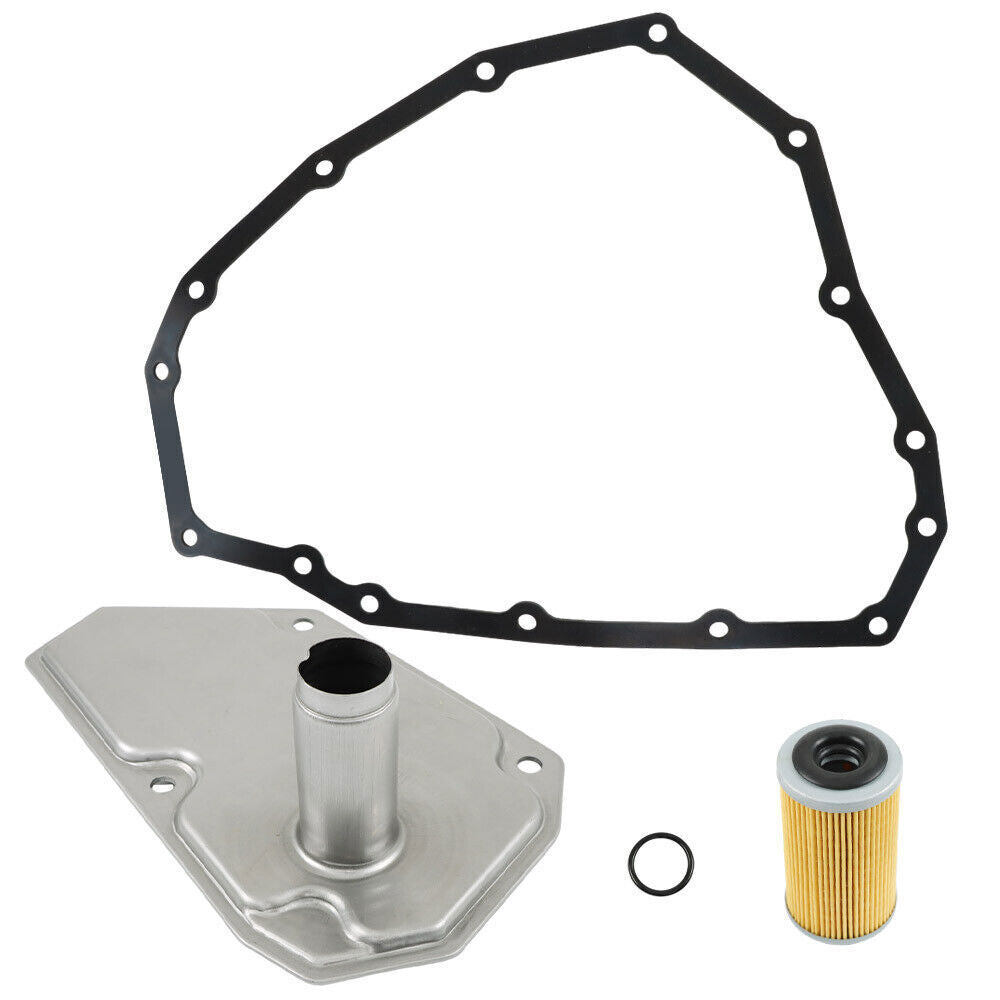

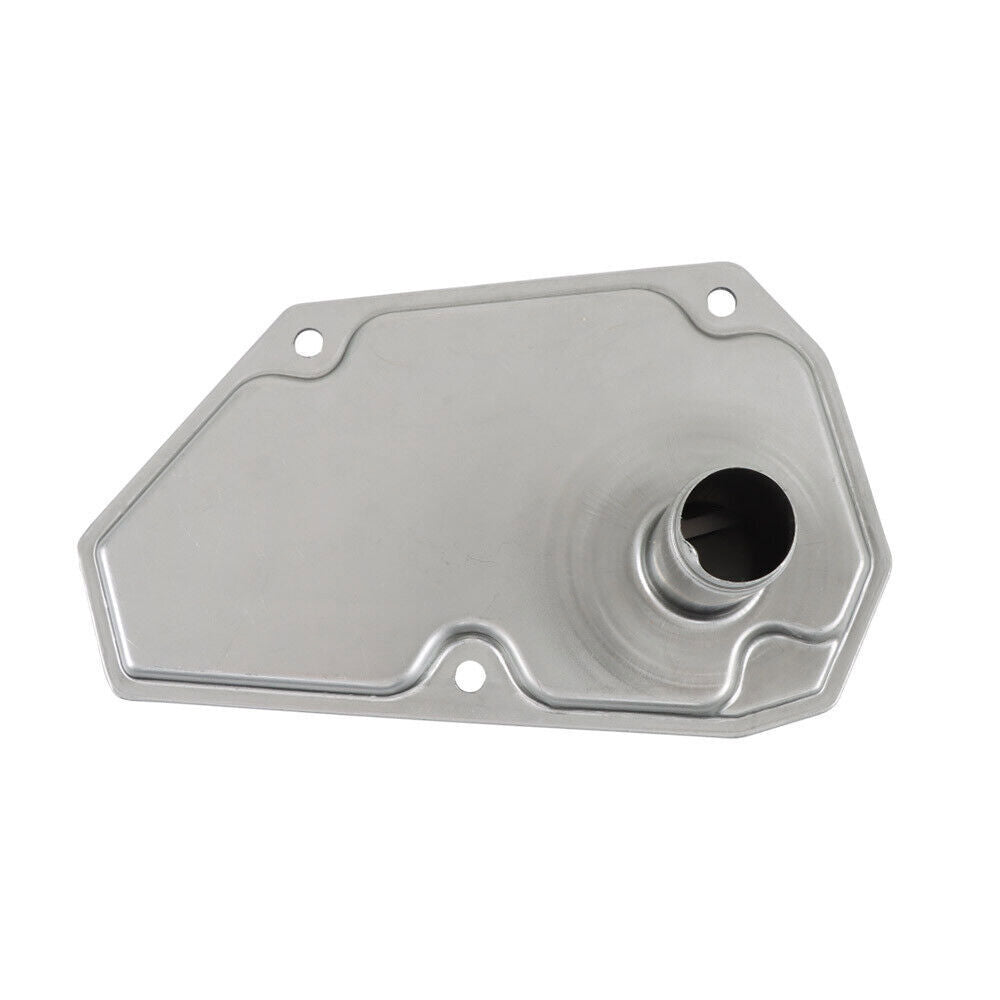

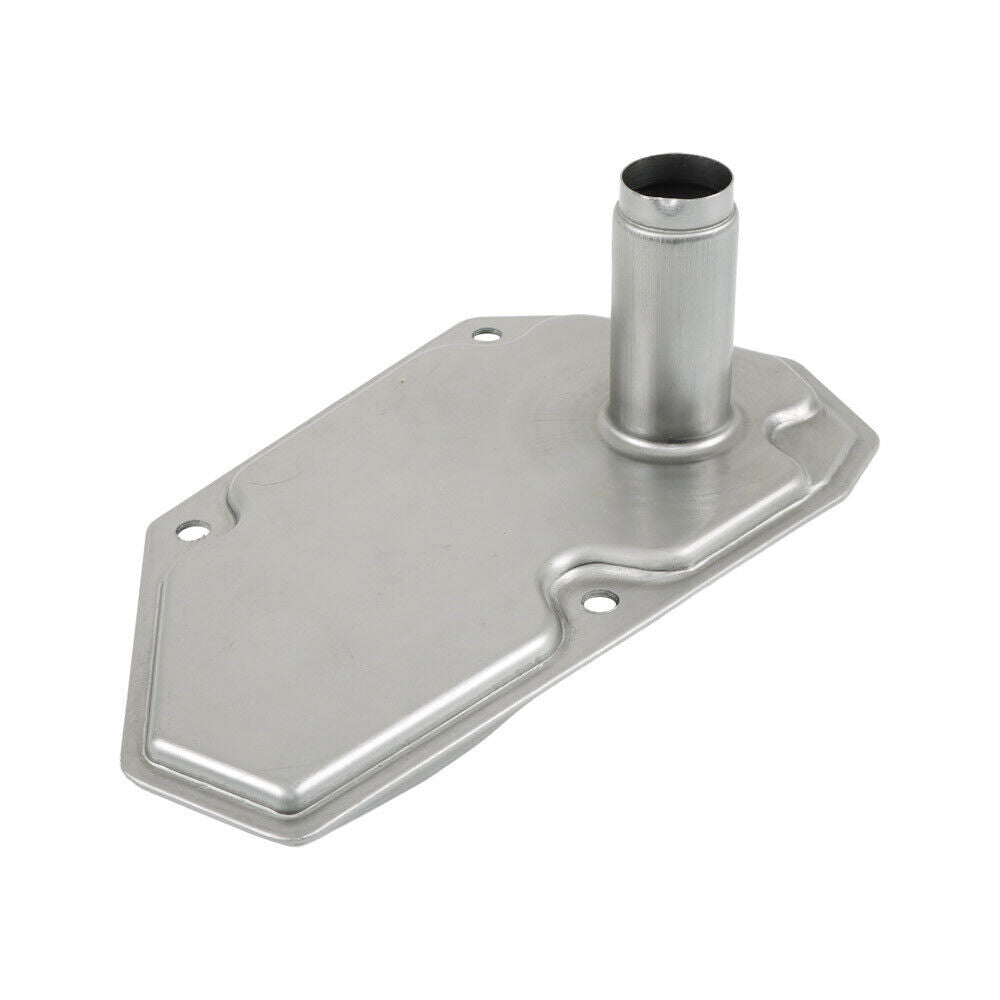

- Service kit combines compatible CVT filtration parts and pan gasket
- Supports pan-off maintenance and debris inspection
- Replacement option for a restricted screen or leaking gasket
- Application-focused for select Sentra and Versa CVTs
- Aftermarket kit cross-referencing common Nissan service numbers
Replaces Part Numbers
- 31726-3JX0A
- 31728-31X01
- 31397-3JX0A
- 31397-3MX0A
- 999TM-00001
Common Uses
- Replacing a leaking transmission-pan gasket
- Servicing CVT filters after confirming the correct interval
- Inspecting the pan and magnets for abnormal debris
- Completing valve-body or fluid service with new filtration parts
Technical Specifications
- Product Type: CVT filter and pan-gasket service kit
- Transmission: Compatible Nissan continuously variable transmission
- Kit Contents: Filters / screen and pan gasket as shown
- Condition: New aftermarket service parts
Installation & Fitment
- Identify the CVT model code before ordering
- Use only the exact Nissan-specified CVT fluid for the transmission
- Clean the pan and magnets without leaving lint or solvent residue
- Install seals and the gasket correctly and torque the pan evenly
- Set fluid level at the specified temperature and check for leaks
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and the product photos before purchase.
Frequently Asked Questions
Q: Will this kit fix a slipping or shuddering CVT? A: Not by itself. Internal wear, valve-body faults, fluid level, and software issues need diagnosis.
Q: Can I use ordinary automatic-transmission fluid? A: No. Use only the fluid specification required by the exact Nissan CVT.
Q: Why must I match the transmission code? A: Different CVTs can use different filters, gaskets, and fluid-level procedures in the same vehicle family.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
