Suzuki LT230S QuadSport Carburetor Rebuild Kit 03-202 1985–1988
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
Carburetor repair kit cross-referencing Shindy 03-202 for the original carburetor on compatible 1985–1988 Suzuki LT230S QuadSport models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1985 Suzuki LT230S QuadSport
- 1986 Suzuki LT230S QuadSport
- 1987 Suzuki LT230S QuadSport
- 1988 Suzuki LT230S QuadSport
Product Overview
A leaking float valve, brittle bowl gasket, clogged jets, or stale-fuel deposits can often be repaired while retaining the original carburetor body. Worn shaft bores, cracked towers, stripped threads, or severe corrosion cannot.

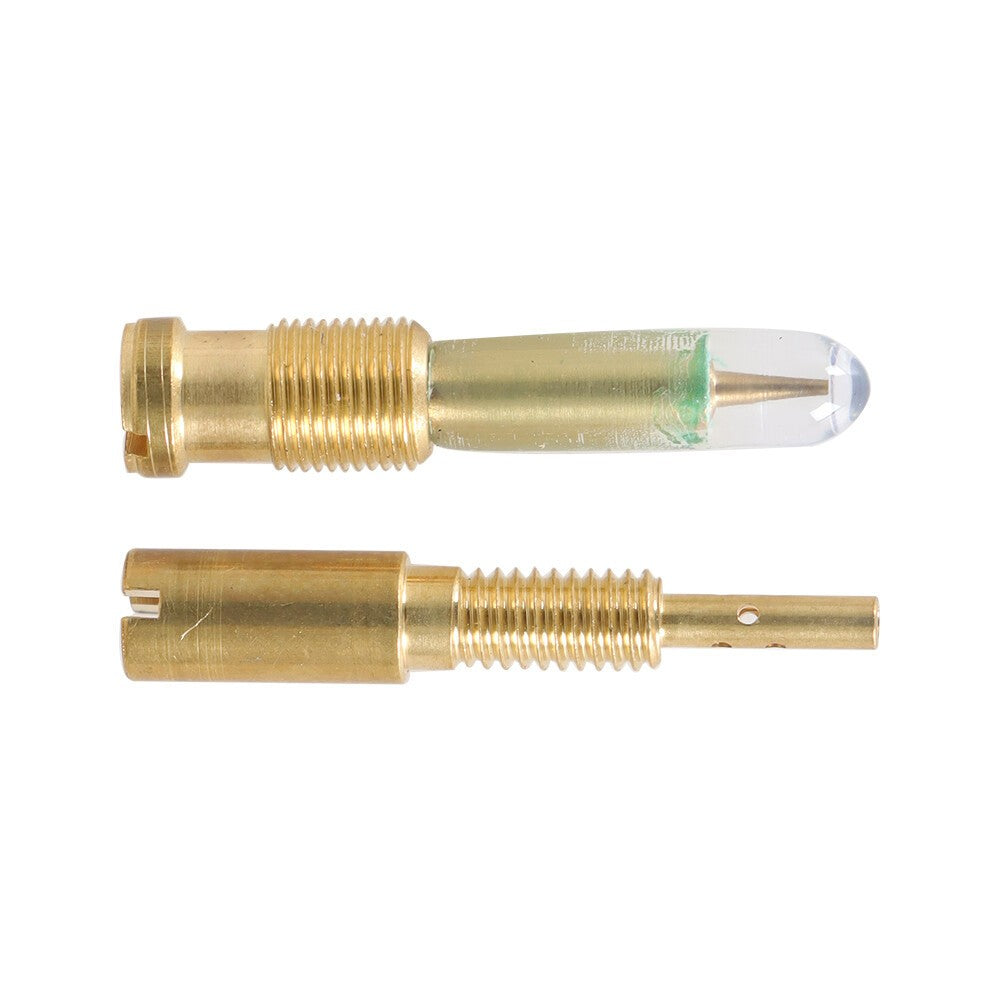

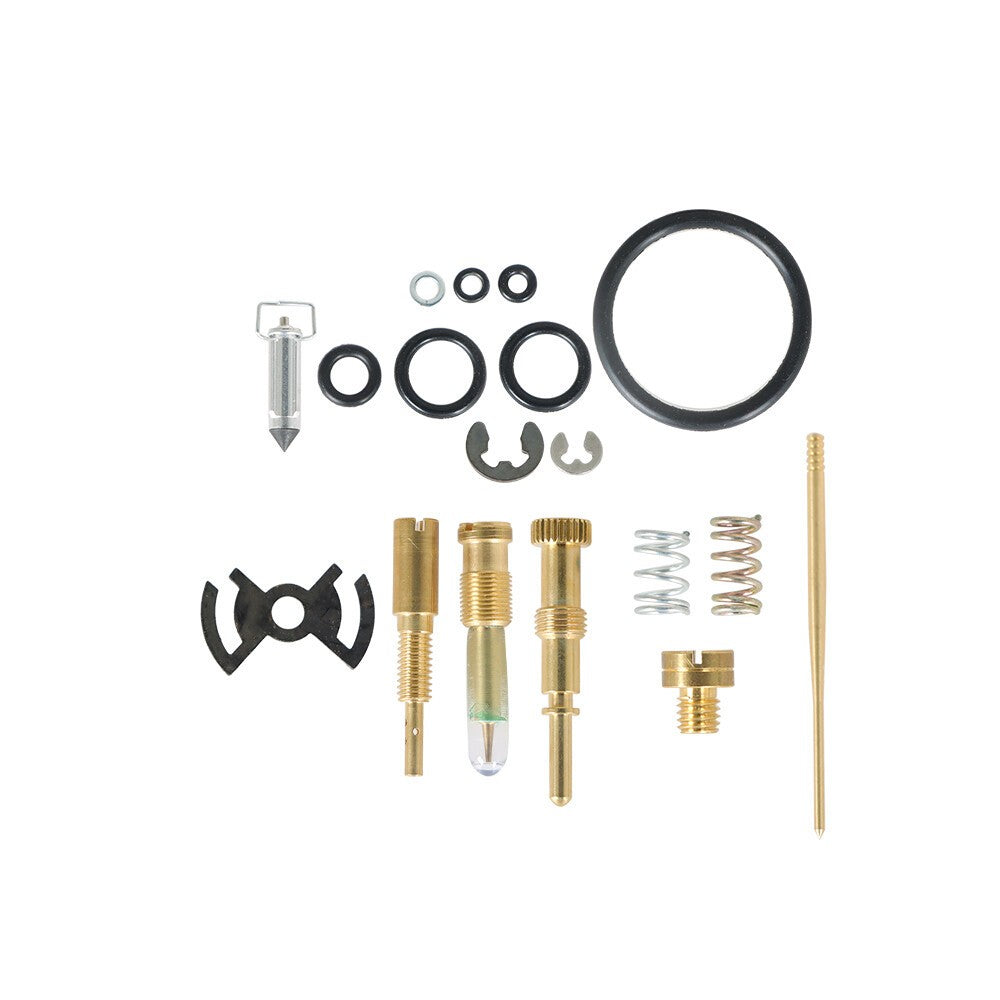

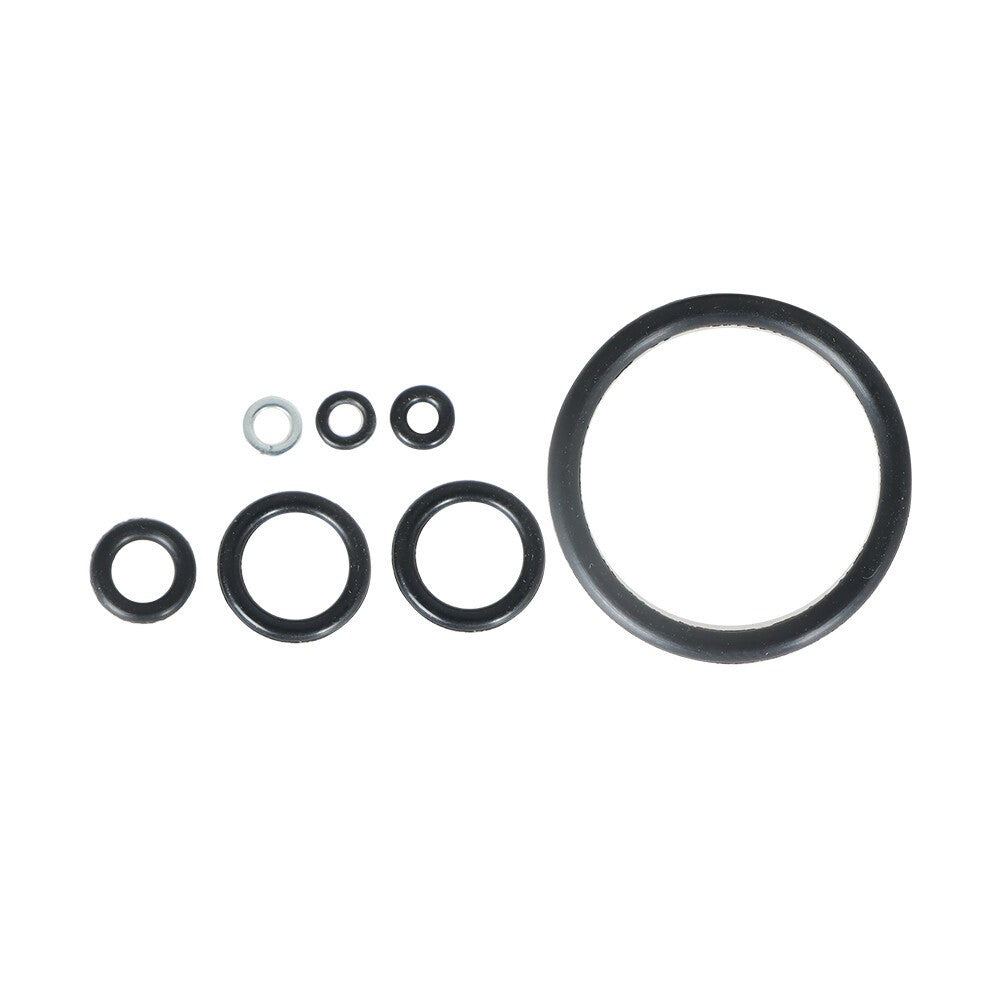

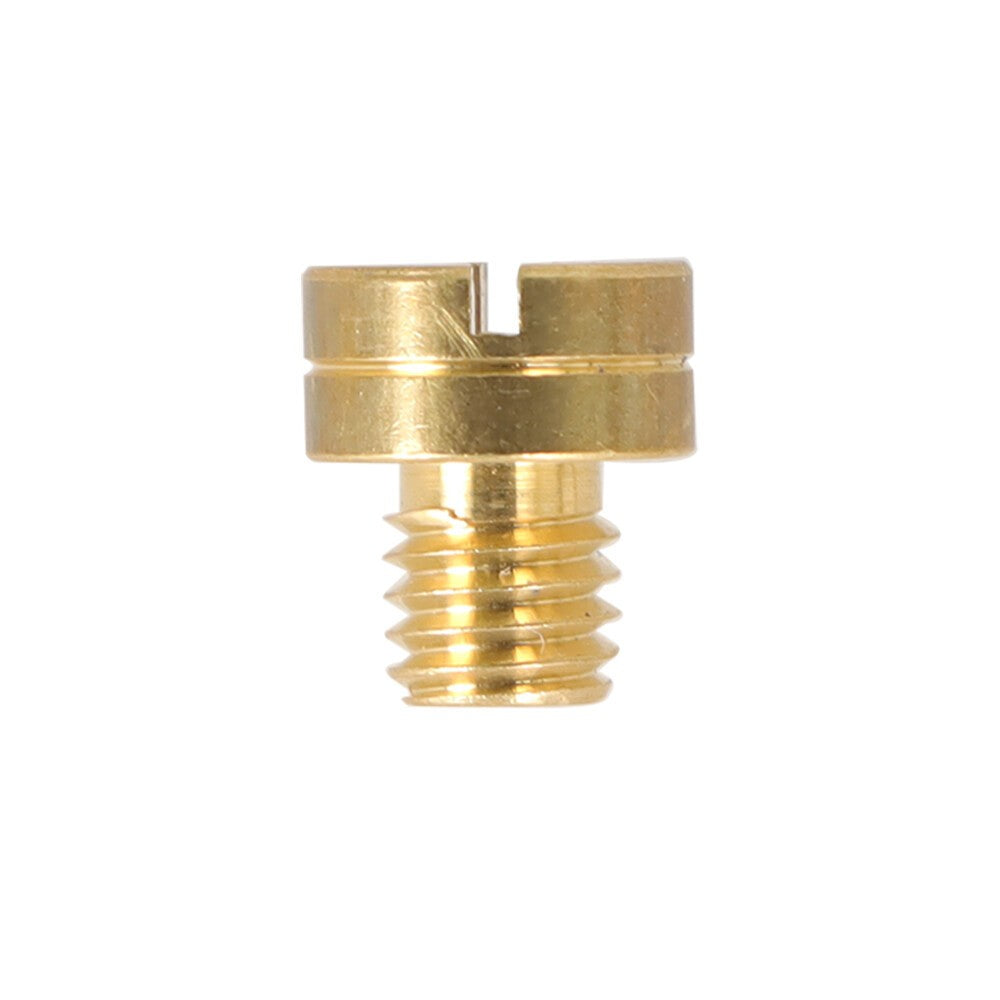

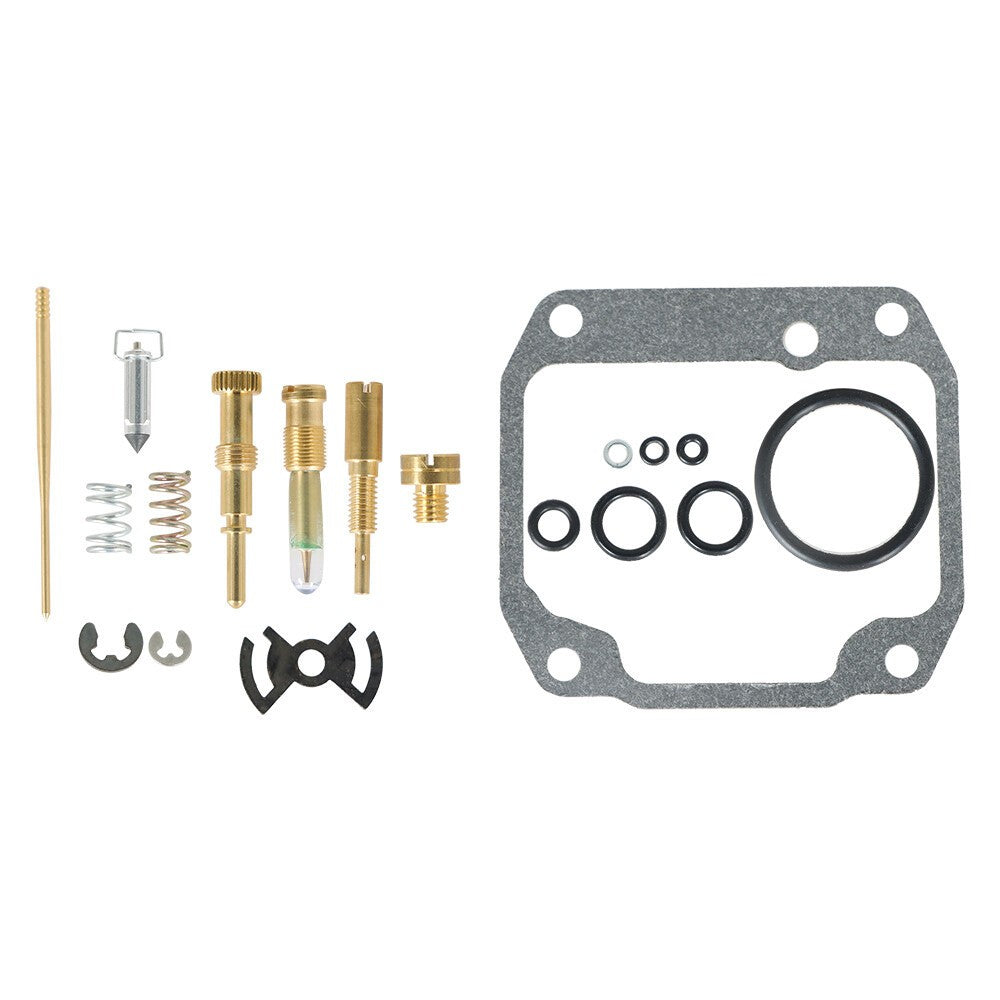

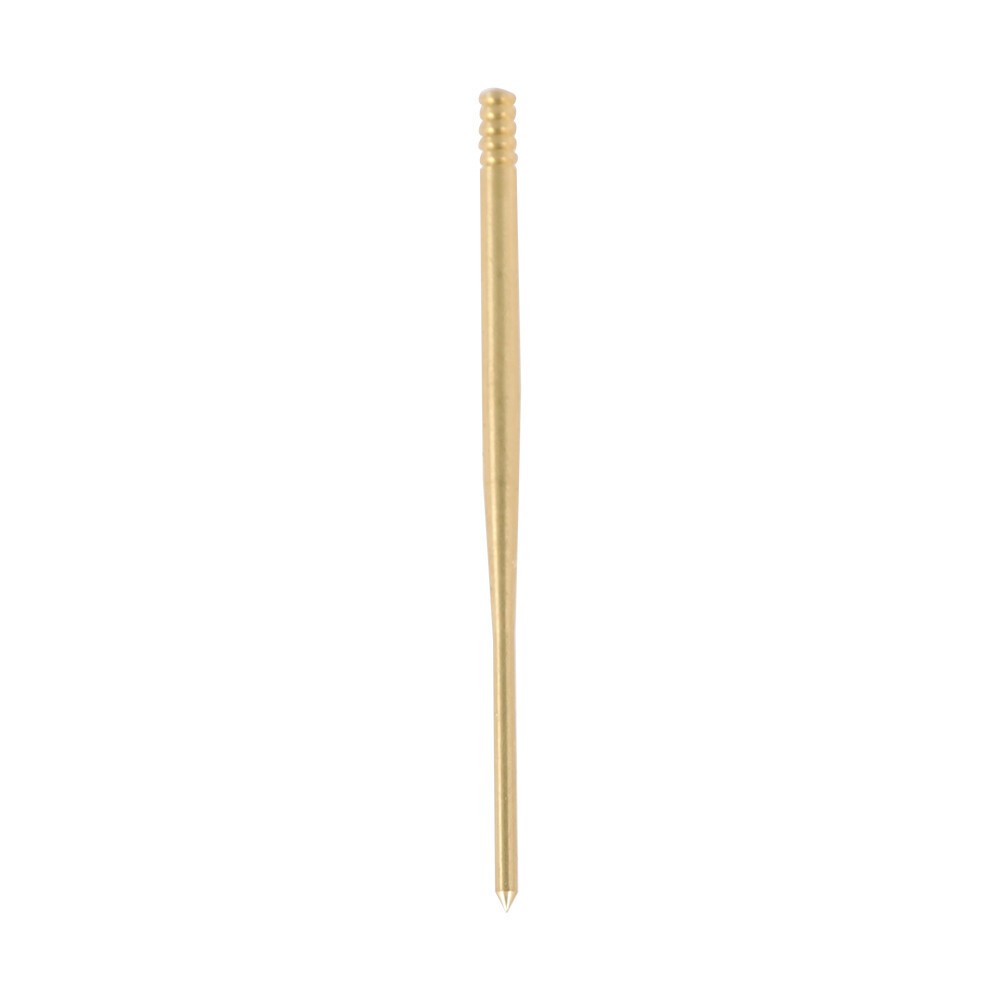

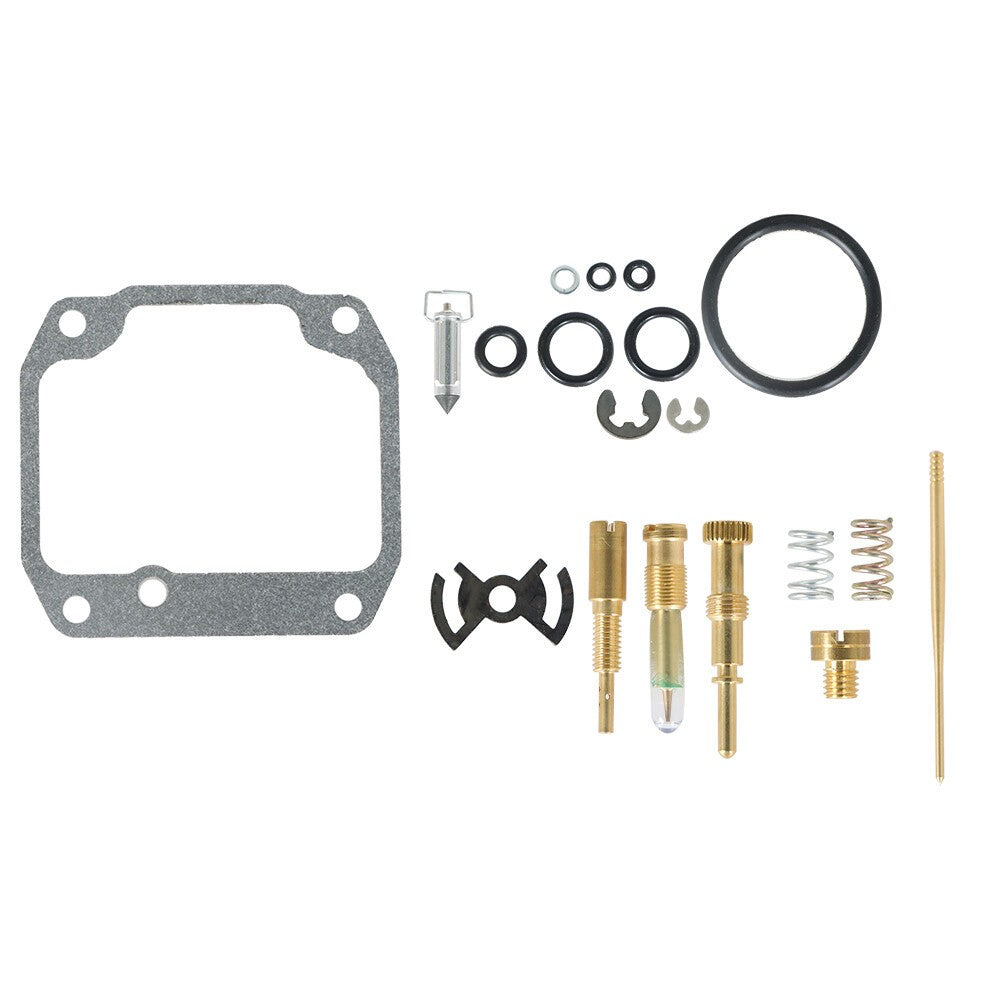

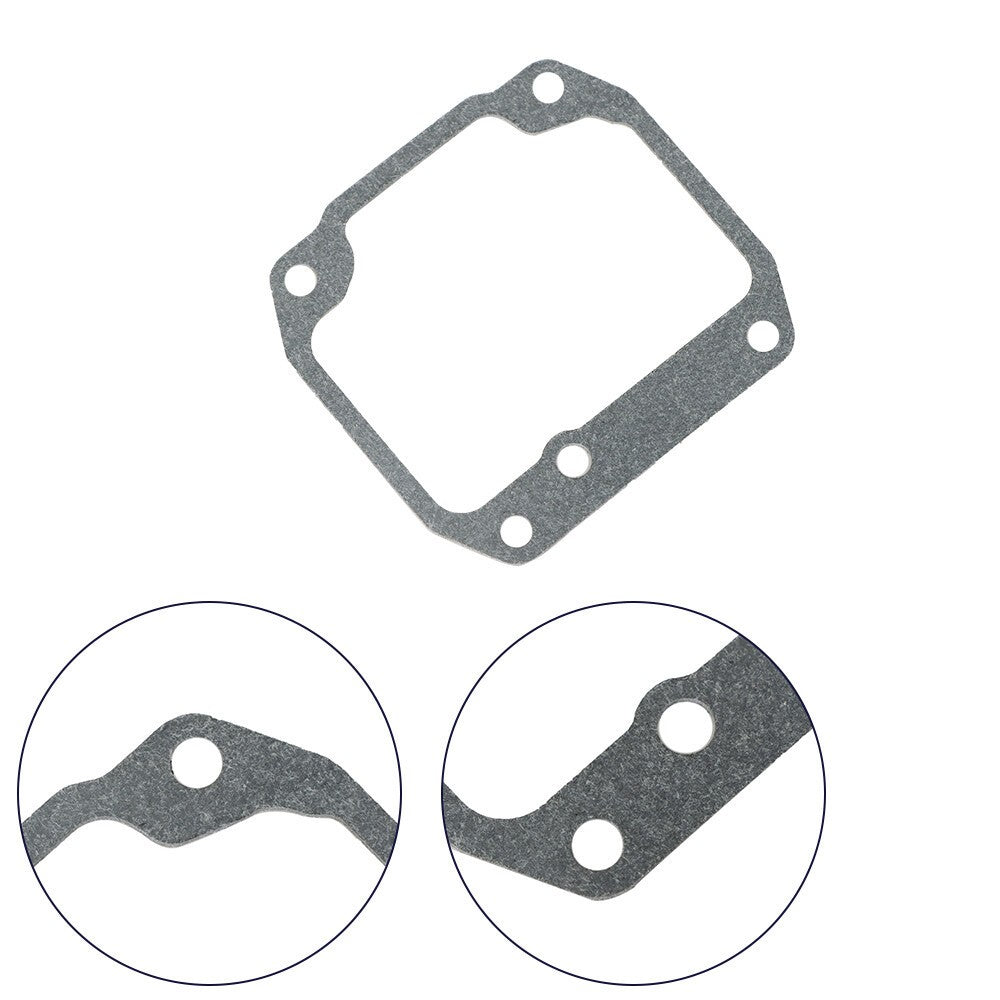

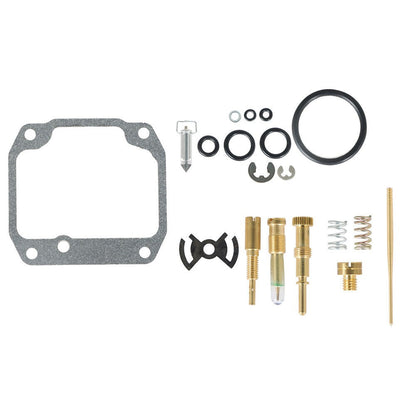

Match the original carburetor and 03-202 kit before teardown. Compare needle, main and slow jets, float valve, gasket profile, O-rings, and every part pictured.
Key Features & Performance
- Services the original LT230S carburetor with model-specific wear and sealing parts
- Application-matched sealing and fuel-control parts for the original carburetor
- Allows the original casting and factory linkage to be retained when serviceable
- Cross-references 03-202
Replaces Part Numbers
- 03-202
Common Uses
- Rebuilding a vintage QuadSport carburetor after long storage
- Repairing float-valve leakage, dried seals, or storage-related deposits
- Servicing matched carburetors together where the engine uses more than one
Technical Specifications
- Part Type: Carburetor Rebuild Kit
- Vehicle: Suzuki LT230S QuadSport
- Condition: New aftermarket
Installation & Fitment
- Record original jet positions and do not force the pressed float-pin towers
- Photograph linkage and record jets and settings before disassembly
- Clean with carburetor-safe methods, assemble carefully, and verify synchronization where required
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Is the carburetor included? A: No. The kit is used to rebuild the compatible original carburetor.
Q: Can it repair a cracked float-pin tower? A: No. Structural damage to the carburetor body usually requires another body or professional repair.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Suzuki LT230S carburetor kit, Shindy 03-202 rebuild, QuadSport 230 float valve, 1985 1988 Suzuki carb repair, LT230 stale fuel
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
