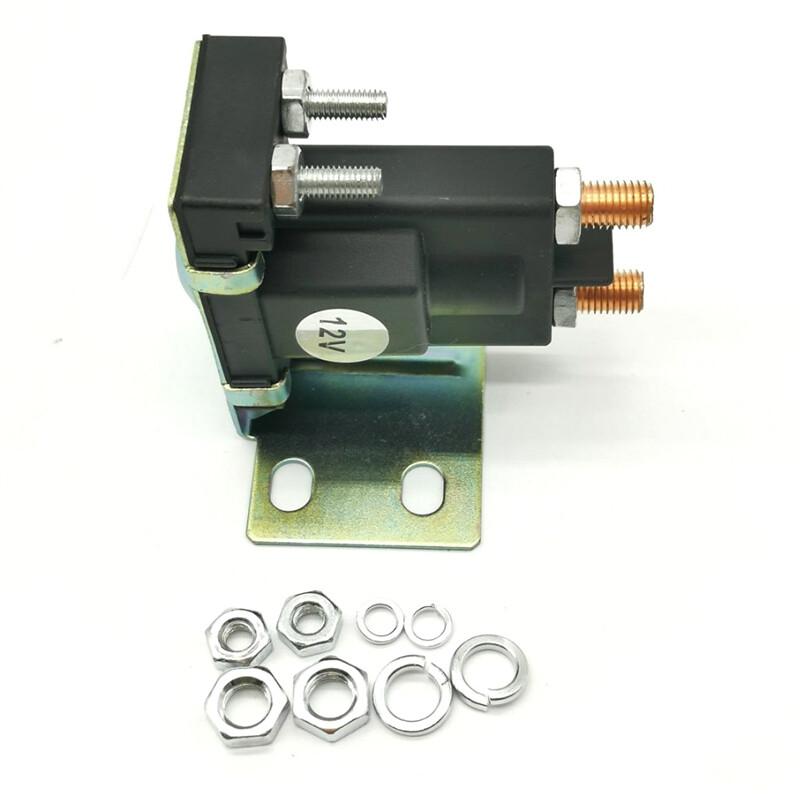

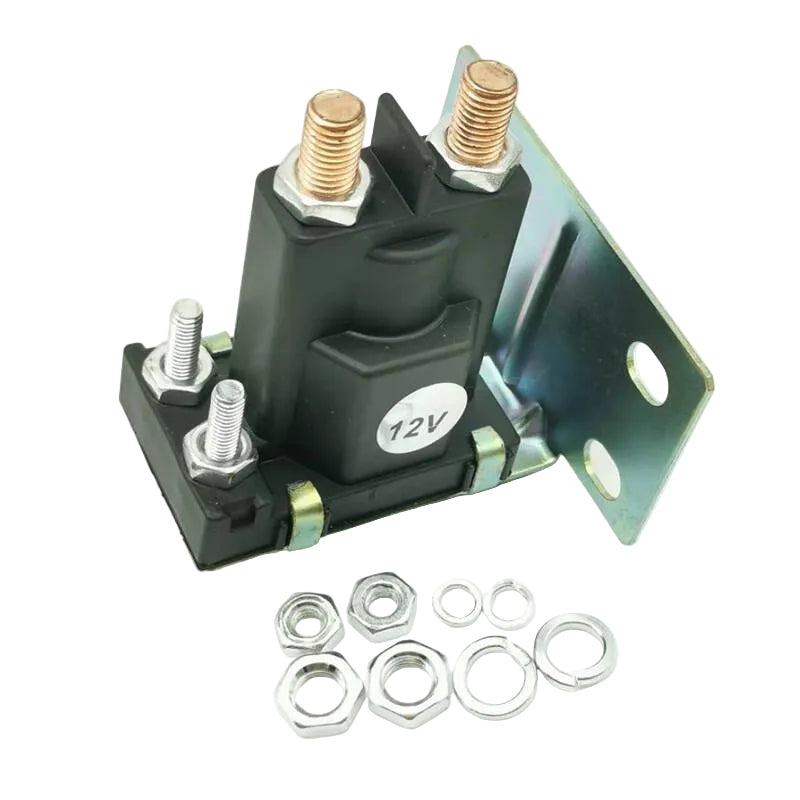

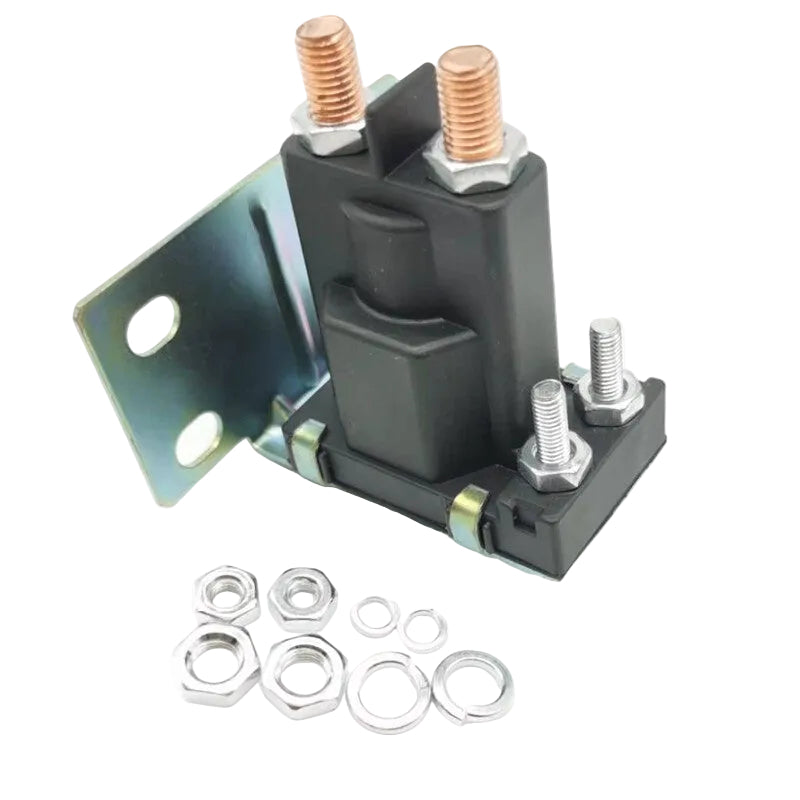

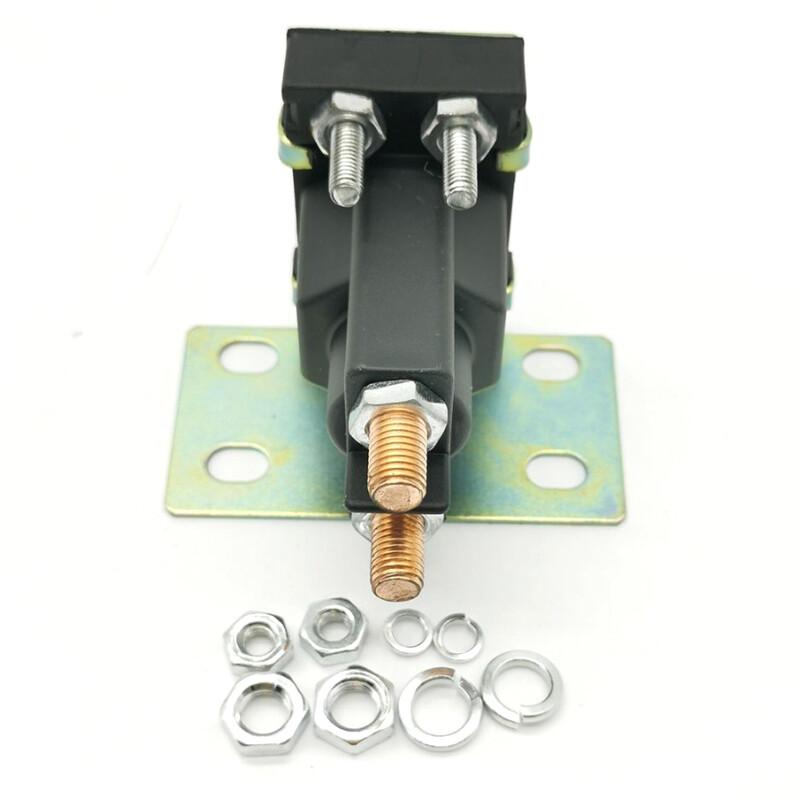

Starter Solenoid AM104036 AM100128 for John Deere Riding Mowers
$39.99
In Stock
$39.99
Sale price
$39.99
Regular price
This aftermarket starter solenoid replaces John Deere AM104036 and AM100128 on compatible lawn tractors, rear-engine riders, and selected equipment.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere 108, 111, 111H, 112L, 116, 116H
- John Deere 130 after serial 423070
- John Deere STX30 serial 160001-210000
- John Deere STX38 yellow deck serial 160001-210000, STX38 black deck, STX46
- John Deere R63, R70, R72, R92, RX63, RX73, RX75, RX95
- John Deere GX75, GX95, SRX75, SRX95, SX75, SX95
Product Overview
When the key circuit is working but the starter receives no battery current, the starter solenoid may have worn contacts. This replacement is for the matching John Deere terminal and bracket design used across several older riding mowers.
A single click is not a complete diagnosis. Load-test the battery and inspect cables, grounds, interlocks, and the starter before replacing the solenoid.
Key Features & Performance
- Switches high battery current to the starter
- Replacement for AM104036 and AM100128
- Broad fit across older John Deere riding equipment
- Useful for confirmed intermittent or open solenoid contacts
- Aftermarket starting-system component
Replaces Part Numbers
- AM104036
- AM100128
Common Uses
- Repairing no-crank with a tested control signal
- Replacing corroded battery-cable studs
- Correcting intermittent starter engagement
- Restoring an open high-current starter circuit
Technical Specifications
- Part Type: Starter Solenoid
- Application: 12V starting circuit
- Compatible Brand: John Deere
- Replacement Type: Aftermarket
- Quantity: One solenoid
Installation & Fitment
- Disconnect battery ground first
- Label cable and trigger-wire locations
- Match mounting holes and terminal orientation
- Clean the battery and starter cable ends
- Test neutral and operator-presence interlocks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Use the model serial range and original number. Similar John Deere solenoids can have different brackets or small-terminal arrangements.
Frequently Asked Questions
Q: Will this solve every no-crank problem? A: No. Battery, cables, key switch, safety interlocks, and starter condition must be checked.
Q: Does STX38 fitment depend on deck color or serial? A: Yes. Use the listed configuration and confirm AM104036/AM100128.
Q: Is a click proof the solenoid is good? A: No. The coil may click while burnt internal contacts fail to carry starter current.
Q: Is it OEM John Deere? A: No. It is an aftermarket replacement.
Part Summary
