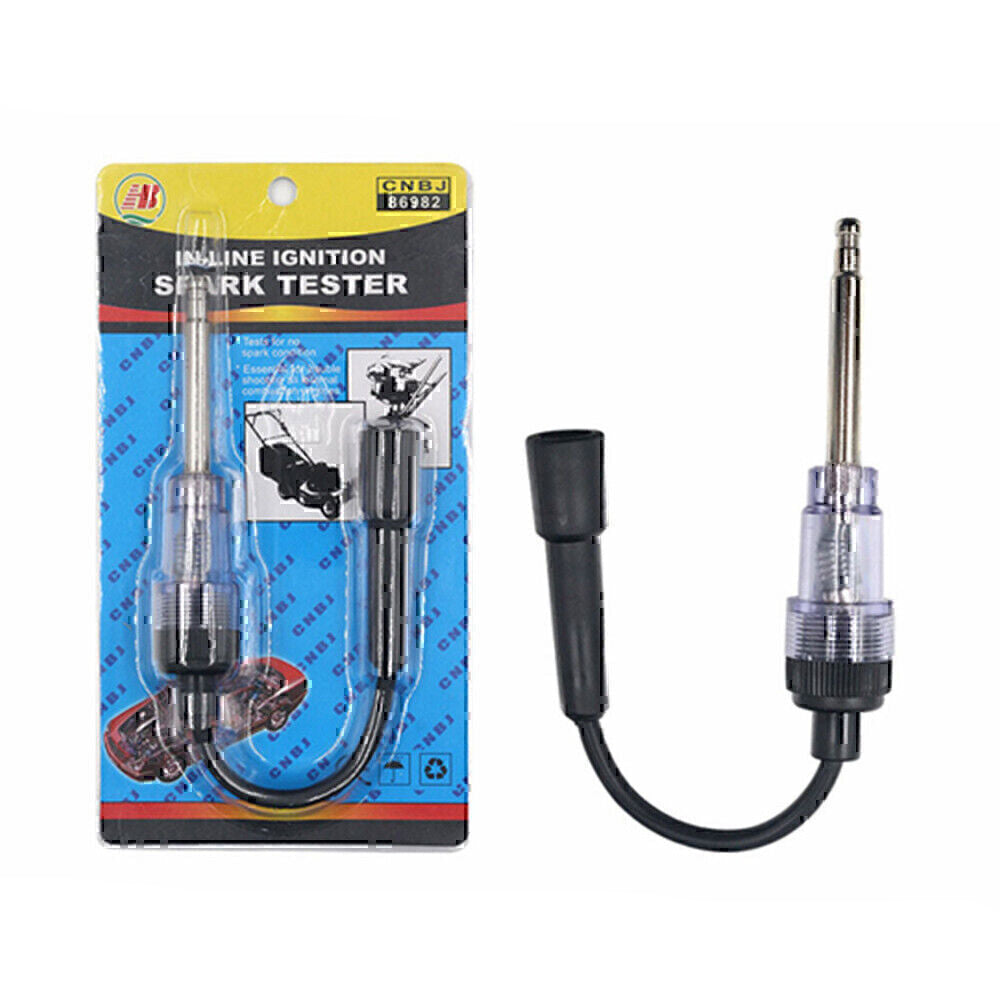

Inline Spark Plug Ignition Tester for Coil and Plug-Wire Diagnosis
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price

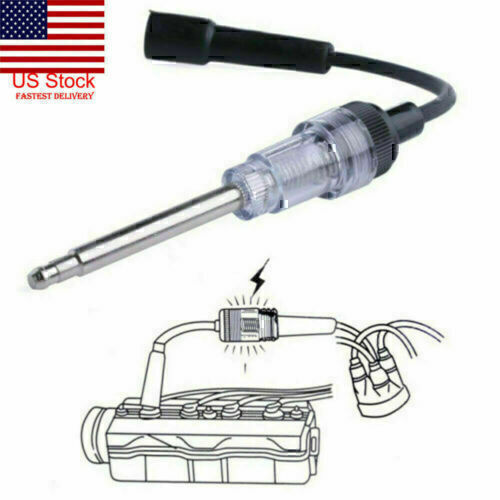

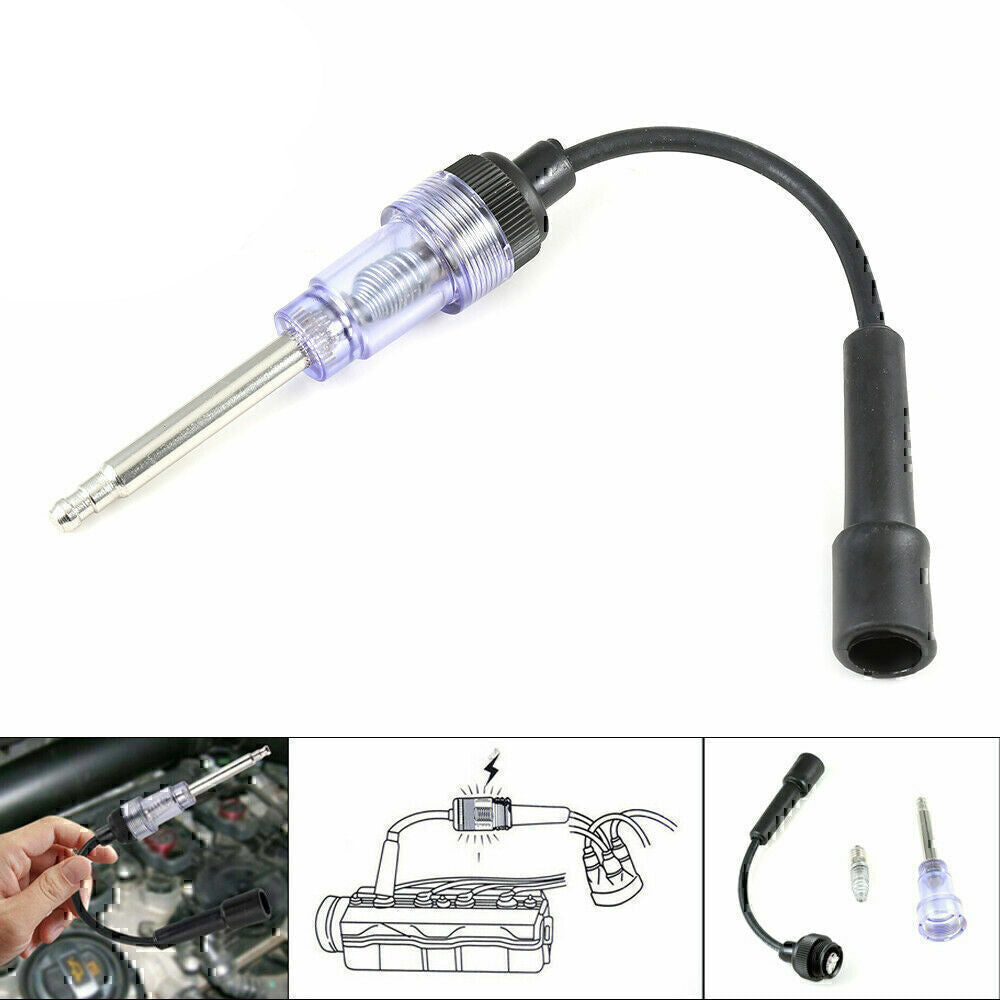

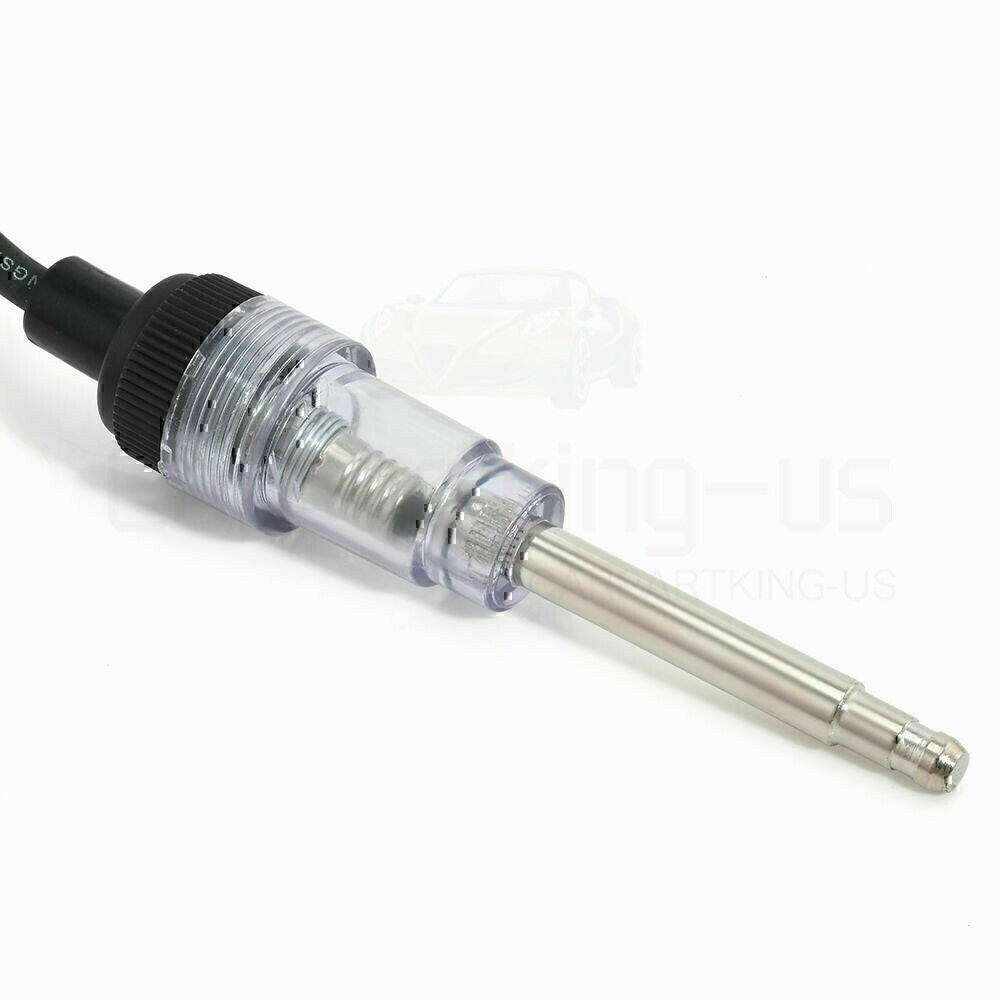

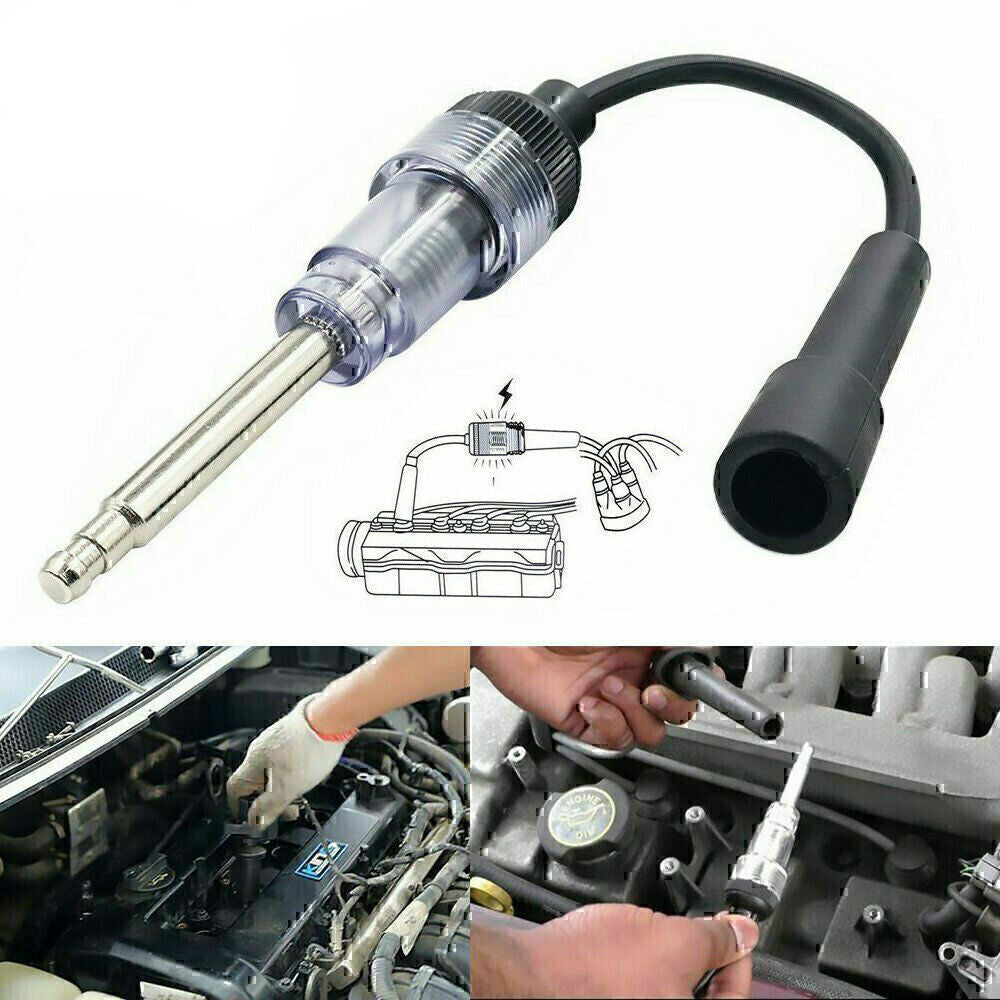

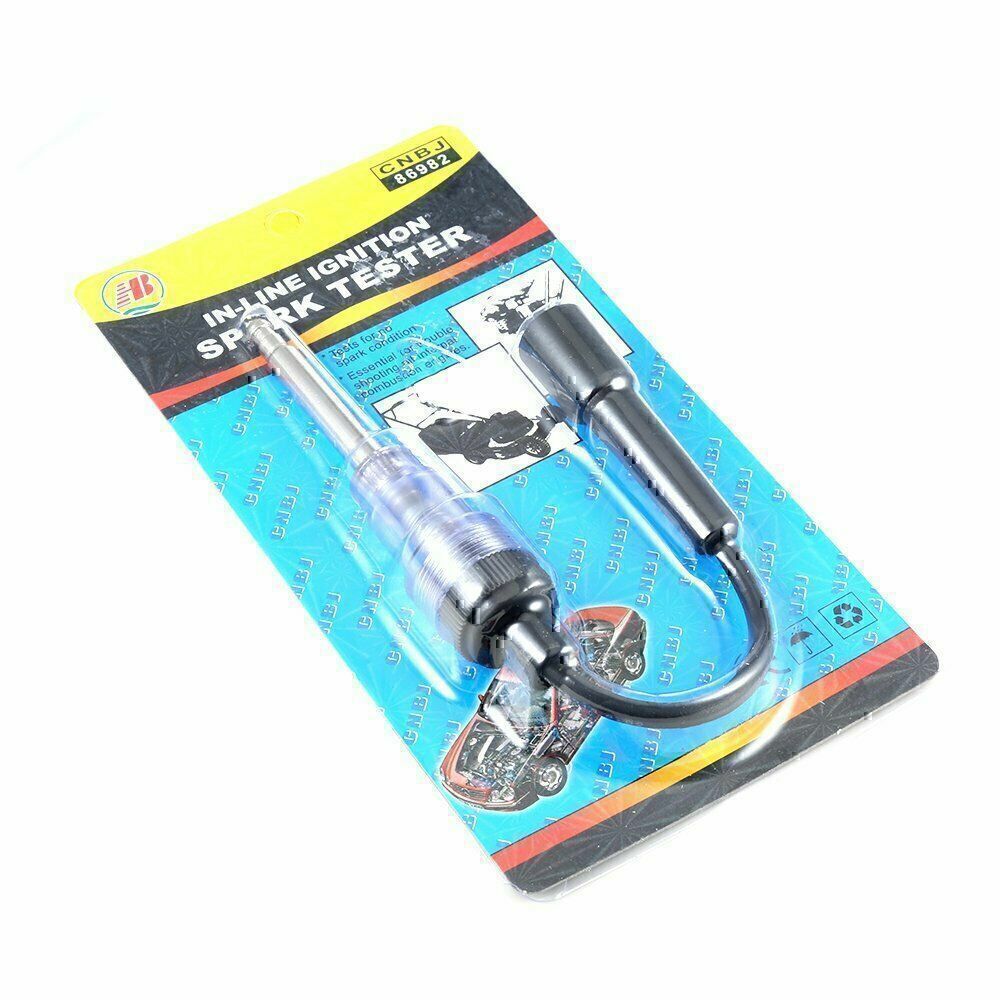

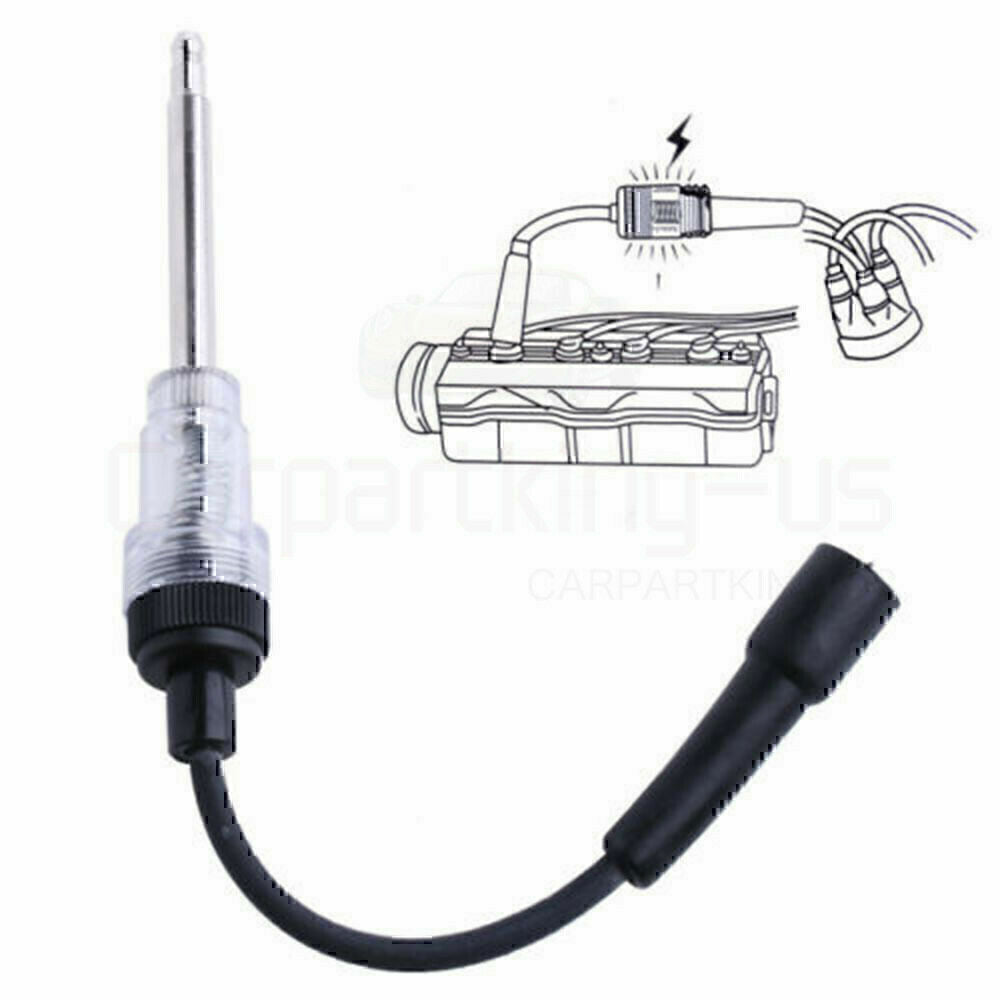

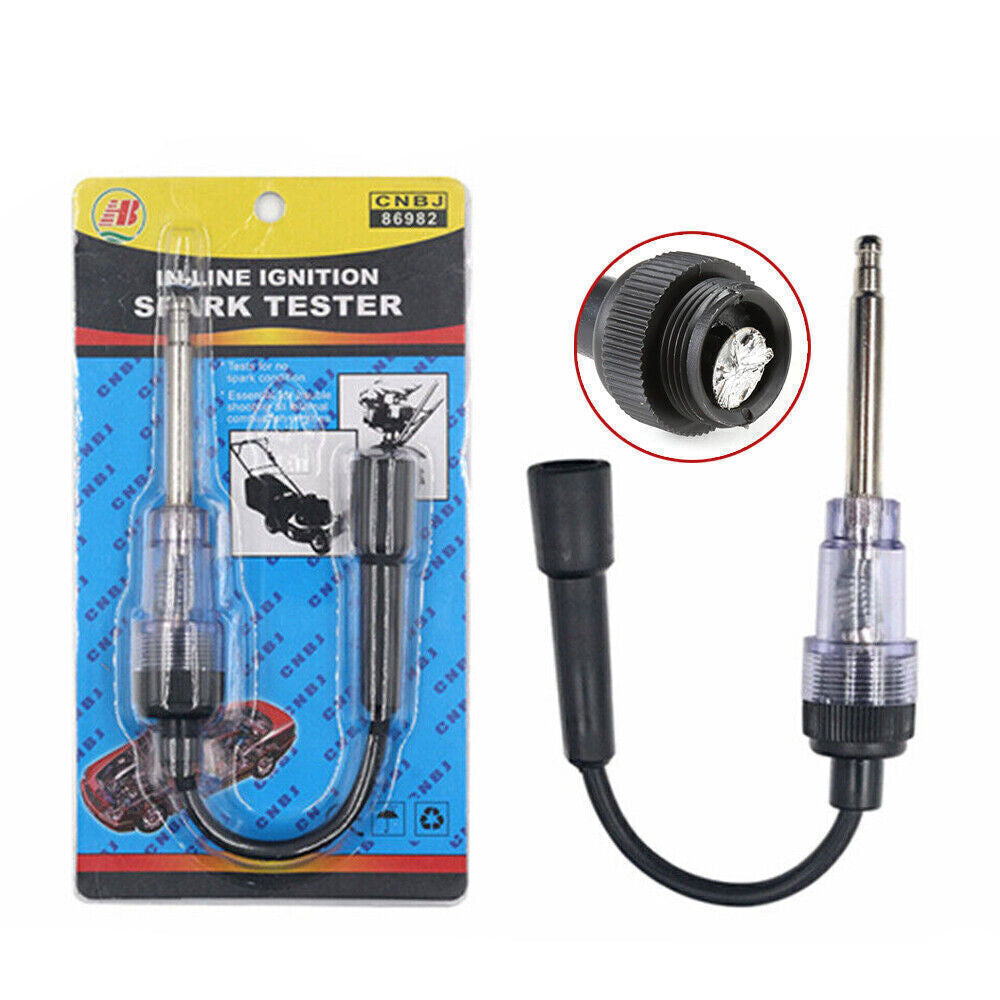

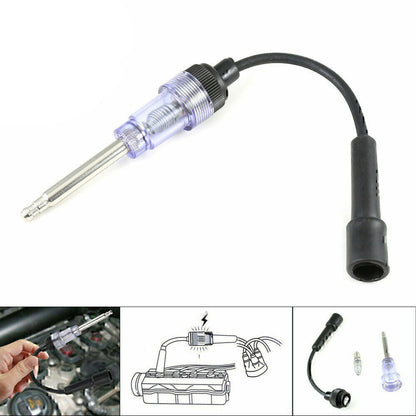

This new inline ignition spark tester connects between a compatible spark plug and plug wire or coil lead to show whether an ignition pulse reaches the cylinder while the engine cranks or runs.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview
A crank-no-start or single-cylinder misfire should not begin with a pile of guessed parts. The clear tester flashes when high voltage travels through the circuit, helping separate an ignition-delivery problem from fuel, compression, injector, or mechanical faults.
A flash confirms that a pulse is present; it does not prove spark strength under cylinder pressure, plug condition, ignition timing, or combustion quality. Use insulated gloves, keep clear of moving parts, and do not touch the tester while cranking.
Key Features & Performance
- Inline connection keeps the spark plug installed
- Visible flash indicates ignition pulse
- Useful on many small engines and plug-wire systems
- Fast comparison between working and suspect cylinders
Common Uses
- Checking for spark during a crank-no-start diagnosis
- Comparing ignition output between cylinders
- Testing small-engine coils and plug leads

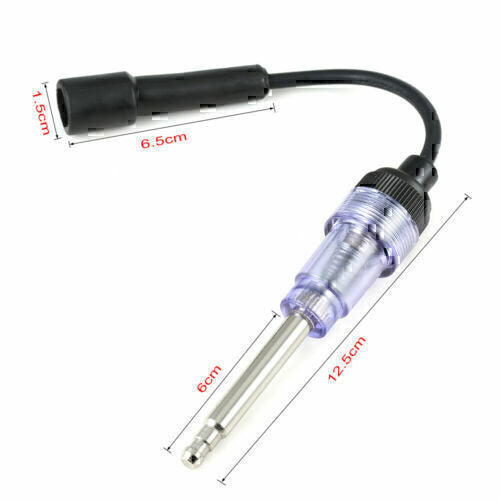

Technical Specifications
- Product Type: Inline ignition spark tester

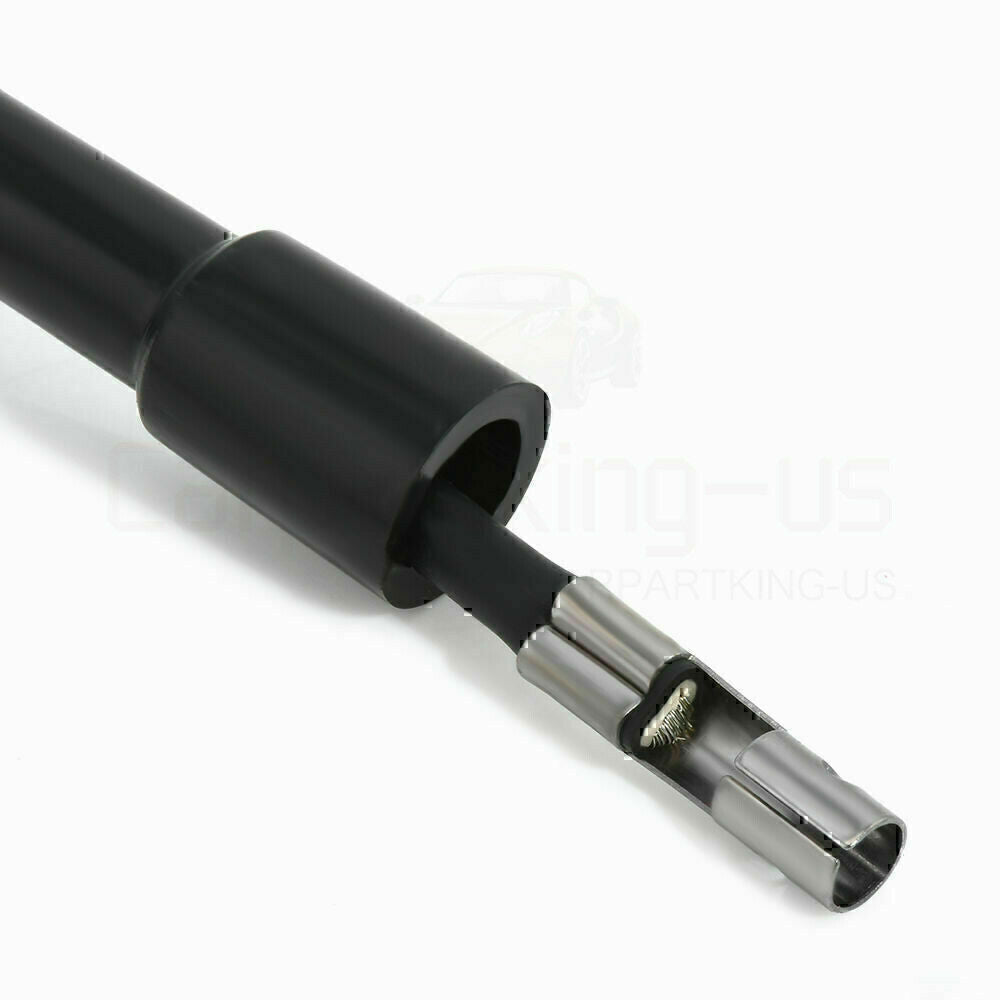

- Connection: Between plug and compatible lead

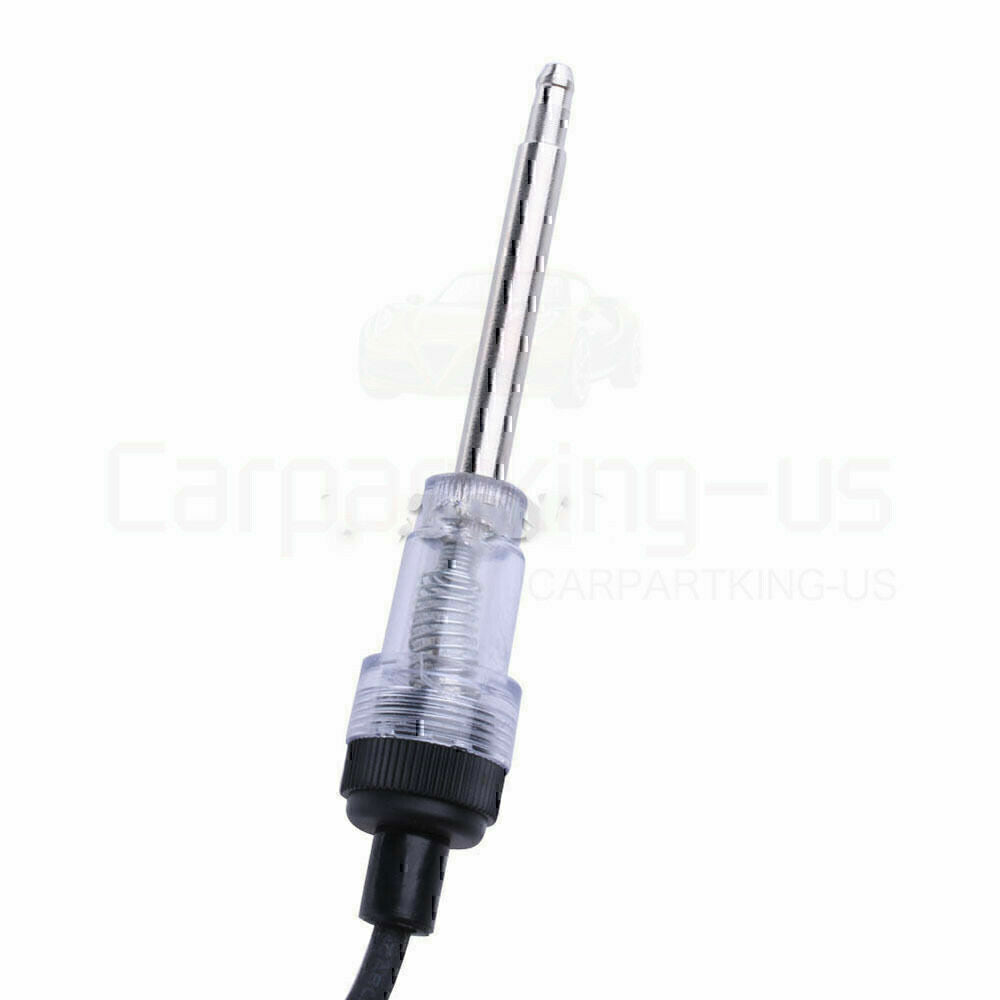

- Indication: Visible internal flash
- Application: Gasoline ignition systems
Installation & Fitment
- Shut the engine off before making connections
- Push both ends fully onto the plug and lead
- Position the window where it can be seen safely
- Keep hands, clothing, and leads away from belts and fans
- Remove the tester and restore the ignition connection after testing
Compatibility Notice
This is a universal or service item, not a guaranteed fit for every vehicle, machine, or job. Measure and compare all dimensions, connections, operating limits, and the intended system before purchase. Custom installation or professional setup may be required.
Frequently Asked Questions
Q: Does a flash prove the spark plug is good? A: No. It shows an ignition pulse reached the tester; the plug, compression, mixture, and timing still need evaluation.
Q: Can it test coil-on-plug engines? A: Only when its connectors can be safely placed in line with that coil and plug arrangement.
Q: Is it safer than holding a loose plug? A: It reduces the need for an exposed spark, but high ignition voltage still requires careful handling.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: inline spark plug tester, car ignition coil diagnostic tool, engine crank no start spark test, visible ignition pulse tester, small engine plug wire tester
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
