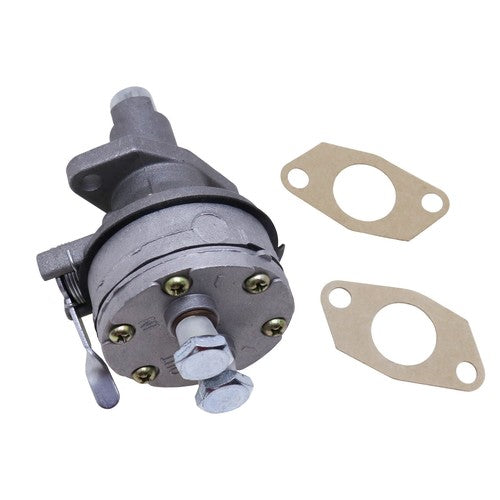

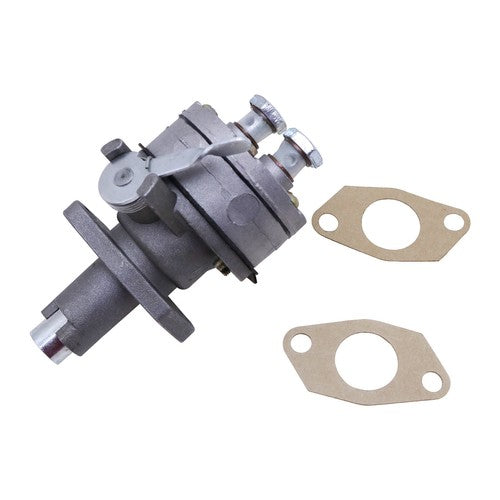

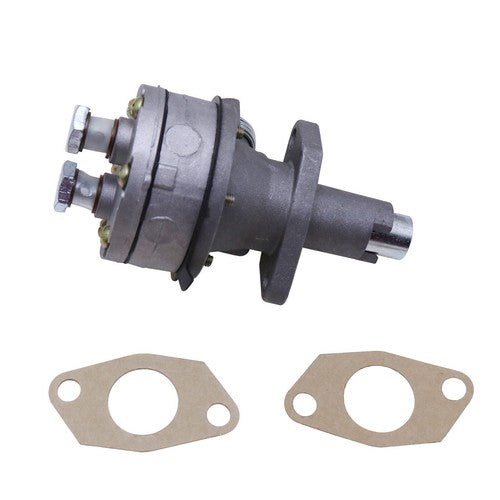

Fuel Lift & Hand Priming Pump for Cat C1.5/C2.2, 301.5–304.5 – 153-6876
$53.79
In Stock
$53.79
Sale price
$53.79
Regular price
This Caterpillar fuel lift and hand-priming pump fits C1.5/C2.2-powered equipment and compact machines using Cat part number 153-6876.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Applications are grouped below. Equipment can vary by serial number, engine, and production configuration.
| Caterpillar Mini Excavators | 301.5, 301.6, 301.8, 302.5, 303.5, 304.5 |
| Caterpillar Compactors / Loader | CB-334D, CB-335D; 902 wheel loader |
| Caterpillar Power Systems | Selected C1.5 and C2.2 generator-set applications |
Product Overview
The fuel supply pump moves fuel from the tank toward the carburetor or injection system. Hard starting, fuel starvation under load, an empty downstream filter, or low supply pressure/flow can point to the pump after hoses, filter restrictions, and tank venting are ruled out.
Caterpillar catalogs 153-6876 as a fuel-system lift/priming pump with a manual priming lever. Published Cat dimensions identify a roughly 53 mm body diameter and 109 mm overall length, helping distinguish it from similar-looking feed pumps.
Key Features & Performance
- Fuel delivery: Restores the low-pressure supply needed by the matching engine fuel system.
- Repair-focused replacement: Useful when the original pump no longer develops adequate flow or has developed a leak.
- Fitment-specific connections: Port orientation, mounting, voltage where applicable, and reference number should be compared before ordering.
Part Numbers & Specifications
- Cat Part Number: 153-6876
- Function: Fuel lift pump with manual priming lever
- Body Diameter: Approx. 53 mm
- Overall Length: Approx. 109 mm
Before You Order
Confirm 153-6876 in the machine/engine parts catalog and compare the flange, operating lever and port arrangement. Cat applications can vary by serial number.
Frequently Asked Questions
Is this an OEM part?
This is a replacement service part intended to interchange with the reference number(s) and applications listed here. It is not represented as a factory-branded OEM part unless the product packaging itself states otherwise.
How do I confirm fitment?
Match the original part number first, then confirm the machine model, engine, connector or mounting arrangement, and any serial-number break that applies to your equipment.
