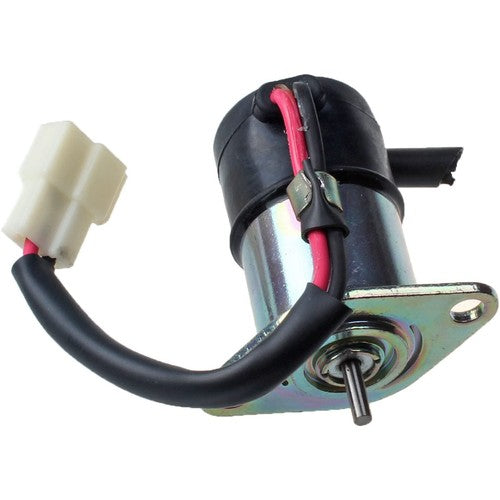

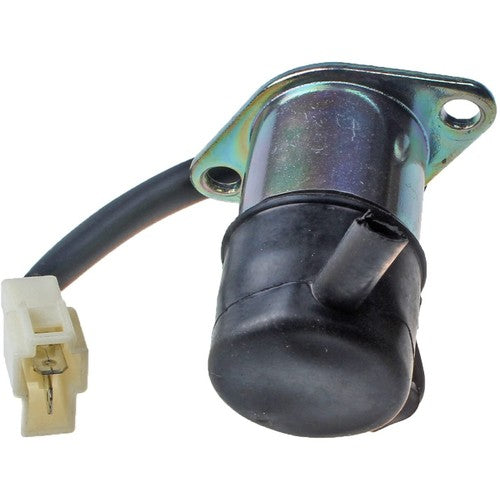

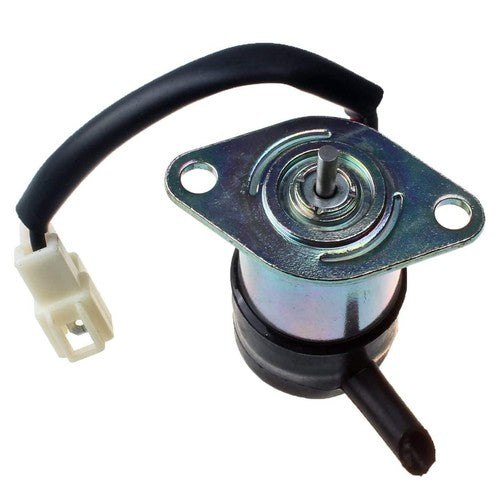

12V 2-Terminal Fuel Shutoff Solenoid for Kubota D1105/D1005/V1505 – 052600-4150
$70.19
In Stock
$70.19
Sale price
$70.19
Regular price
This 12-volt, two-terminal fuel shutoff solenoid matches Denso 052600-4150 for supported Kubota D1105, D1005 and V1505 engine applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Models / Details |
|---|---|
| Kubota engines | D1105; D1005; V1505; selected D905 configurations using the matching solenoid |
| Equipment families | Selected Kubota BX/ZD/KX/F/FZ and industrial-engine applications where the listed Denso/Kubota number is specified |
Product Overview
The solenoid moves the fuel-control mechanism to allow engine run and shutdown. If the coil fails, the plunger sticks, or voltage drops across the circuit, the engine may crank without starting, die when the key returns to run, or continue running when switched off.
Cross-reference data ties Denso 052600-4150 / 052600-4151 to Kubota 16271-60010, 16271-60012 and 16271-60013 on supported D905/D1005/D1105/V1505 installations. That broader reference family is useful because the same engines appear in tractors, mowers, excavators and industrial equipment.
Key Features & Performance
- 12V, two-terminal fuel shutoff solenoid
- Denso references 052600-4150 / 052600-4151
- Kubota cross-references include 16271-60010, 16271-60012 and 16271-60013
- Engine coverage includes supported D905, D1005, D1105 and V1505 applications
Specifications & Reference Numbers
- Voltage: 12V
- Terminals: 2
- Denso references: 052600-4150; 052600-4151
- Kubota references: 16271-60010; 16271-60012; 16271-60013
Before You Order
Match voltage, two-terminal connector, mounting, plunger length and the original number. Test supply voltage and ground under load before replacing the solenoid.
Frequently Asked Questions
Q: What is the difference between pull and hold operation?
A: Many diesel shutoff circuits use different current paths or timing to move and then hold the plunger; circuit behavior depends on the machine wiring.
Q: Can low battery voltage cause the solenoid not to pull in?
A: Yes. A solenoid can click or move weakly if voltage drops through the battery, relay, wiring or ground.
