4-Carburetor Rebuild Kit Set for 1972-1974 Honda CB350F
$36.99
In Stock
$36.99
Sale price
$36.99
Regular price

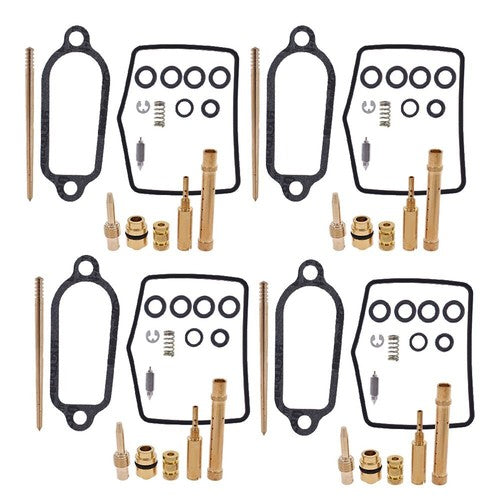

This aftermarket set includes four deluxe carburetor rebuild kits—one for each carburetor on compatible 1972-1974 Honda CB350F four-cylinder motorcycles.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1972 Honda CB350F
- 1973 Honda CB350F
- 1974 Honda CB350F
Product Overview
A CB350F with fuel leaks, uneven idle, sticky floats, or years of storage often needs all four carburetors serviced as a bank. Rebuilding only one can leave three aged bowls, valves, jets, and seals causing the same poor running complaint.
A successful repair still depends on clean passages, correct float height, sound intake boots, valve adjustment, ignition condition, and a final four-carb synchronization. Retain and compare original calibrated parts if the motorcycle has nonstandard exhaust or jetting.
Key Features & Performance
- Four complete service kits cover the full CB350F carburetor rack
- Includes common needles, seats, jets, screws, springs, gaskets, and O-rings
- Supports a coordinated repair after storage or fuel leakage
- Correct application for the 1972-1974 CB350F four-cylinder
- Aftermarket vintage-motorcycle carburetor service set
Common Uses
- Rebuilding all four carburetors after long-term storage
- Repairing overflowing bowls or hardened gaskets
- Correcting uneven idle after passages and ignition are checked
- Preparing a vintage Honda for final synchronization and road use
Technical Specifications
- Product Type: Four-carburetor rebuild kit set
- Kit Count: Four
- Typical Contents per Carb: Needle valve and seat, jet needle and clip, air screw and spring, main and slow jets, bowl gasket, top gasket, and O-rings
- Motorcycle: Honda CB350F
- Replacement Type: Aftermarket
Installation & Fitment
- Photograph linkage, hose routing, and jet locations before disassembly
- Keep each carburetor's parts organized and clean every passage without enlarging jets
- Compare supplied jet sizes with the original setup and engine modifications
- Set float height and bench synchronization to the Honda manual
- Check valve clearance and ignition, then vacuum-synchronize all four carburetors on the running engine
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model names and year ranges are a starting point. Match the original reference number, configuration, connections, mounting points, and product-specific details before ordering.
Frequently Asked Questions
Q: How many carburetors does this set service? A: Four—one kit for each carburetor on the CB350F rack.
Q: Will rebuild kits automatically synchronize the carbs? A: No. Mechanical setup and vacuum synchronization are separate steps.
Q: Should I replace original jets with every supplied jet? A: Compare sizes first; a modified motorcycle may need its existing calibrated jetting.
Part Summary
keywords: Honda CB350F carb rebuild kits, 1972 CB350F four carb kit, 1974 Honda carburetor gasket set, vintage Honda fuel leak repair, CB350F float needle kit, four cylinder carb synchronization parts, stale fuel CB350F repair, aftermarket Honda carb service set
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
