Black Bench Seat Bottom for John Deere Gator HPX & XUV 625i/825i/855M – Replaces AM140946

Black Bench Seat Bottom for John Deere Gator HPX & XUV 625i/825i/855M – Replaces AM140946

SKU: NLT2P01287
$348.79 In Stock
$348.79
$348.79
Ships for free in 2–4 business days.

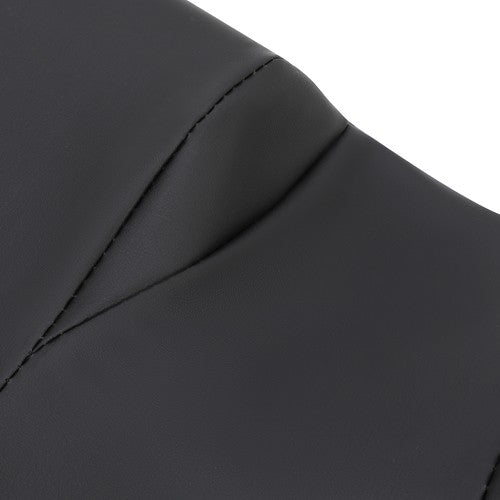

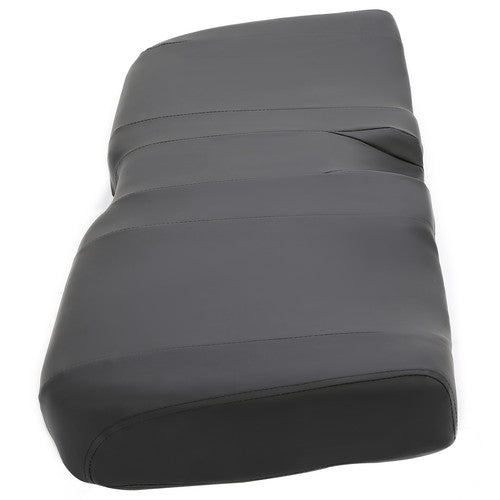

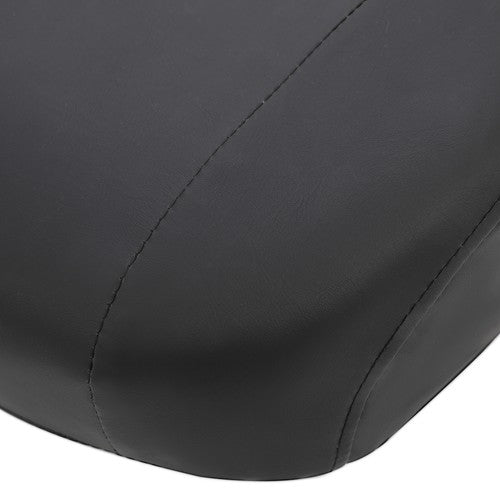

This black aftermarket bench-seat bottom is designed for John Deere Gator utility vehicles that use seat #AM140946. It replaces the lower sitting section on compatible HPX and XUV models, including select XUV 855M configurations.
Estimated delivery between
Shop at Northline Parts Best Customer Service Best Online Parts

Let Northline Parts Do the Heavy Lifting for You!

Not sure which part you need? Our team can help you find the right replacement.

Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT

Live Chat: Available 24/7

Call ‪(314) 403-0109‬

I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks

Edward H. — Verified customer

Compatible Models

We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.

Compatible equipment / model
  • John Deere Gator HPX 4x2
  • John Deere Gator HPX 4x2 Diesel
  • John Deere Gator HPX 4x4
  • John Deere Gator HPX 4x4 Diesel
  • John Deere Gator HPX 4x4 Trail
  • John Deere Gator XUV625i
  • John Deere Gator XUV825i
  • John Deere Gator XUV825E
  • John Deere Gator XUV825M
  • John Deere Gator XUV825M S4
  • John Deere Gator XUV855D
  • John Deere Gator XUV855E
  • John Deere Gator XUV855M
  • John Deere Gator XUV855M S4
  • John Deere Gator HPX615E
  • John Deere Gator HPX815E

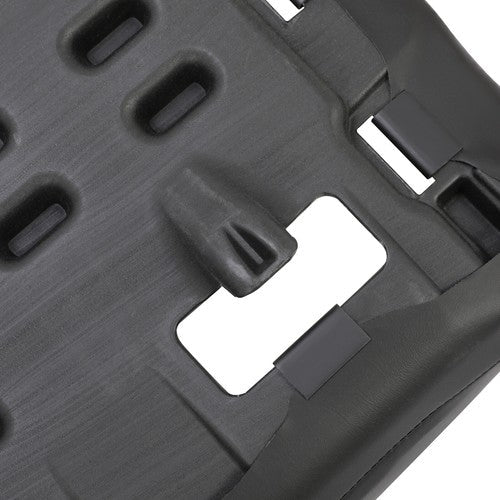

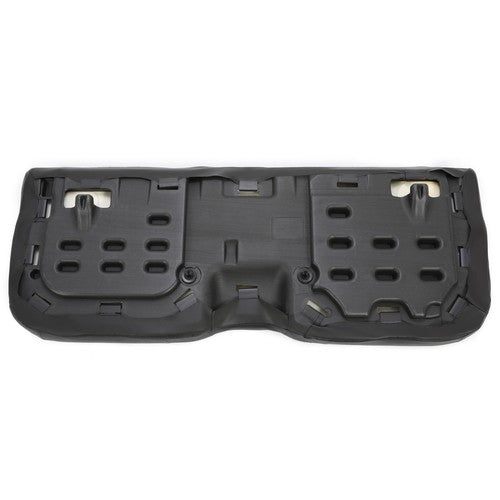

Fitment details: These are documented AM140946 equipment families, not universal fit for every trim and serial range. Compare the seat-base shape and attachment points; not a genuine John Deere product.

Product Overview

The seat bottom is what takes most of the wear from getting in and out of a working Gator. When the upholstery splits or the cushion loses support, replacing that section can restore the bench without replacing the backrest or the whole vehicle interior.

AM140946 is the bench-bottom seat assembly, not a standalone bucket-seat pad. The part number covers multiple Gator models, but the seat frame and mounting arrangement should still be checked.

Key Features & Performance

  • Black bench-bottom seating section
  • Replaces AM140946 where applicable
  • Aftermarket product for compatible John Deere Gators

Specifications

  • Product: Black Bench Seat Bottom
  • Northline Parts SKU: NLT2P01287
  • Part reference: AM140946

Replaces / Cross-References

Replaces part number #AM140946. Check that the original part or accessory mounting configuration matches before ordering.

What Is Included

One bench seat-bottom assembly

Installation & Fitment Notes

These are documented AM140946 equipment families, not universal fit for every trim and serial range. Compare the seat-base shape and attachment points; not a genuine John Deere product.

Frequently Asked Questions

Will this fit every machine or vehicle with the same model name?

No. The mounting layout, body style, trim or production details described above need to match your equipment. These are documented AM140946 equipment families, not universal fit for every trim and serial range. Compare the seat-base shape and attachment points; not a genuine John Deere product.

Is this a genuine manufacturer part?

No. This is an aftermarket replacement or accessory sold by Northline Parts. Manufacturer and model names describe compatibility; they do not indicate an official product or endorsement.

Part Summary

Part: Black Bench Seat Bottom

Compatible applications: John Deere Gator HPX 4x2; John Deere Gator HPX 4x2 Diesel; John Deere Gator HPX 4x4; plus 13 more applications detailed above. See the complete Compatible Models section for details.

Included: One bench seat-bottom assembly

Northline Parts SKU: NLT2P01287

Keywords: Black Bench Seat Bottom, Black Bench Seat Bottom for John Deere Gator HPX & XUV 625i/825i/855M – Replaces AM140946, John Deere Gator HPX 4x2, John Deere Gator HPX 4x2 Diesel, John Deere Gator HPX 4x4, John Deere Gator HPX 4x4 Diesel, John Deere Gator HPX 4x4 Trail, AM140946, Northline Parts, NLT2P01287
