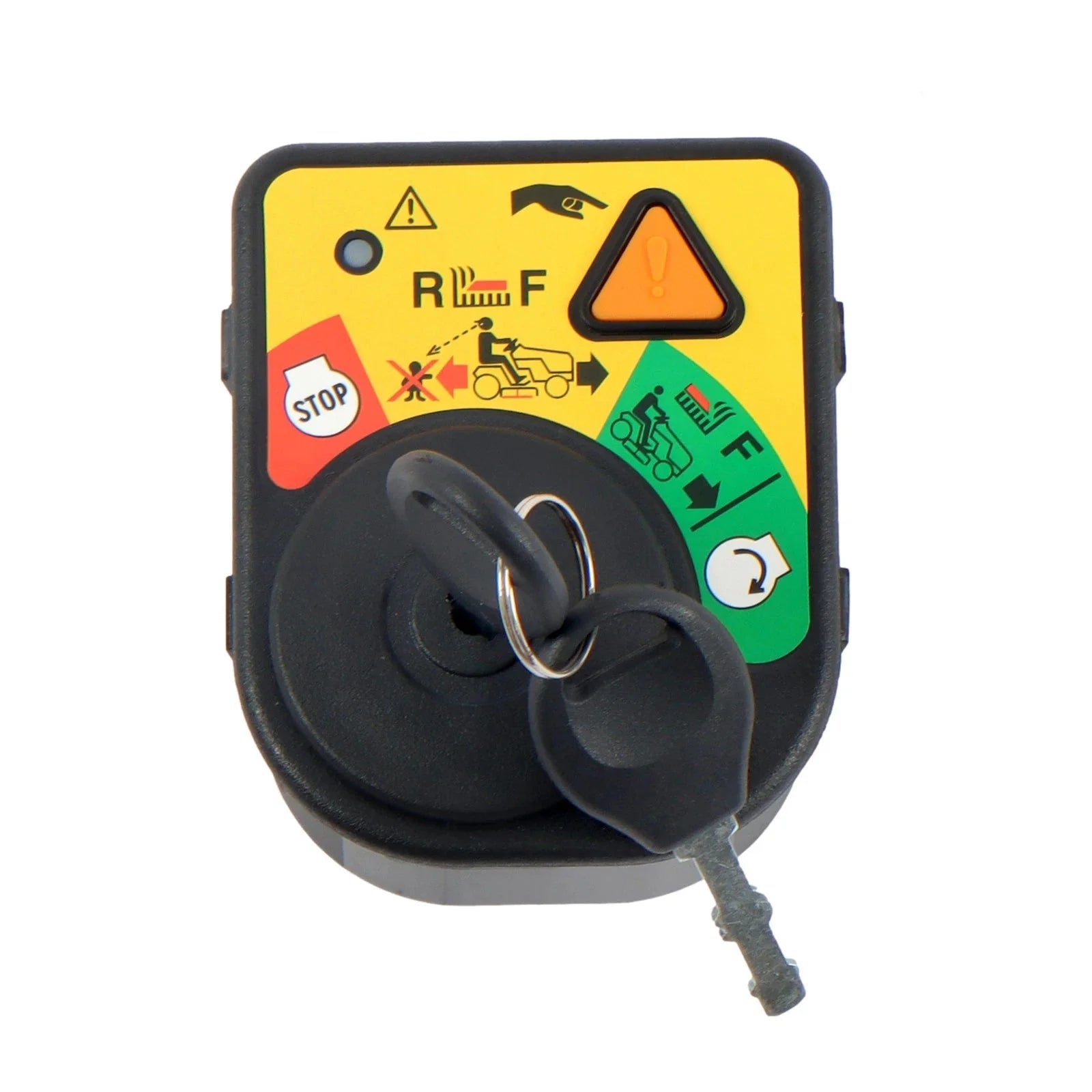

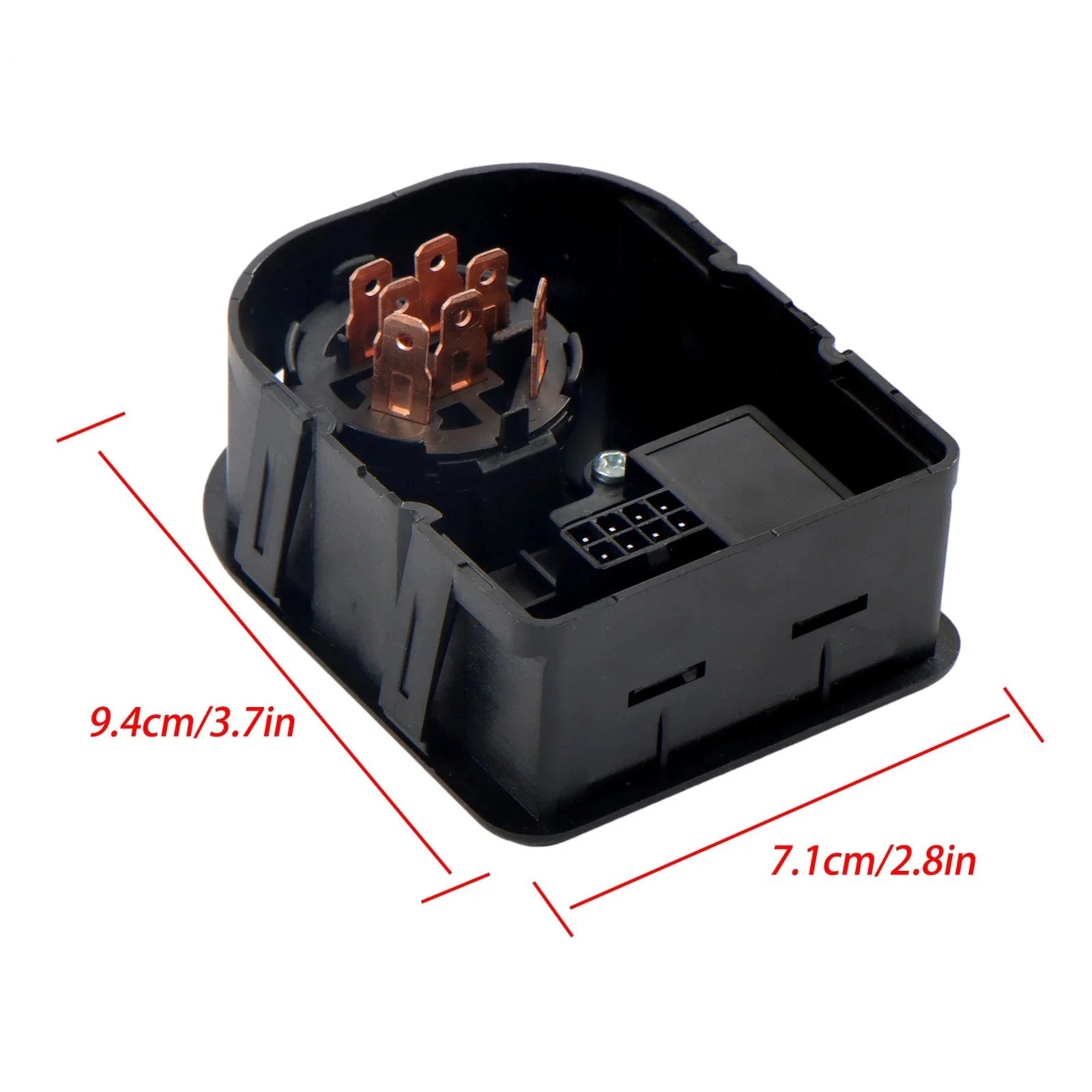

7-Pin Ignition Switch Module for Cub Cadet and MTD | 925-04227
$46.99
In Stock
$46.99
Sale price
$46.99
Regular price
This aftermarket ignition switch module replaces Cub Cadet and MTD references including 925-04227, 725-04227, and 925-06119B on compatible riding mowers.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Cub Cadet FMZ50
- Cub Cadet i1042
- Cub Cadet GT1554
- Cub Cadet GT2542
- Cub Cadet GT2544
- Cub Cadet GT1054 with matching switch
- Cub Cadet GT2042 with matching switch
- Cub Cadet GT2148 with matching switch
- MTD 13AM772F700
- MTD 13AN772G700
- MTD 13A1762F700
- MTD 13A3762F700
- Troy-Bilt, Yard Machines, Bolens, and White Outdoor tractors using the same reference and terminal layout
Product Overview
A key that produces no crank, intermittent accessory power, or an engine that will not shut off can point to burned contacts or a loose terminal block inside the ignition module. This replacement restores the key-operated electrical path when testing confirms the switch rather than the battery, solenoid, fuse, safety interlocks, or harness is at fault.
For a machine that needs to return to work, careful identification now prevents another round of disassembly later. Match the seven-terminal pattern, key positions, locating tabs, connector shape, and full mower model number.
Key Features & Performance
- Seven-terminal ignition switch module
- Restores key-controlled start, run, and stop circuits
- Vehicle-specific connector indexing
- Useful for heat-damaged or internally worn switches
Replaces Part Numbers
- 925-04227
- 725-04227
- 725-04227A
- 725-04227B
- 925-06119
- 925-06119B
- 725-06119
- 925-1745
- 430-220
- 112-0312
Common Uses
- Mower does not crank when key is turned
- Engine continues running with key off
- Accessories lose power in certain key positions
- Connector or switch terminals show heat damage
Technical Specifications
- Product Type: Ignition Switch Module
- Terminal Count: 7
- Application: Riding Lawn Tractor
- Control: Key Operated
- Replacement Type: Aftermarket
- Fitment Type: Reference and Connector Specific
Installation & Fitment
- Disconnect the battery before unplugging the switch
- Photograph the connector orientation
- Inspect the harness plug for melted cavities or loose terminals
- Never bypass seat, brake, or PTO safety interlocks
- Test start, run, and shutoff functions before operating blades
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Match the seven-terminal pattern, key positions, locating tabs, connector shape, and full mower model number.
Frequently Asked Questions
Q: Will this fix every no-crank mower? A: No. Test the battery, fuse, solenoid, brake/PTO/seat switches, wiring, and starter circuit.
Q: Does seven pins guarantee fit? A: No. Terminal arrangement and switch logic must also match.
Q: Can I bypass a safety switch to test it? A: Use the manufacturer-approved diagnostic procedure; do not operate with safety interlocks defeated.
Part Summary
