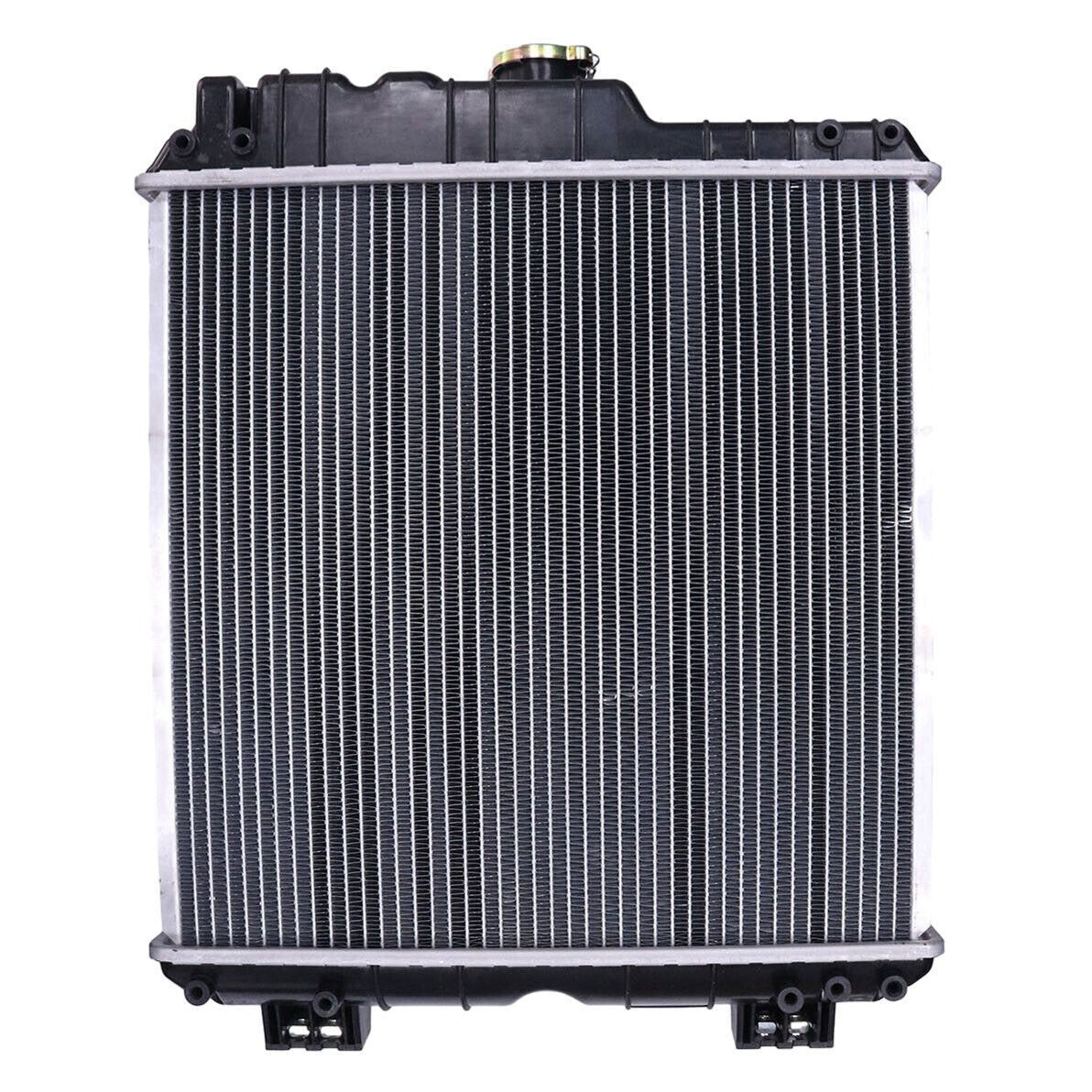

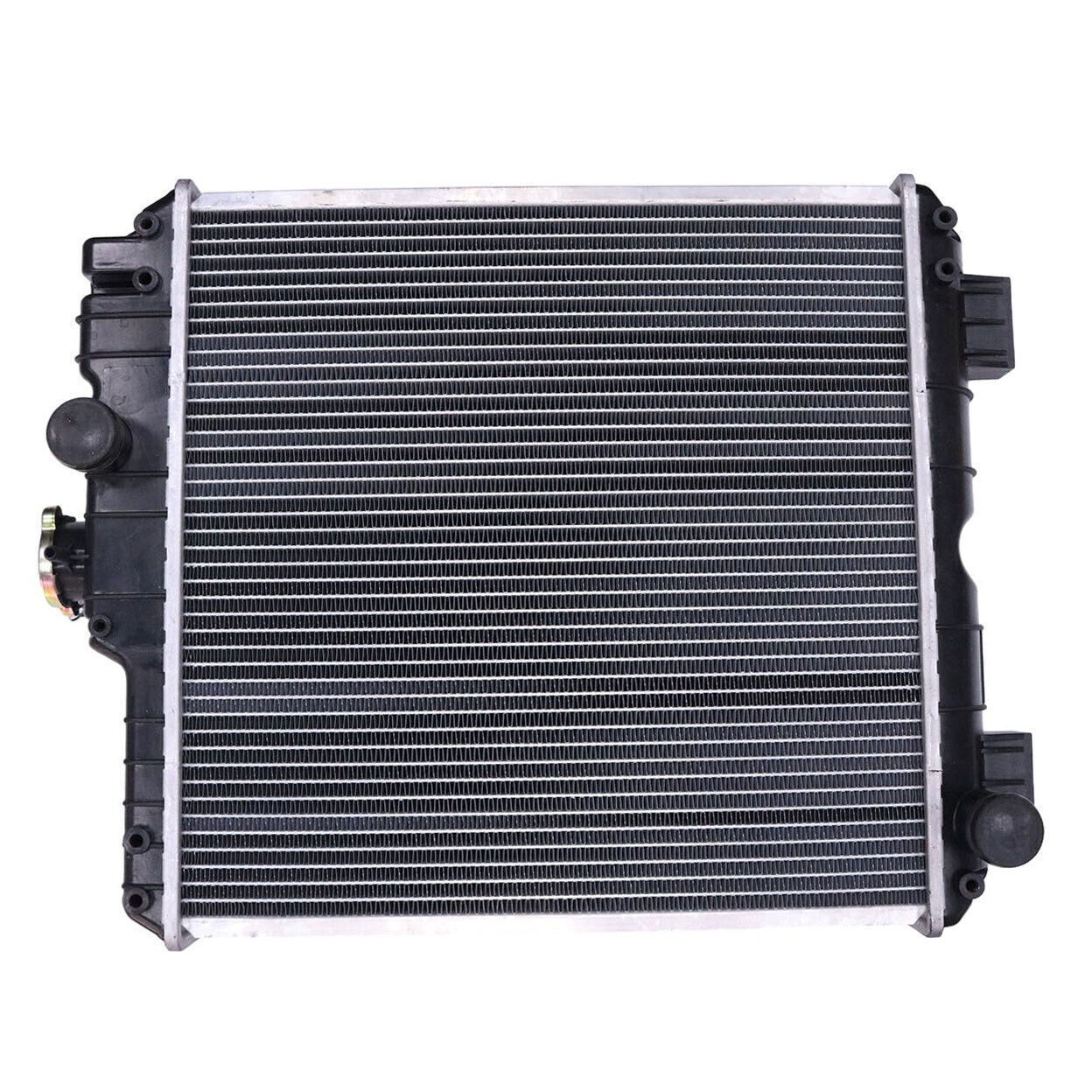

Ford New Holland Tractor Radiator 5172926
$796.99
In Stock
$796.99
Sale price
$796.99
Regular price
This new aftermarket radiator replaces Ford New Holland 5172926 and related cooling-system references for compatible TN and TD tractors using the matching six-row radiator layout.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford New Holland TN80F and TN90F
- Ford New Holland TN85FA, TN95F, TN95FA and TN95VA when the 5172926-style radiator is specified
- Select TN55, TN60A, TN70, TN70A, TN75 and TN75A applications using the same radiator family
- Select TD60, TD70, TD80, TD90 and TD95 applications only after full dimensional comparison
Product Overview
A cracked tank, leaking core, damaged fins, repeated coolant loss, or a radiator that remains internally restricted after cleaning can justify replacement. Overheating can also come from a bad cap, thermostat, fan, water pump, air lock, hose collapse, or engine problem.
The radiator transfers engine heat into airflow through its core. Correct hose positions, mounting points, core dimensions, and side-panel arrangement matter as much as the tractor model.
Match 5172926 and the removed radiator. Typical matching references measure about 23.5 inches overall height and 18.5 inches overall width with 1.5-inch inlet and outlet connections, but measure the product and original before purchase.
Key Features & Performance
- Six-row replacement radiator layout on matching applications
- Approximate 23.5-inch overall height and 18.5-inch overall width; verify
- Approximate 1.5-inch hose connections; verify orientation
- Aftermarket cooling-core replacement for a leaking or blocked original
Replaces Part Numbers
- 5172926
- 5172927
- 5172928
- 5187207
Common Uses
- Replacing a radiator with a split tank or punctured core
- Correcting coolant loss traced directly to the radiator
- Restoring airflow after a core is crushed or beyond cleaning
Technical Specifications
- Product Type: Engine-cooling radiator
- Approximate Overall Size: 23.5 in high x 18.5 in wide; verify original
- Hose Connections: Approximately 1.5 in inlet and outlet; verify
- Condition: New aftermarket replacement
Installation & Fitment
- Let the engine cool fully and drain coolant safely
- Compare every bracket, hose neck, drain, and cap location
- Flush contaminated coolant from the engine and hoses
- Transfer shields and mounts without stressing the core
- Refill with approved coolant, purge air, pressure-test, and check operating temperature
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a new radiator fix every overheating problem? A: No. Test coolant level, cap, thermostat, fan, water pump, airflow, and engine condition.
Q: Are 5172926 and 5172928 always identical? A: They are cross-listed in some catalogs, but dimensions and side-panel details must be compared before ordering.
Q: Will it fit a TN95VA? A: Only when its original radiator, hose positions, mounts, and reference match this unit.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: New Holland 5172926 radiator, TN95F tractor radiator replacement, TN80F overheating radiator, Ford New Holland six row radiator, 5172927 5187207 cooling part
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
