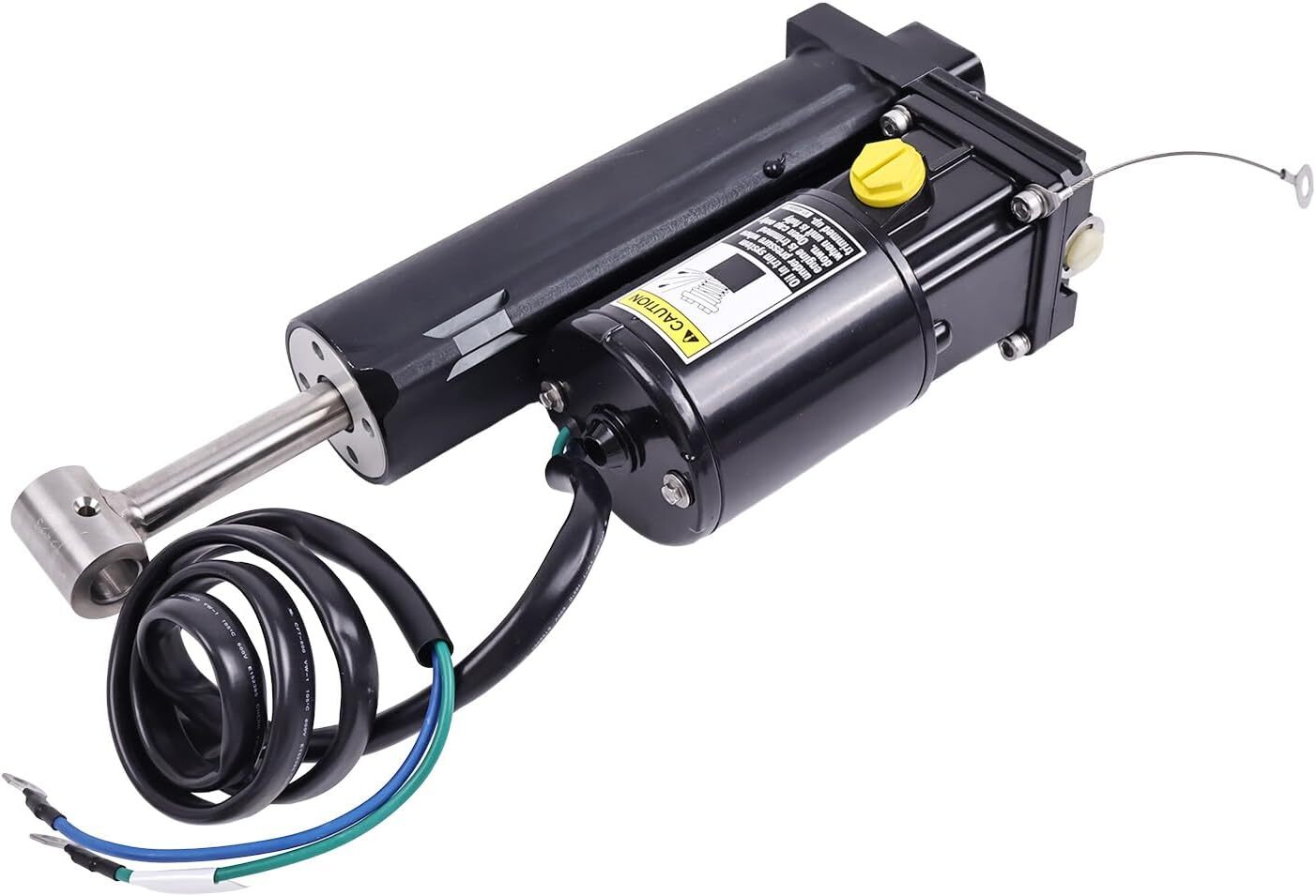

Power Trim Assembly 8M0055011 for 30HP 35HP 40HP 50HP 60HP Outboard 4 Stroke
$678.99
Sale price
$678.99
Regular price
Available to Order
This power trim assembly is a quality aftermarket replacement for select 30HP to 60HP outboard engines, helping restore smooth motor height and trim adjustment on compatible marine applications.
Not sure which part fits your equipment?
Our Northline Parts team can help you find the right replacement. Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT | Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Power Trim Assembly for 30HP 35HP 40HP 50HP 60HP Outboard 4 Stroke
This replacement power trim assembly is designed to raise and lower the outboard engine so the operator can adjust the motor angle for launching, shallow-water operation, acceleration, and normal cruising. It is a practical replacement when the original trim unit is leaking, moving slowly, failing to hold position, or no longer operating correctly.
The assembly replaces part numbers 893517T01, 855654T09, 855654T08, and 855654T4 in compatible applications. Because outboard fitment can vary by horsepower, stroke type, serial range, and engine configuration, compare the original unit and verify the engine identification before ordering.
Key Features & Performance
- Restores powered raising and lowering of the outboard engine
- Supports smoother trim adjustment while operating the boat
- Useful for replacing a leaking, weak, or non-working trim unit
- Durable construction suited for marine applications
- Designed as a direct replacement in compatible installations
- Backed by a 1-year warranty
Fitment & Compatibility
This trim assembly is compatible with select 30HP, 35HP, 40HP, 50HP, and 60HP outboard engines, including the following applications:
- 60 HP 2-stroke, 3-cylinder carbureted engines within serial range OG760300 through OT97999
- 30 HP 4-stroke, 3-cylinder carbureted engines within serial range OG760300 through OT409000
Technical Specifications
- Product Type: Power Trim Assembly
- Part Number(s): 893517T01, 855654T09, 855654T08, 855654T4
- Engine Range: Select 30HP to 60HP Outboard Engines
- Compatible Engine Types: Select 2-Stroke and 4-Stroke Applications
- Warranty: 1 Year
- Part Type: Aftermarket Replacement
Frequently Asked Questions
Q: How do I confirm that this trim assembly fits my outboard? A: Match one of the listed part numbers and verify the engine horsepower, stroke type, cylinder configuration, and serial-number range before purchase.
Q: When should a power trim assembly be replaced? A: Replacement may be needed when the unit leaks, operates slowly, fails to raise or lower the engine, or will not hold the selected trim position.
Compatibility may vary by engine serial number and configuration. Verify the original part number and application details before purchase.
