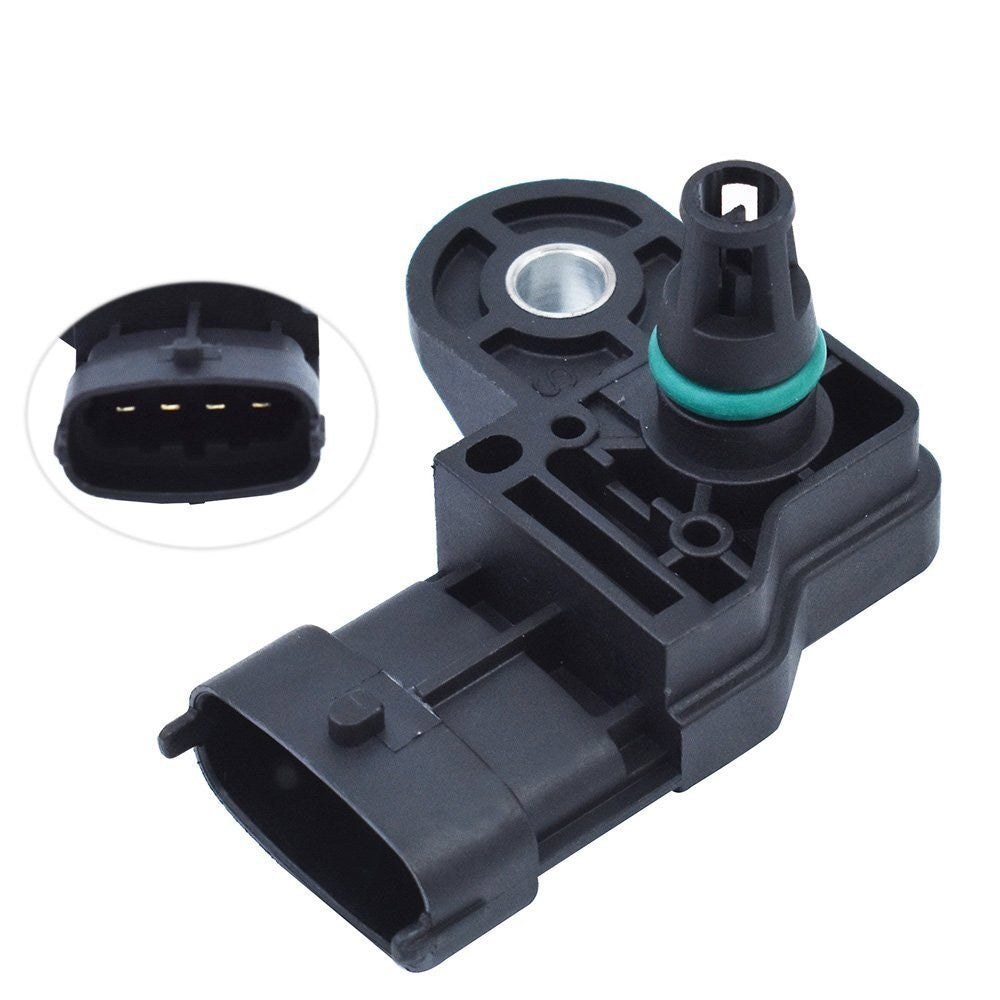

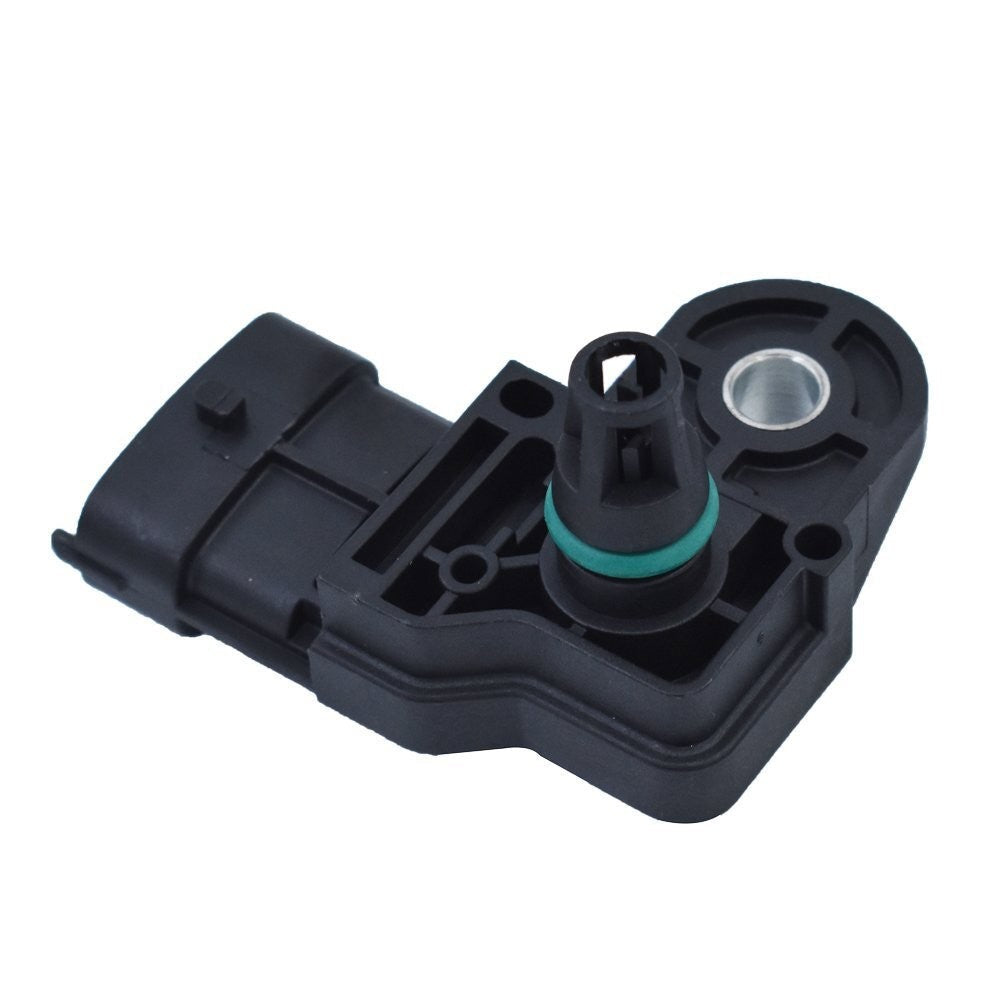

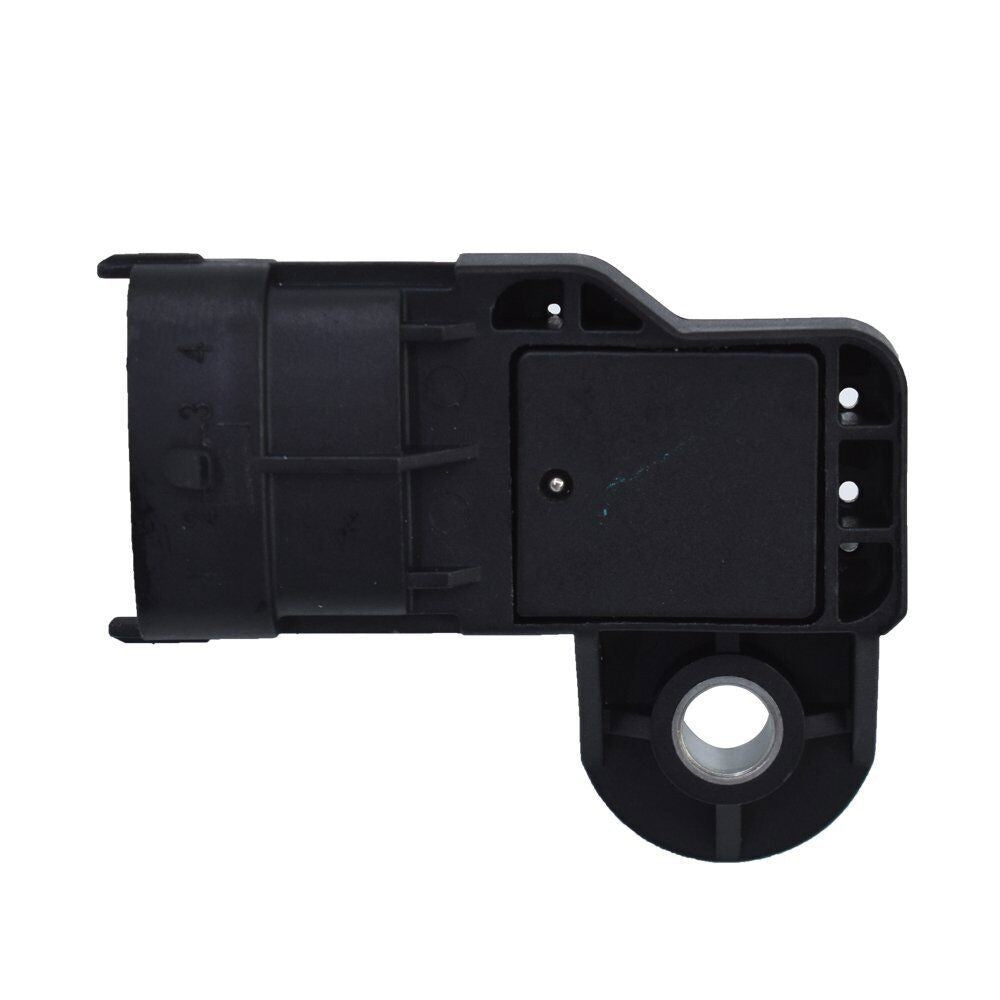

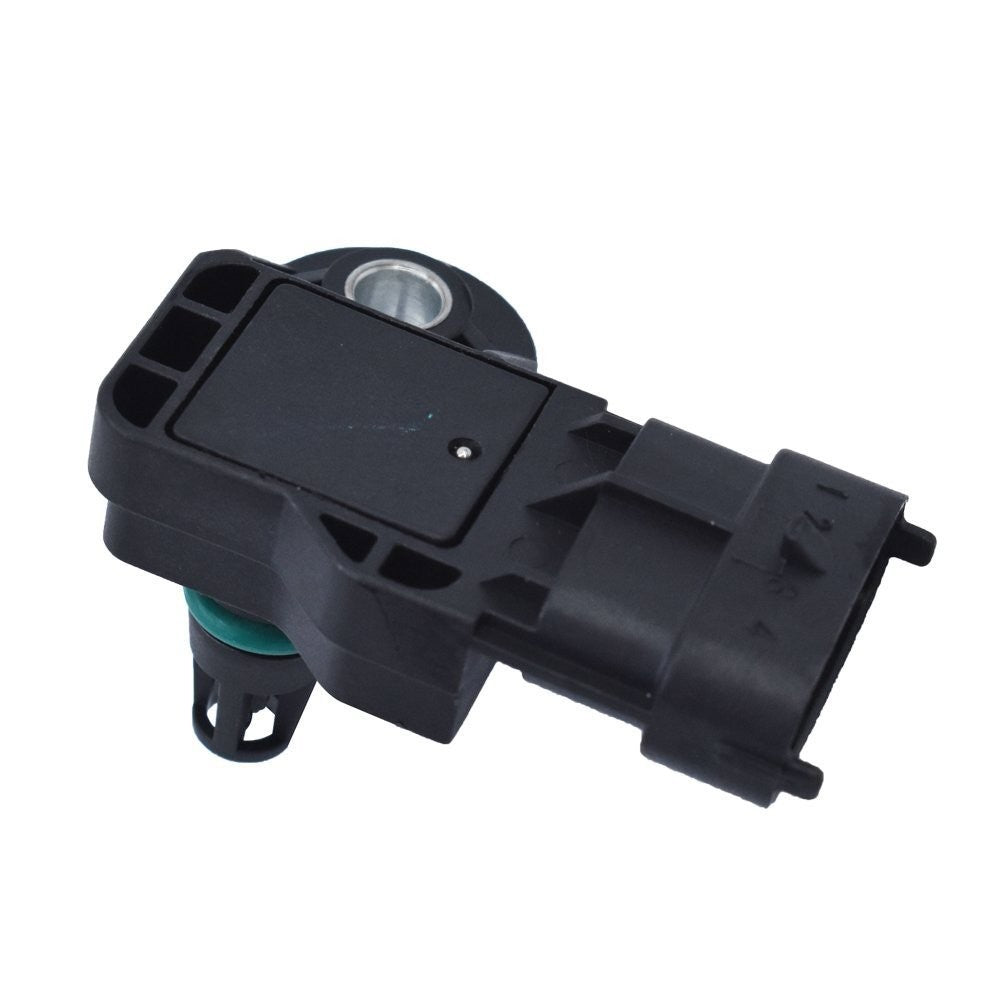

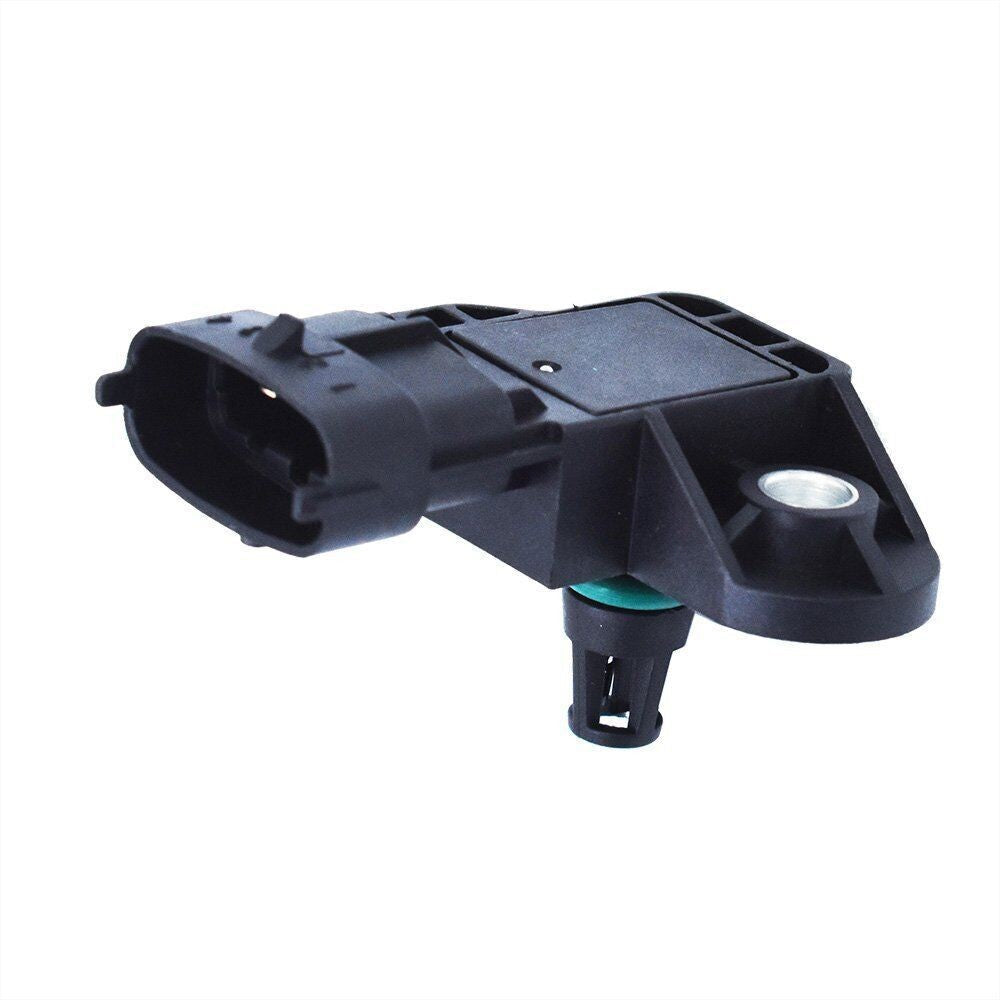

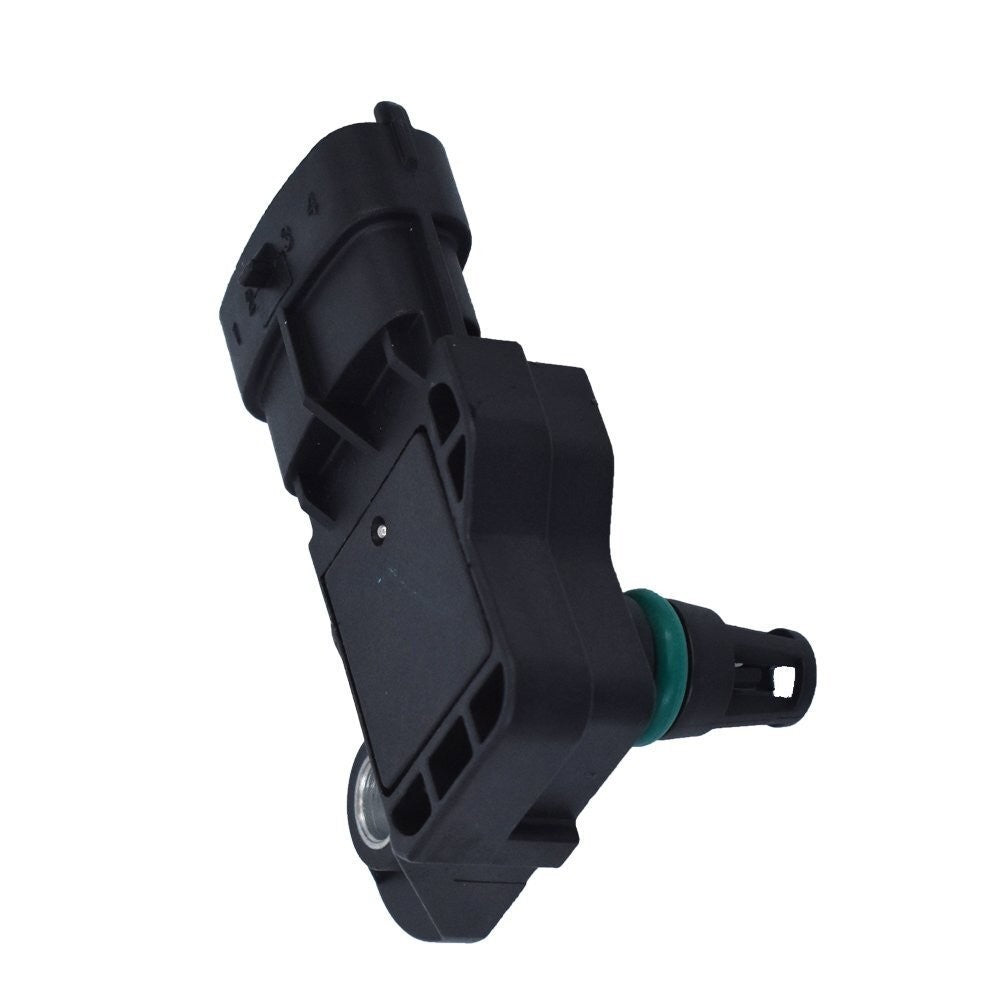

Polaris TMAP Sensor 2411528 2410422 for Ranger, RZR, Sportsman, ACE and General
$23.99
In Stock
$23.99
Sale price
$23.99
Regular price
Aftermarket TMAP sensor replacing Polaris 2411528, 2411082, and 2410422 on compatible Ranger, RZR, Sportsman, ACE, and General models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris ACE 150, 325, 500, 570 and 900 applications using the listed sensor
- Polaris General 1000 and General 4 1000 applications using the listed sensor
- Polaris Ranger 500 and Ranger Crew 800 applications using the listed sensor
- Polaris RZR XP 1000 applications using the listed sensor
- Polaris Sportsman 700, 800 and 850 applications using the listed sensor
Product Overview
A Polaris with a P0106, P0107, or P0108 code, hard starting, rich running, poor throttle response, or an implausible intake reading may have a TMAP circuit problem. Vacuum leaks, a dirty port, connector corrosion, broken wires, low reference voltage, and engine mechanical trouble should be checked before the sensor is replaced.
The TMAP combines manifold absolute-pressure and intake-air-temperature signals so the engine controller can calculate load and fueling. Fitment depends on the reference number, connector key, mounting, port, year, and engine—not just the Ranger or Sportsman name.
Key Features & Performance
- Combines manifold-pressure and intake-air-temperature measurement
- Supersedes Polaris references 2410422 and 2411082 to 2411528
- Supports correction of pressure or temperature signal faults after testing
- Designed for matching Polaris EFI applications
Replaces Part Numbers
- 2411528
- 2411082
- 2410422
- 0261230099
- 2875542
- 2878494
Common Uses
- Replacing a TMAP with an out-of-range pressure or temperature signal
- Repairing P0106, P0107, or P0108 after wiring and vacuum checks
- Correcting hard starting or poor response tied to bad load data
- Restoring accurate intake information after a contaminated or damaged sensor
Technical Specifications
- Product Type: TMAP Sensor
- Signals: Manifold absolute pressure and intake-air temperature
- System: Polaris electronic fuel injection
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Read fault codes and inspect live data before disconnecting the old sensor
- Check the intake for vacuum leaks and clean the sensor port without pushing debris inward
- Compare the connector key, pin count, seal, mounting, and reference number
- Clear codes only after repair and verify pressure and temperature readings through warm-up and throttle changes
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Production date, serial number, engine option, dimensions, connections, and previous repairs can change the part used within the same model. Compare the removed item and service information before purchase.
Frequently Asked Questions
Q: What does TMAP mean? A: It combines a temperature sensor with a manifold absolute-pressure sensor in one unit.
Q: Will a new TMAP fix every P0106 code? A: No. Intake leaks, restricted or contaminated ports, wiring faults, reference-voltage problems, and engine condition can all set a range or performance code.
Q: What is the safest way to confirm this fits? A: Use the compatible list as a starting point, then compare the original reference number, dimensions, connections, mounting details, production date, and equipment or engine serial information.
Q: Who manufactures this service part? A: This is a new aftermarket part. The brand and model names identify the applications it is intended to service.
Part Summary
keywords: Polaris TMAP sensor replacement, 2411528 MAP sensor, 2410422 superseded sensor, Ranger P0106 repair, RZR intake pressure sensor, Sportsman air temperature MAP sensor
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
