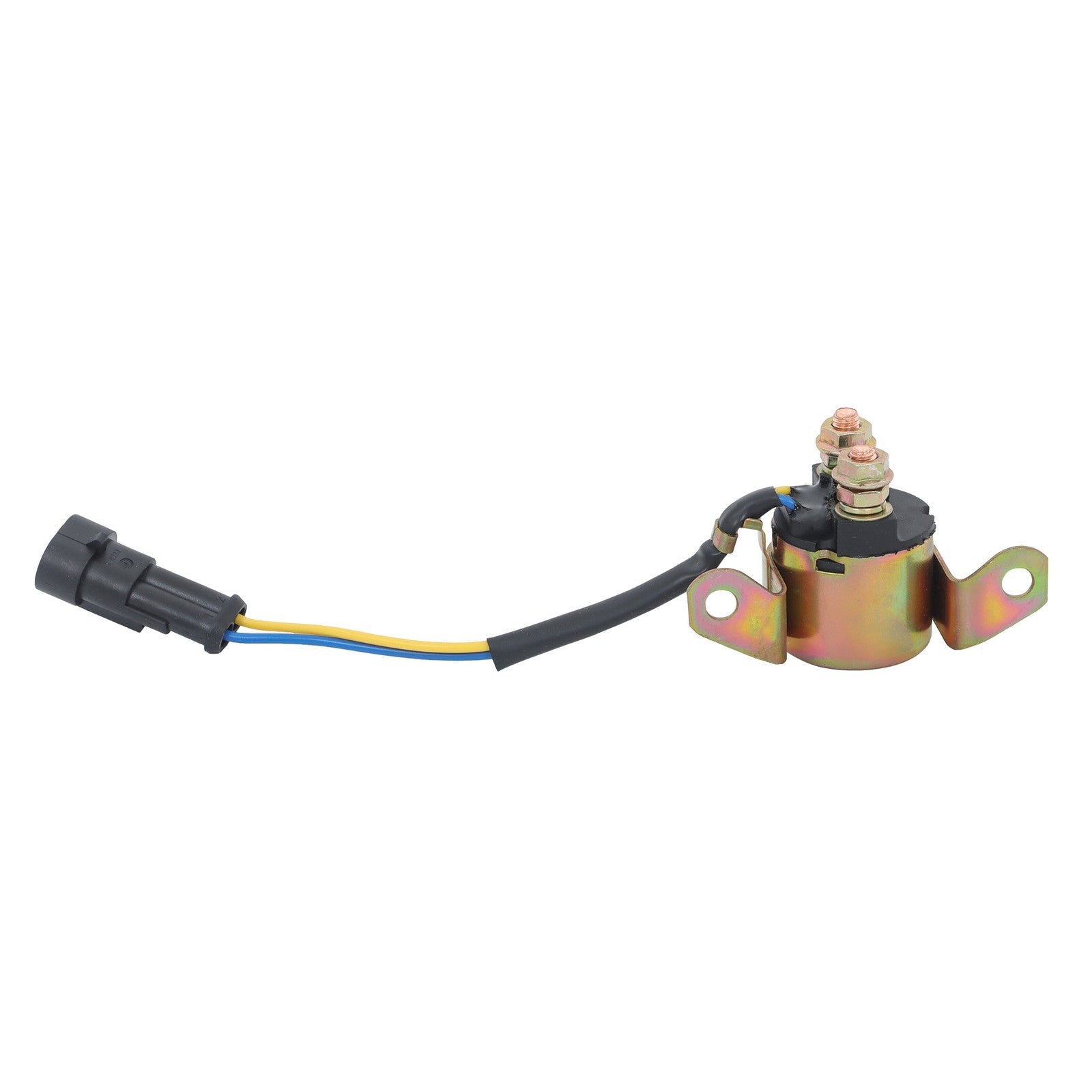

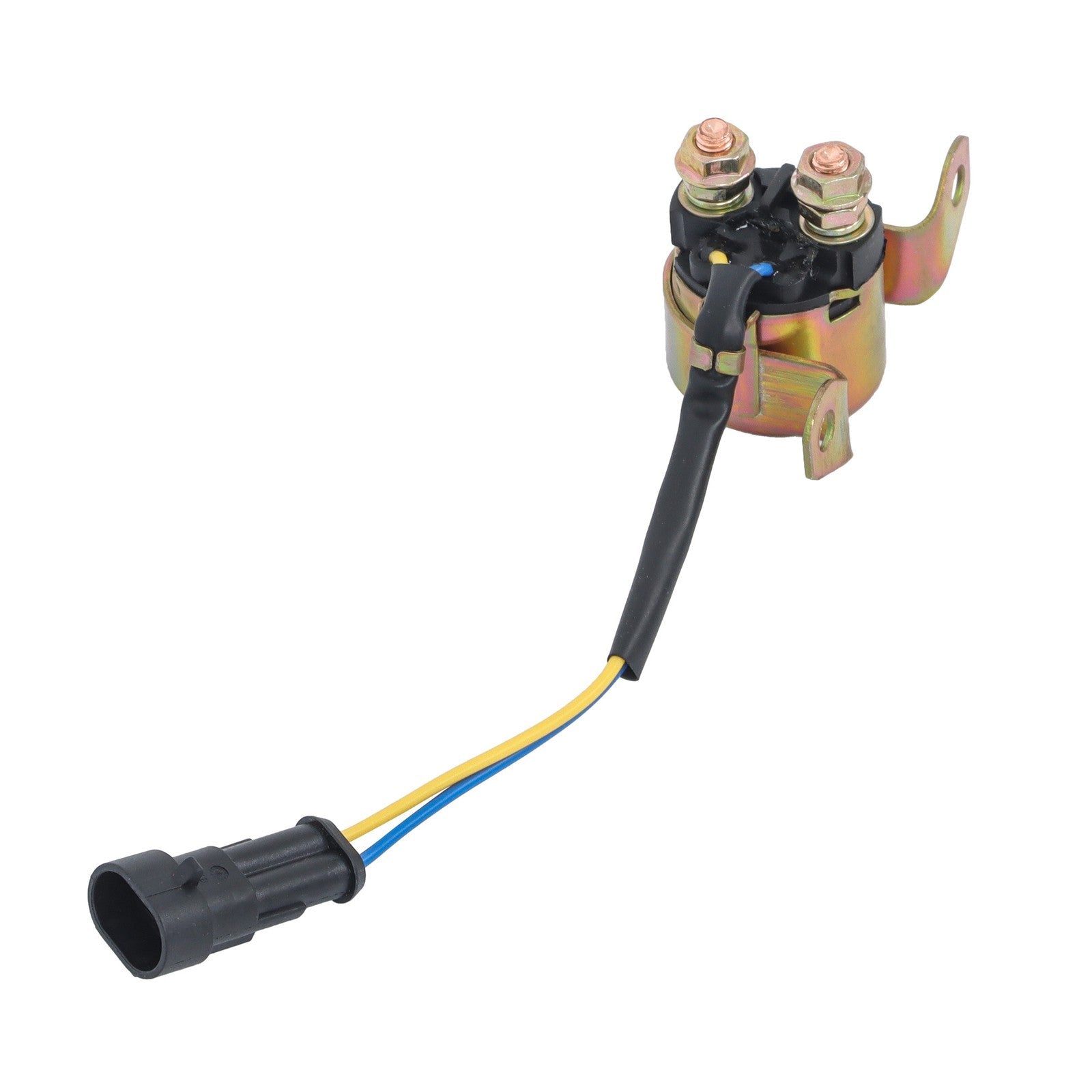

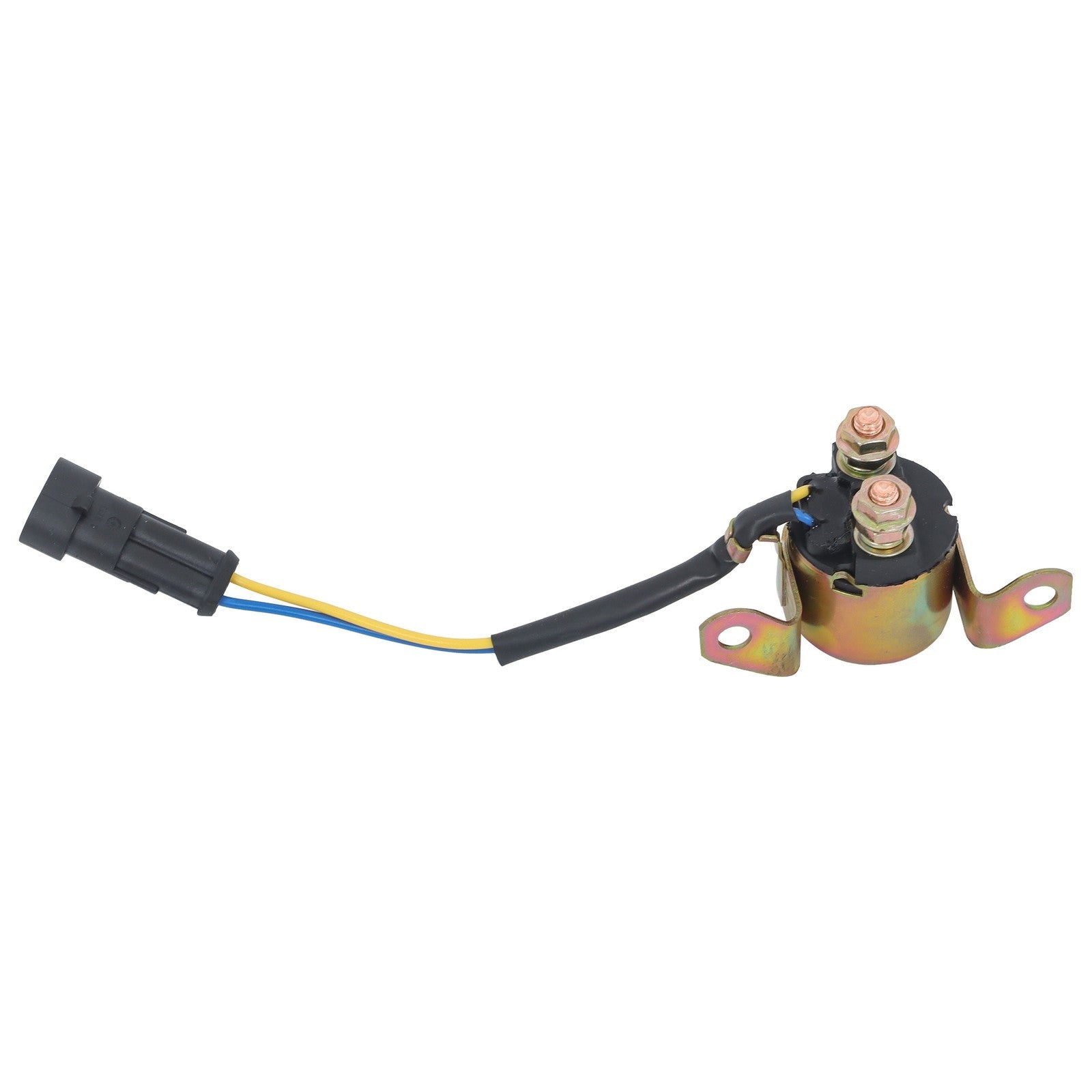

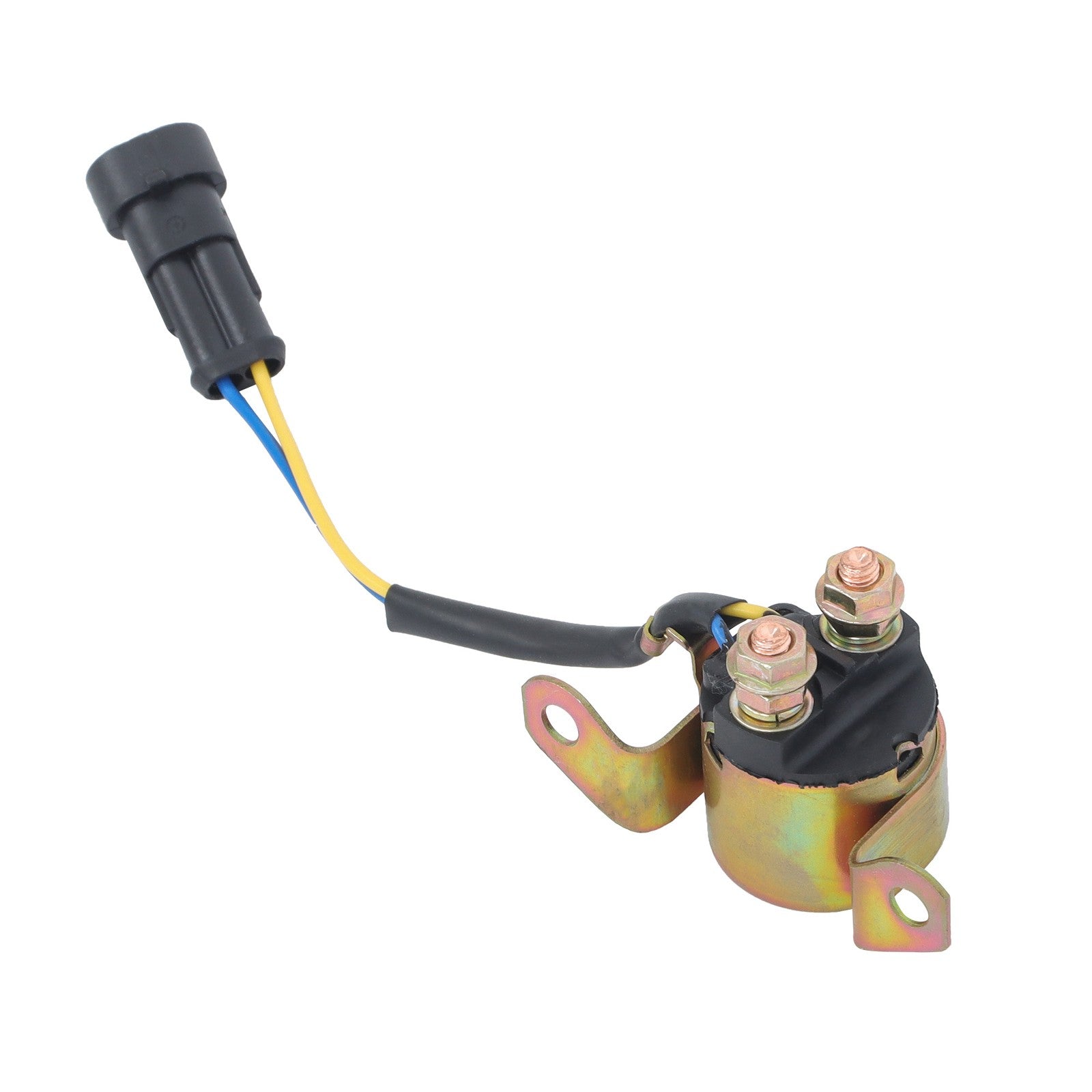

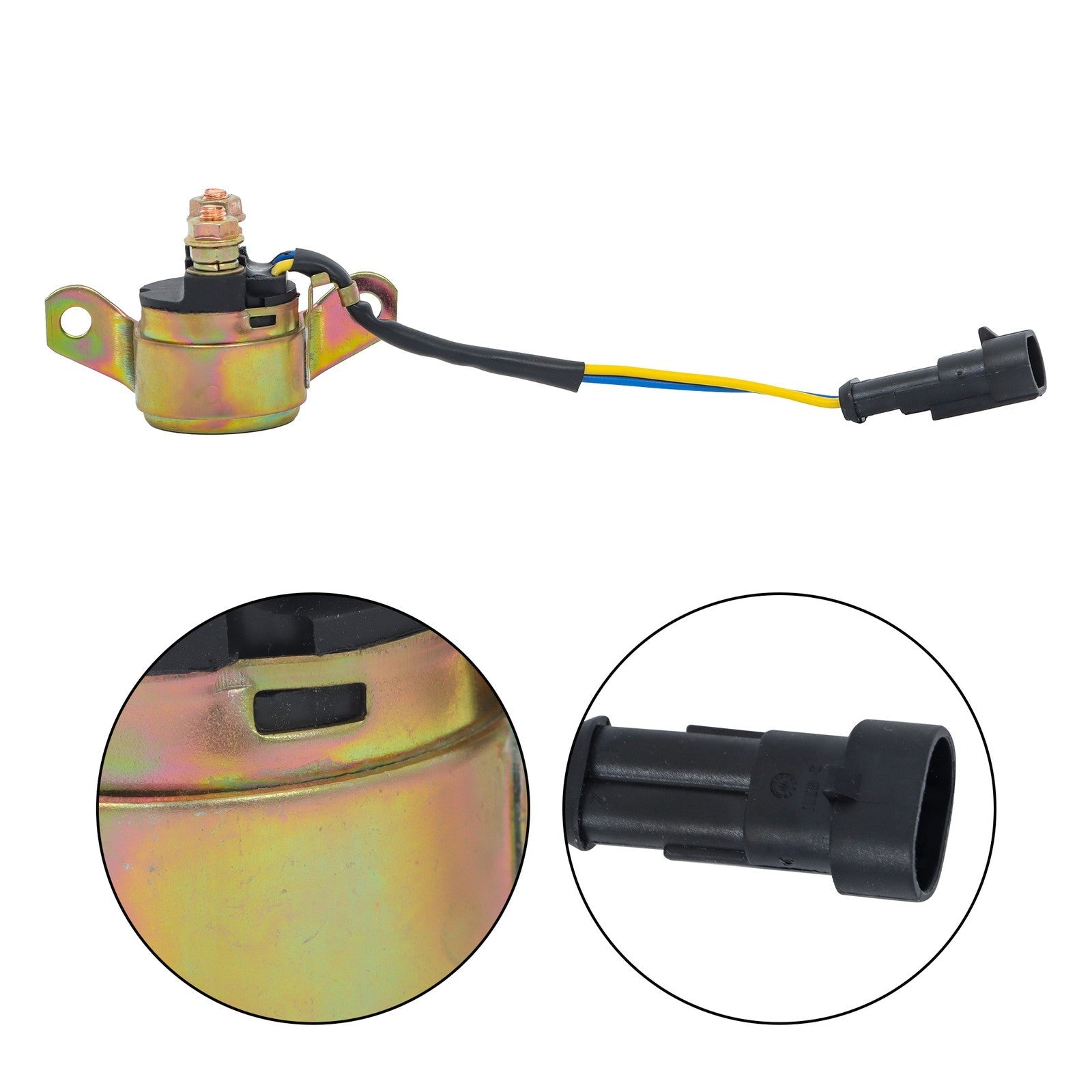

Polaris Sportsman 500 Starter Solenoid 4012001 4010947 for 2008–2013
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
12-volt starter solenoid with dual-pin control plug replacing Polaris 4012001 and 4010947 on compatible 2008–2013 Sportsman 500 models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2008 Polaris Sportsman 500 models calling for 4012001 or 4010947
- 2009 Polaris Sportsman 500 matching applications
- 2010 Polaris Sportsman 500 matching applications
- 2011 Polaris Sportsman 500 matching applications
- 2012 Polaris Sportsman 500 matching applications
- 2013 Polaris Sportsman 500 matching applications
Product Overview
A single click with no crank, intermittent starting, or heat at the solenoid can mean burnt internal contacts—but weak batteries, loose cables, corroded grounds, a locked starter, or a failed brake or neutral interlock are just as common. A voltage-drop test can separate the solenoid from the rest of the starting circuit.
The solenoid uses a low-current control signal to connect battery power to the starter motor. Match the two large studs, dual-pin plug, bracket, wire polarity where specified, and original number; a clicking relay is not proof that its high-current contacts are good.
Key Features & Performance
- 12-volt high-current starter relay for matching Sportsman 500 wiring

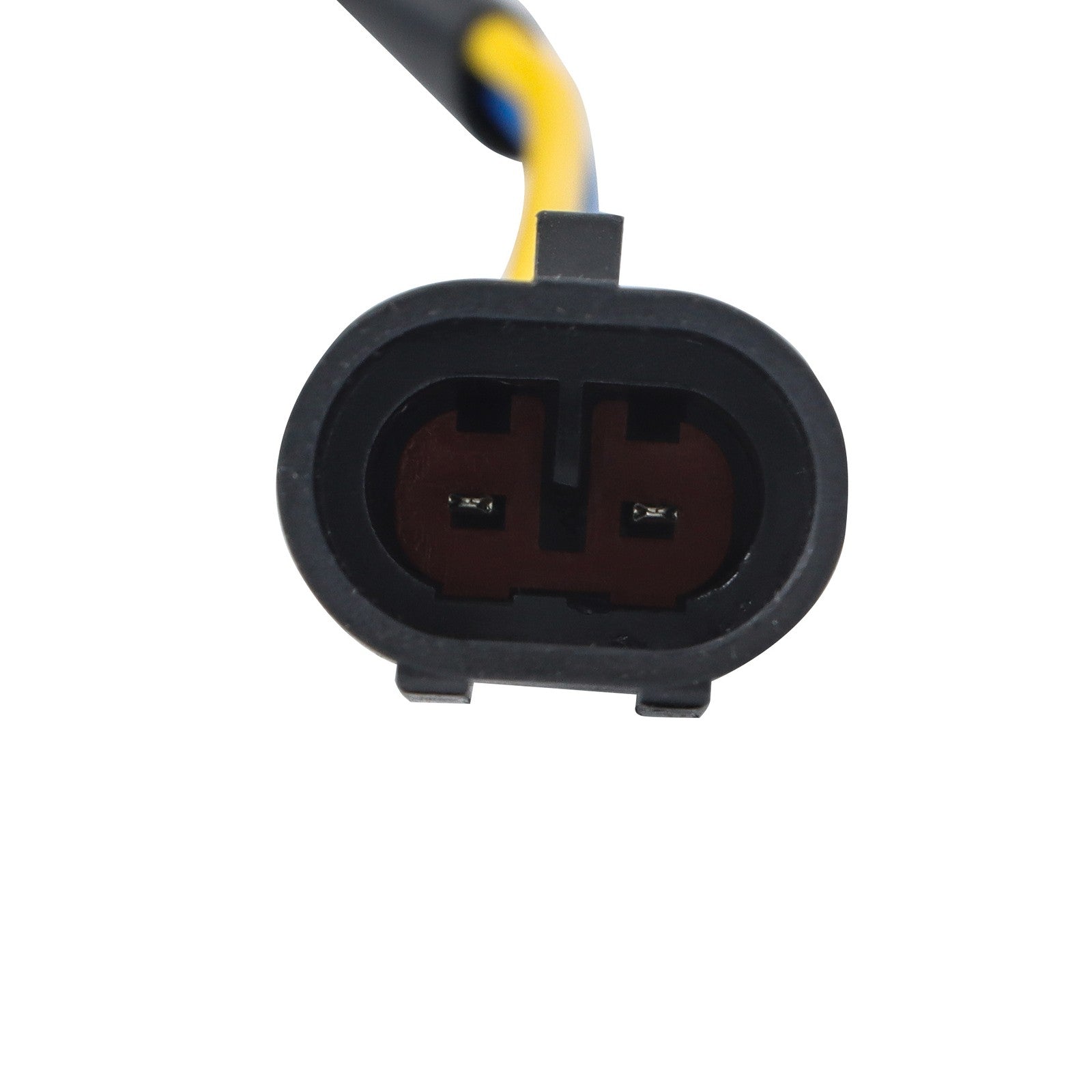

- Dual-pin control connector
- Cross-references 4012001, 4010947, and SMU6097
- Restores cranking after a confirmed contact or coil failure
Replaces Part Numbers
- 4012001
- 4010947
- SMU6097
- 240-54002
Common Uses
- Replacing a solenoid with burnt high-current contacts
- Repairing an intermittent no-crank after cable testing
- Correcting a control coil that will not pull in with proper voltage
- Restoring reliable starter current after corrosion damage
Technical Specifications
- Product Type: Starter Solenoid / Relay
- Voltage: 12 V
- Control Connection: Dual-pin plug
- Vehicle: Matching Polaris Sportsman 500
- Condition: New aftermarket
Installation & Fitment
- Disconnect the negative battery cable before touching either large terminal
- Load-test the battery and voltage-drop test positive and ground cables
- Compare stud size, bracket, plug, wire routing, and reference numbers
- Tighten terminals without twisting the studs and verify cranking current and cable temperature
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: If the solenoid clicks, is it definitely working? A: No. The coil can click while burnt internal contacts fail to pass enough current to the starter.
Q: What if jumping the solenoid still does not crank the engine? A: Check battery capacity, cables, grounds, starter motor, and mechanical engine condition before replacing more relays.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Polaris 4012001 starter solenoid, 4010947 relay, Sportsman 500 no crank, dual pin Polaris solenoid, SMU6097 replacement, ATV starter clicks
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
