Cat 216-268B Parking Brake Rocker Switch 142-9320
$35.99
In Stock
$35.99
Sale price
$35.99
Regular price

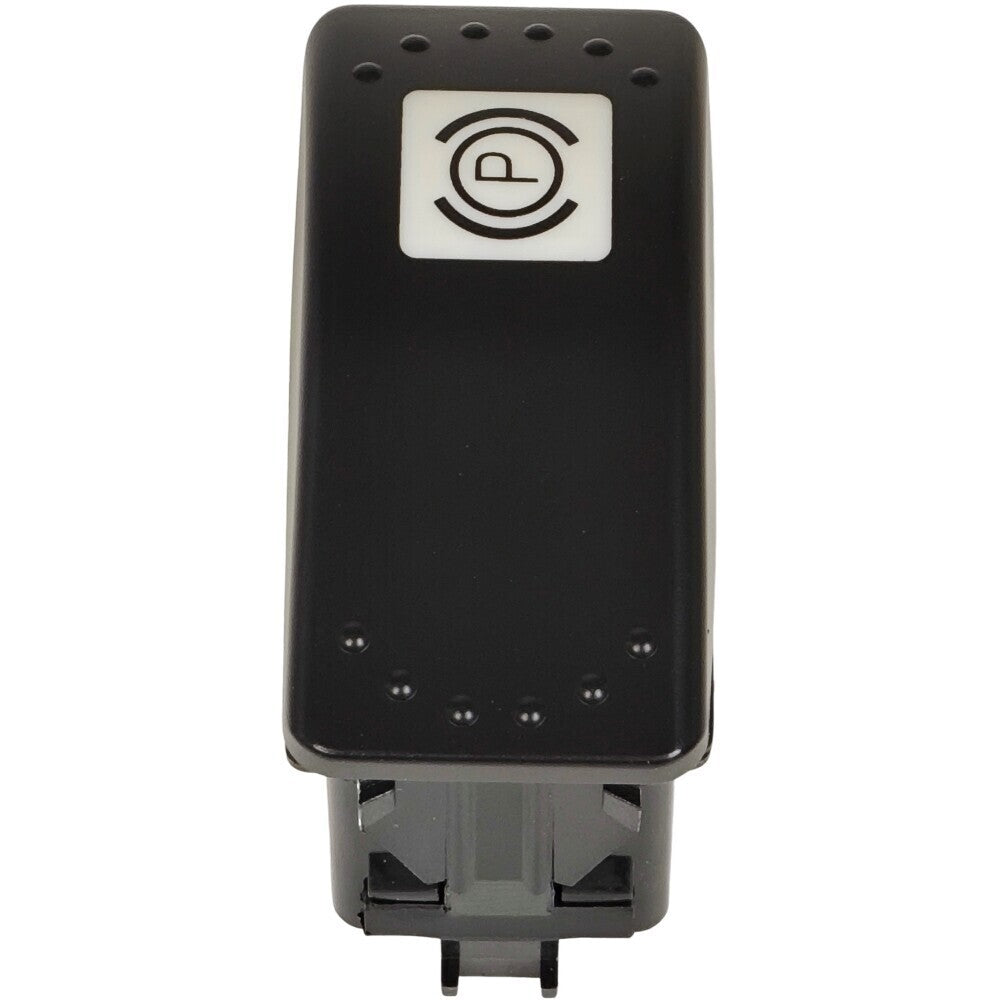

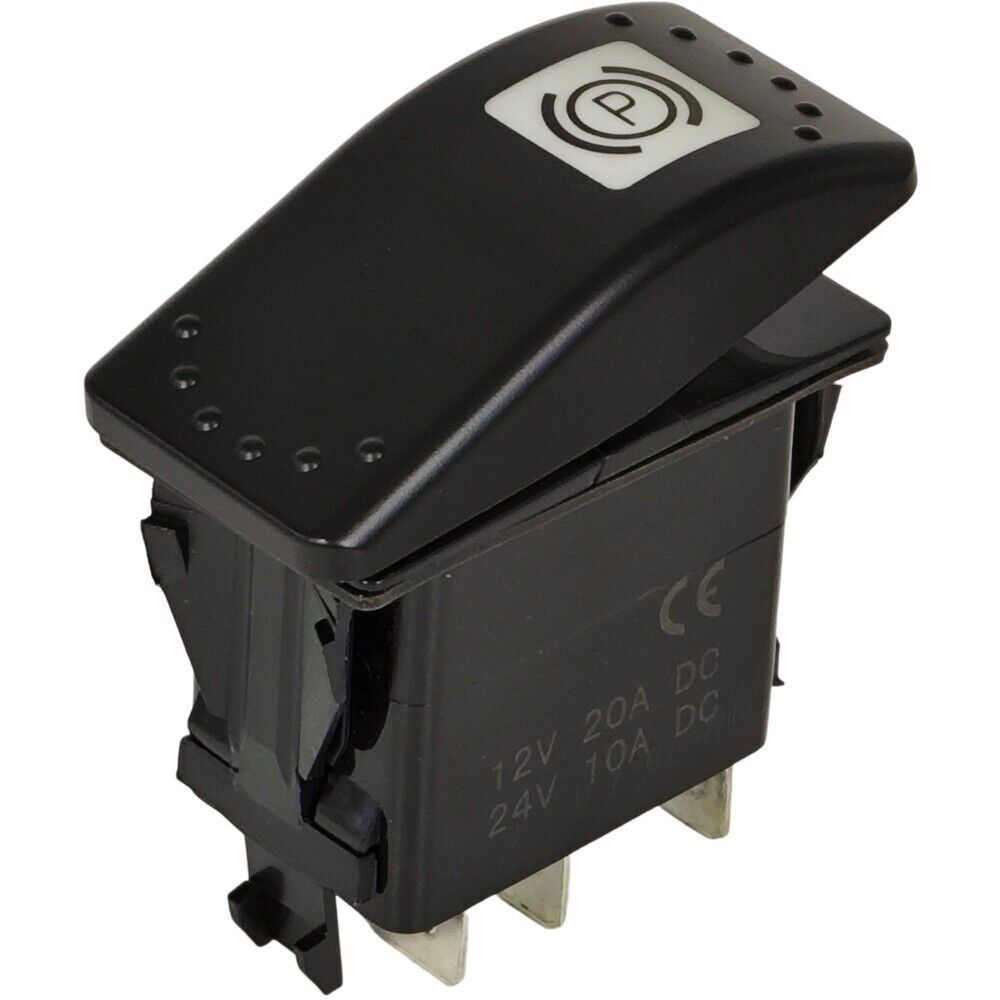

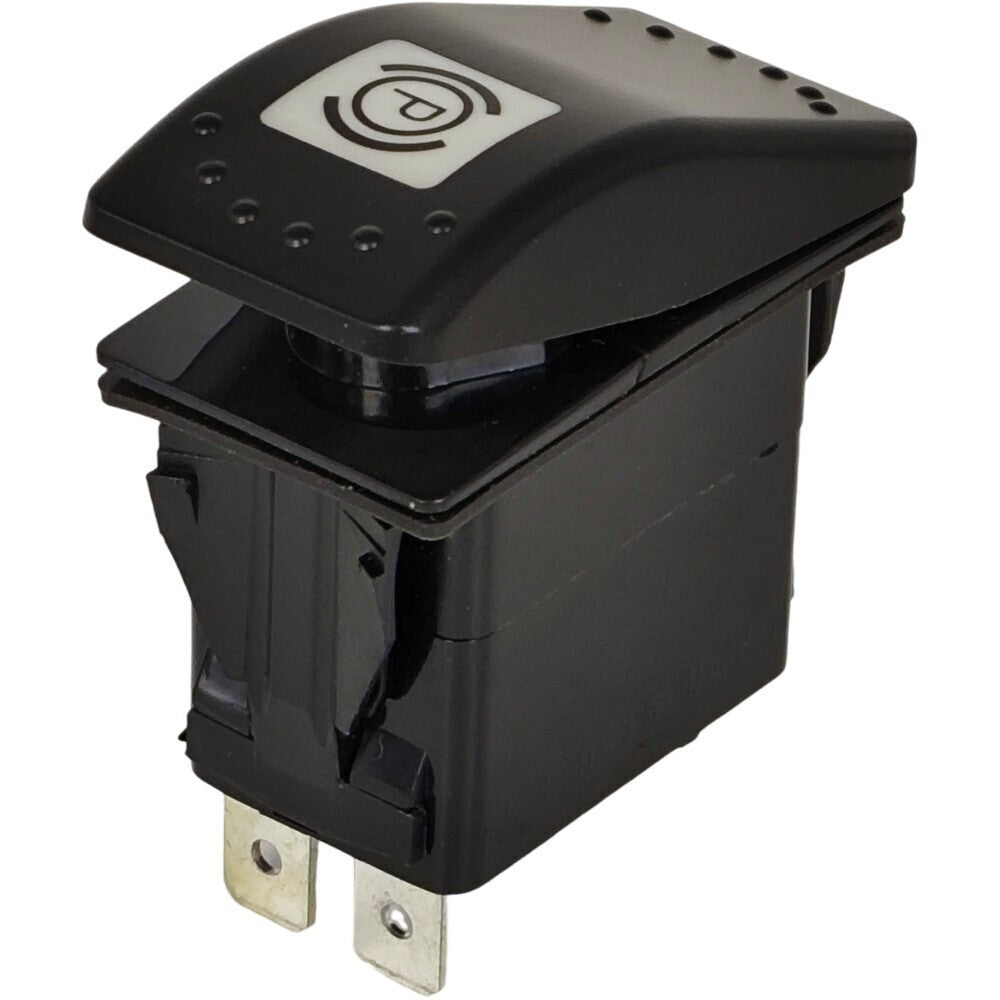

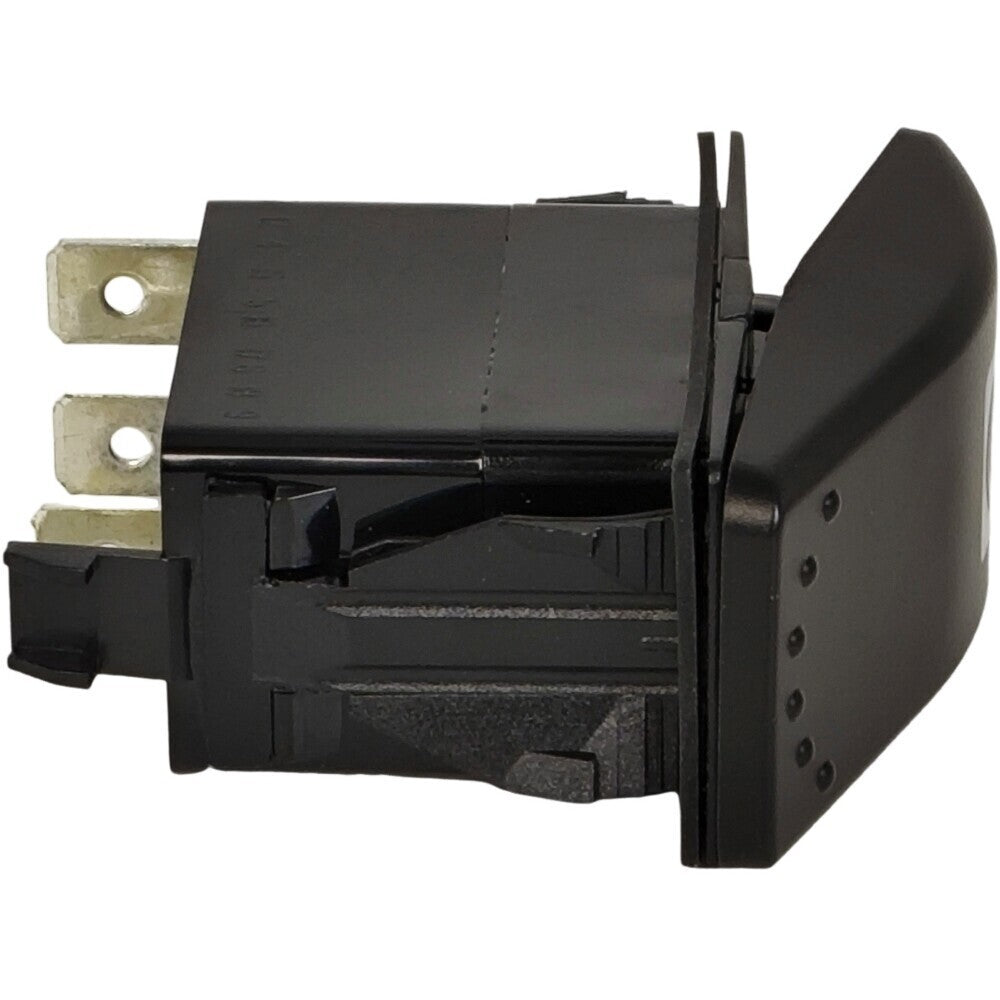

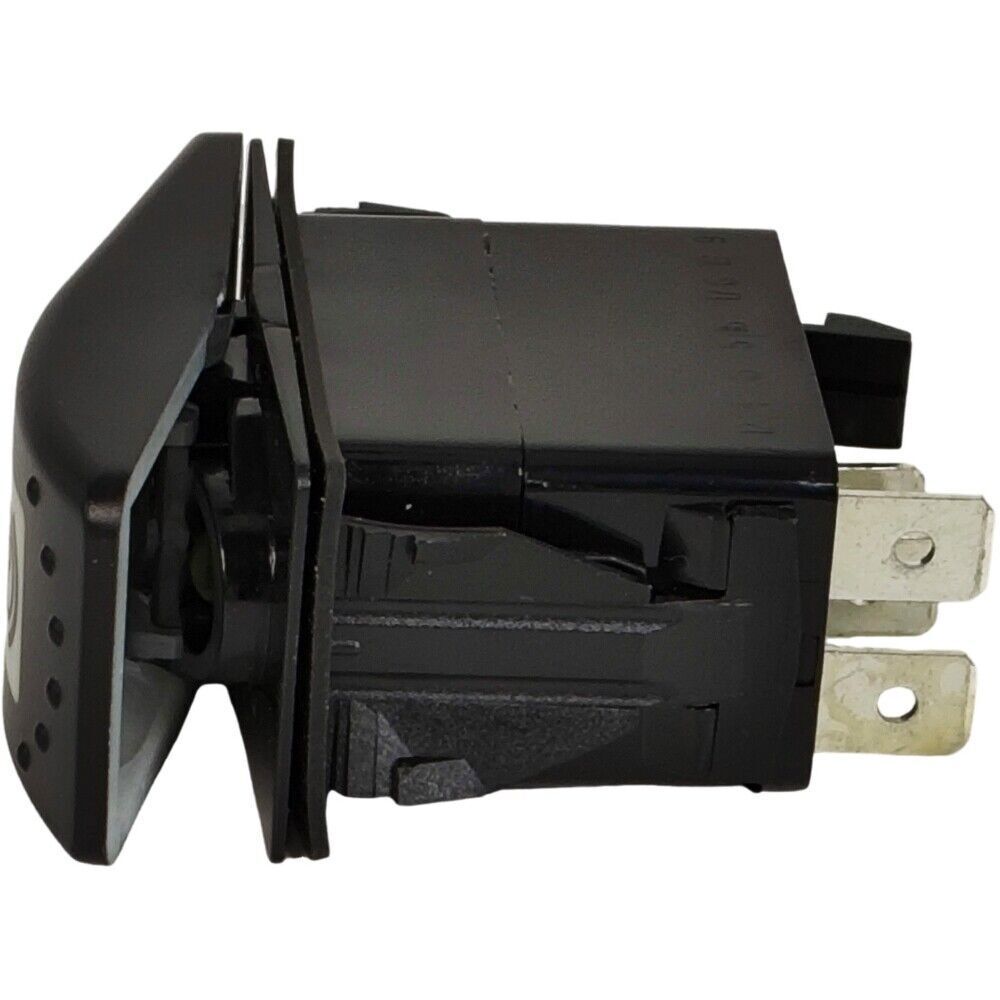

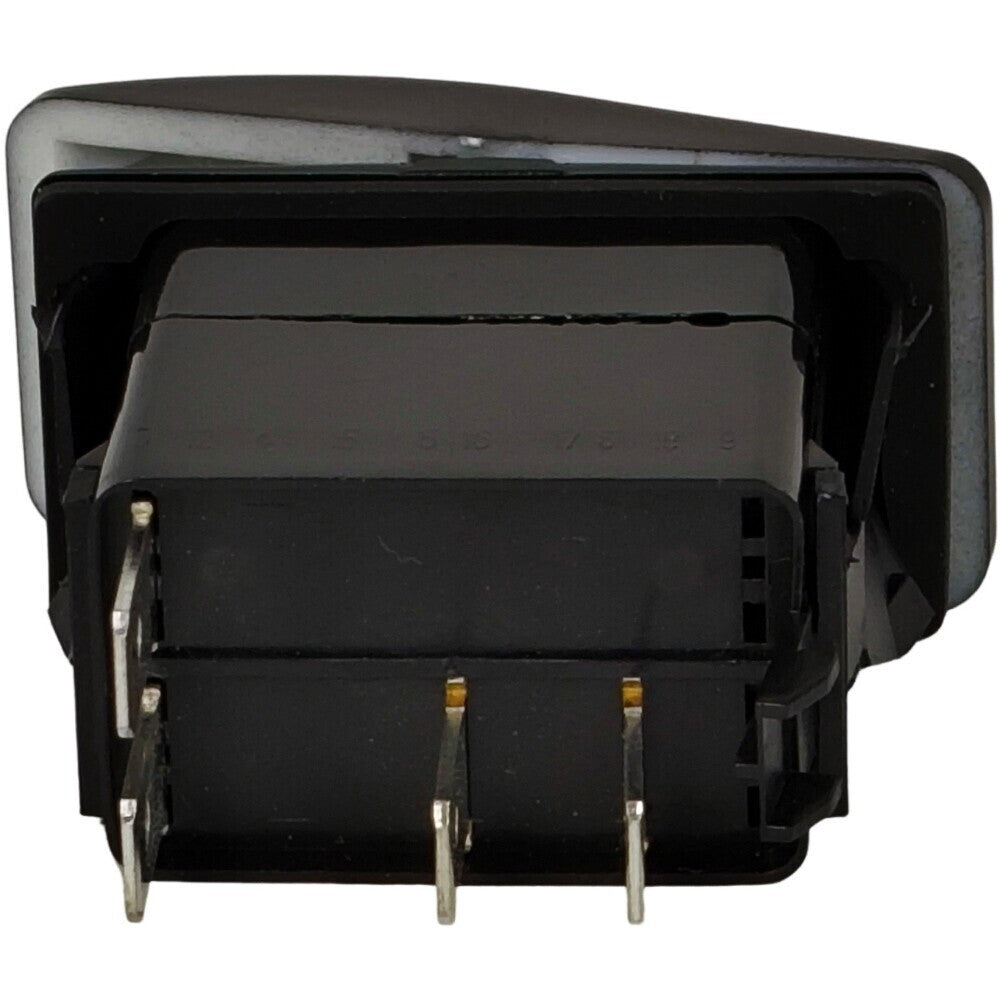

This new aftermarket four-pin illuminated parking-brake rocker switch replaces Caterpillar 142-9320 for compatible 216, 228, 232, 236, 242, 246, 252, 257, 262, and 268B loader families.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Caterpillar 216, 216B, 216B2, 216B3, 226, 226B, 226B2, 226B3, 228
- Caterpillar 232, 232B, 232B2, 236, 236B, 236B2, 236B3
- Caterpillar 242, 242B, 242B2, 242B3, 246, 246B, 248, 248B
- Caterpillar 252, 252B, 252B2, 252B3, 257, 257B, 257B2, 257B3
- Caterpillar 259B3, 262, 262B, 267, 267B, 268B, 277, 277B, 287, 287B
Product Overview
When a loader powers up but will not release the park brake, the dash rocker is easy to suspect. Test the seat and restraint interlocks, controller input, fuse, brake solenoid, wiring, and actual switch output so the correct part is repaired.
The rocker provides the operator command and indicator function for the parking-brake circuit. It is not a direct mechanical brake release.
Match the parking-brake icon, 142-9320, 12-volt illuminated circuit, four-pin plug, panel opening, model suffix, and serial number. An identical housing with another symbol may be wired differently.
Key Features & Performance
- Four-pin parking-brake control switch
- Illuminated 12-volt rocker for matching dashboards
- Correct brake icon for quick operator identification
- Replacement after wear, moisture, or panel impact
Replaces Part Numbers
- 142-9320
- 1429320
Common Uses
- Repairing a loader that will not accept a brake-release command
- Replacing a snapped rocker actuator
- Restoring switch illumination and contact function
Technical Specifications
- Product Type: Parking-brake rocker switch
- Voltage: 12 V illuminated application
- Connector: Four-pin
- Condition: New aftermarket replacement
Installation & Fitment
- Park on level ground with attachment lowered
- Install lift-arm supports if service requires raised arms
- Disconnect battery power
- Compare all pins and the symbol
- Test parking-brake hold and release under controlled conditions
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a seat-bar switch prevent the brake from releasing? A: Yes. The parking-brake circuit depends on several safety inputs, not only this rocker.
Q: Can I install a generic four-pin rocker? A: No. Internal circuit, momentary action, illumination, and pinout must match 142-9320.
Q: Is this safe to diagnose with the machine raised? A: Follow the service manual and use approved supports; never work under unsupported lift arms.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
