Valve Grind & Head Gasket Set for Onan P216 / P218 / P220 Engines - 110-3181
$23.99
In Stock
$23.99
Sale price
$23.99
Regular price

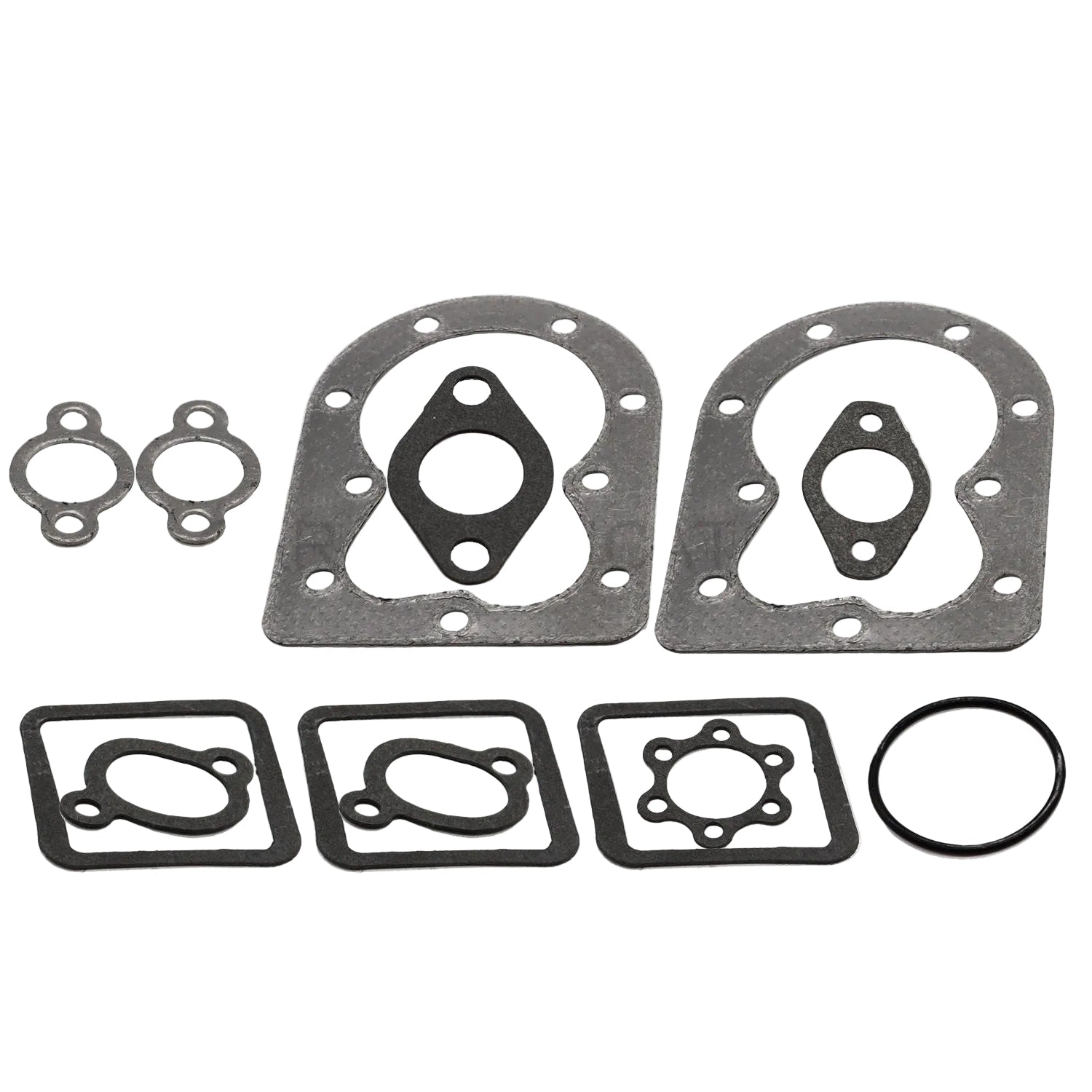

This two-cylinder valve-grind and head-gasket set replaces 110-3181 on compatible Onan BF, BG, B43, B48, P216, P218, P220, P216V, P218V, and P220V engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Onan BF / BG engines using 110-3181 gaskets
- Onan B43 / B48 engines using 110-3181 gaskets
- Onan P216 / P218 / P220 engines
- Onan P216V / P218V / P220V engines
Product Overview
Low compression, combustion leakage at a head gasket, carbon buildup, or valve service on an opposed-twin Onan requires new head sealing parts before reassembly. This set provides two head gaskets and valve-grind gasket pieces for servicing both cylinders.
Head gaskets do not correct warped heads, pulled threads, worn guides, burned valves, or overheating causes. Check the engine model/spec, head flatness, valve condition, cooling fins, and torque sequence before installation.
Key Features & Performance
- Two-cylinder gasket set for opposed-twin Onan engines

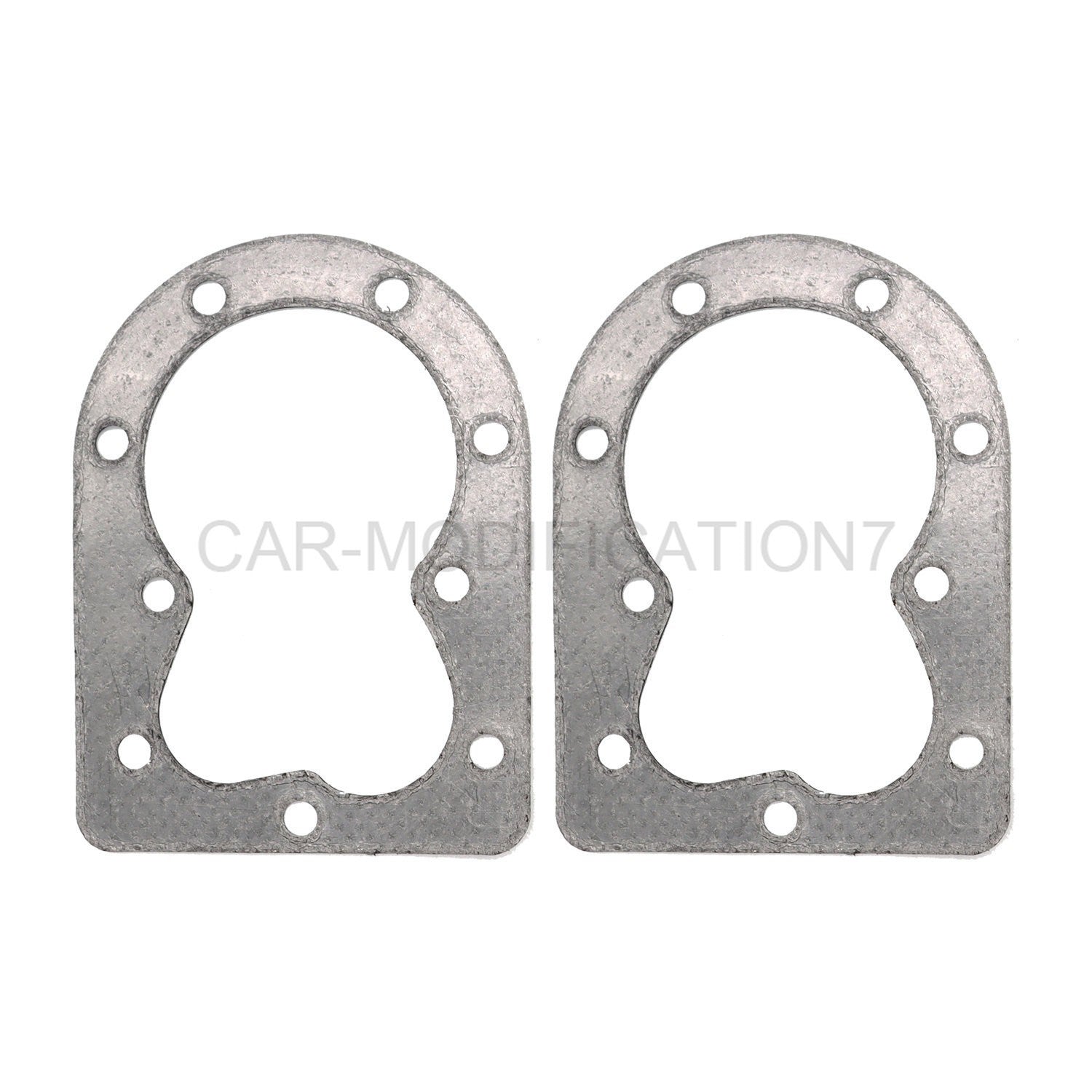

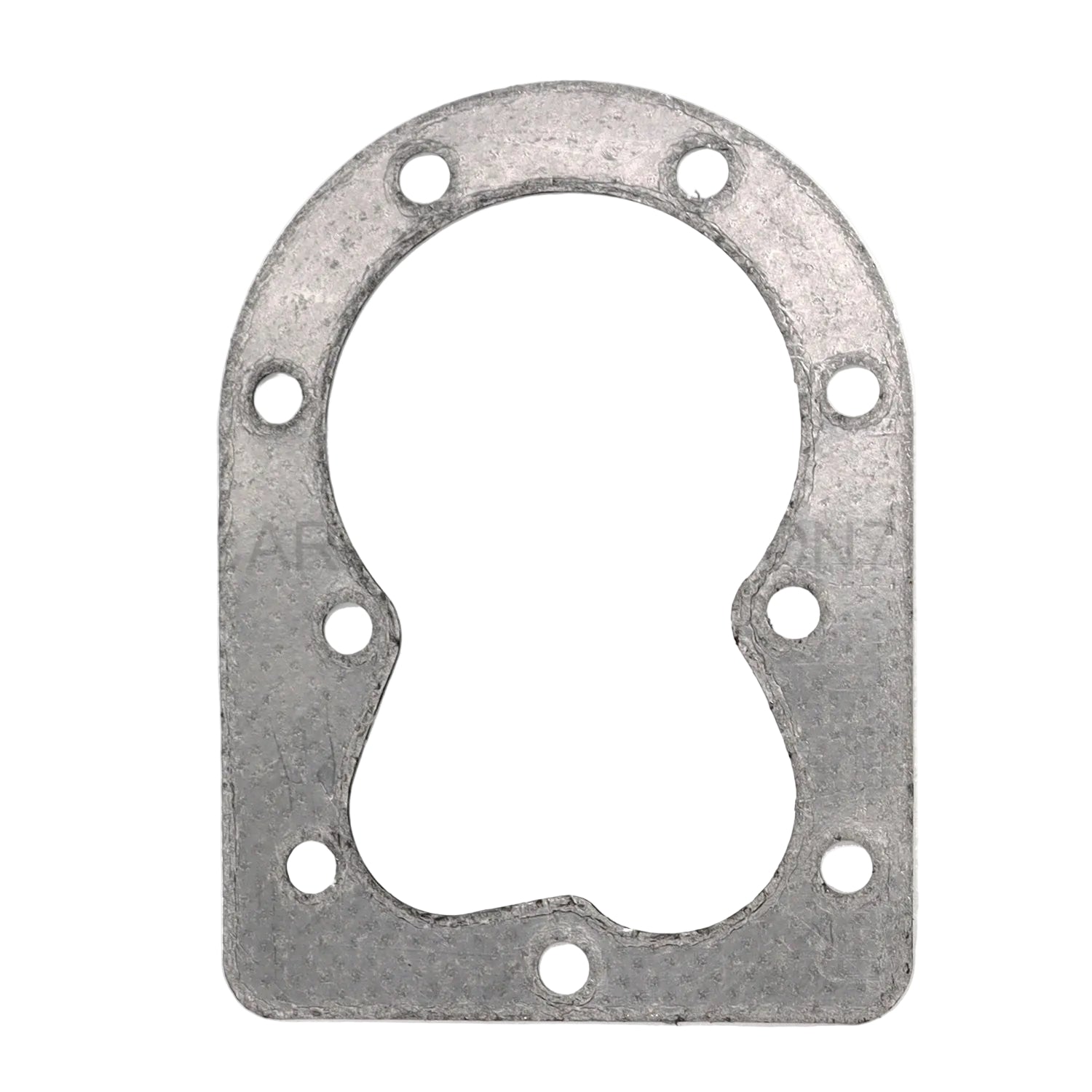

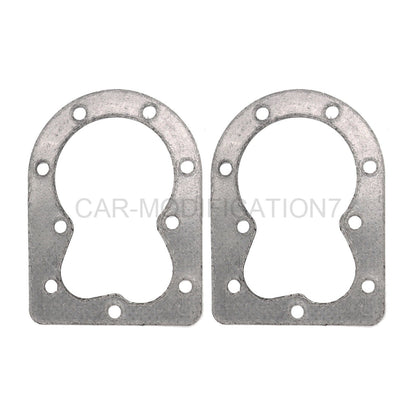

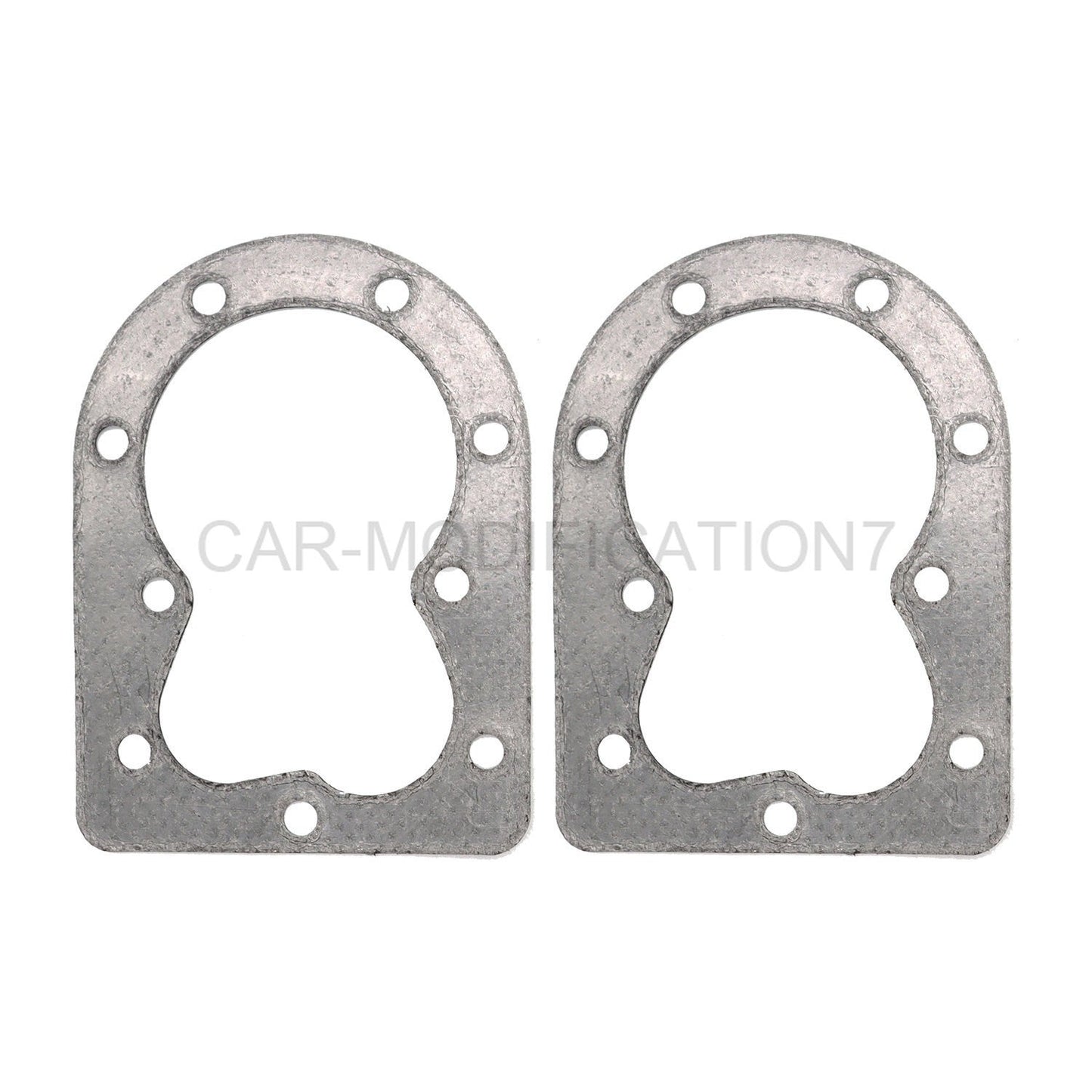

- Includes two 110-3181-style head gaskets
- Useful during valve grinding, decarbonizing, and head service
- Covers several B-series and Performer-series engines
- Replacement for compressed, leaking, or removed head gaskets
Replaces Part Numbers
- 110-3181
Common Uses
- Resealing both cylinder heads
- Completing a valve-grind service
- Repairing combustion leakage at a head gasket
- Decarbonizing and inspecting an opposed-twin engine
Technical Specifications
- Product Type: Valve-grind and head-gasket set
- Head Gaskets: Two
- Engine Layout: Opposed twin
- Applications: Select Onan B and P series
- Condition: New
- Reference: 110-3181
Installation & Fitment
- Record the complete Onan model and specification number
- Check head and block surfaces for flatness, erosion, and pulled threads
- Clean carbon without gouging aluminum sealing surfaces
- Adjust valves and torque heads in the specified pattern and stages
- Recheck operation, cooling airflow, and leakage after the first heat cycle as the manual directs
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Match engine model/spec, opposed-twin head design, 110-3181 gasket shape, bore openings, bolt pattern, and valve-grind gasket pieces. Model year, production date, serial number, trim, engine, installed options, and previous repairs can affect fitment.
Frequently Asked Questions
Q: Will new gaskets fix a warped cylinder head? A: No. Both heads and block surfaces must be checked and corrected if they are outside flatness limits.
Q: Why are two head gaskets included? A: The listed Onan engines are opposed twins with one cylinder head and head gasket on each side.
Q: What should I compare before ordering? A: Match engine model/spec, opposed-twin head design, 110-3181 gasket shape, bore openings, bolt pattern, and valve-grind gasket pieces.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket part. Brand names and reference numbers identify fitment only.

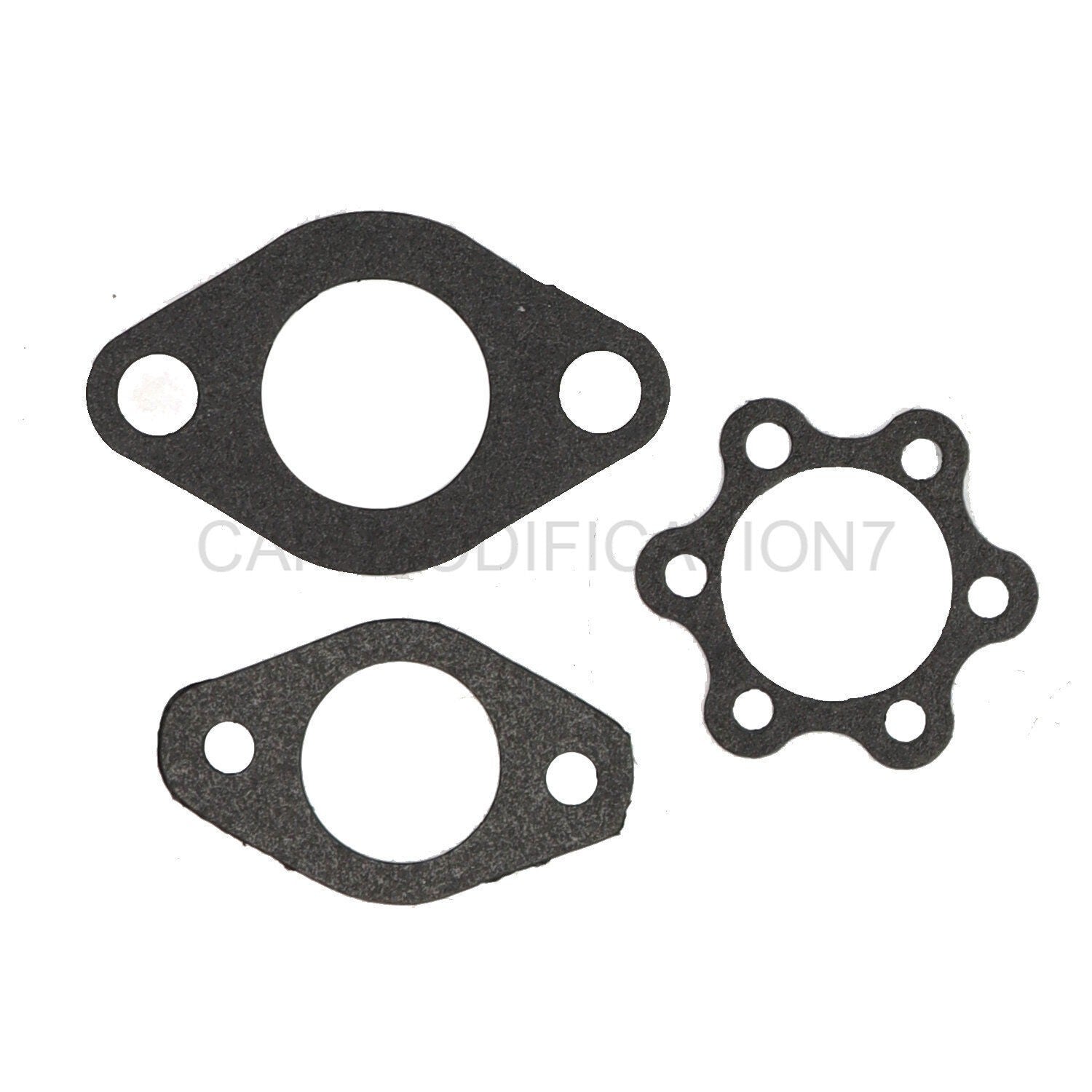

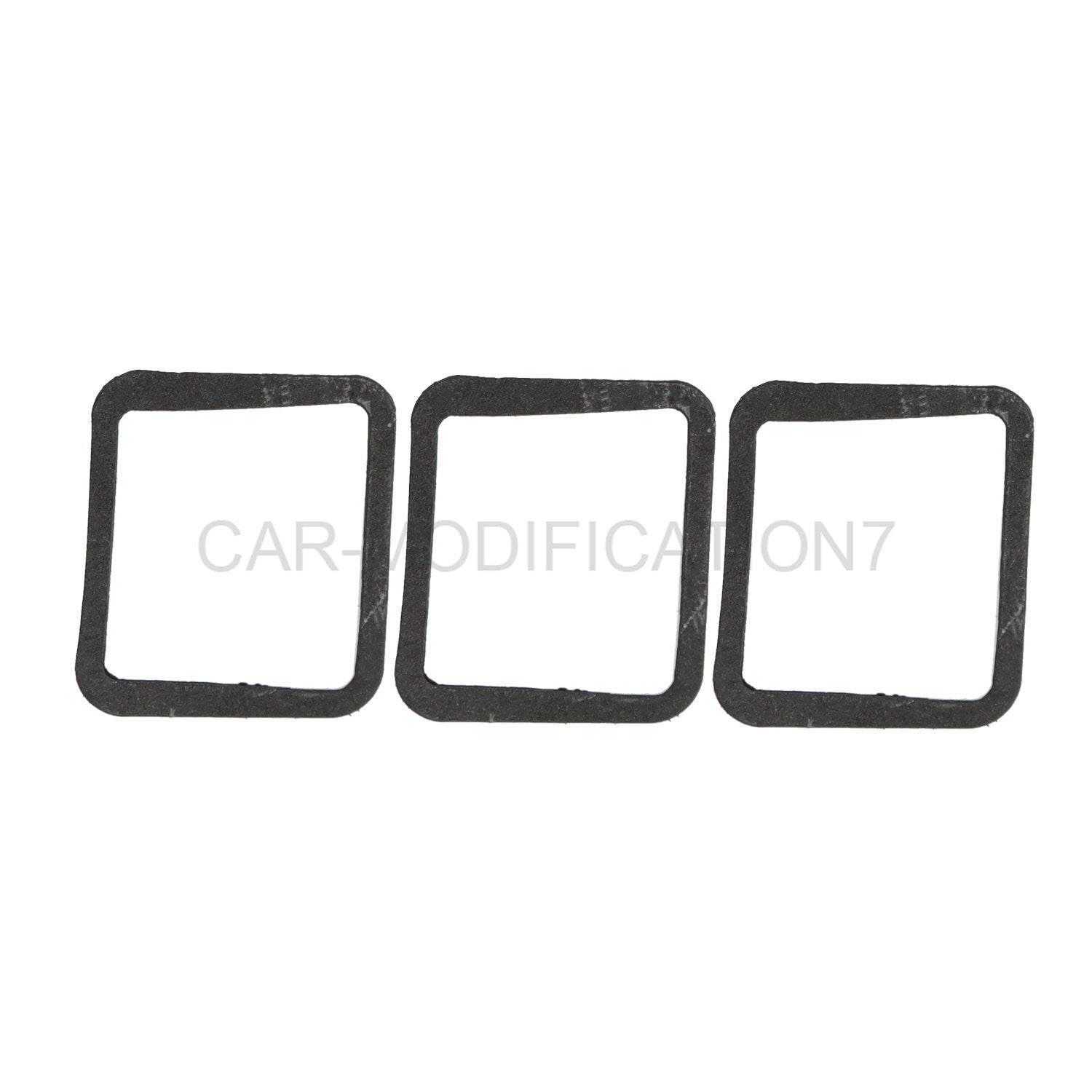

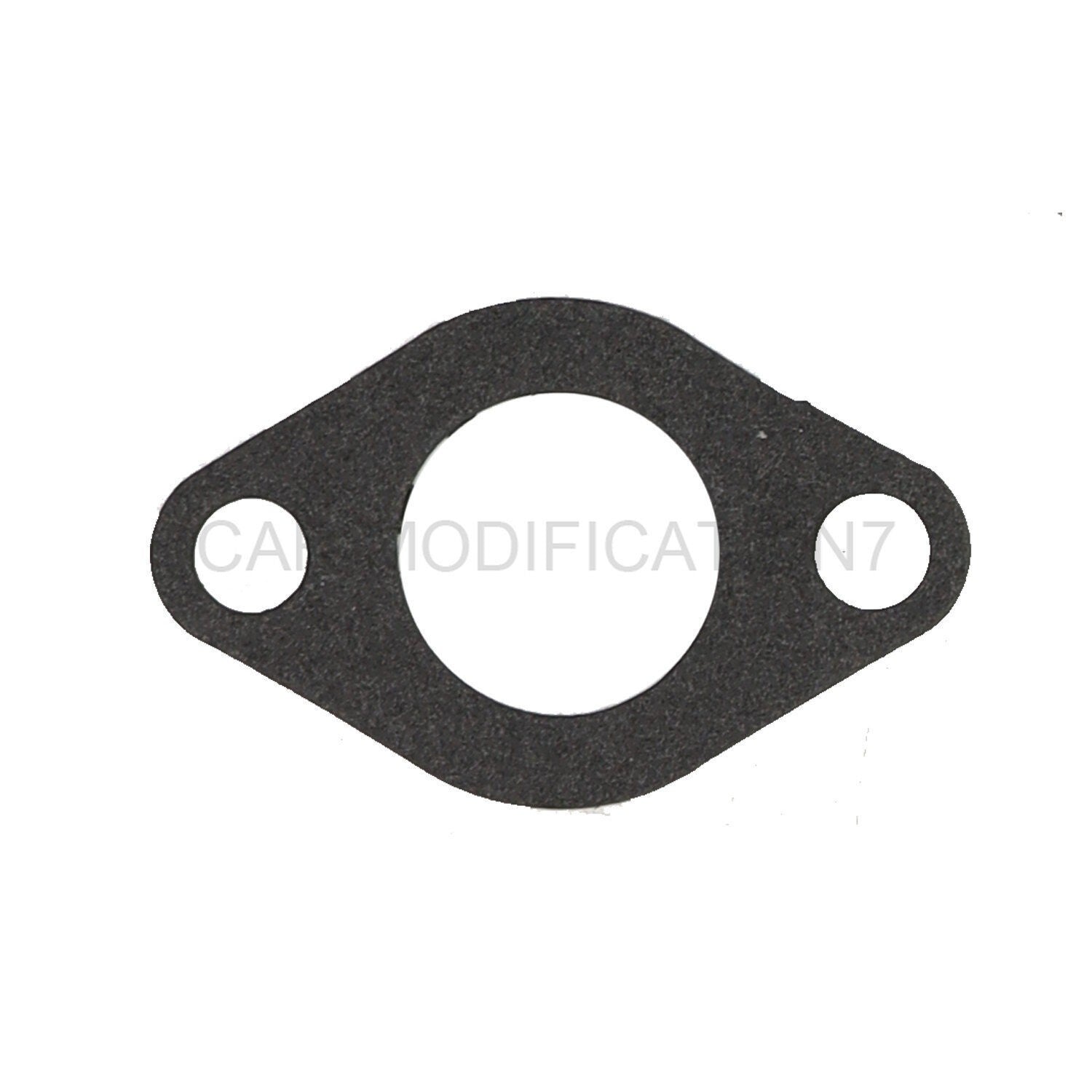

Package note: The set includes two head gaskets and the valve-grind gasket pieces shown; valves, seals, guides, and fasteners are not included unless pictured.
Part Summary
keywords: Onan 110-3181 head gasket, P216 valve grind kit, Onan P218 head gasket set, P220V engine gasket replacement, Onan opposed twin head repair, B43 B48 valve service gaskets
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
