Toro Dingo 525 / Kubota D782 Water Pump with Gasket 110-3824
$83.99
In Stock
$83.99
Sale price
$83.99
Regular price
Aftermarket water pump with gasket for Toro Dingo 525 compact utility loaders equipped with the compatible Kubota D782 engine; replaces 110-3824, 117-0330, and 1G820-73035.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Toro Dingo 525 compact utility loader with compatible Kubota D782 engine
- Kubota D782 engine applications using 1G820-73035-style pump
Product Overview
A Dingo 525 that leaks coolant at the pump, overheats under load, or has bearing noise needs attention before a small leak becomes an engine shutdown. This pump comes with the gasket needed to restore coolant circulation on the compatible Kubota-powered machine.
Cooling problems can also come from debris-packed radiators, a loose belt, failed thermostat, damaged fan, air in the system, or combustion leakage. Check the full system.
Key Features & Performance

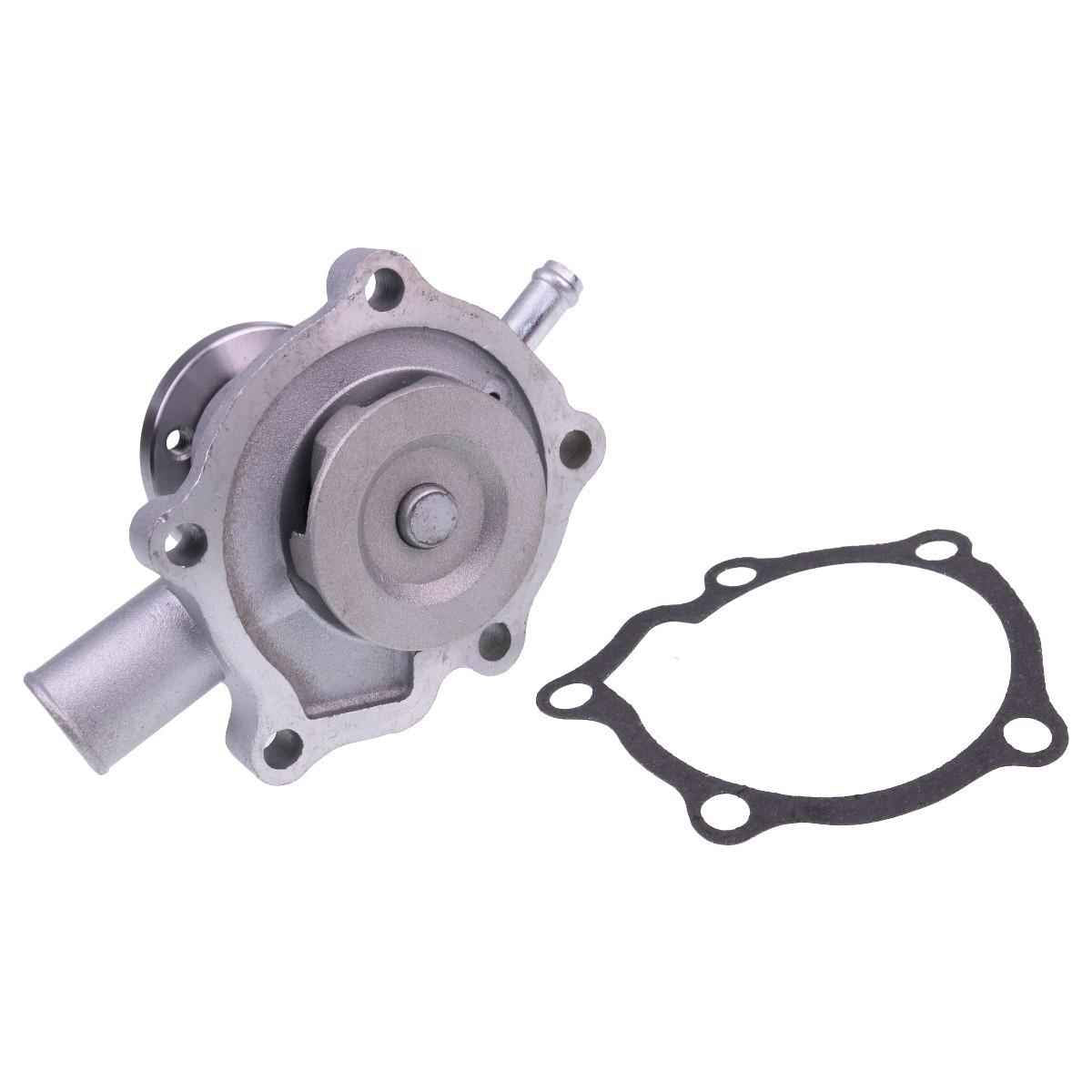

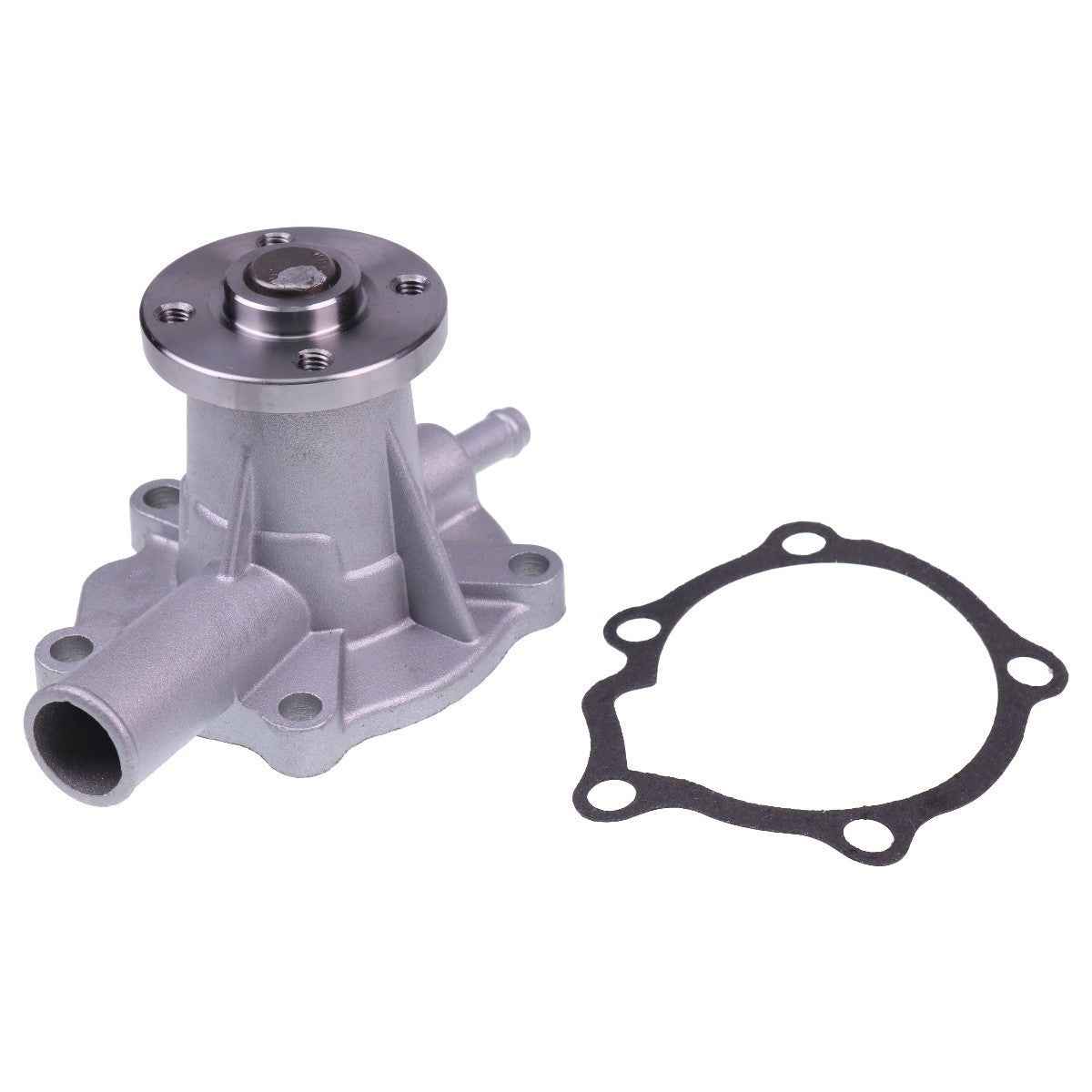

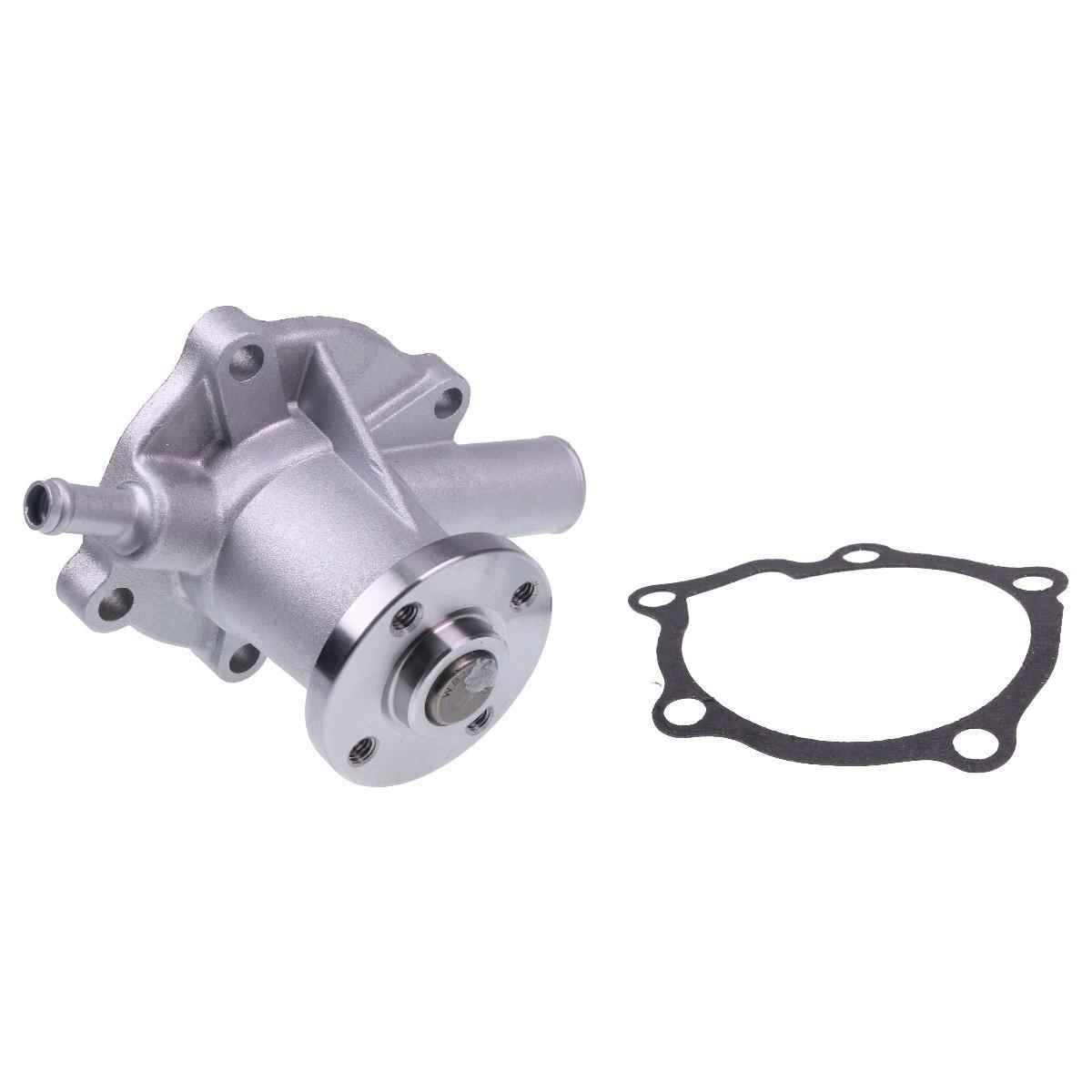

- Water pump with mounting gasket
- For compatible Toro Dingo 525 Kubota D782 applications
- Restores engine coolant circulation
- Aftermarket replacement for listed Toro/Kubota references
Replaces Part Numbers
- 110-3824
- 117-0330
- 1G820-73035
- 1225.21872
Common Uses
- Coolant leak at the water pump
- Pump bearing noise or shaft play
- Overheating with poor circulation confirmed
- Cooling-system service on a high-hour Dingo
Technical Specifications
- Product Type: Engine water pump
- Engine: Kubota D782 compatible application
- Included: Mounting gasket
- System: Liquid cooling
- Replacement Type: Aftermarket
Installation & Fitment
- Let the engine cool fully and drain coolant
- Clean the mating surface without gouging it
- Inspect belt, pulley, fan, thermostat, and radiator
- Refill, bleed trapped air, and check for leaks under load
Compatibility Notice
Confirm Toro Dingo 525 model, installed Kubota D782 engine, engine serial, pump casting, pulley/flange dimensions, port locations, and original references.
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Frequently Asked Questions
Q: Is the gasket included? A: Yes, this listing includes the water-pump gasket.
Q: Can a bad pump overheat without leaking? A: Yes. A worn or damaged impeller can reduce flow.
Q: Does it fit every Toro 525? A: Verify the installed Kubota engine and original pump number.
Q: What should be checked after installation? A: Coolant level, air bleeding, belt tension, leaks, fan operation, and temperature under load.
Part Summary
keywords: Toro Dingo 525 water pump, 110-3824 replacement, 117-0330 pump with gasket, Kubota D782 coolant pump, 1G820-73035 cross reference, aftermarket Toro engine cooling part
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
