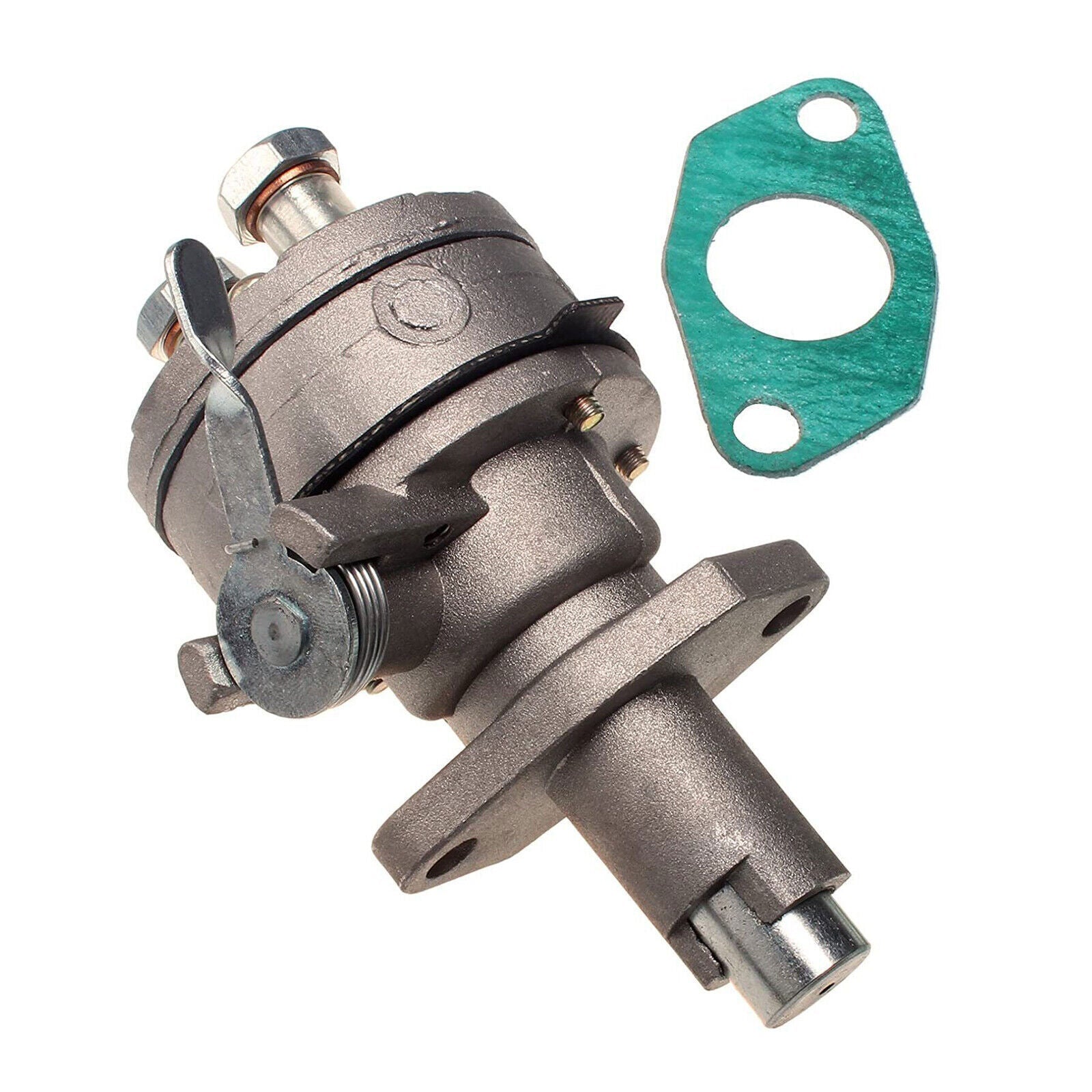

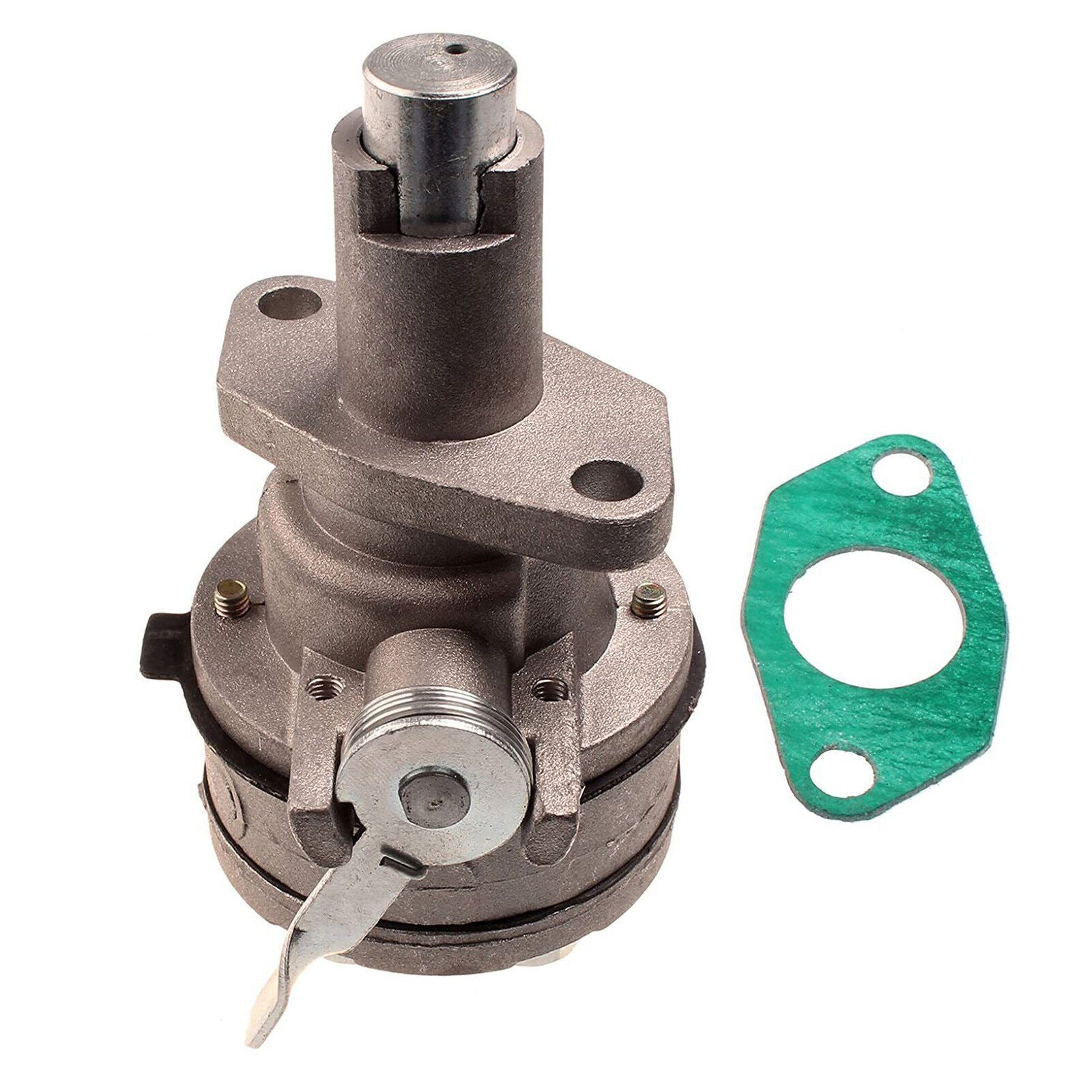

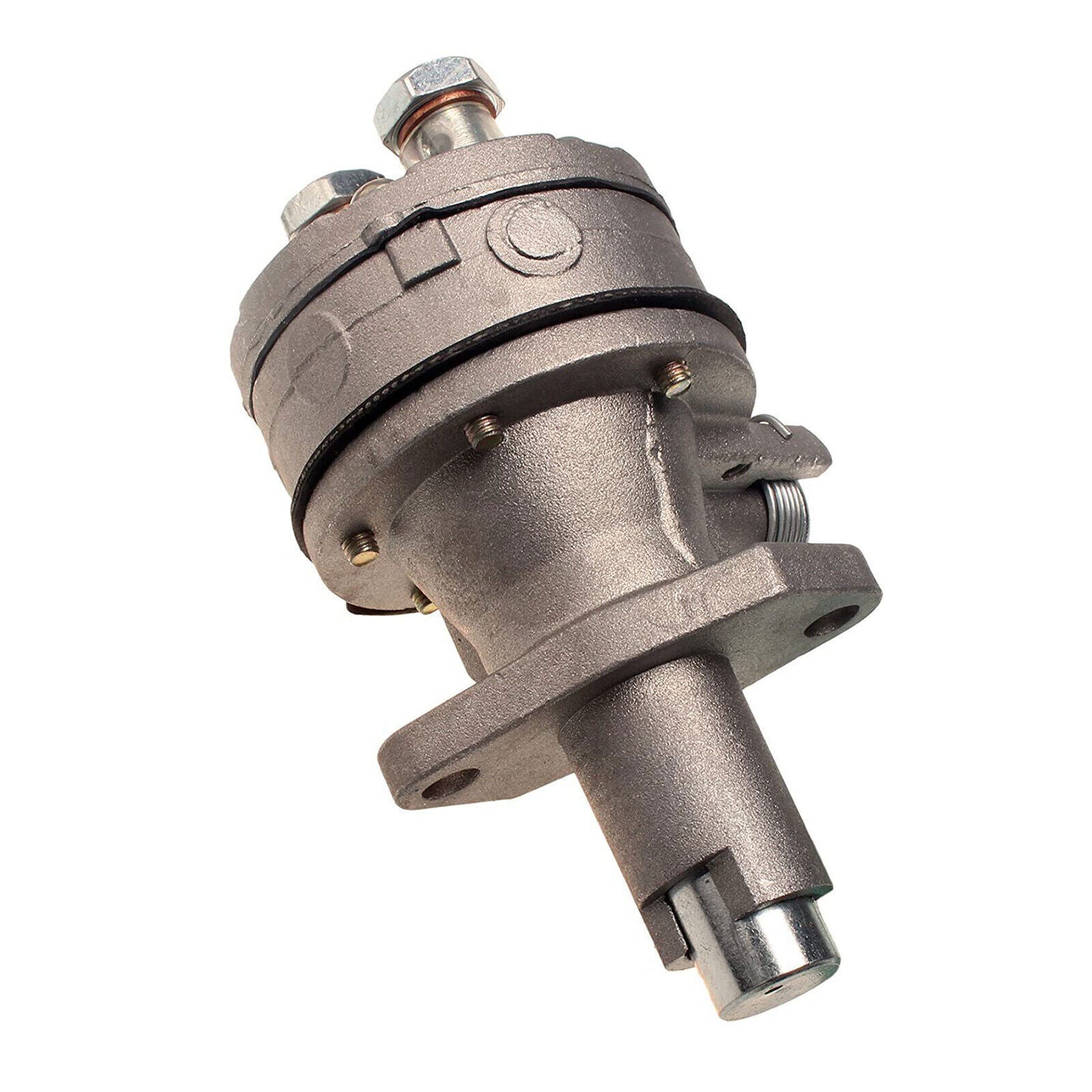

130506140 Fuel Lift Pump for Perkins 102-05 103-Series 104-22 Engines
$50.99
In Stock
$50.99
Sale price
$50.99
Regular price
Restore low-pressure fuel supply on compatible Perkins 102, 103, and 104-series diesel engines with lift pump 130506140.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Perkins 102-05
- Perkins 103-07
- Perkins 103-09
- Perkins 103-10
- Perkins 103-15
- Perkins 104-19
- Perkins 104-22 KR Series
- Perkins 403C-15 and 403D-15 applications using 130506140
- Perkins 404D-22 and 404D-22T applications using 130506140
Product Overview
When a diesel is hard to prime, stalls as load increases, or has little fuel reaching the injection pump, the mechanical lift pump becomes a key test point. This replacement is used on compact Perkins engines including the 104-22 KR series.
Air leaks, a blocked tank outlet, bad hoses, and clogged filters can mimic a weak pump. Confirm the mounting flange, lever shape, line fittings, and 130506140 reference before installation.
This is an aftermarket replacement part and is not manufactured or supplied by the original equipment brand.
Key Features & Performance
- Mechanical fuel lift pump replacing 130506140
- For several Perkins compact industrial engine families
- Supports fuel delivery from tank to injection system
- Useful during hard-start, air-entry, and fuel-starvation repairs
Replaces Part Numbers
- 130506140
- 3028666
Common Uses
- Repairing weak fuel delivery to the injection pump
- Correcting hard priming after filter service
- Replacing a pump leaking fuel or engine oil
- Servicing a diesel that stalls under load from low supply
Technical Specifications
- Product Type: Mechanical fuel lift pump
- Reference Number: 130506140
- Engine Family: Perkins compact diesel
- Application: Low-pressure fuel supply
Installation & Fitment
- Clean the area around the pump
- Clamp or shut off fuel and catch spills safely
- Compare the operating lever and flange to the original
- Use a new gasket and verify the lever is positioned correctly
- Prime the system and inspect for fuel and oil leaks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Model names alone may not guarantee fitment. Compare the original component, reference number, connector or mounting design, dimensions, and any serial-number or production-date break before purchase.
Frequently Asked Questions
Q: Can a bad lift pump cause a no-start? A: Yes, if the injection pump is not receiving fuel, though restrictions and air leaks can look the same.
Q: Does it fit the Perkins 104-22 KR? A: Yes, when the engine uses 130506140.
Q: Should the filters be checked too? A: Yes. A blocked filter can starve a good lift pump and should be serviced during diagnosis.
Part Summary
keywords: Perkins 130506140 lift pump, 104-22 KR fuel pump, 103-10 diesel priming repair, 403D-15 fuel supply, Perkins engine stalls under load, aftermarket mechanical lift pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
