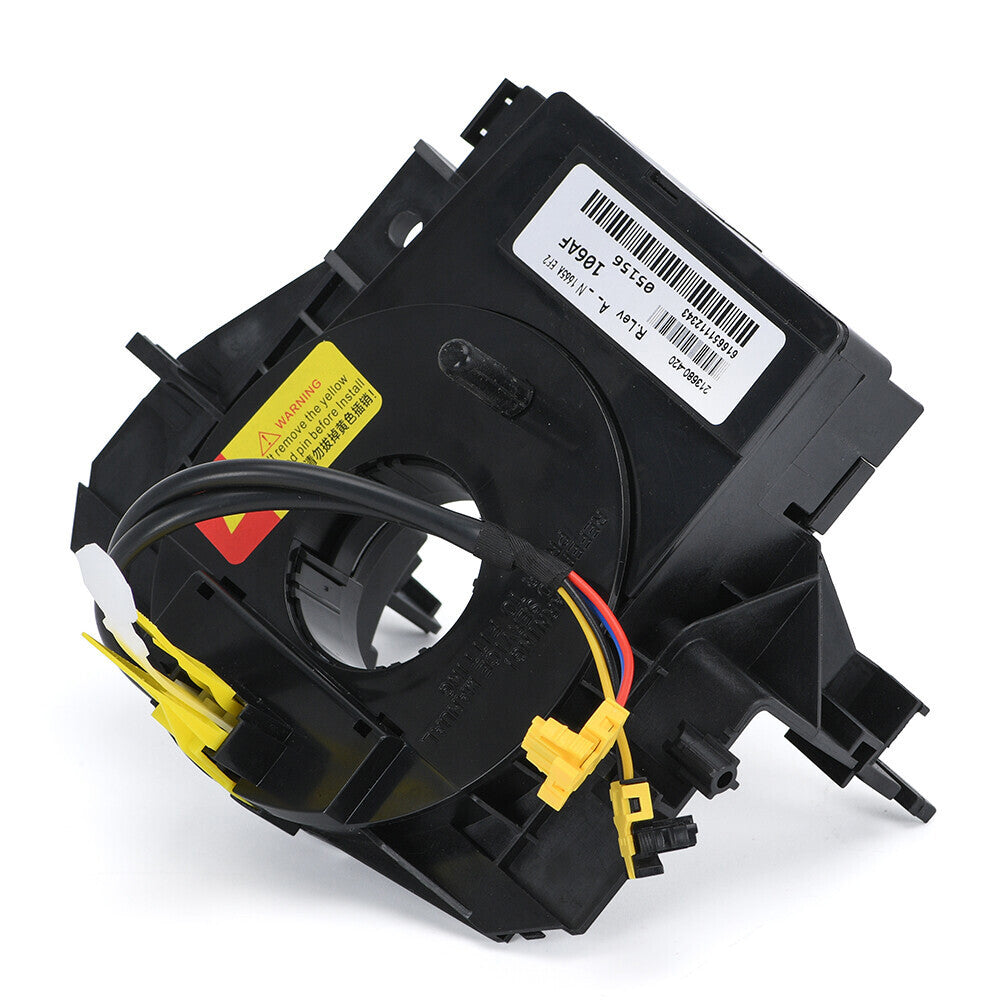

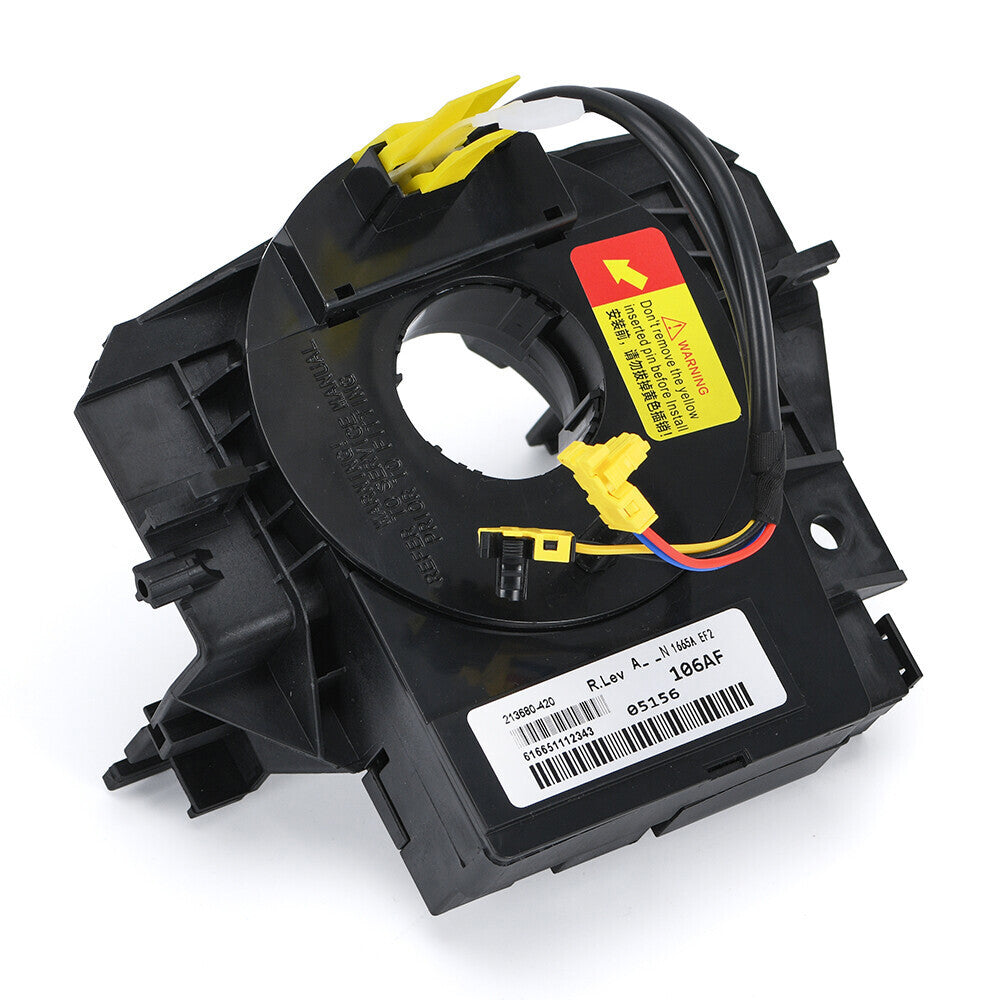

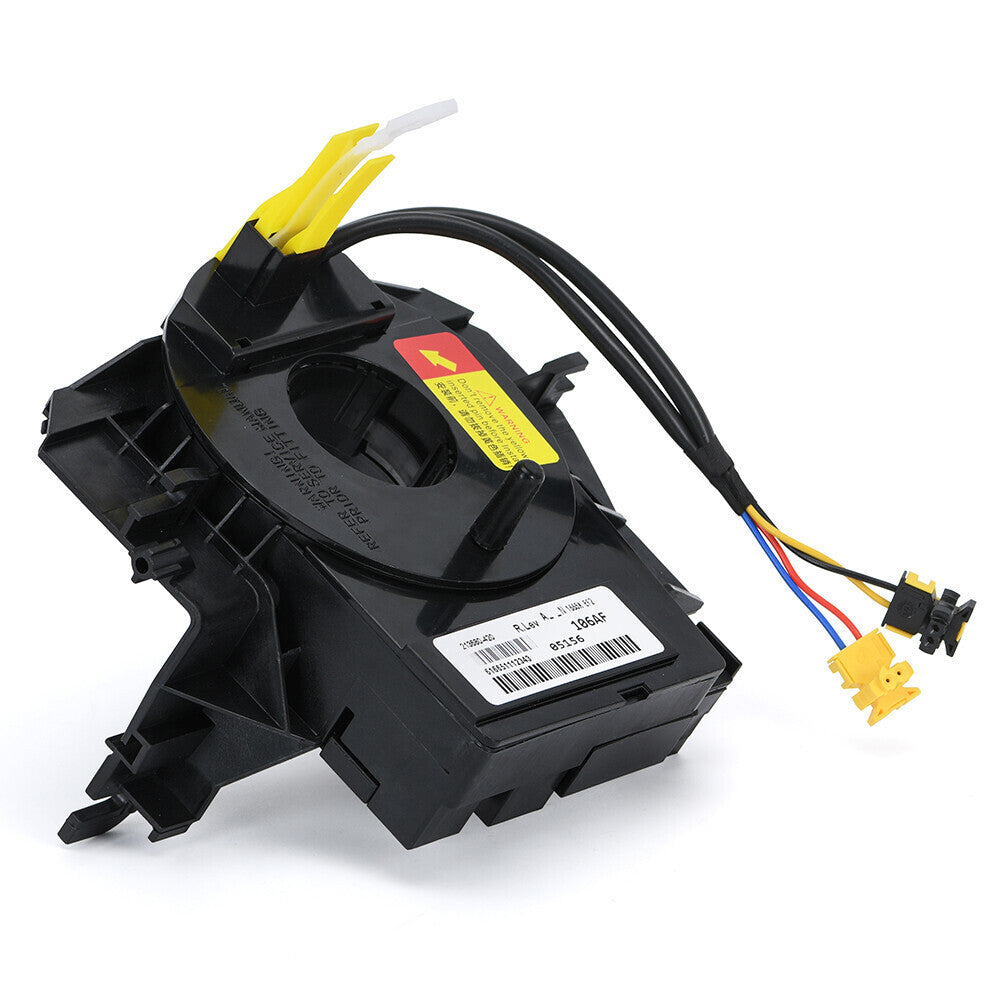

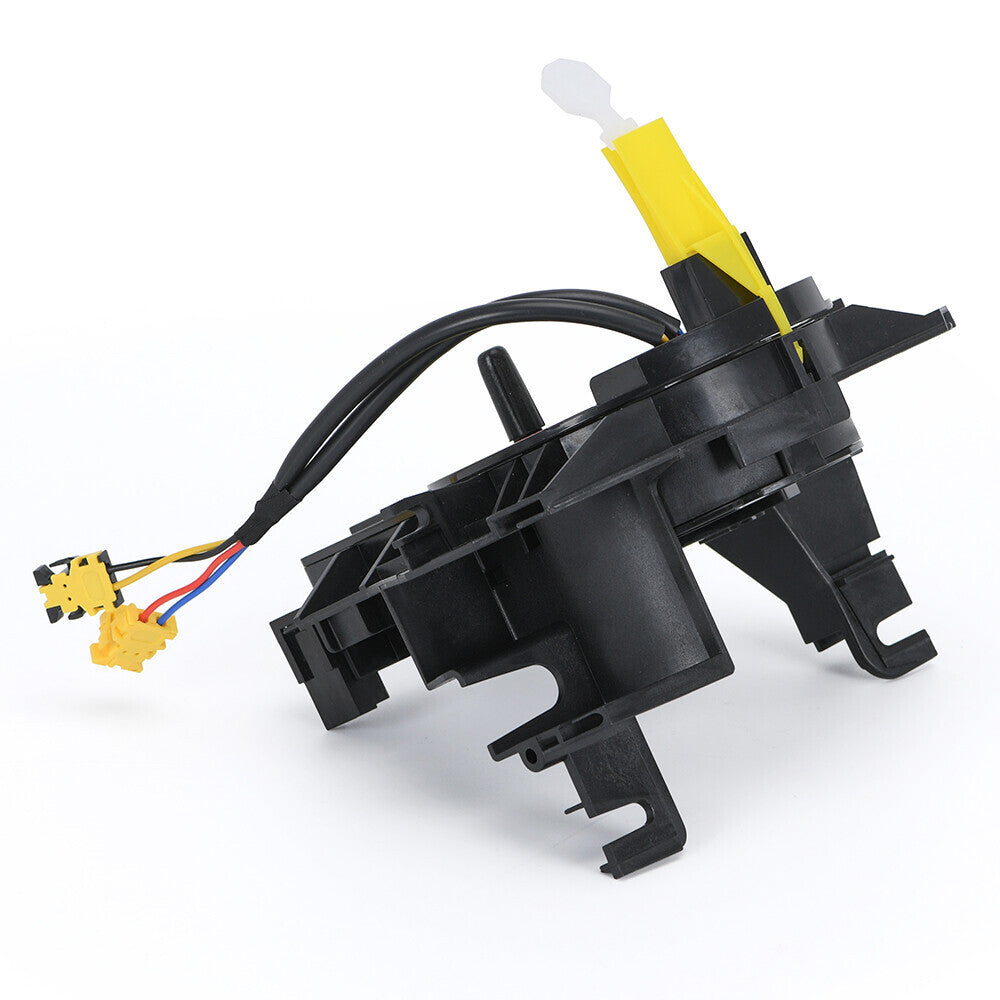

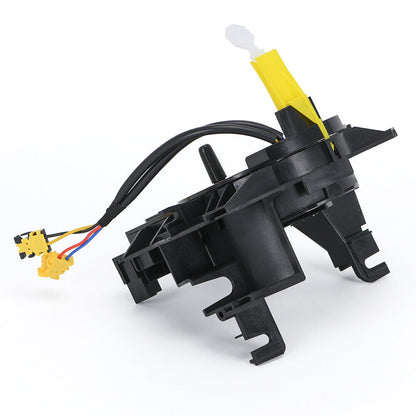

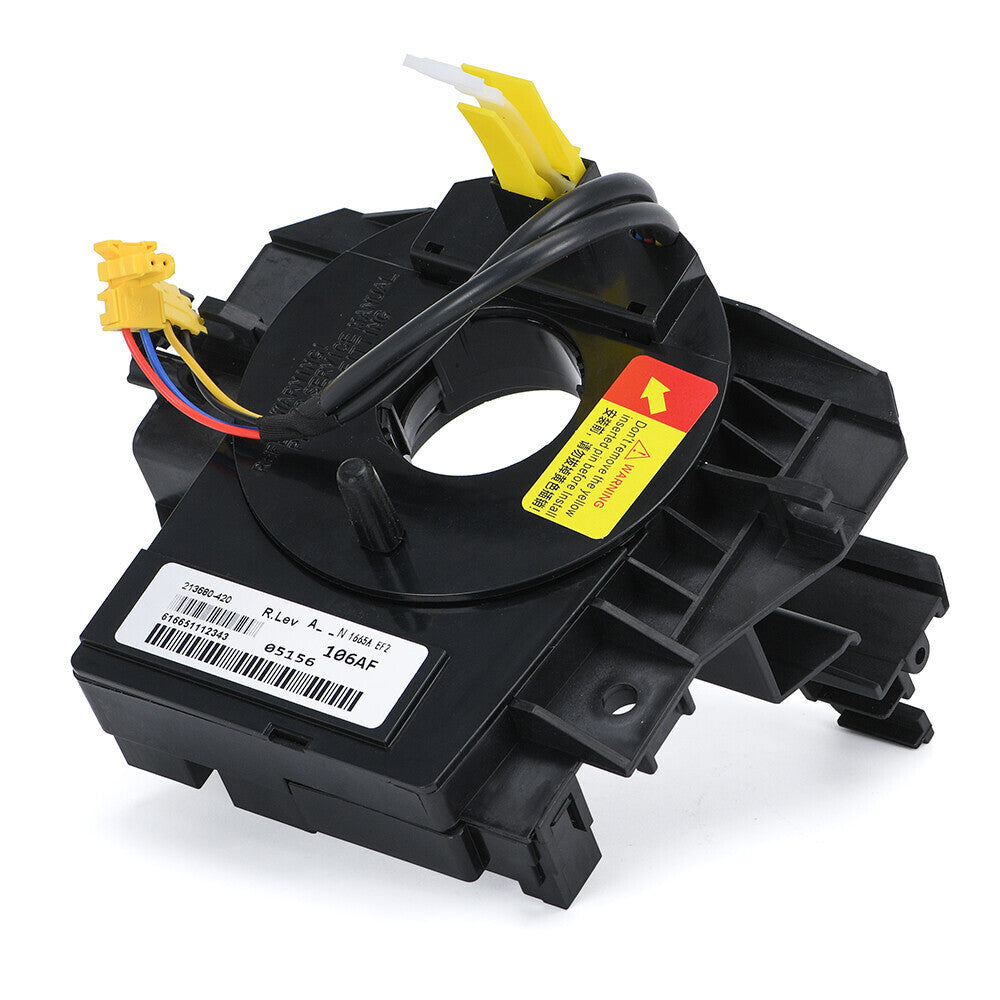

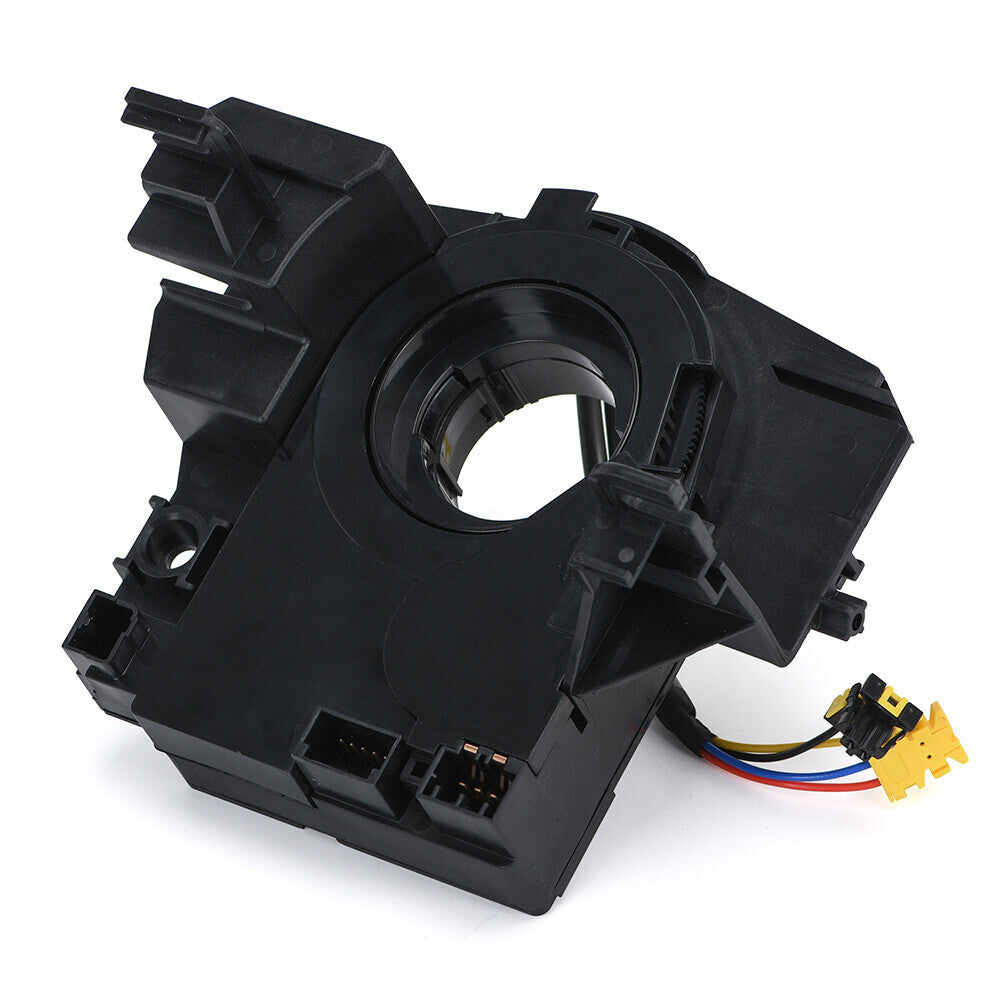

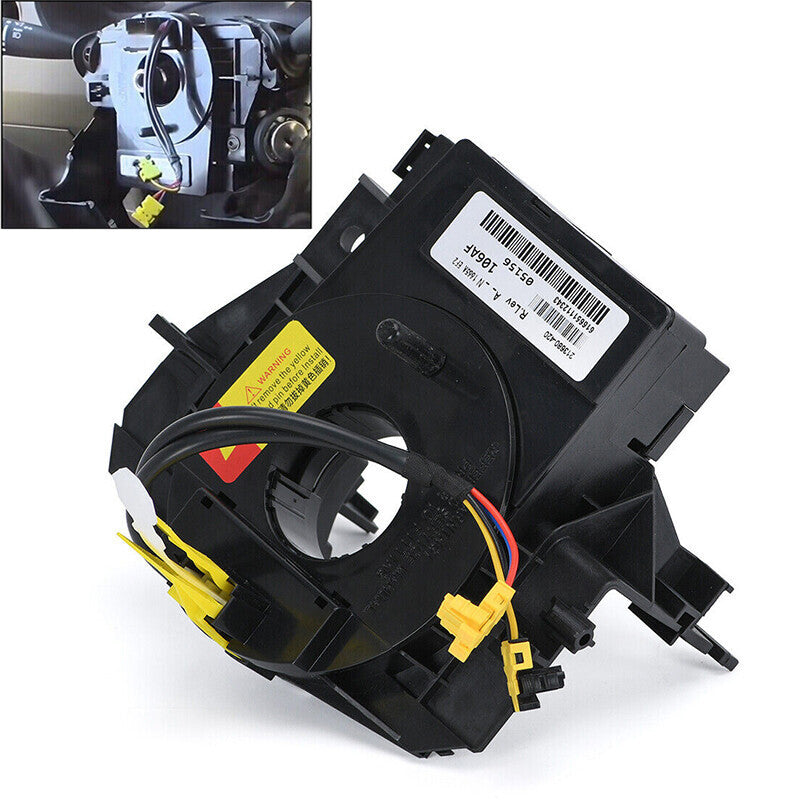

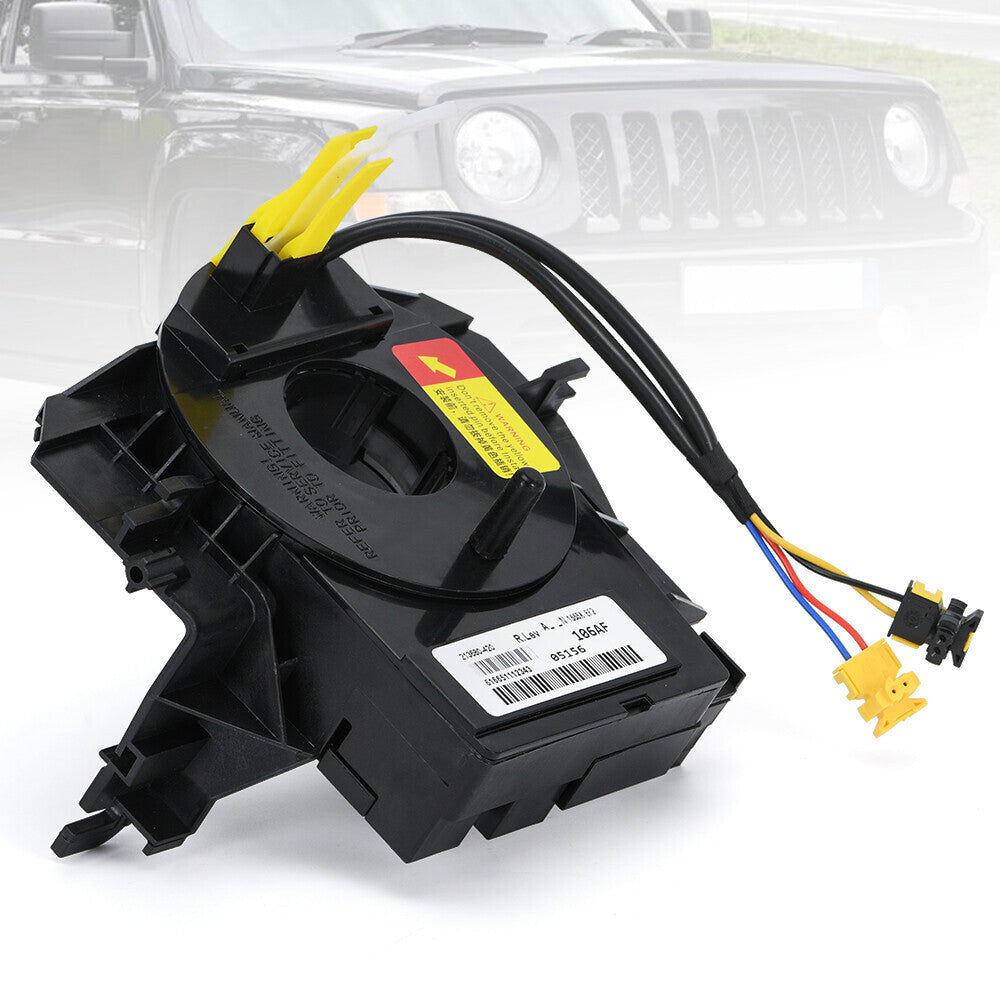

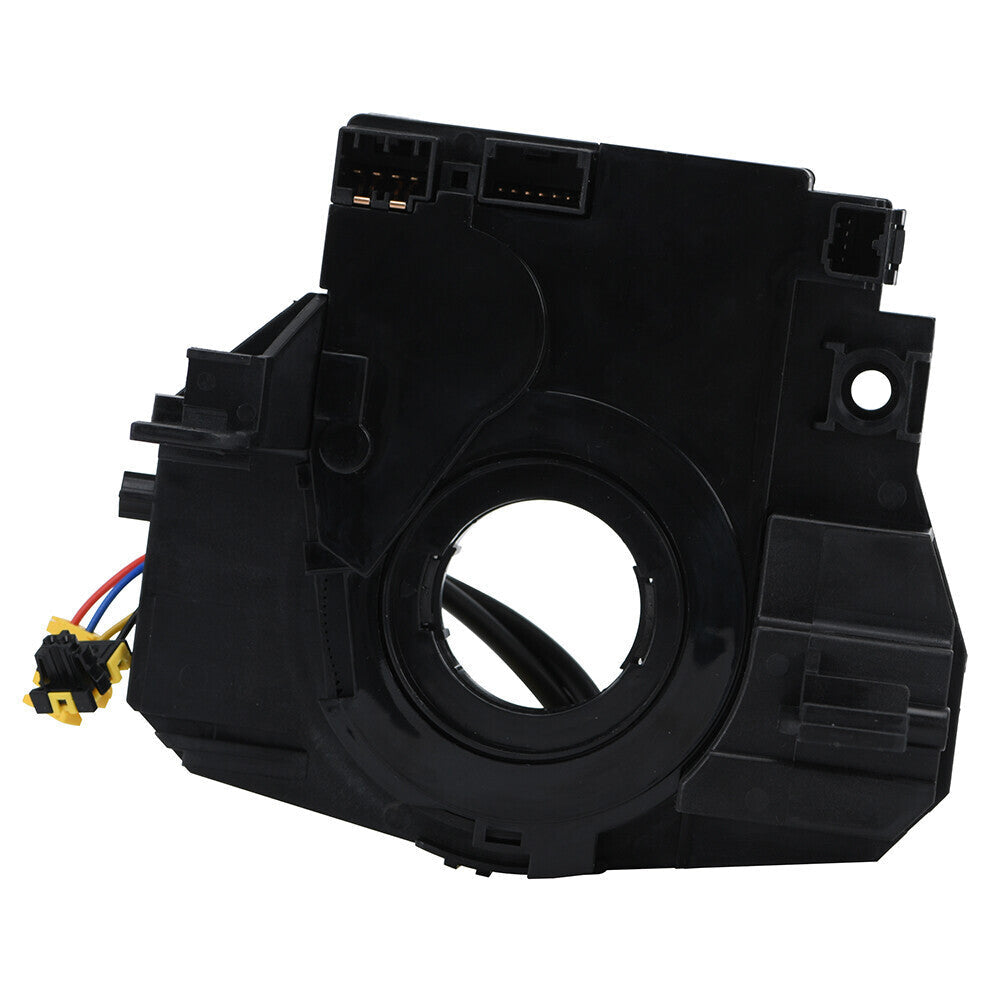

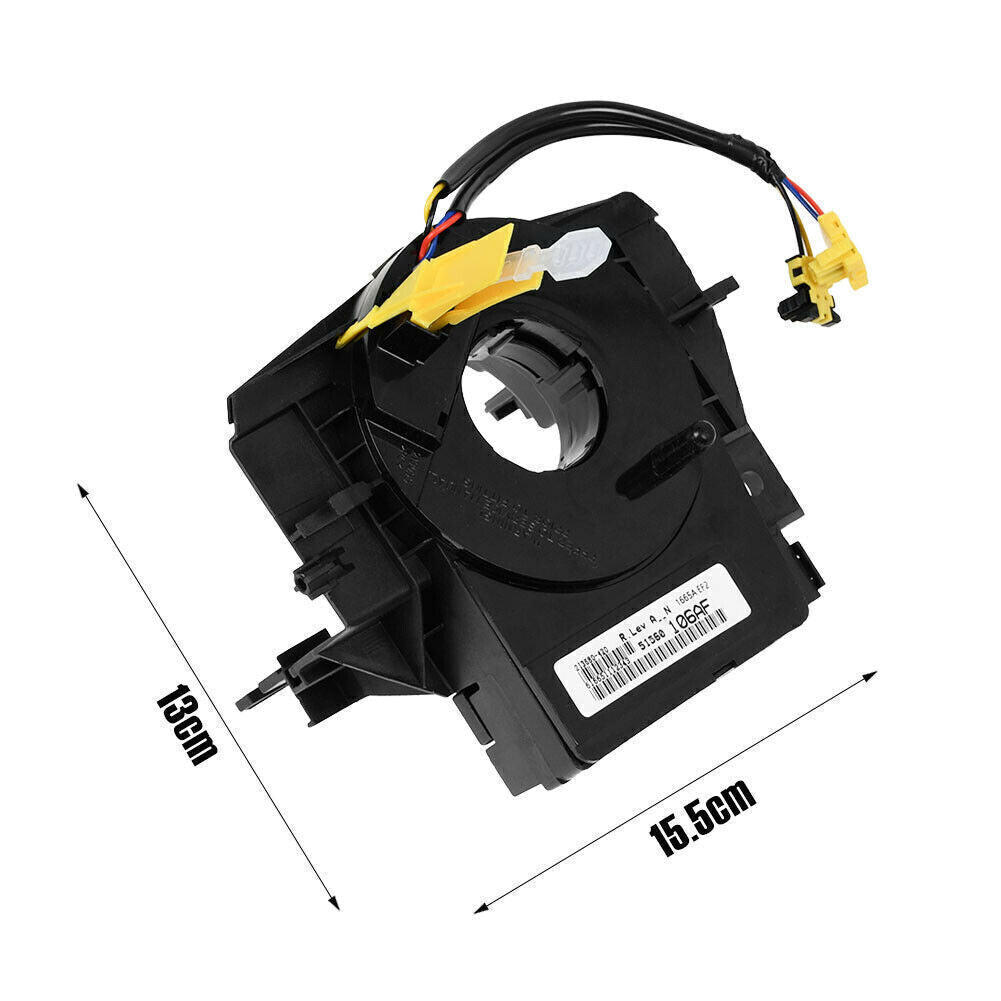

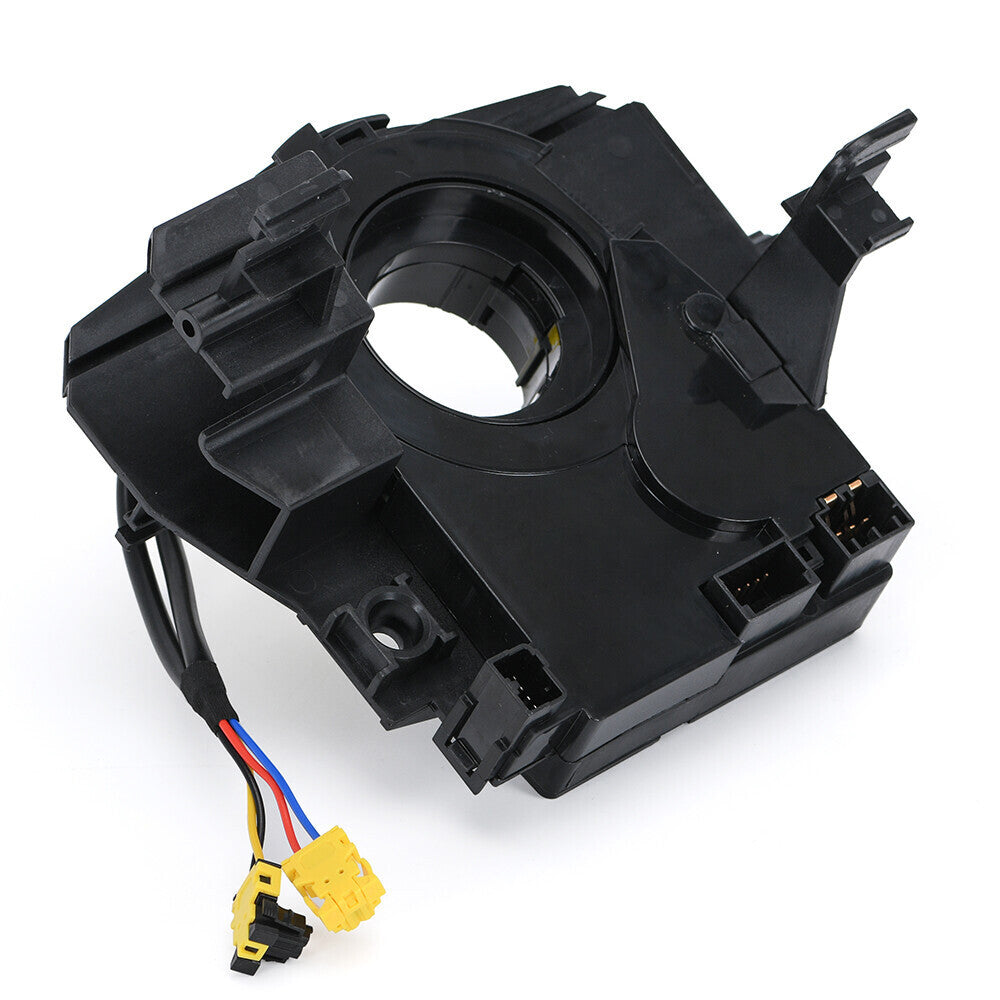

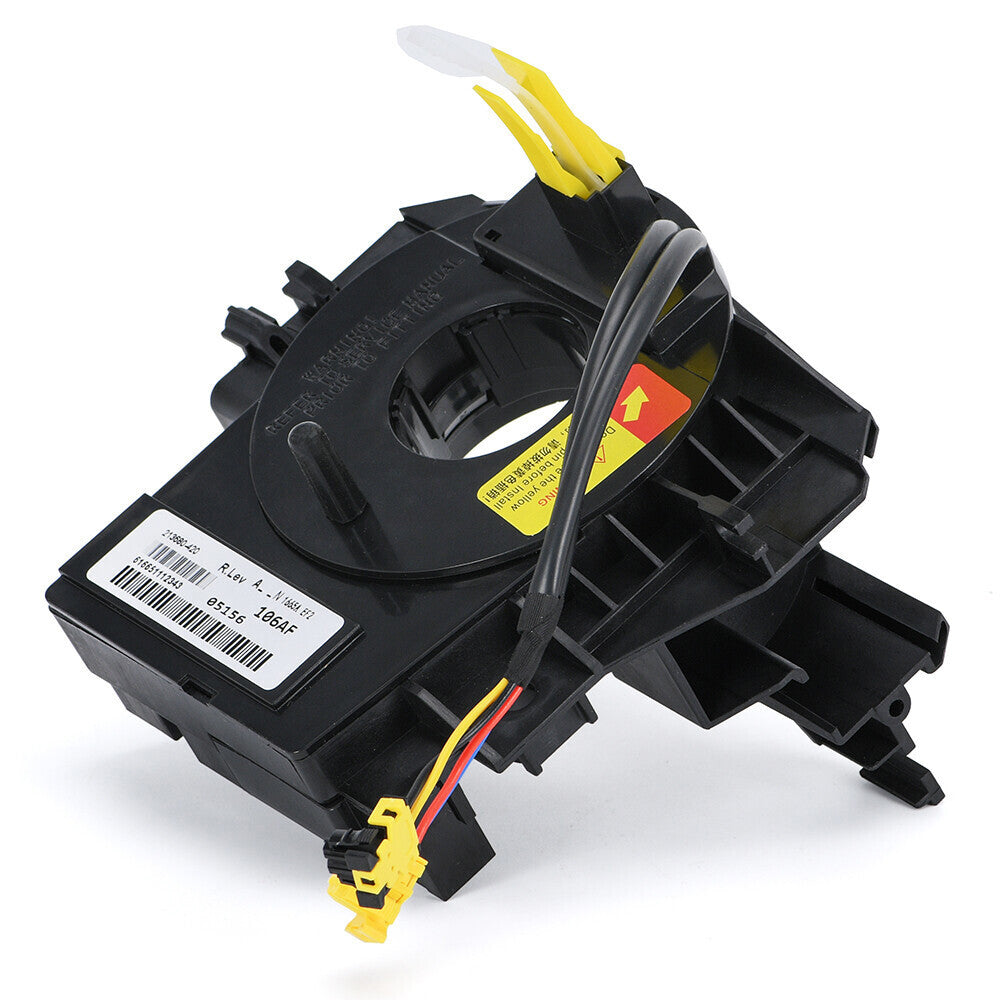

Clock Spring with Steering Angle Sensor for 2007-2018 Jeep Wrangler JK
$103.99
In Stock
$103.99
Sale price
$103.99
Regular price
This aftermarket clock spring with steering angle sensor fits compatible 2007-2018 Jeep Wrangler JK models and replaces multiple 5156106-series references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer

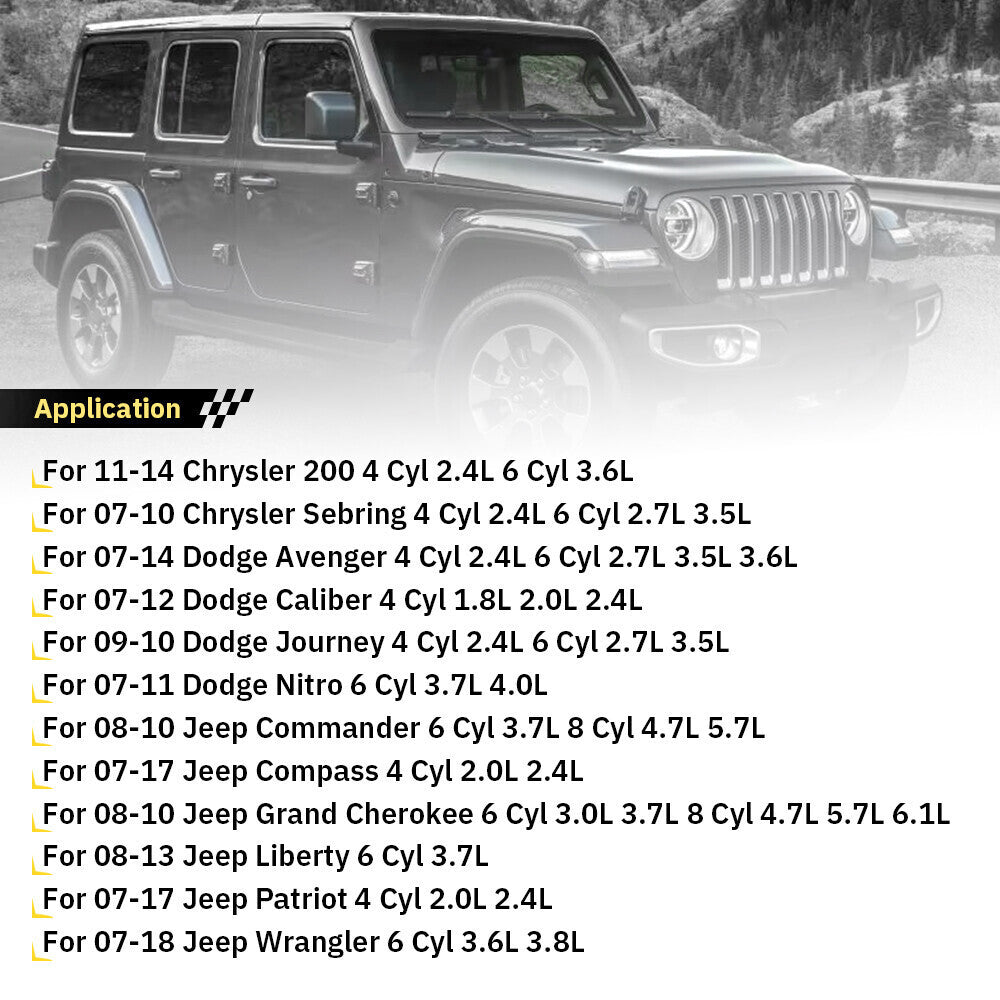

Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Jeep Wrangler JK 2007
- Jeep Wrangler JK 2008
- Jeep Wrangler JK 2009
- Jeep Wrangler JK 2010
- Jeep Wrangler JK 2011
- Jeep Wrangler JK 2012
- Jeep Wrangler JK 2013
- Jeep Wrangler JK 2014
- Jeep Wrangler JK 2015
- Jeep Wrangler JK 2016
- Jeep Wrangler JK 2017
- Jeep Wrangler JK 2018
Product Overview
An airbag warning light, dead horn, lost steering-wheel controls, or stability-control faults can point to a broken clock-spring ribbon or failed steering-angle signal. This assembly carries electrical circuits through the rotating steering wheel while reporting wheel position to equipped safety systems. Because it is part of the airbag and stability-control system, diagnosis and centering must be exact.
For a machine that needs to return to work, careful identification now prevents another round of disassembly later. Wrangler options, connectors, production changes, and steering-wheel controls vary. Match the full reference number and plug layout, not just the model year.
Key Features & Performance
- Maintains electrical continuity through steering-wheel rotation
- Integrated steering-angle sensing for compatible systems
- Restores circuits for airbag, horn, and equipped wheel controls

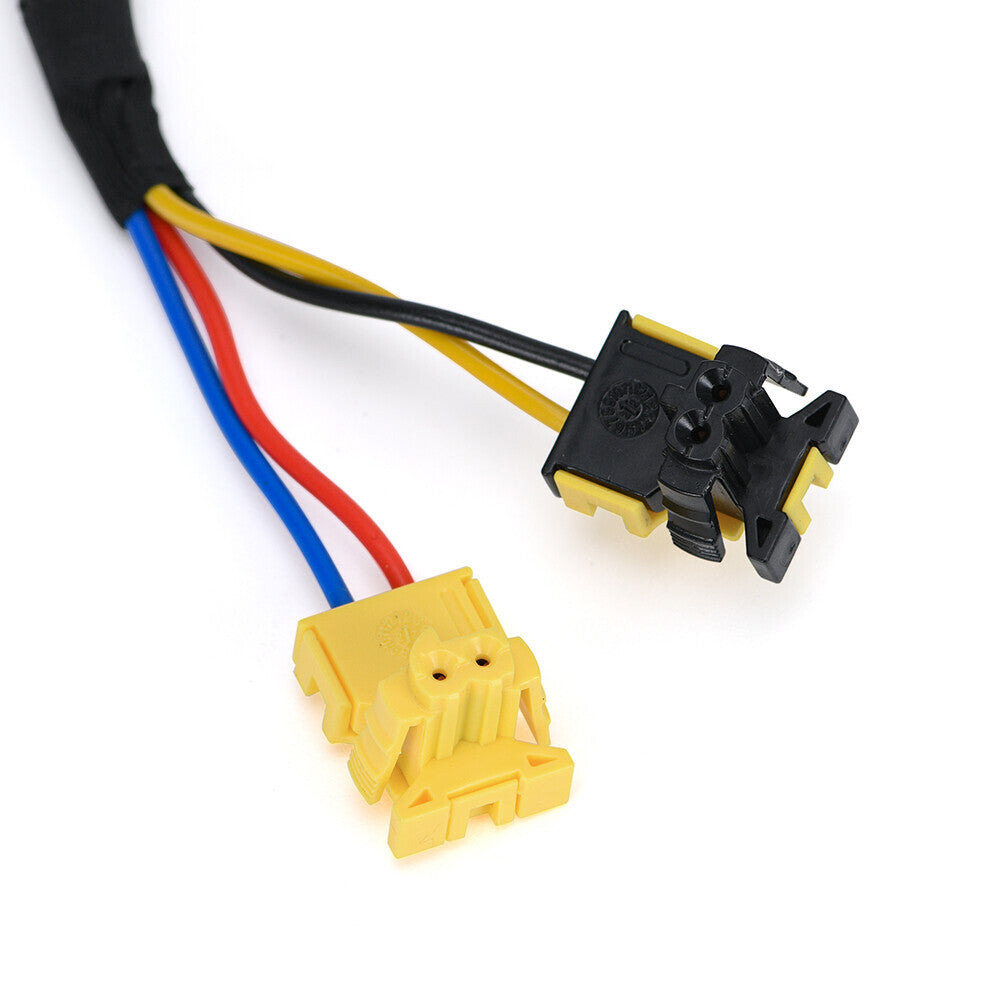

- Vehicle-specific connector and mounting design
Replaces Part Numbers
- 5156106AA
- 5156106AB
- 5156106AC
- 5156106AD
- 5156106AE
- 5156106AF
- 5156106AG
- 05156106AF
- 05156106AG
- K5156106AF
- 68339336AA
- 68339336AB
- 68193280AA
- 68193280AB
- 68000477AA
- 68003216AA
- CBAES404AB
Common Uses
- Airbag light with steering-wheel circuit fault
- Horn or wheel buttons work only at certain steering angles
- Clock spring damaged during column service
- Steering-angle sensor fault after internal failure
Technical Specifications
- Product Type: Clock Spring Assembly
- Sensor: Steering Angle Sensor Included
- Location: Steering Column
- Safety System: SRS/Airbag Circuit
- Vehicle Platform: Jeep Wrangler JK
- Replacement Type: Aftermarket

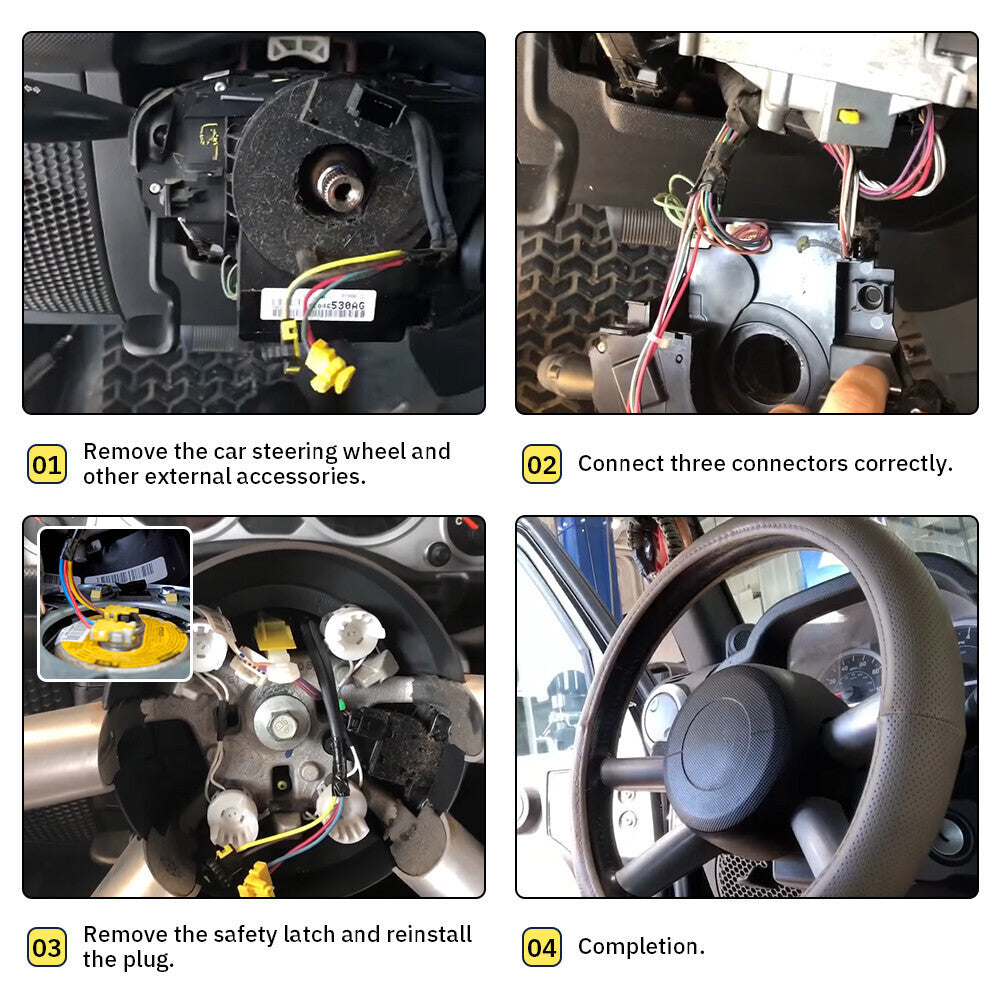

Installation & Fitment
- Disable the SRS system exactly as the service manual directs
- Keep the front wheels and steering wheel centered
- Never rotate an uninstalled clock spring beyond its indexed range
- Transfer connectors and wheel components without forcing them
- Perform required steering-angle calibration and clear/verify diagnostic faults
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Wrangler options, connectors, production changes, and steering-wheel controls vary. Match the full reference number and plug layout, not just the model year.
Frequently Asked Questions
Q: Can I install this off-center? A: No. An off-center clock spring can tear when the wheel reaches full lock.
Q: Will it automatically clear the airbag light? A: Only if the clock spring caused the fault and the system is repaired, calibrated, and cleared correctly.

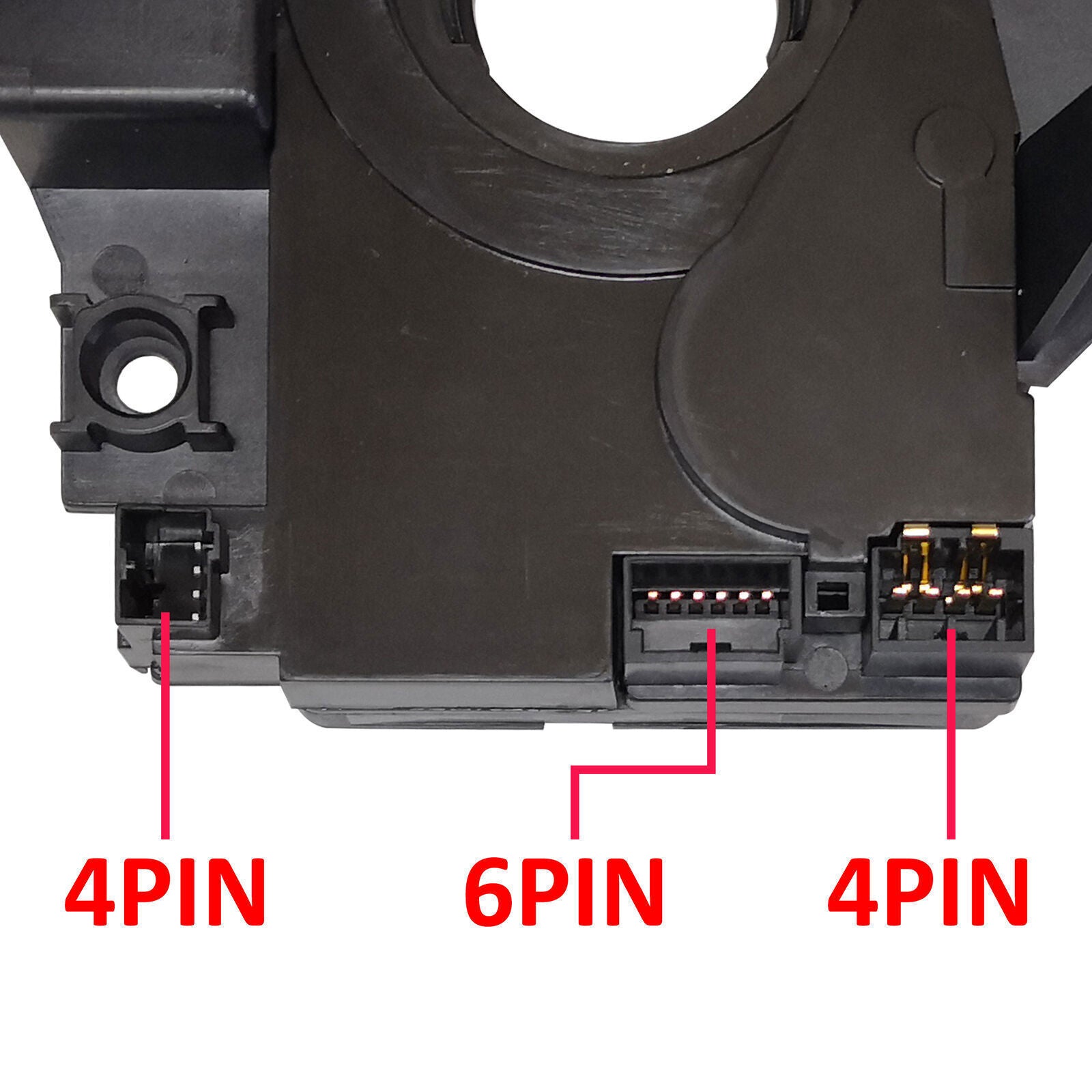

Q: Does every JK use the same connector layout? A: No. Verify options, production date, part reference, and every plug before purchase.
Part Summary
keywords: Jeep JK clock spring replacement, 5156106AF steering angle sensor, Wrangler airbag light clock spring, 2007-2018 Wrangler horn wiring, Jeep steering wheel ribbon cable
