Suzuki QuadRunner 500 Carburetor LT-F500F 4x4 1998–2002
$53.99
In Stock
$53.99
Sale price
$53.99
Regular price
Complete fuel carburetor for compatible 1998–2002 Suzuki QuadRunner 500 LT-F500F 4x4 models after revision and emissions-code verification.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1998 Suzuki QuadRunner 500 LT-F500F 4x4 with the matching carburetor revision
- 1999 Suzuki QuadRunner 500 LT-F500F 4x4 with the matching carburetor revision
- 2000–2002 Suzuki QuadRunner 500 LT-F500F 4x4 with the matching carburetor revision
Product Overview
Flooding after shutdown, gas in the oil, fuel leaking from the overflow, or an engine that starves at throttle can come from a worn float system or blocked circuits. Check tank debris, petcock operation, intake sealing, spark, valves, and compression before replacing the carburetor.

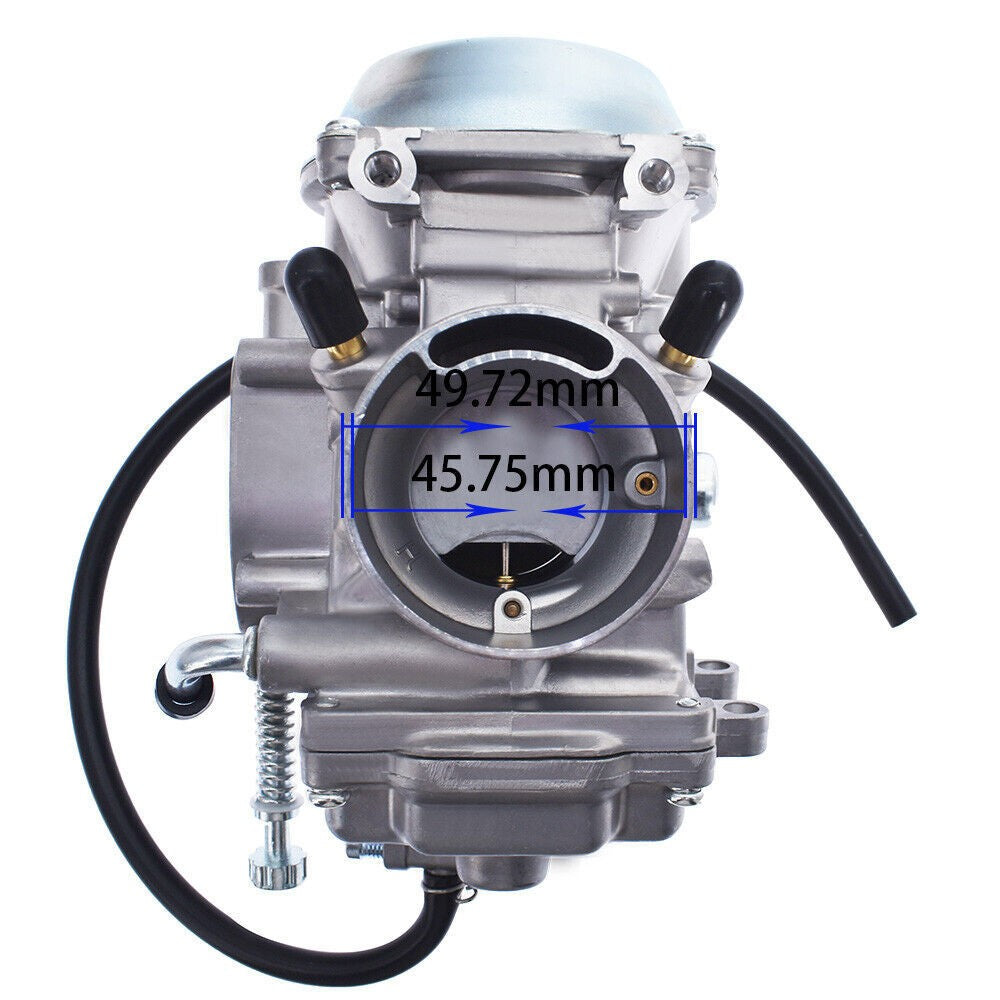

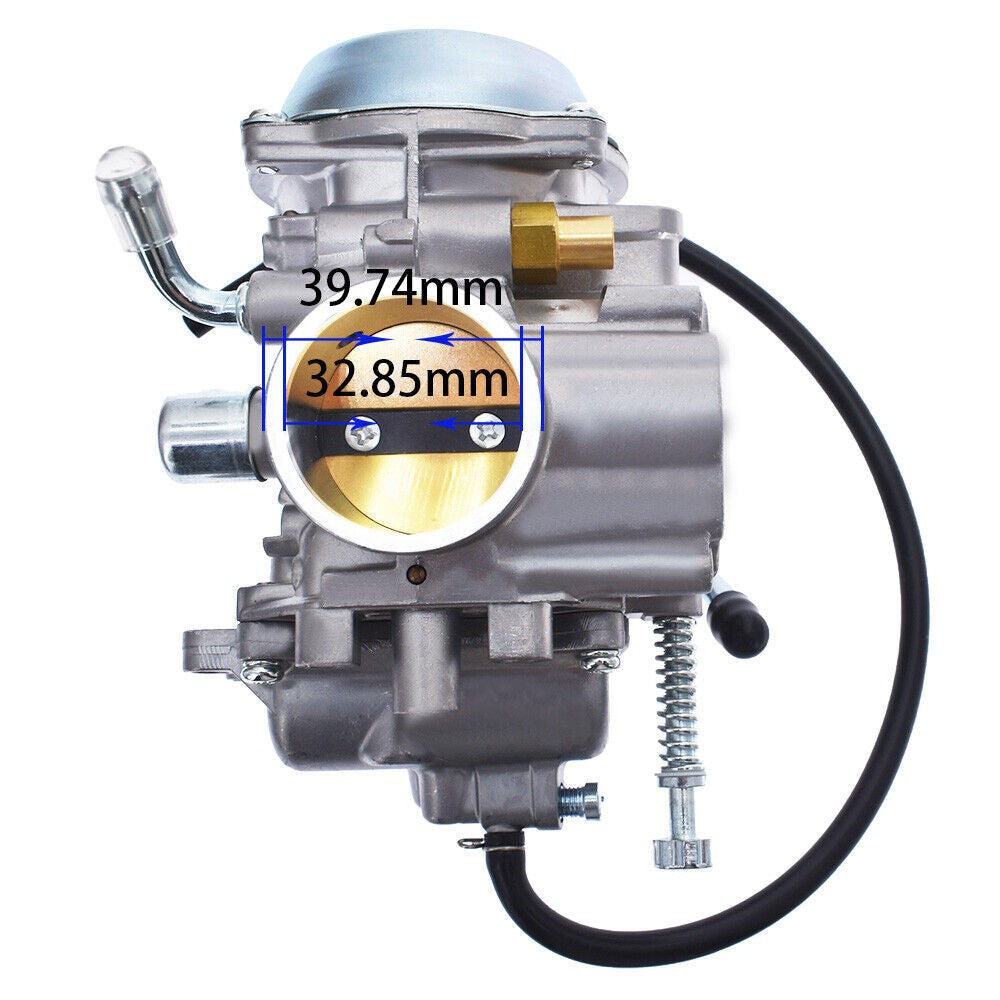

The LT-F500F catalog includes several assembly numbers. Match the old body, cover, cable and choke connections, airbox and manifold diameters, ports, and jet calibration.
Key Features & Performance
- Replaces a complete carburetor when the original casting or throttle shaft is beyond repair
- Complete fuel-metering assembly for the stated engine family
- Useful when passages, castings, or shafts are too damaged for a dependable rebuild
- Cross-references 13200-09F00, 13200-09F01, 13200-09F10, 13200-09F30 and related numbers
Replaces Part Numbers
- 13200-09F00
- 13200-09F01
- 13200-09F10
- 13200-09F30
- 13200-09F50
Common Uses
- Correcting recurring float-bowl leakage after the tank and fuel valve are cleaned
- Correcting a verified fuel-metering fault after supply and ignition checks
- Returning stored equipment to service after the upstream fuel system is cleaned
Technical Specifications
- Part Type: Complete ATV Carburetor
- Fuel System: Carbureted
- Condition: New aftermarket
Installation & Fitment
- Inspect engine oil for gasoline contamination before restarting a previously flooded engine
- Compare choke, cables, boots, vents, fittings, and jetting with the removed unit
- Check for fuel and vacuum leaks, then make final idle and mixture settings by the service procedure
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Why would gasoline appear in the engine oil? A: A leaking float valve can overfill the intake and allow fuel to seep past the rings, requiring both repair and an oil change.
Q: Are all 1998–2002 carburetors calibrated the same? A: No. Suzuki lists different assemblies by year and market, so the removed unit must be identified.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Suzuki QuadRunner 500 carburetor, LT-F500F fuel leak, 13200-09F00 carb, gas in oil ATV repair, Suzuki 500 4x4 carburetor
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
