LS Flywheel Flexplate Holding Tool for Chevrolet GMC LS1 LS2 LS3 LSX
$28.99
In Stock
$28.99
Sale price
$28.99
Regular price
This LS flywheel and flexplate holding tool locks compatible Chevrolet and GMC LS-style engine ring gears during crankshaft, flywheel, flexplate, or torque-converter service.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview

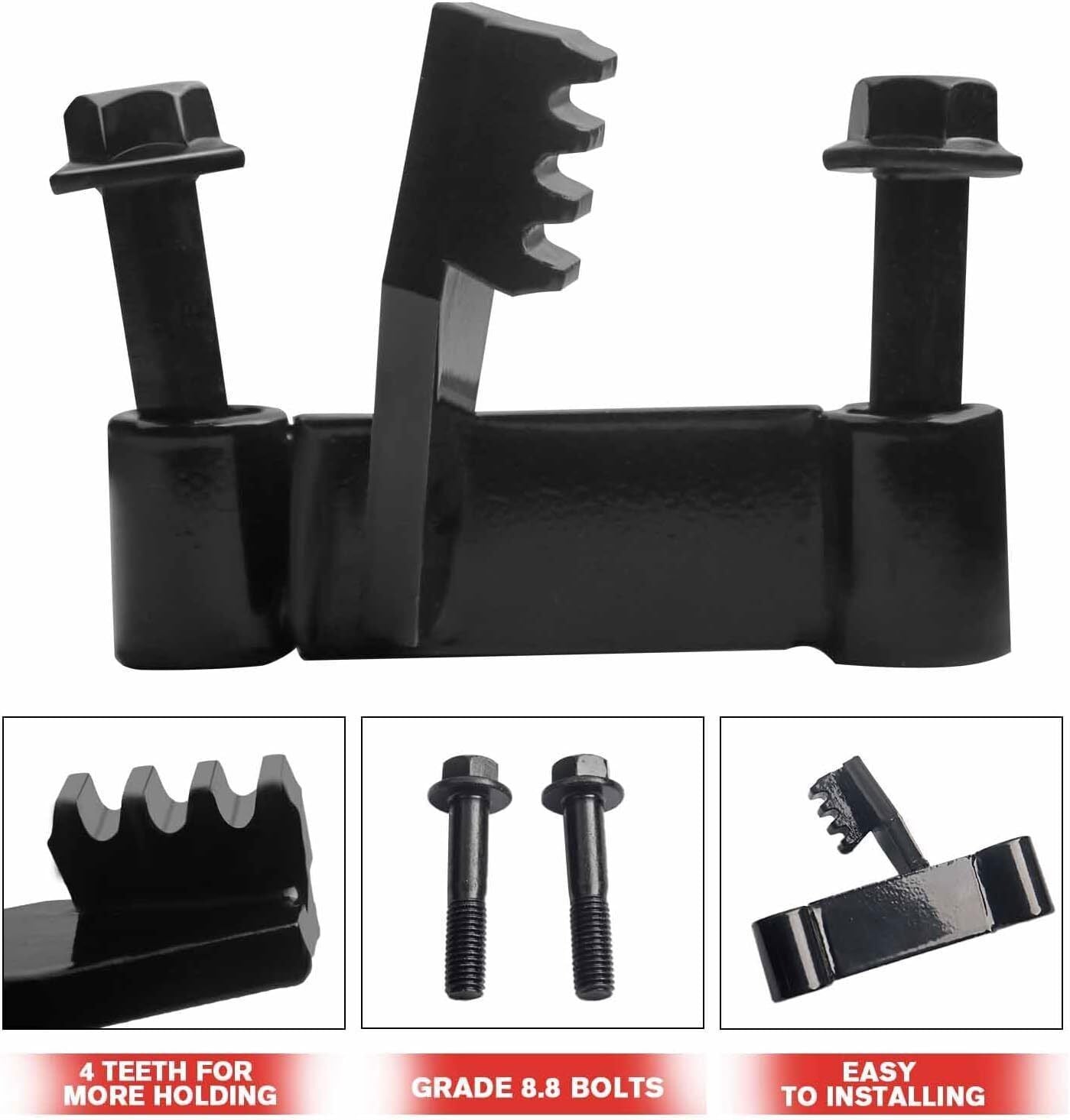

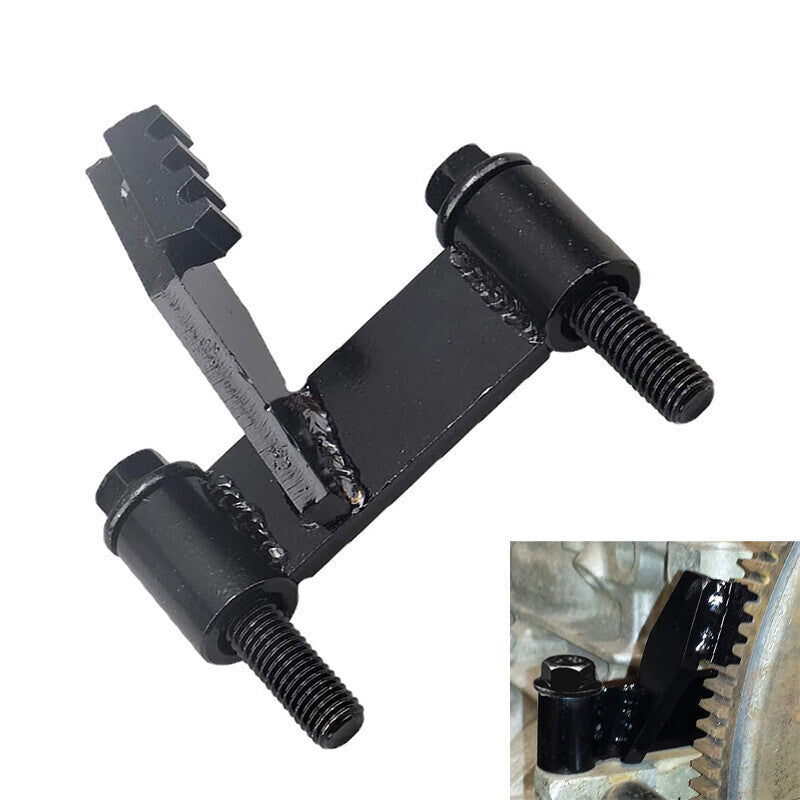

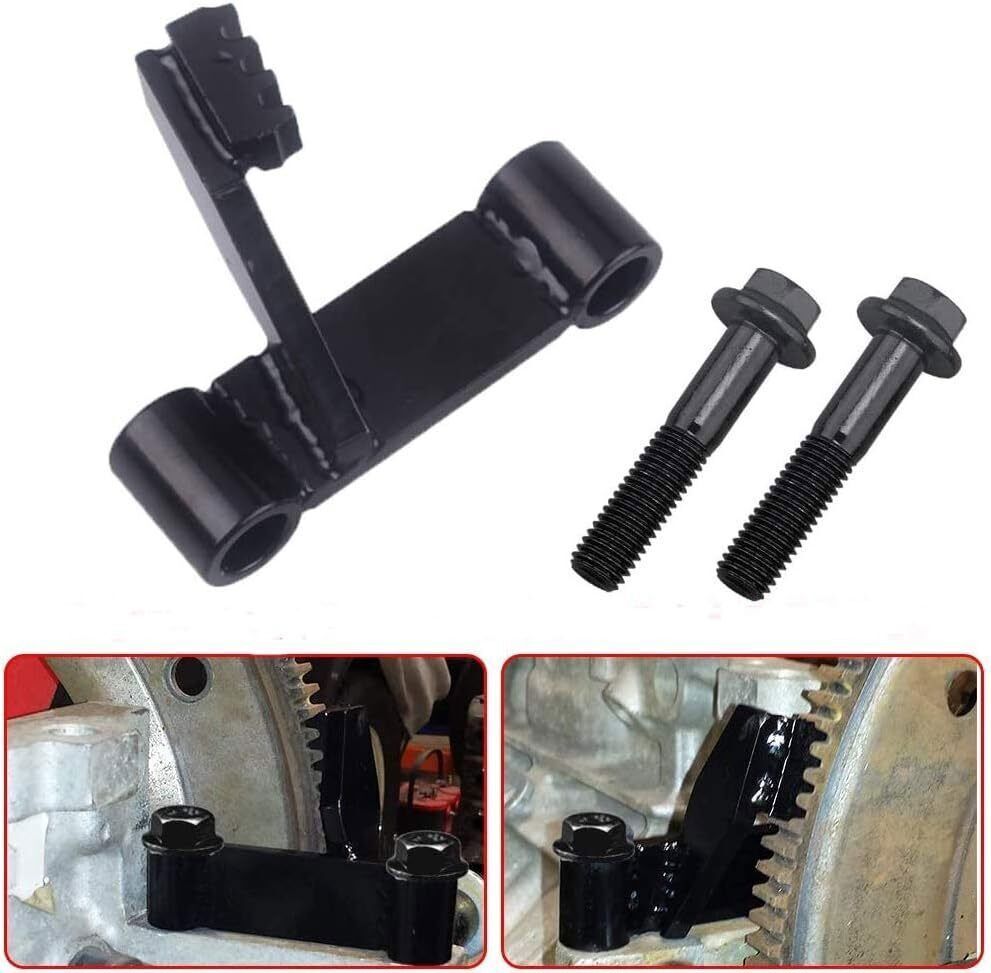

High-torque crankshaft, flywheel, flexplate, and torque-converter work is much easier when the ring gear is held by a dedicated fixture. This LS tool locks the compatible gear through the bellhousing area without using a pry bar as a stop.

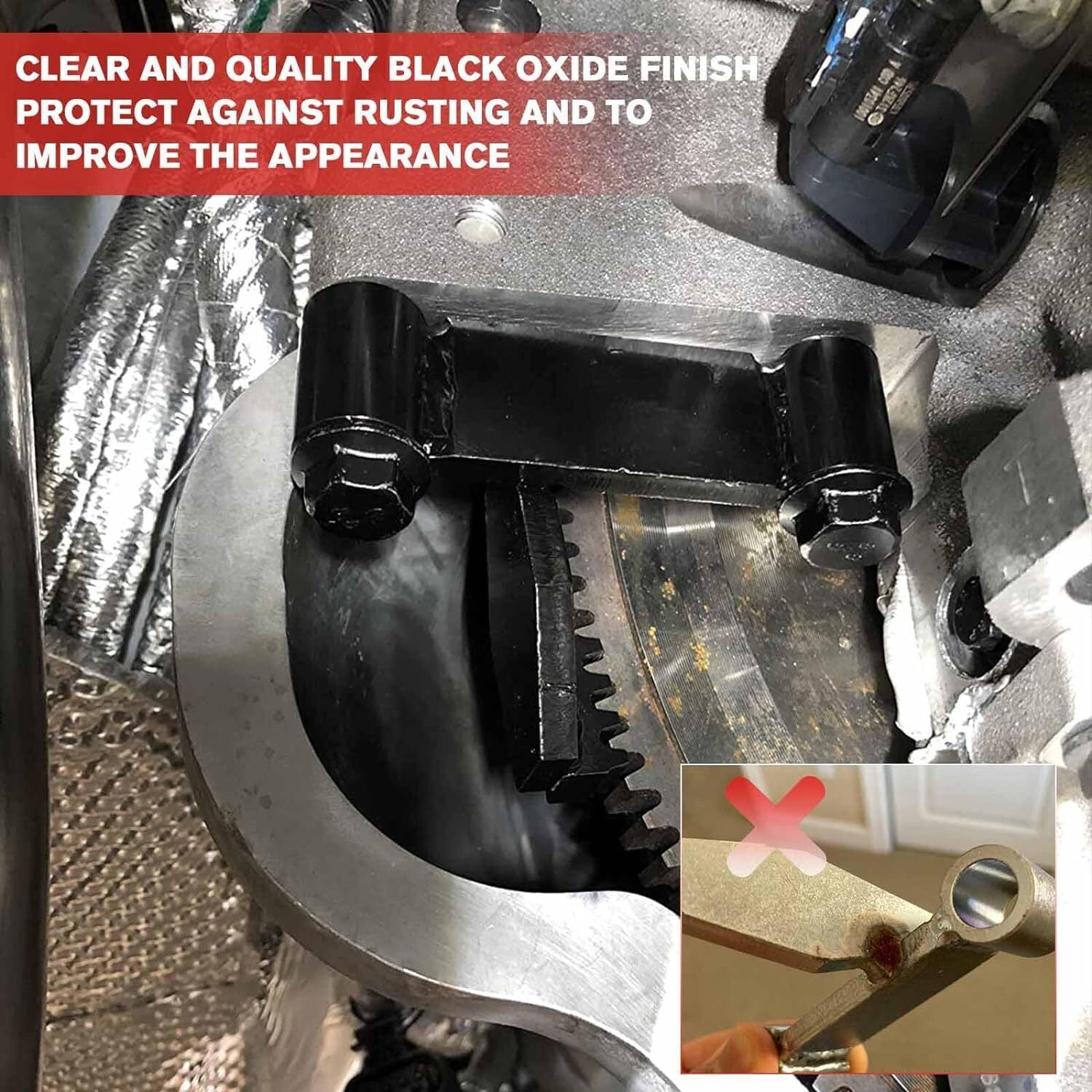

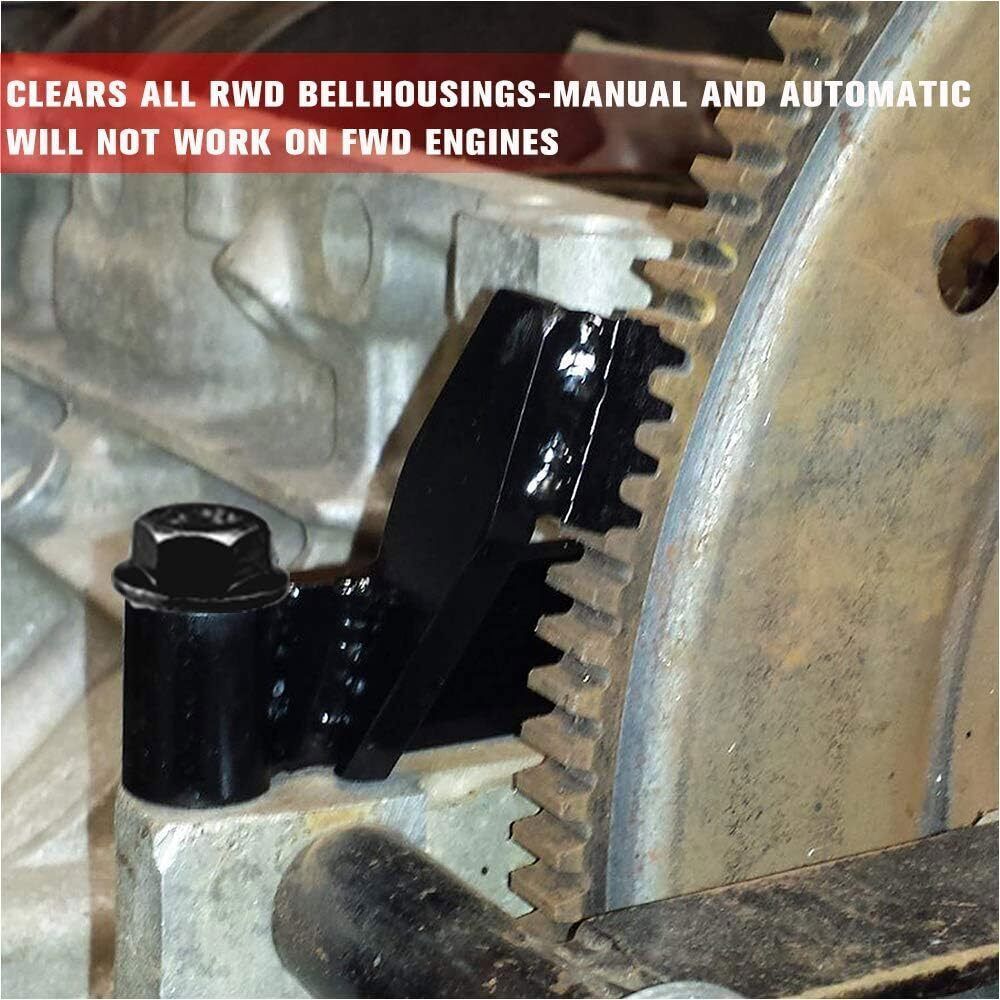

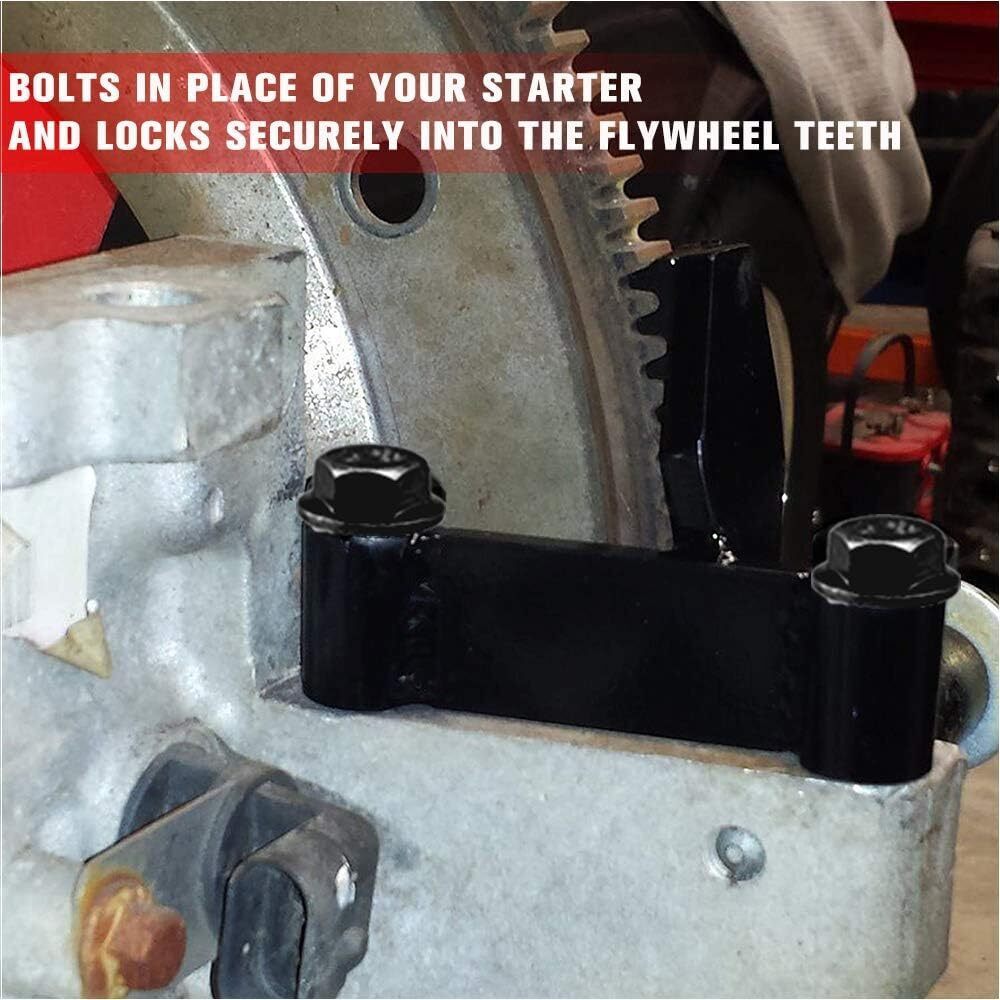

The tool engages the ring gear through the compatible bellhousing or transmission opening and transfers reaction torque to a fixed mounting point. It is not a pry bar or timing-lock substitute.
Key Features & Performance
- Locks compatible flywheel or flexplate ring gear
- Supports crank bolt and driveline service
- Reduces need for improvised tooth-jamming methods
Common Uses
- Holding crankshaft while loosening harmonic-balancer bolt
- Securing flexplate during torque-converter work
- Holding flywheel during clutch service
Technical Specifications
- Product Type: Flywheel / flexplate holding tool
- Engine Family: GM LS-style
- Applications: LS1 / LS2 / LS3 / LSX compatible
- Engagement: Ring gear
- Use: Engine and transmission service
- Tool Type: Aftermarket specialty tool
Installation & Fitment
- Disconnect starting power
- Rotate engine by hand to align engagement
- Bolt tool to the correct fixed point
- Confirm full tooth contact
- Remove tool before cranking or starting engine
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Confirm ring-gear tooth engagement, bellhousing access, mounting-hole position, transmission removed or access-cover configuration, and tool orientation.
Frequently Asked Questions
Q: Can it hold both manual flywheels and automatic flexplates? A: Only when the ring gear and mounting access match the tool.
Q: Can I use the starter to bump against it? A: No. The tool is for hand-tool service, not powered rotation.
Q: Will it set engine timing? A: No. It only prevents flywheel/flexplate rotation.
Q: Why inspect ring-gear teeth? A: Partial engagement can chip teeth or eject the tool under torque.
Part Summary
keywords: LS flywheel holding tool, LS1 LS2 LS3 flexplate lock, Chevy crank bolt tool, GM LS ring gear holder, LSX engine service tool
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
