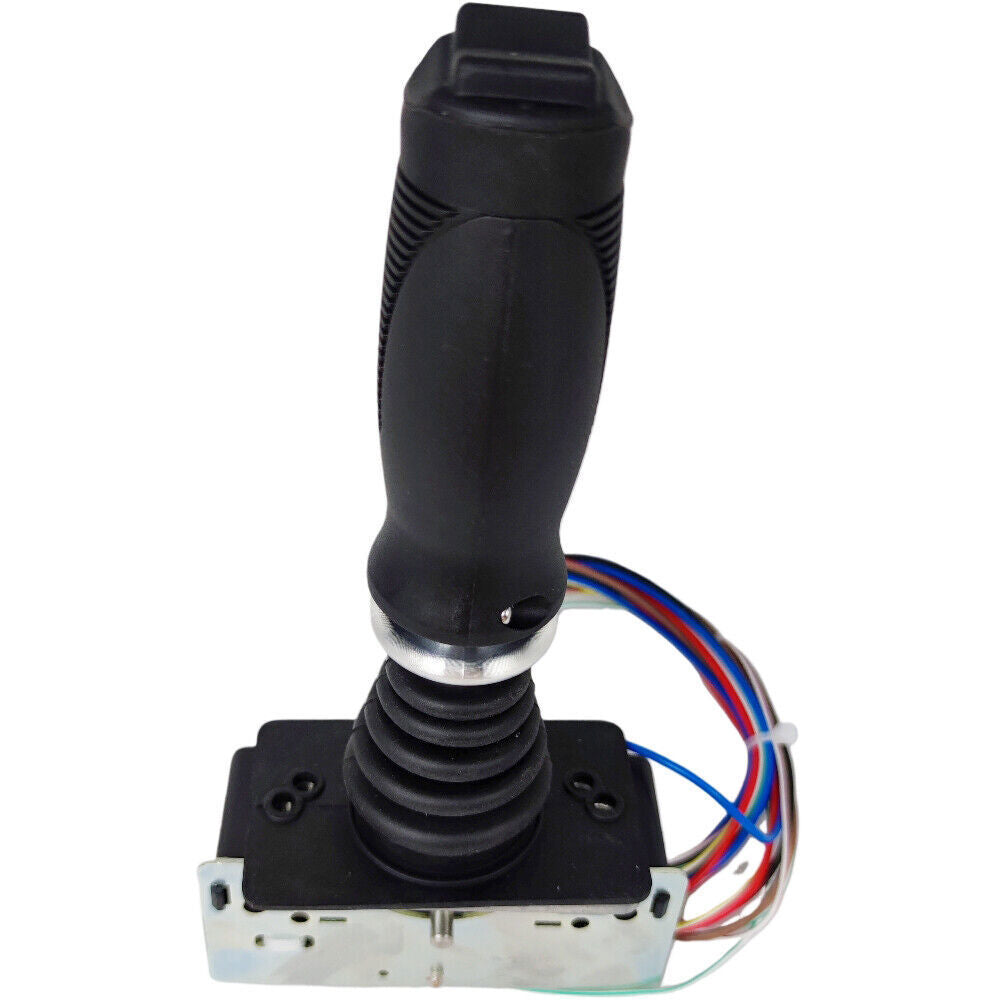

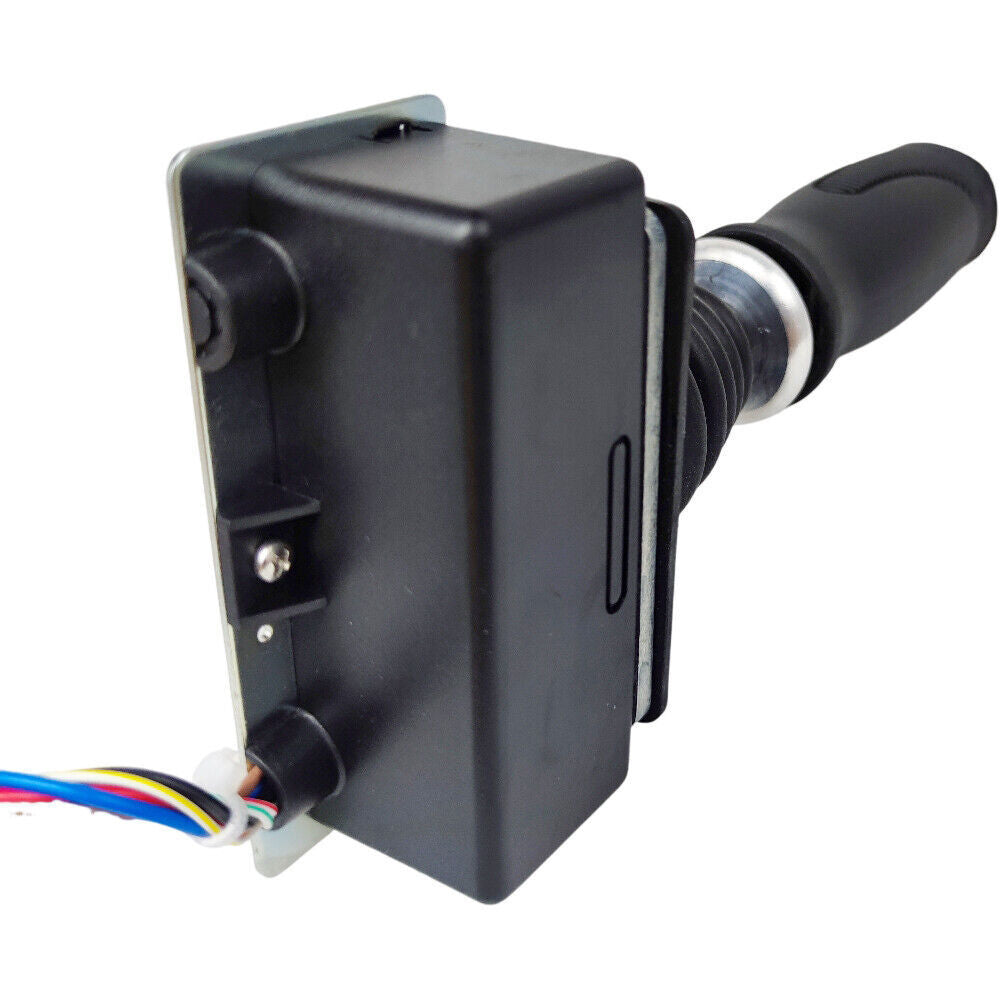

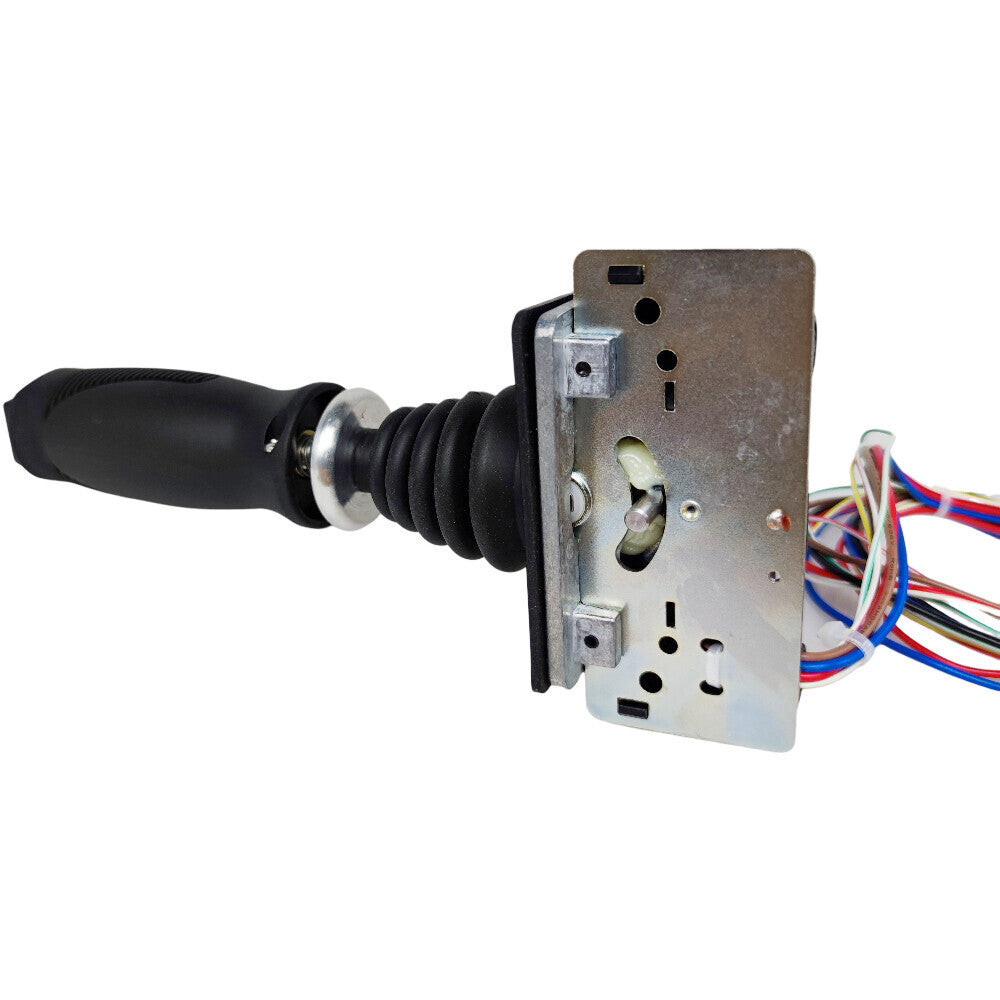

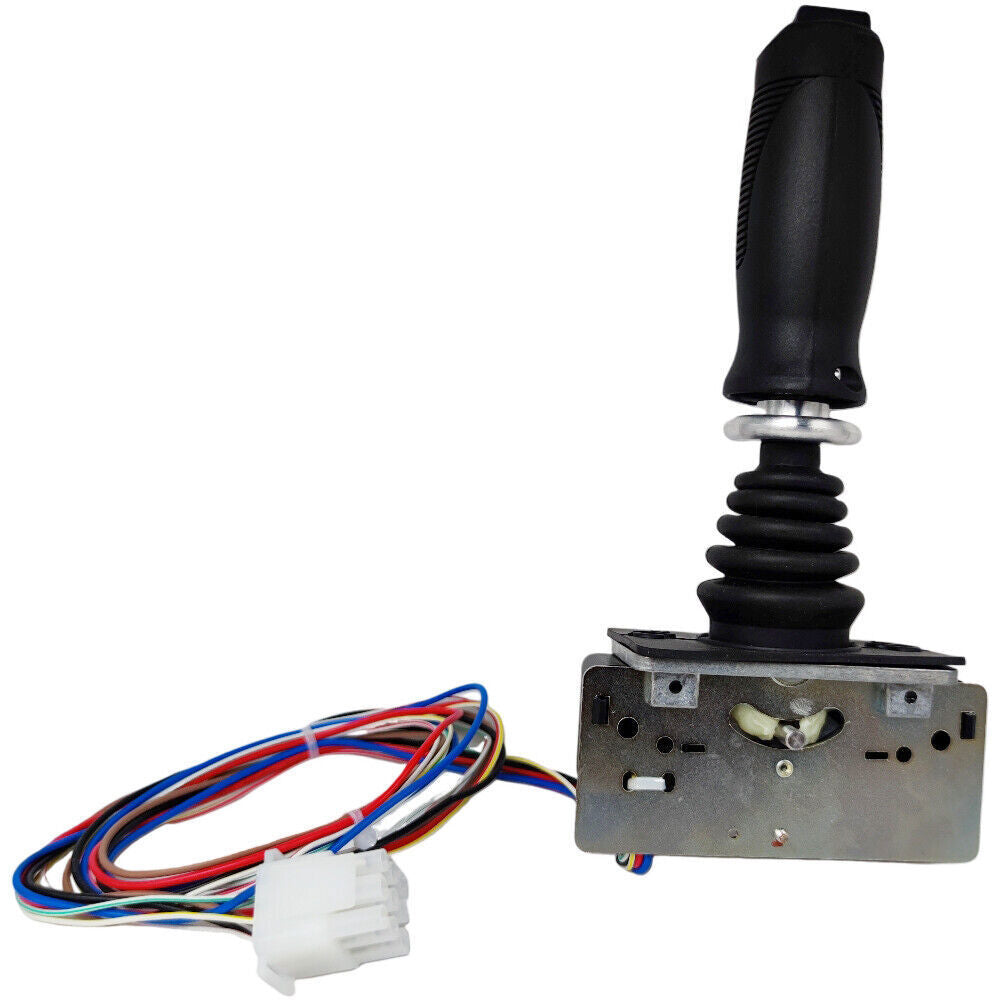

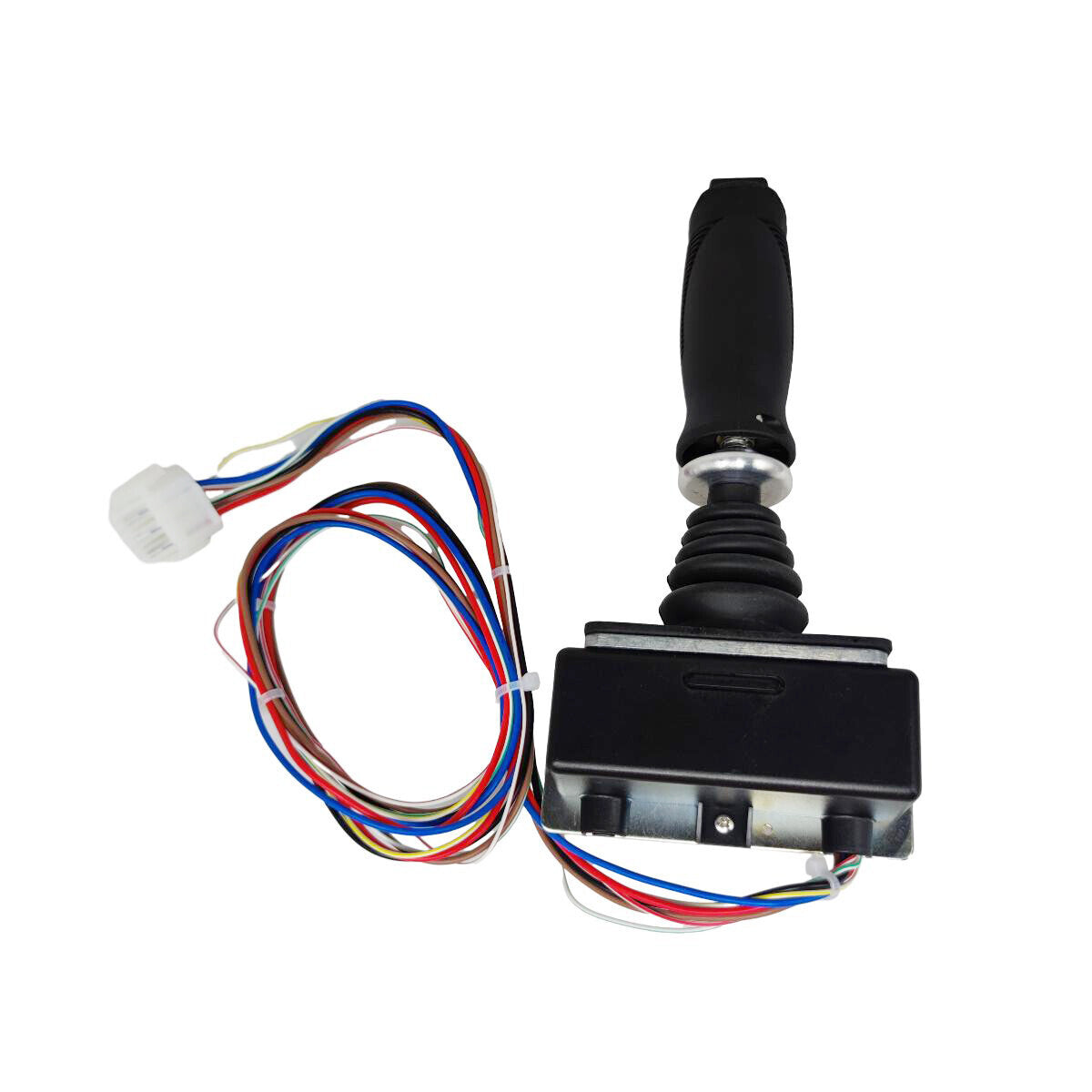

JLG Drive Steer Joystick Controller 1001118418 1600273
$199.99
In Stock
$199.99
Sale price
$199.99
Regular price
This new aftermarket Hall-effect drive and steer joystick controller replaces JLG 1001118418, 1600273, and 1001178132 for compatible electric boom lifts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- JLG E300A, E300AJ and E300AJP
- JLG E400A, E400AJ, E400AJP, E400AJPN and E400AN
- JLG E450A, E450AJ, E45A and E45AJ
- JLG E600, E600J, E600JP, M600, M600J and M600JP
- JLG M400A, M400AJ, M400AJP, M400AJPN, M400AN and related M40/M45 models
Product Overview
A lift that enables normally but will not drive, will not steer, or responds erratically to handle movement may have a bad joystick signal. Platform-enable switches, harness conductors, controller faults, batteries, and machine calibration can produce the same complaint and should be tested first.
The single-axis controller turns operator handle movement into an electronic command for the drive and steer system. It is not a hydraulic valve and may require machine-specific calibration after installation.
Match the complete part number, connector, handle and trigger layout, mounting holes, control-box generation, model, and serial number. JLG often uses serial breaks within the same model.
Key Features & Performance
- Hall-effect position sensing with no wear-prone potentiometer track
- Single-axis drive and steer command function

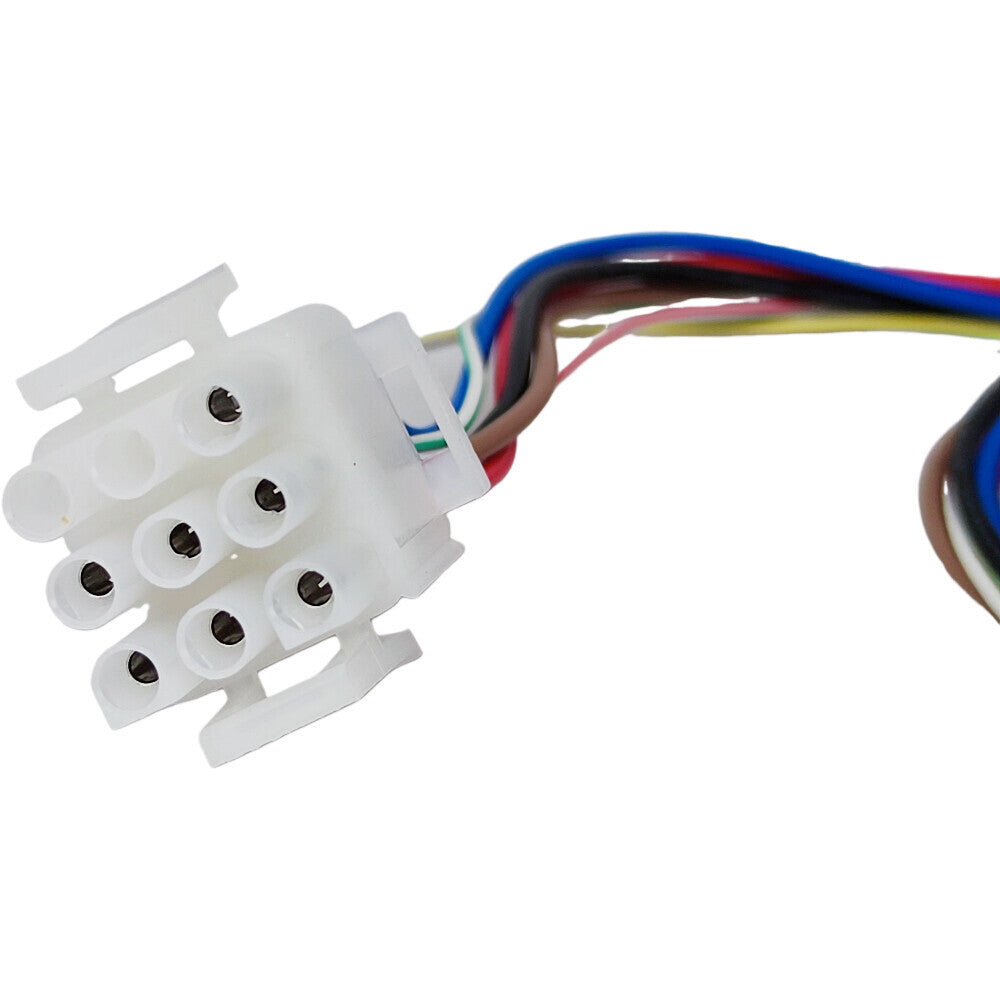

- Matching connector for listed controller references
- Replacement for a verified dead spot or unstable output
Replaces Part Numbers
- 1001118418
- 1600273
- 1001178132
Common Uses
- Restoring drive input from the platform controls
- Correcting steer commands that cut in and out
- Replacing a controller damaged by water or impact
Technical Specifications
- Product Type: Platform joystick controller
- Control Function: Drive and steer command
- Sensing Type: Hall effect
- Condition: New aftermarket replacement
Installation & Fitment
- Lower the platform and follow lockout procedures
- Disconnect battery power and label connectors
- Inspect the coil cord and control-box wiring first
- Install without stressing the harness
- Perform the required calibration and function test at low speed
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can this fix a lift that will not drive? A: Only if diagnostics identify the joystick signal as the fault. Interlocks, wiring, batteries, brakes, and controllers also matter.
Q: Does it need calibration? A: Many JLG control components require a calibration or personality check after replacement. Follow the service manual.
Q: Will 1001118418 fit every E450AJ? A: No. Confirm the machine serial number and control-box generation.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
