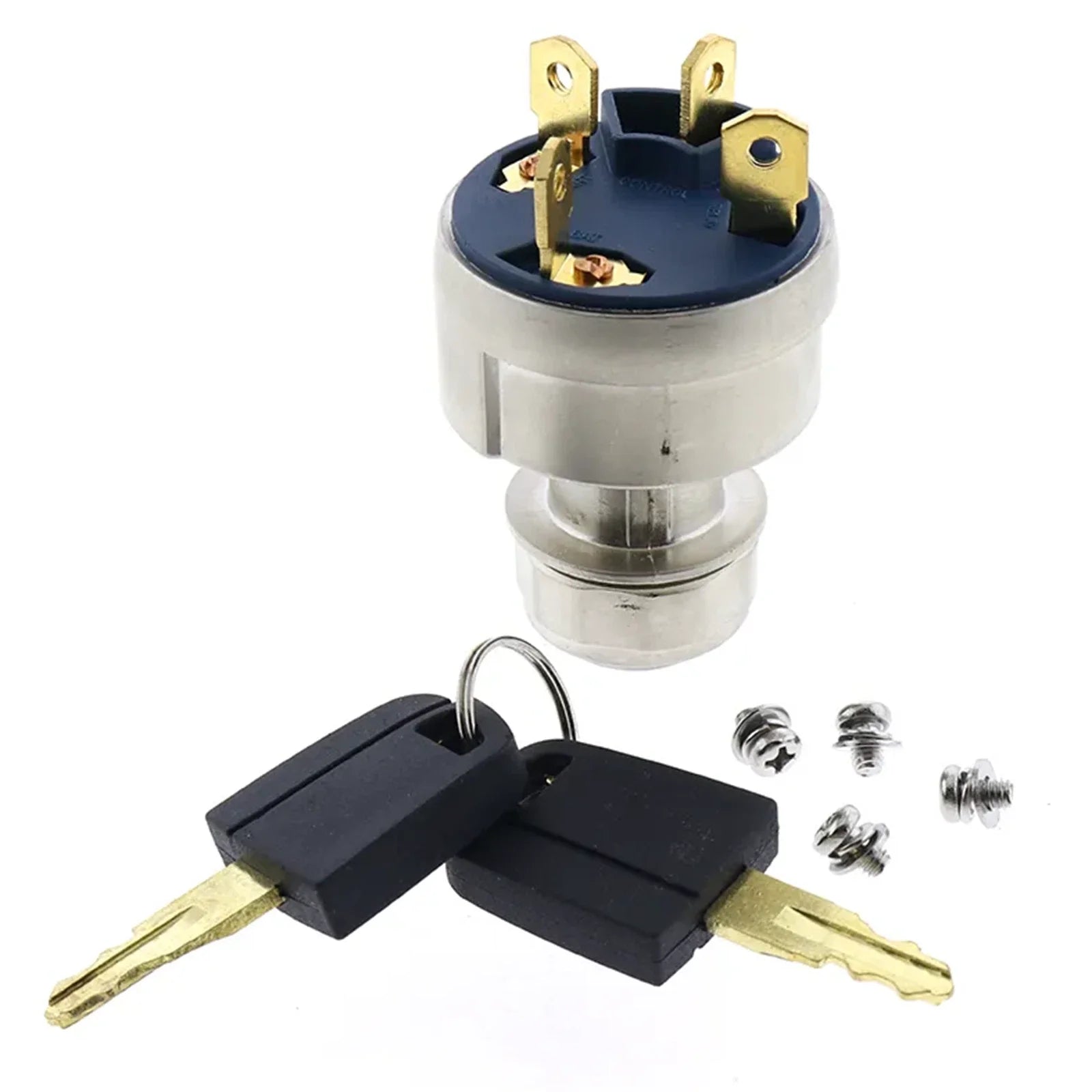

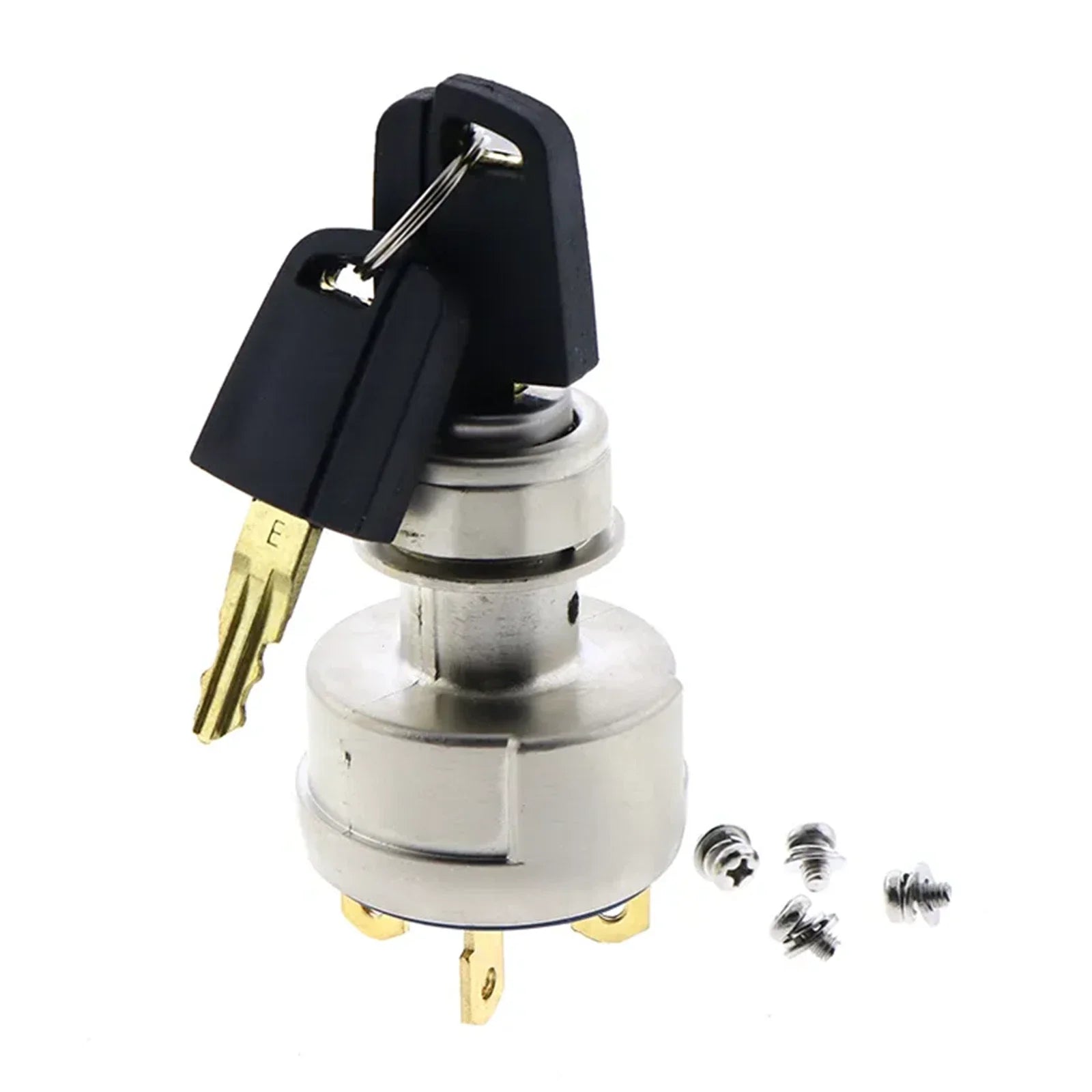

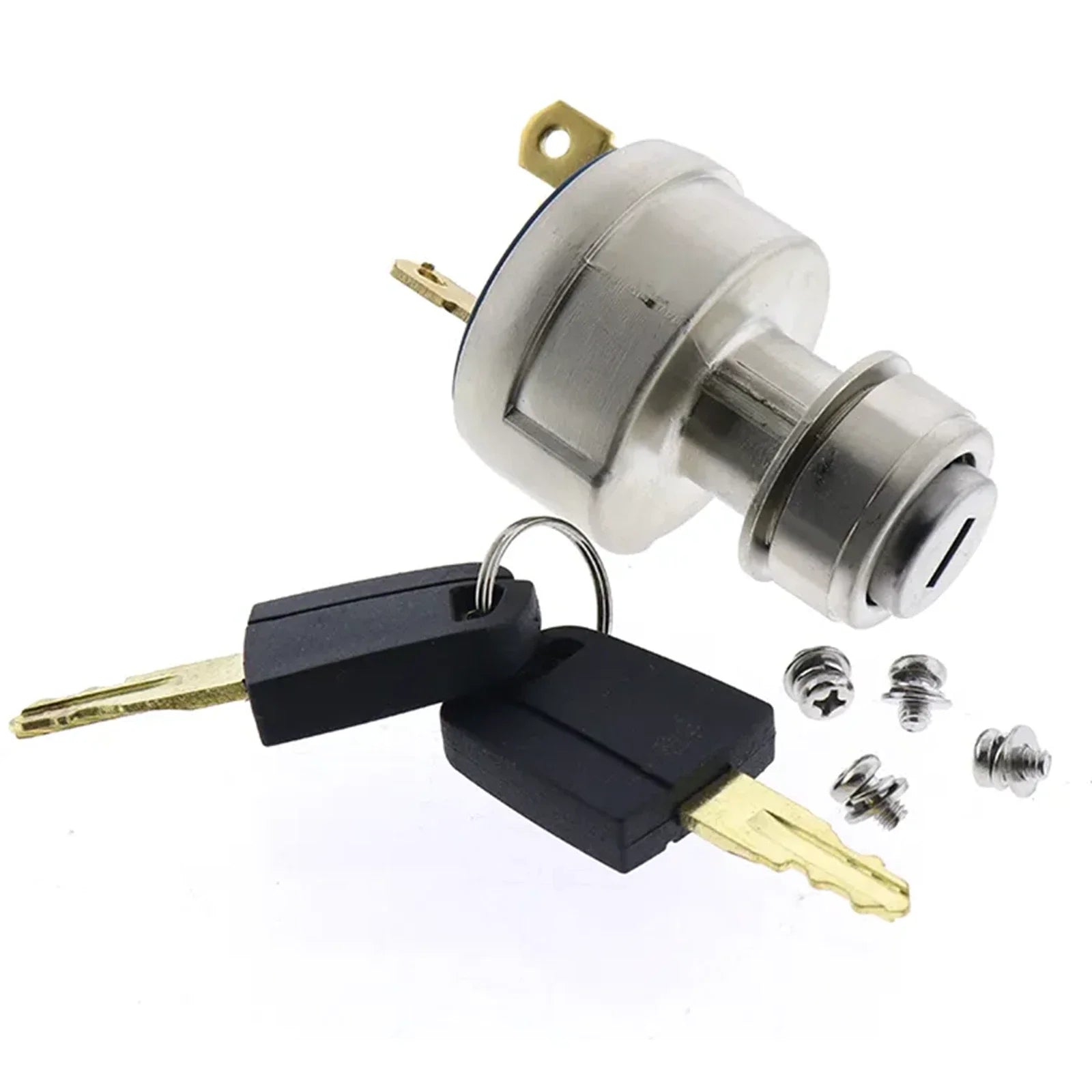

Caterpillar 237-3530 Ignition Switch for 303CR 304CR 305CR Excavators
$33.99
In Stock
$33.99
Sale price
$33.99
Regular price
This ignition switch replaces Caterpillar 237-3530 on compatible 303CR, 304CR, and 305CR compact excavators with K4N, S4L2, or S3L2 engine applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Caterpillar 303CR compact excavator with compatible S3L2 application
- Caterpillar 304CR compact excavator with compatible S4L2 application
- Caterpillar 305CR compact excavator with compatible K4N application
Product Overview
A compact excavator that loses dash power, will not energize the starter circuit, or starts only when the key is held in a narrow spot may have worn switch contacts after fuses, interlocks, wiring, and battery voltage are verified.
The switch routes power through OFF, RUN, and START circuits. Compare connector shape, pin arrangement, mounting thread, key positions, and machine serial number; similar-looking switches can send power to different terminals.
Key Features & Performance
- Replaces Caterpillar 237-3530
- For compatible 303CR, 304CR, and 305CR excavators
- Supports K4N, S4L2, and S3L2 applications when specified
- Restores key-controlled starting and run power
- New aftermarket switch
Replaces Part Numbers
- 237-3530
Common Uses
- Repairing intermittent no-crank operation at the key
- Replacing a cylinder that binds or spins without reliable electrical contact
- Restoring dash and run power after circuit diagnosis
Technical Specifications
- Product Type: Ignition Switch
- Primary Application: Caterpillar compact excavators using 237-3530
- Package Quantity: 1 switch
- Condition: New
- Replacement Type: Aftermarket
- Reference: 237-3530
- Product: Ignition / starter switch
- Applications: 303CR; 304CR; 305CR
- Engine References: S3L2; S4L2; K4N
- Condition: New aftermarket
Installation & Fitment
- Disconnect the battery ground cable
- Label the connector and any loose terminals
- Inspect interlock and starter-circuit wiring for heat damage
- Test every key position and safety function before operation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Can an interlock switch cause the same no-crank symptom? A: Yes. Test seat, lever, and neutral interlocks before replacing the ignition switch.
Q: Does the switch include a key? A: Confirm the listing photos and package contents; the electrical fit still depends on the original switch layout.
Q: How do I confirm this is the correct part? A: Match 237-3530, machine serial number, connector and pins, mounting diameter, switch length, key positions, and engine application.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
