Bobcat 6597350 Blade Hydraulic Cylinder for 329 331 and 334 Excavators
$546.99
In Stock
$546.99
Sale price
$546.99
Regular price
Blade lift hydraulic cylinder replacing Bobcat 6597350 on compatible 329, 331, and 334 compact excavators with the matching dimensions and pin mounts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Bobcat 329 Compact Excavator with blade cylinder 6597350
- Bobcat 331 Compact Excavator with matching 6597350 cylinder
- Bobcat 334 Compact Excavator with blade cylinder 6597350
Product Overview
A blade that drifts down, will not hold grade, moves weakly, or leaves oil around the rod may have internal seal bypass or external cylinder damage. Control valve leakage, hoses, relief pressure, linkage binding, worn pins, and a bent blade structure can create similar symptoms and should be checked before replacement.
The cylinder extends and retracts to raise, lower, and position the dozer blade. Match the 6597350 number plus fully retracted length, stroke, bore, rod diameter, port location, clevis width, and pin size; Bobcat serial breaks can change hydraulic hardware within one model.
Key Features & Performance
- Blade-position cylinder for matching Bobcat compact excavators
- Cross-references Bobcat 6597350
- Approximately 31.70-inch retracted length and 7.28-inch stroke
- 3.5-inch bore with 1.75-inch rod on the referenced design
Replaces Part Numbers
- 6597350
Common Uses
- Replacing a cylinder with a scored or bent rod
- Repairing external leakage that cannot be corrected by safe resealing
- Correcting internal bypass after valve and pressure diagnosis
- Restoring blade lift and holding control on a matching excavator
Technical Specifications
- Product Type: Blade Hydraulic Cylinder

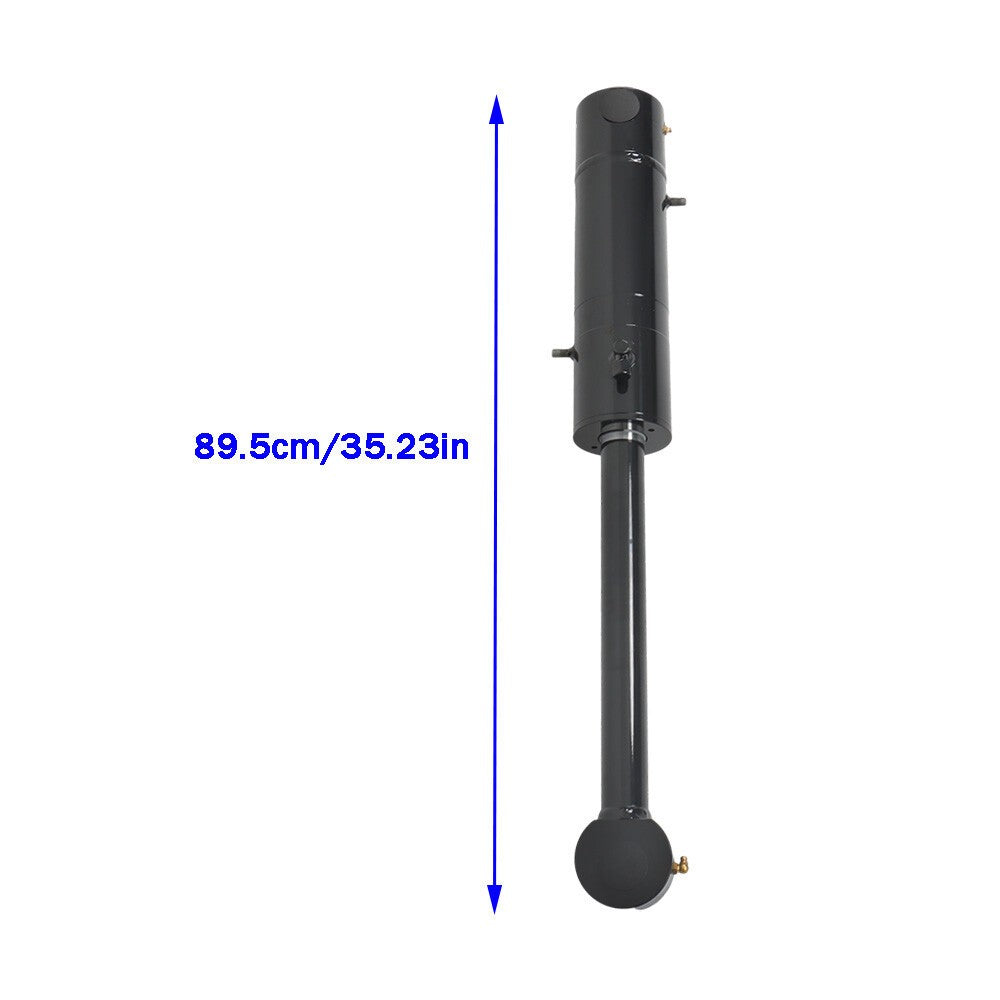

- Retracted Length: Approximately 31.70 in
- Stroke: Approximately 7.28 in
- Bore: Approximately 3.5 in
- Rod Diameter: Approximately 1.75 in
- Condition: New aftermarket
Installation & Fitment
- Lower and mechanically secure the blade, shut down, and release hydraulic pressure
- Clean and cap every line immediately to protect the hydraulic system
- Compare pin centers, clevis widths, ports, stroke, bore, rod, and 6597350 marking
- Inspect pins and bushings, use specified torque, cycle slowly to purge air, and check for leaks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Will a new cylinder stop every blade-drift problem? A: No. Internal leakage in the control valve or other hydraulic faults can let the blade drift even with a sound cylinder.
Q: Is the Bobcat model number enough to order? A: No. Confirm the machine serial and the cylinder’s measurements and pin mounts because production changes occur.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Bobcat 6597350 blade cylinder, Bobcat 329 hydraulic cylinder, 331 excavator blade repair, Bobcat 334 lift cylinder, excavator blade drifting, aftermarket Bobcat cylinder
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
