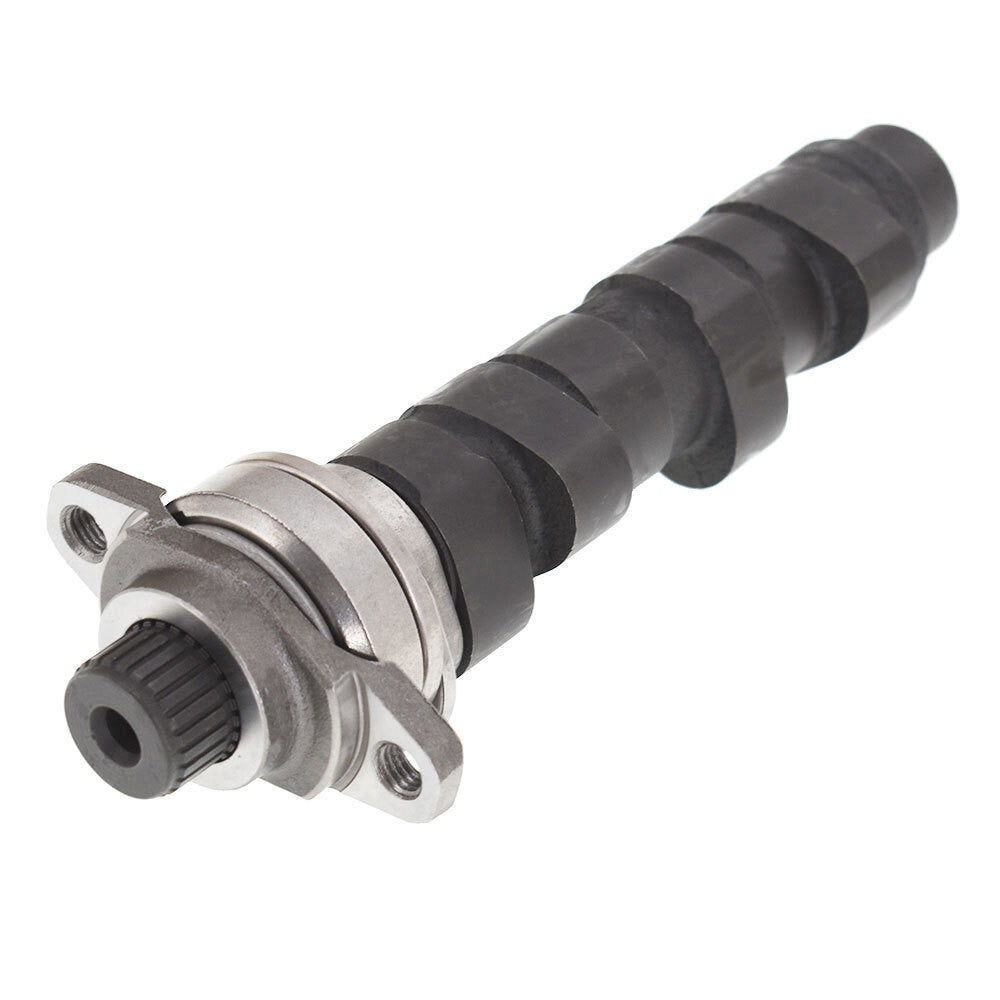

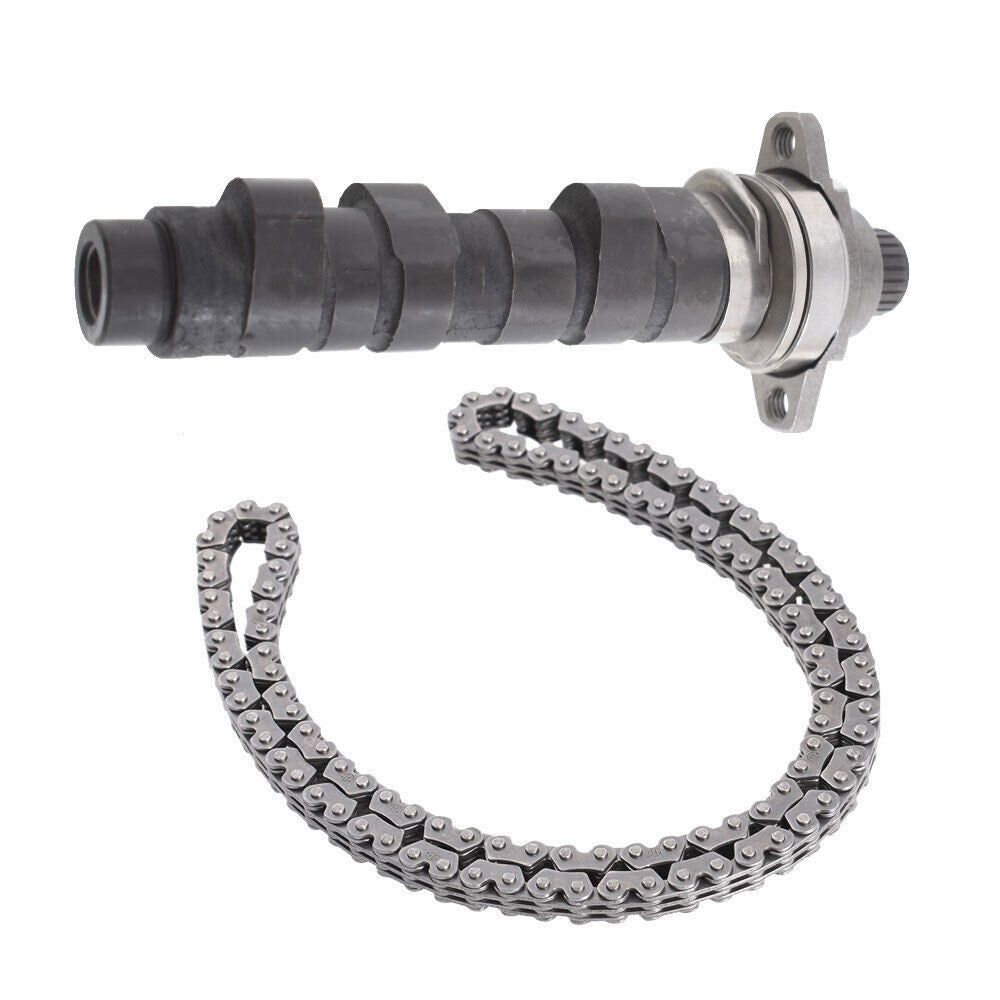

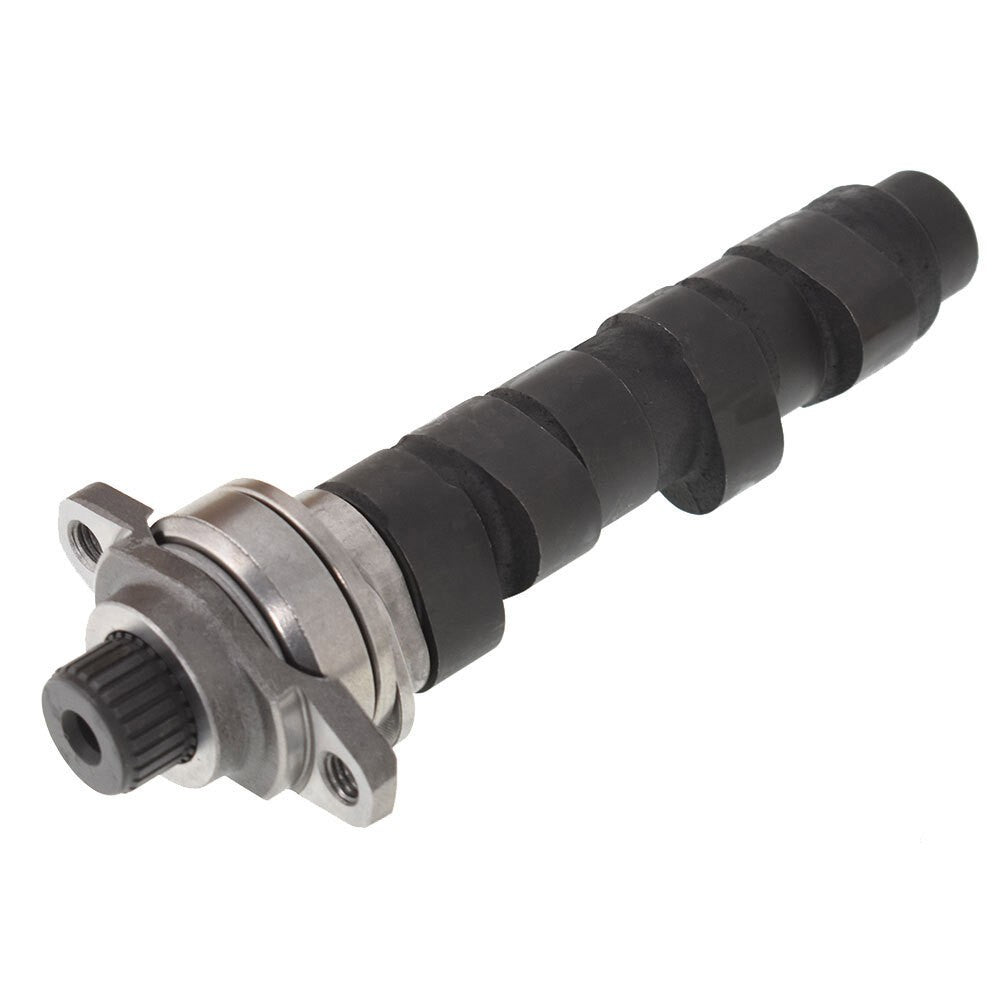

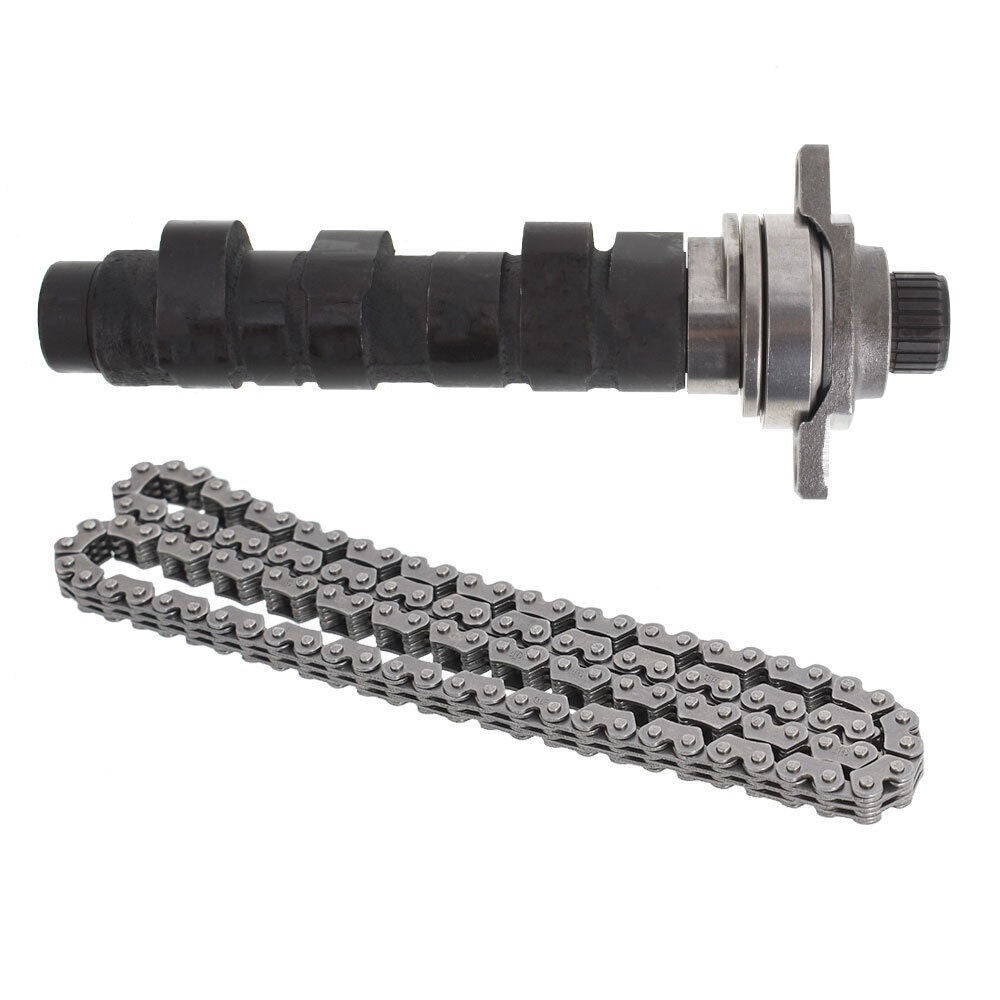

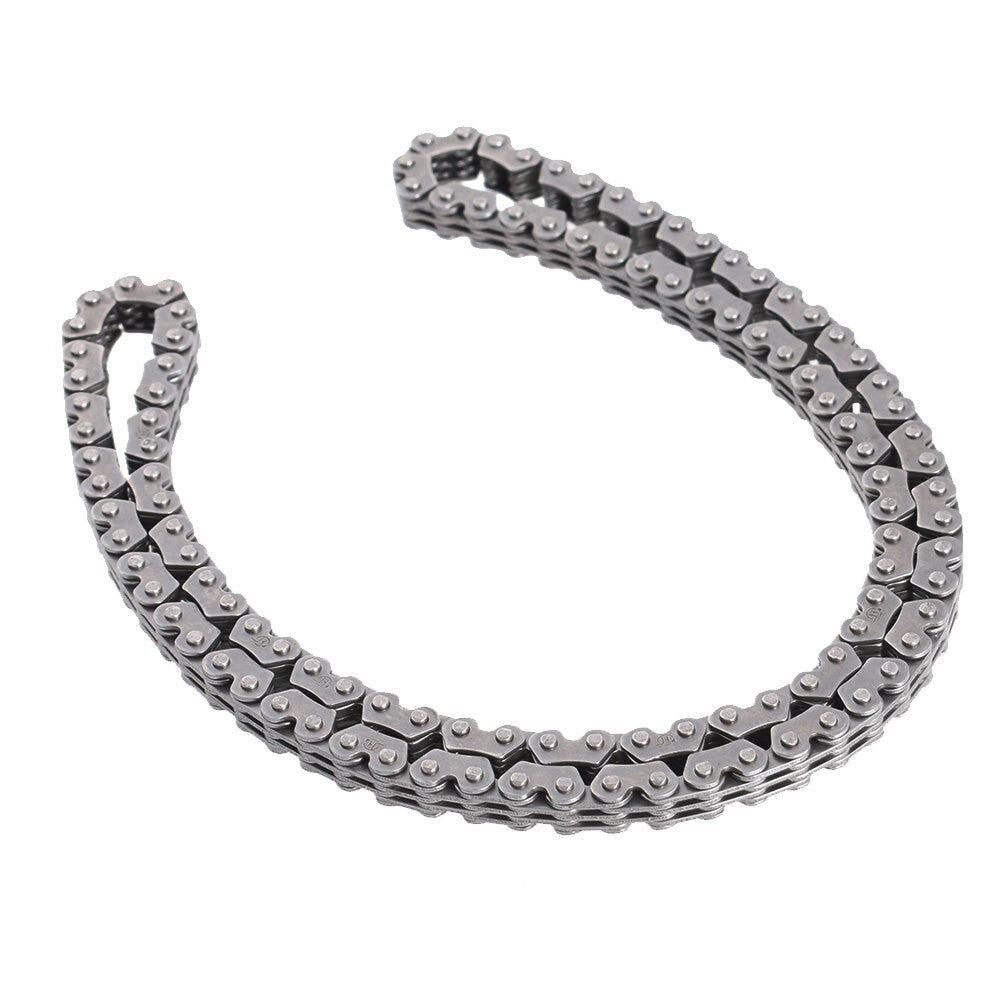

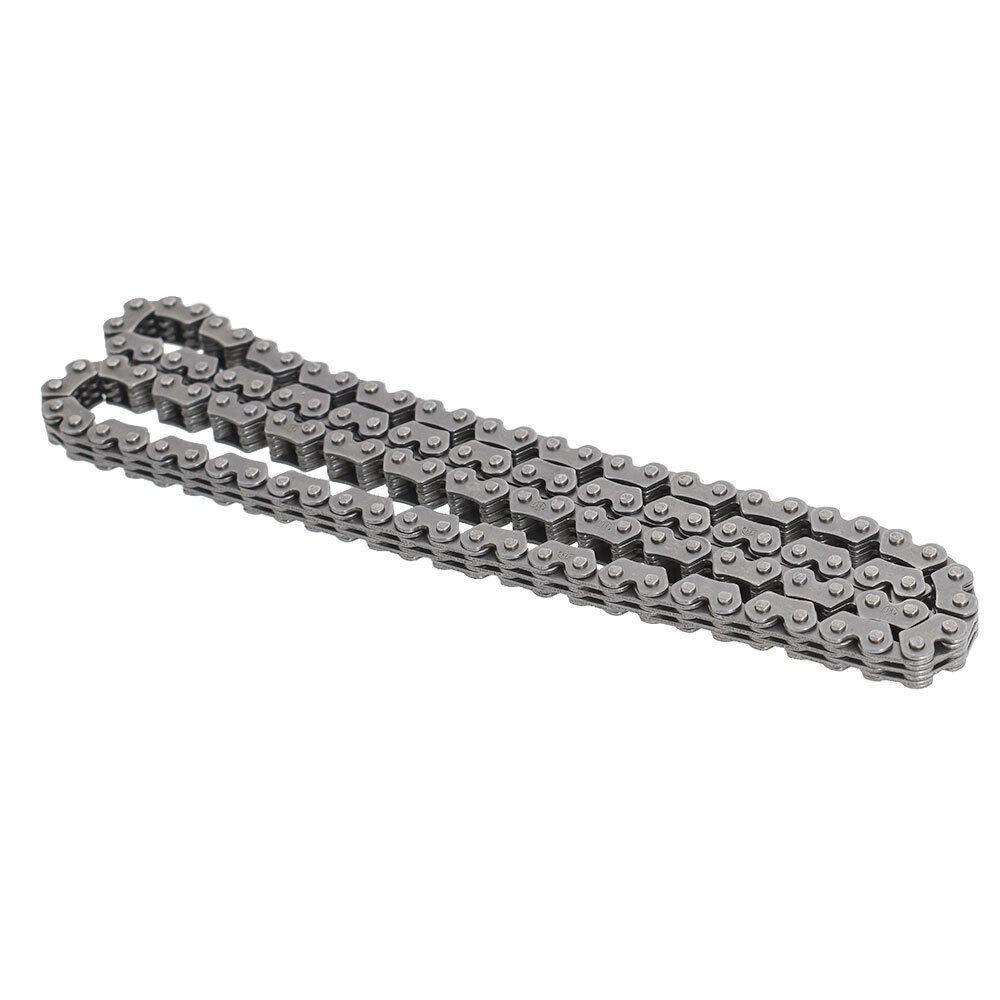

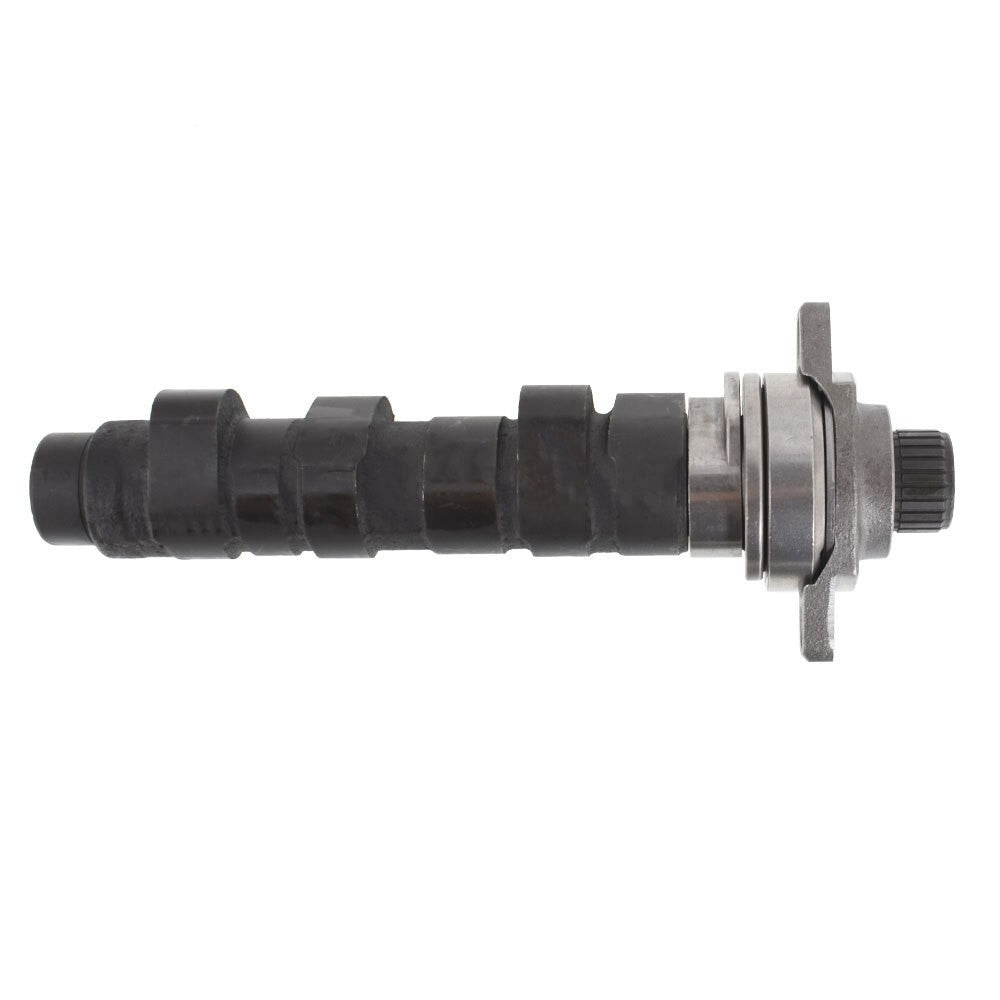

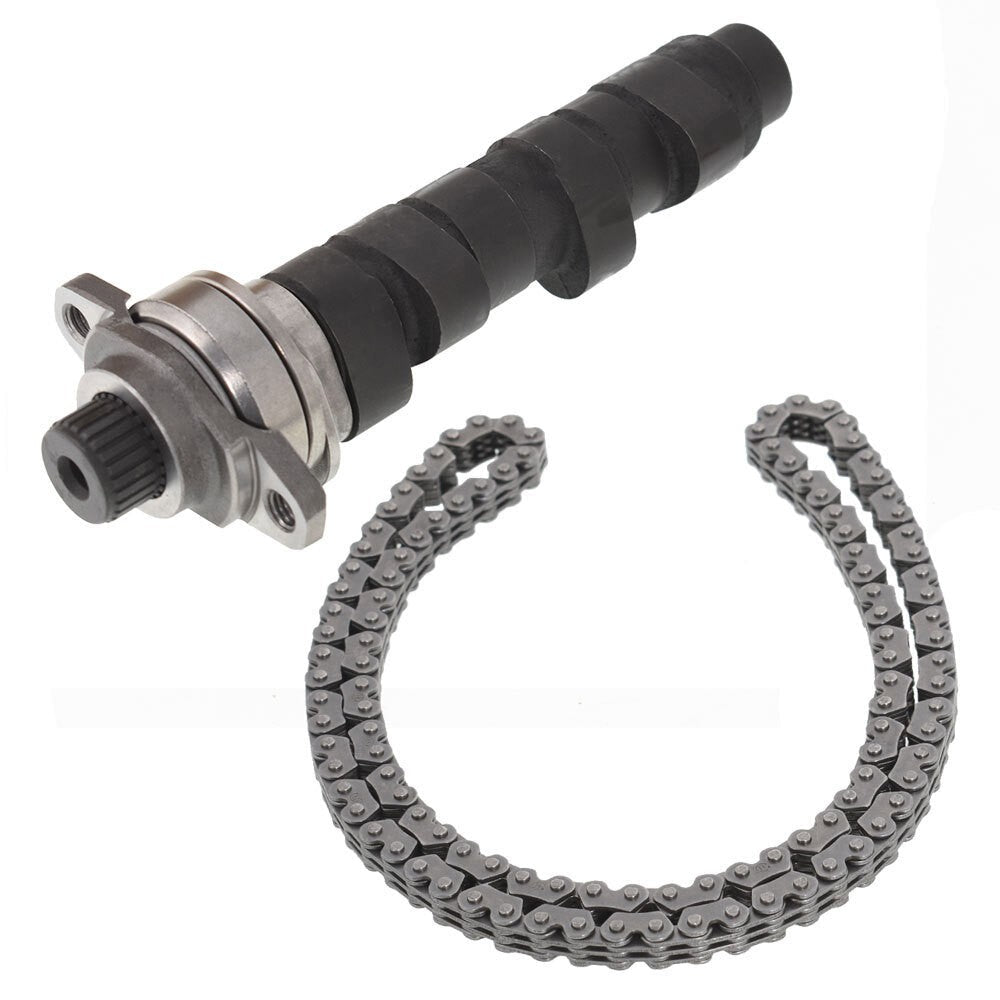

Hot Cams 1043-2 Stage 2 Camshaft and Timing Chain Kit for Honda 400EX
$64.99
In Stock
$64.99
Sale price
$64.99
Regular price
Hot Cams 1043-2 Stage 2 camshaft with matching timing chain for compatible Honda TRX400EX, TRX400X, and XR400R engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1999–2008 Honda TRX400EX
- 2009 Honda TRX400X
- 2012–2014 Honda TRX400X
- 1996–2004 Honda XR400R when the included chain and valvetrain layout match
Product Overview
This combination is for a performance build that also needs fresh valve timing control. Replacing the chain while installing the cam avoids asking a stretched, high-hour chain to hold accurate timing with a stronger profile—but guides, tensioner, sprocket, rockers, journals, springs, and oil supply still determine whether the build survives.
The Stage 2 cam increases valve lift and duration while the chain keeps the cam synchronized to the crankshaft. Confirm chain pitch and link count, cam number, decompression setup, piston-to-valve clearance, spring capacity, and every model-year timing detail.
Key Features & Performance
- Hot Cams Stage 2 camshaft 1043-2
- Timing chain included for a coordinated valvetrain service
- Performance profile favors midrange and upper-rpm power
- Useful when the original chain shows measurable stretch during a cam upgrade
Replaces Part Numbers
- 1043-2
- 14401-KCY-671
Common Uses
- Installing a Stage 2 cam while renewing a worn timing chain
- Building a stronger mid-to-top-end Honda 400 engine
- Correcting inaccurate cam timing from measured chain stretch
- Completing a performance valvetrain overhaul with matched service parts
Technical Specifications
- Product Type: Performance Camshaft and Timing Chain Kit
- Camshaft: Hot Cams 1043-2 Stage 2
- Intake Lift / Duration: 9.0 mm / 254 degrees at 1 mm
- Exhaust Lift / Duration: 8.9 mm / 248.5 degrees at 1 mm
- Condition: New
- Chain Reference: Verify 14401-KCY-671 and physical match
Installation & Fitment
- Inspect chain guides, tensioner, sprocket, rockers, journals, springs, oiling, and piston condition
- Verify the new chain specification and measure piston-to-valve and spring clearances
- Set timing and valve lash to the cam maker’s instructions and rotate the engine by hand
- Pre-lubricate components, confirm tensioner operation, and follow the specified break-in and tuning process
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Why install a timing chain with the new cam? A: A stretched chain can retard or vary cam timing. Replacing a worn chain helps the new profile operate where intended.
Q: Is this a bolt-in repair for a poorly running engine? A: No. It is a performance package for a healthy, measured engine with compatible fuel, exhaust, and valvetrain setup.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
