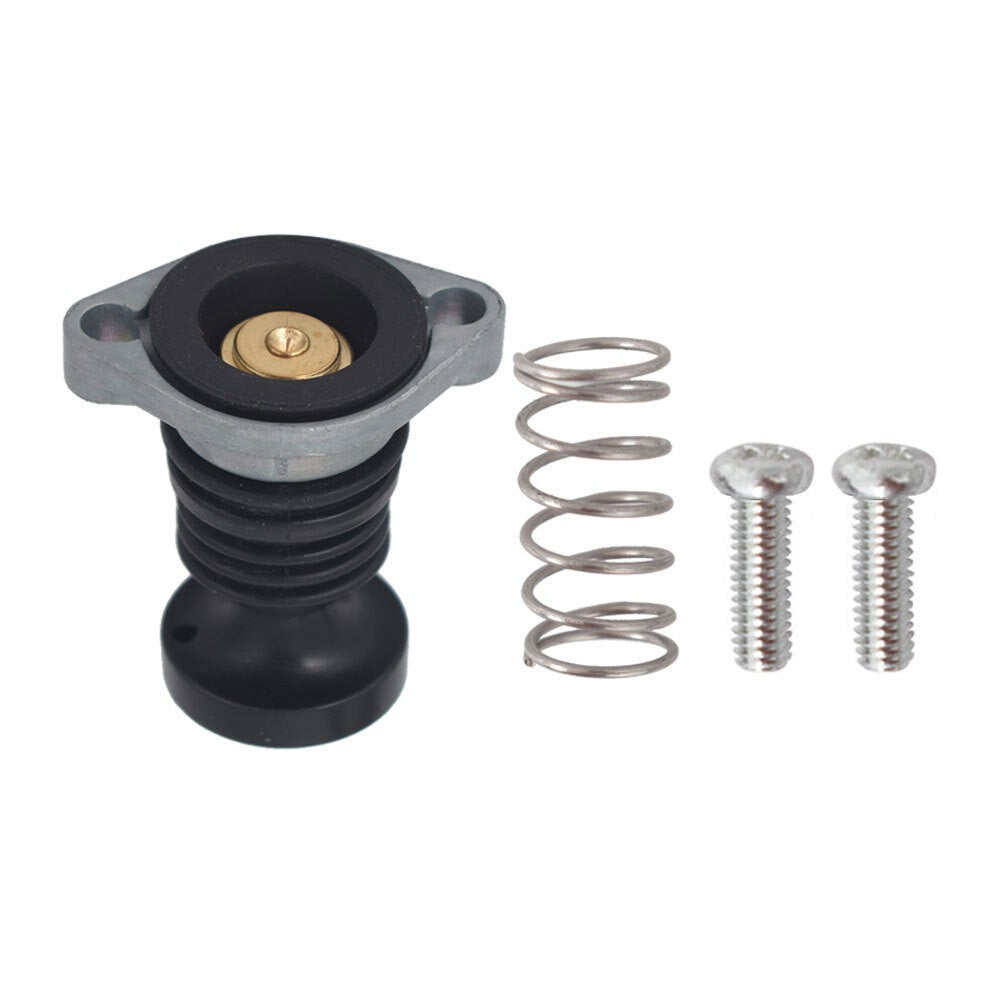

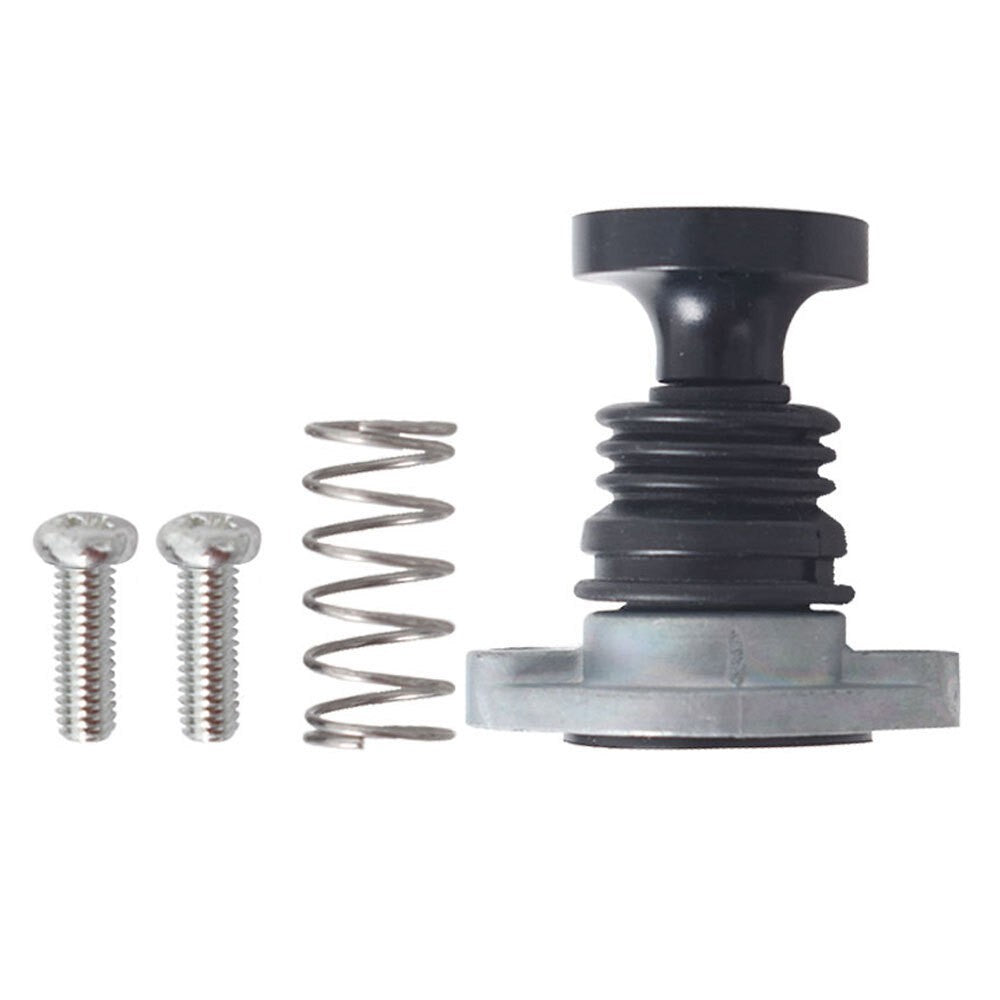

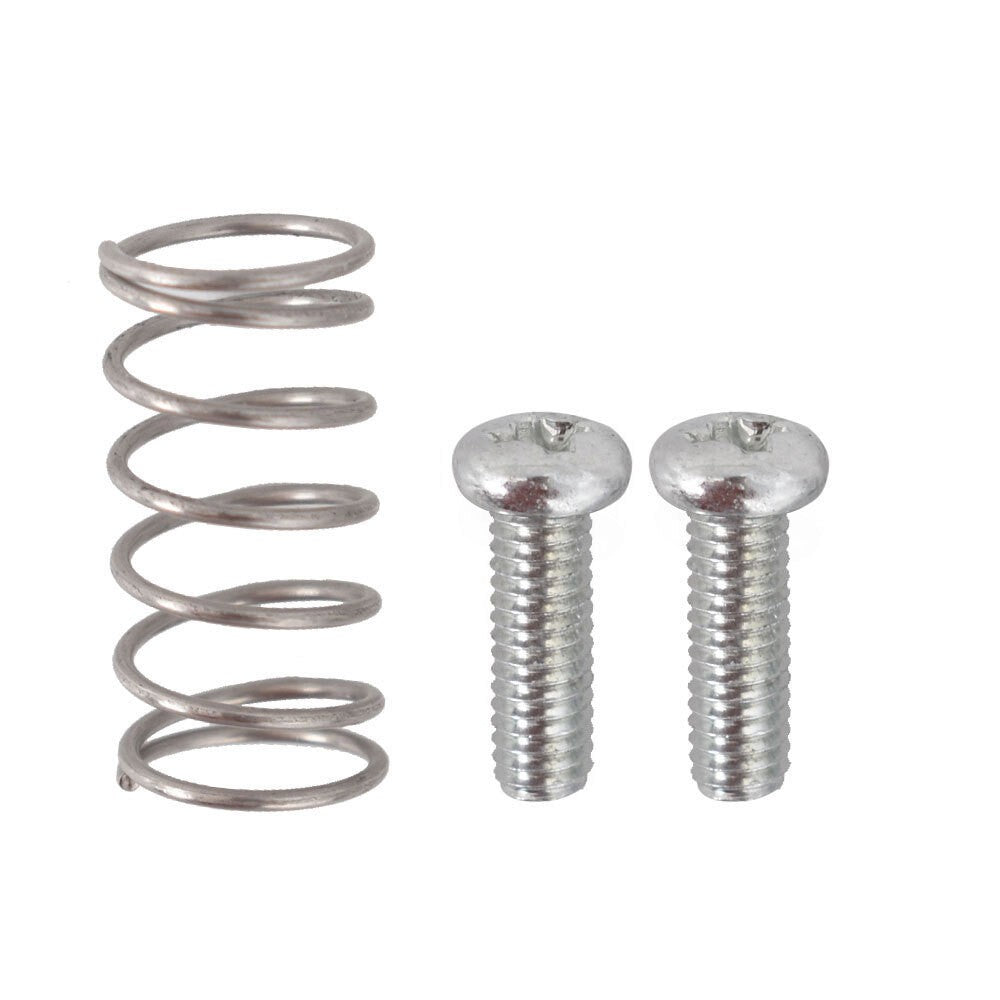

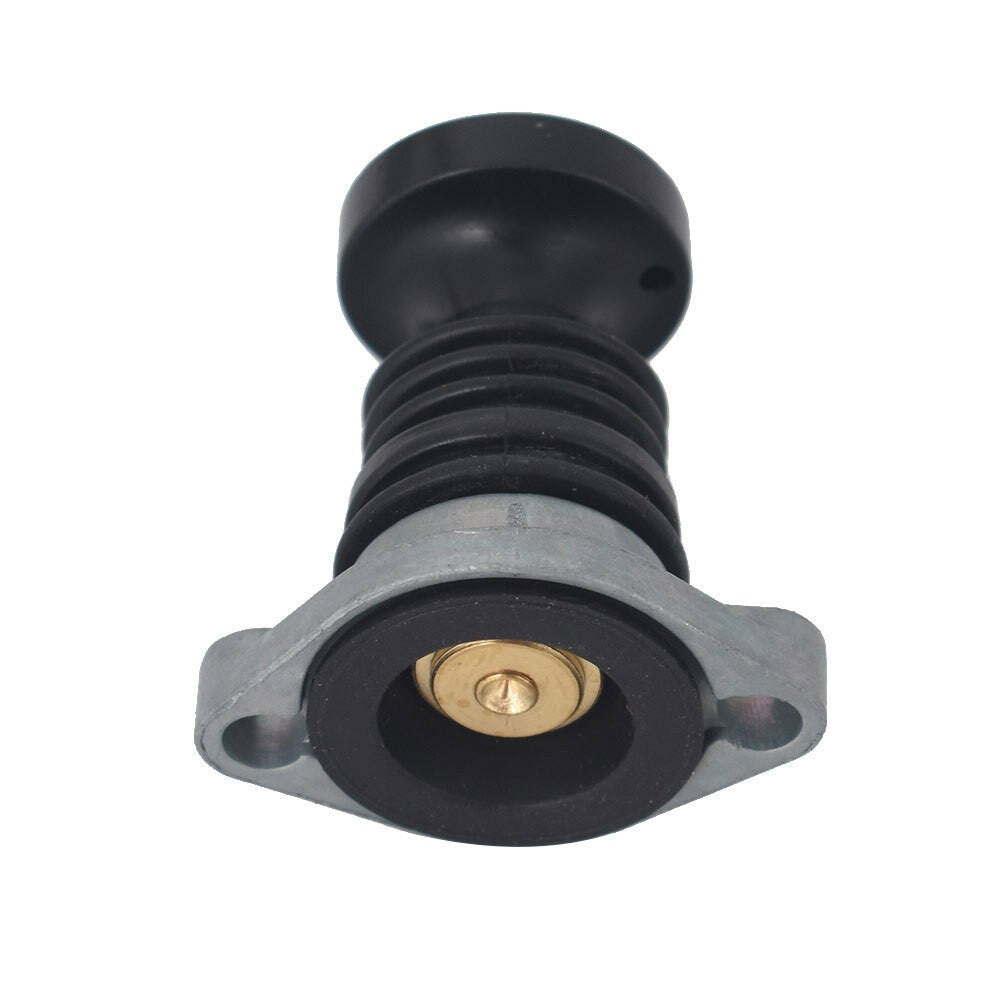

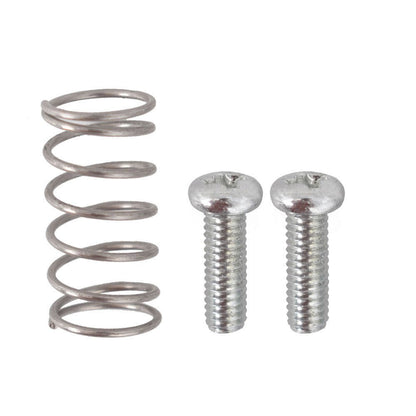

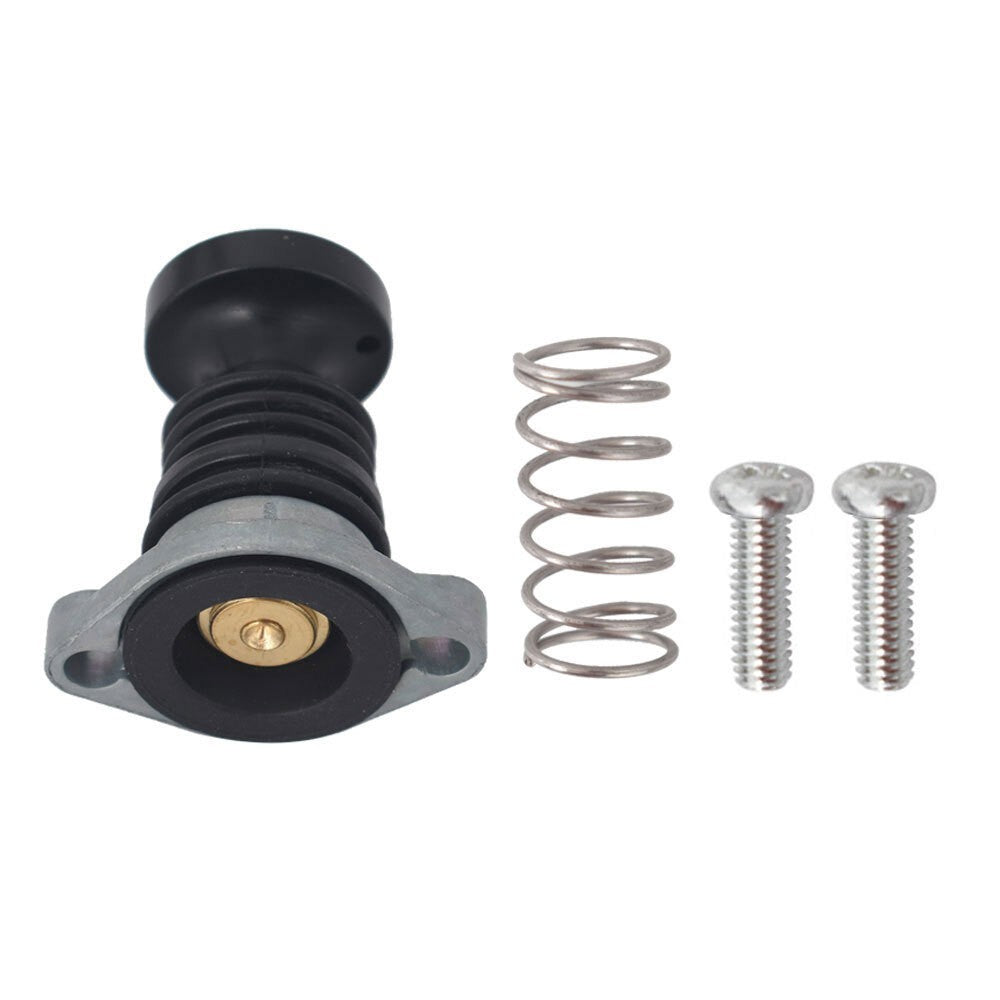

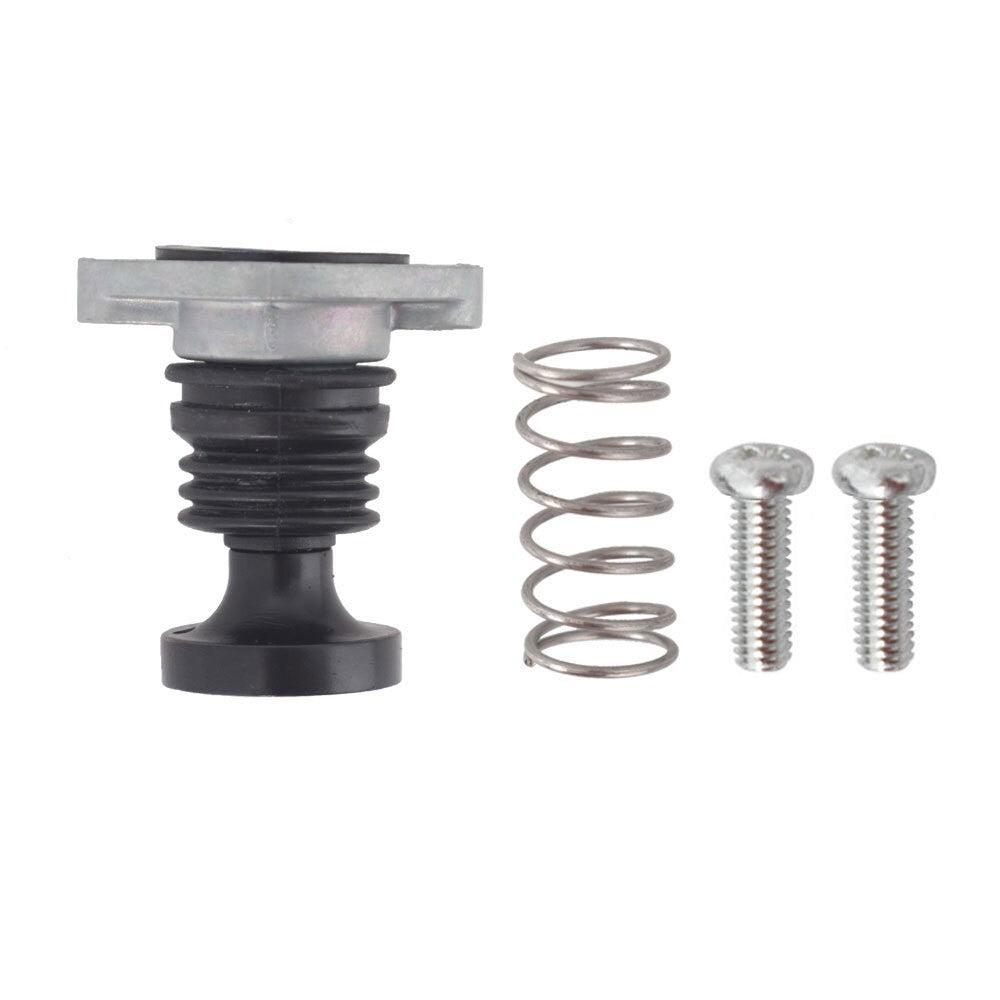

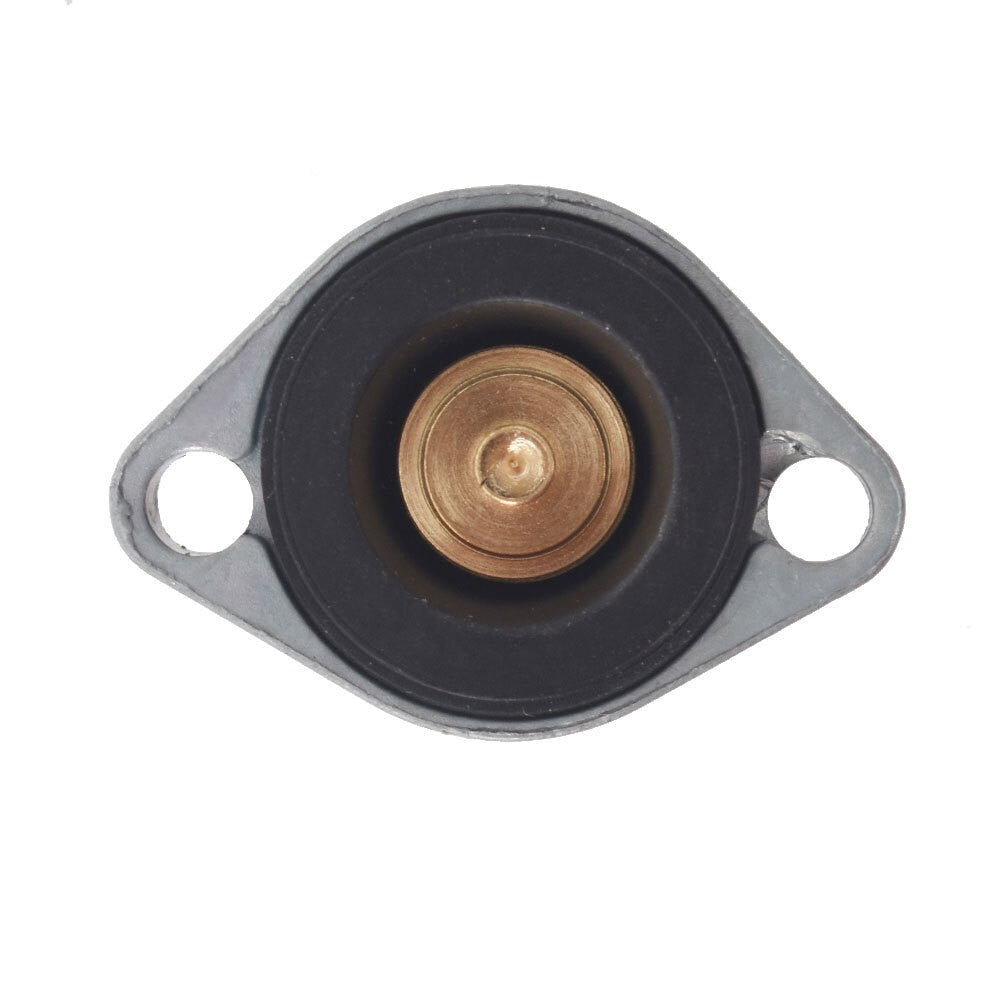

Honda Rancher 350 Carburetor Primer Pump Kit 1009-0034 for TRX350
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
Carburetor primer-pump repair set cross-referencing 1009-0034 for compatible 2000–2006 Honda Rancher 350 TRX350 models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2000–2006 Honda Rancher 350 TRX350FE 4x4 ES
- 2000–2006 Honda Rancher 350 TRX350FM 4x4 manual shift
- 2000–2006 Honda Rancher 350 TRX350TE 2x4 ES
- 2000–2006 Honda Rancher 350 TRX350TM 2x4 manual shift
Product Overview
When the primer will not draw fuel, leaks around its small diaphragm, or no longer gives a cold engine the extra fuel it needs, the carburetor may be usable except for this circuit. This set repairs the primer area without replacing the full carburetor, provided its bore, passages, float system, and main metering circuits remain sound.
The hand-operated primer moves a measured amount of fuel into the starting circuit. Match the cover, diaphragm, spring, plunger, fastener pattern, and carburetor casting; a blocked passage or empty bowl will still prevent priming after new parts are fitted.
Key Features & Performance
- Services the carburetor primer circuit on matching Rancher 350 models
- Cross-references aftermarket kit number 1009-0034
- Useful for a leaking, split, stiff, or non-pumping primer diaphragm
- Keeps the existing carburetor in service when its main body is sound
Replaces Part Numbers
- 1009-0034
Common Uses
- Repairing a primer button that no longer moves fuel
- Stopping fuel seepage at the primer diaphragm
- Restoring cold-start assistance after the primer hardens with age
- Servicing one failed carburetor circuit without replacing the entire carburetor
Technical Specifications
- Product Type: Carburetor Primer Pump Repair Set
- Vehicle Family: Honda Rancher 350 TRX350
- Model Years: 2000–2006 matching carburetors
- Condition: New aftermarket
Installation & Fitment
- Clean the carburetor exterior before opening the small primer chamber
- Compare diaphragm shape, cover, spring, plunger, holes, and casting
- Open blocked primer passages with approved carburetor-cleaning methods, not oversized wire
- Reassemble in the correct order and check for fuel leaks before riding
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Is this a complete carburetor rebuild kit? A: No. It is for the primer-pump section only and does not replace jets, float parts, or all carburetor seals.
Q: Why might the new primer still not move fuel? A: The bowl may be empty or a primer passage, fuel valve, line, or tank vent may be blocked.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Honda Rancher 350 primer pump, 1009-0034 carburetor kit, TRX350 cold start repair, Rancher primer diaphragm, Honda carb primer leak, TRX350FE primer set
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
