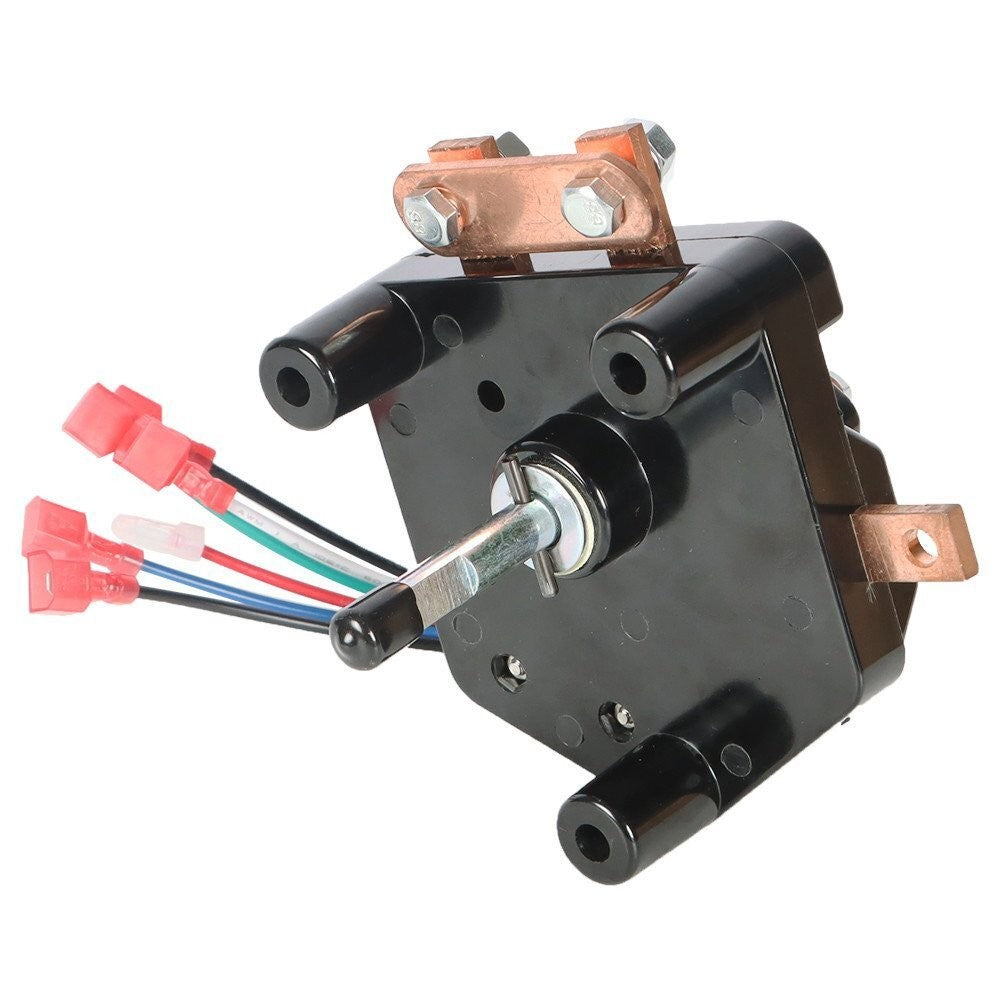

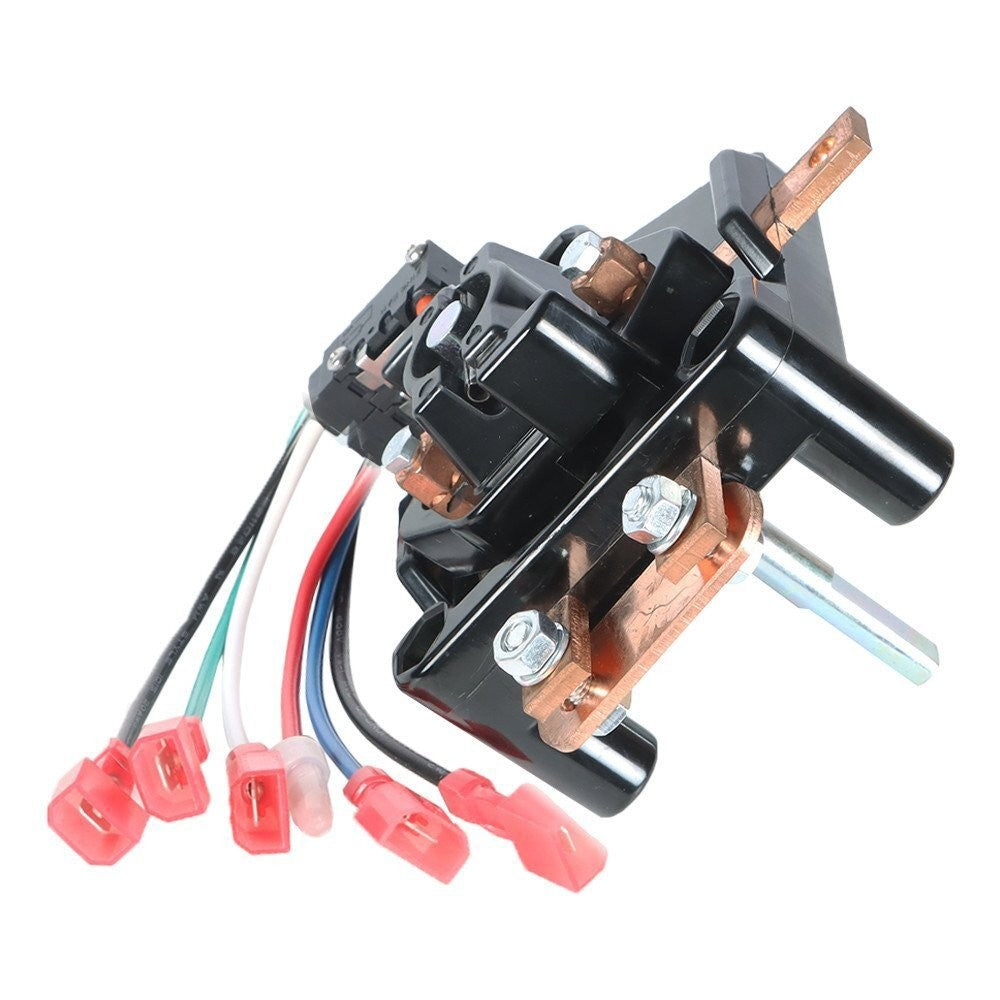

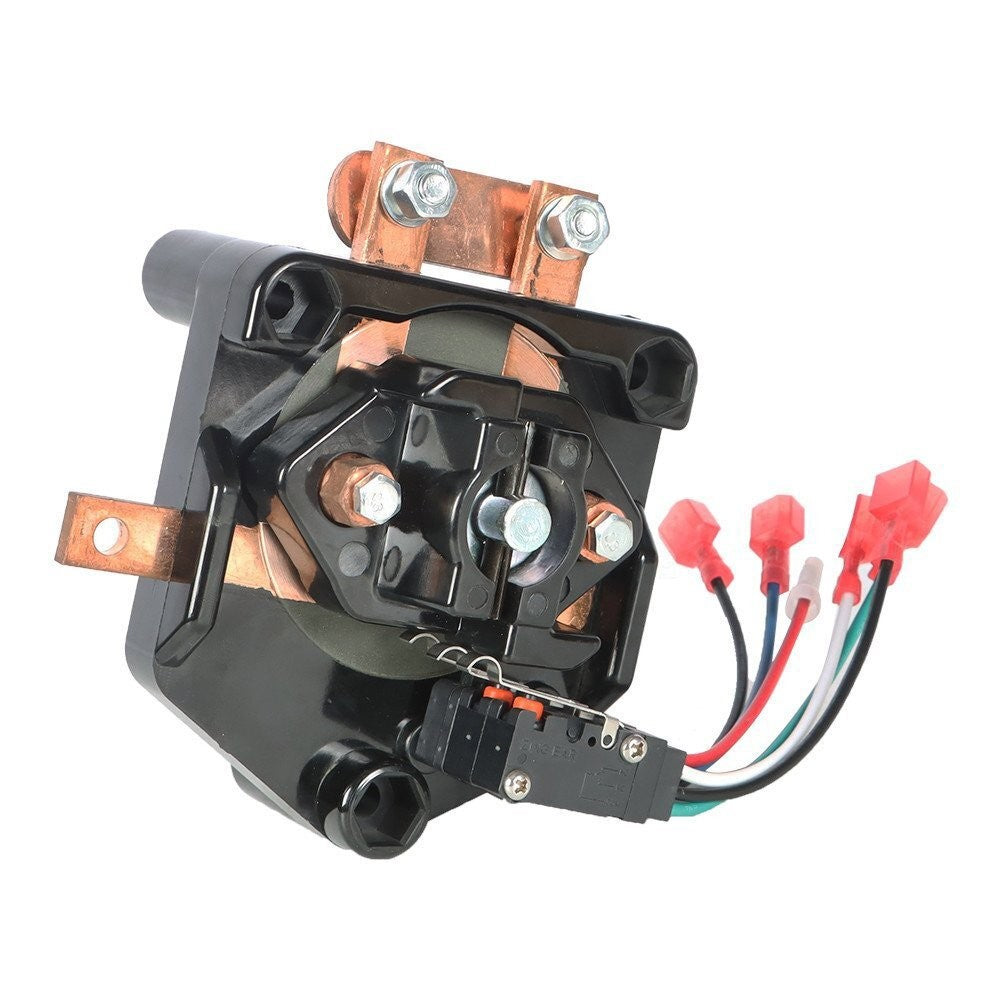

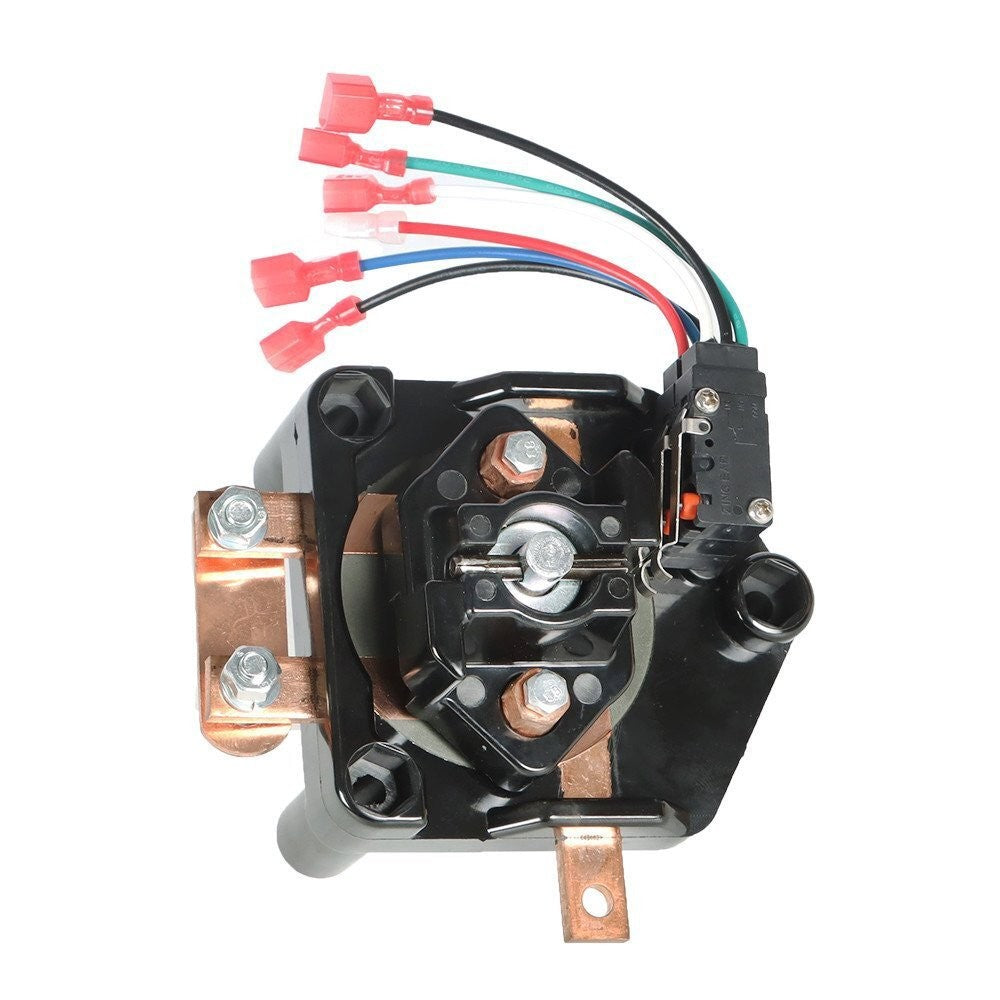

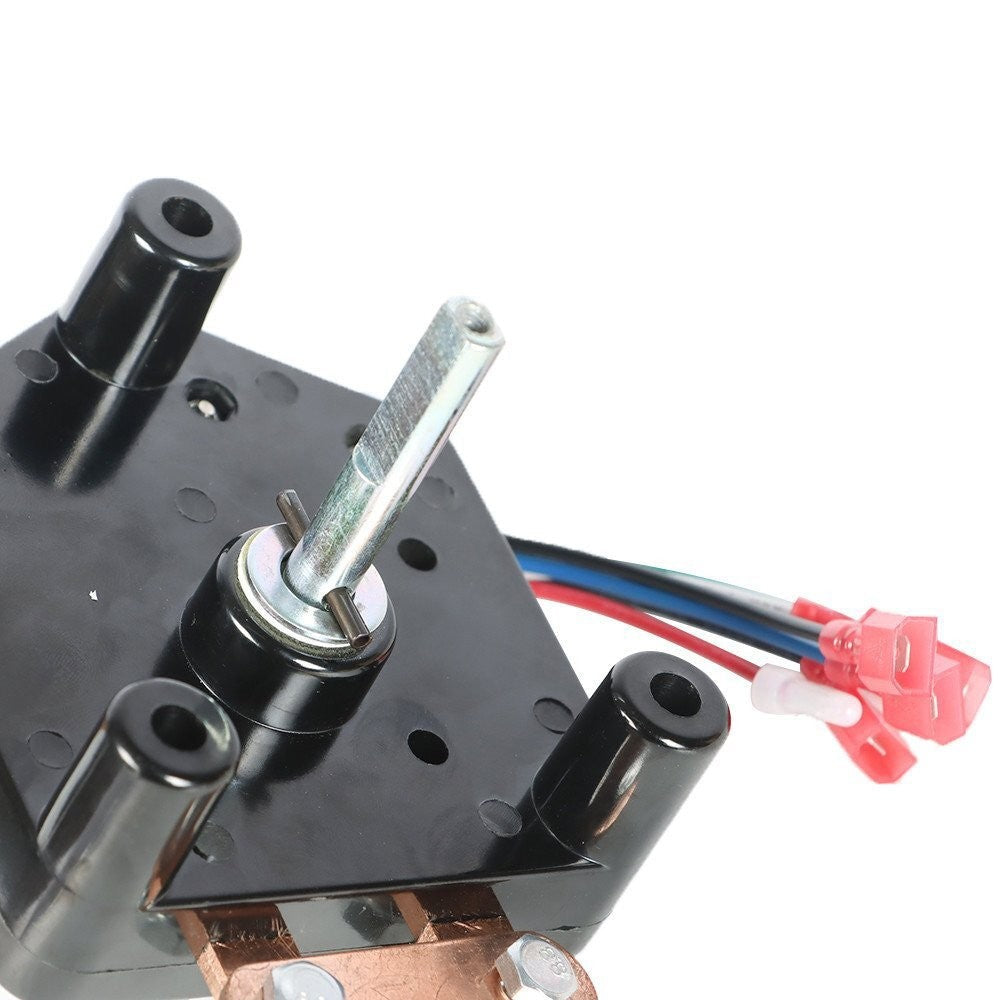

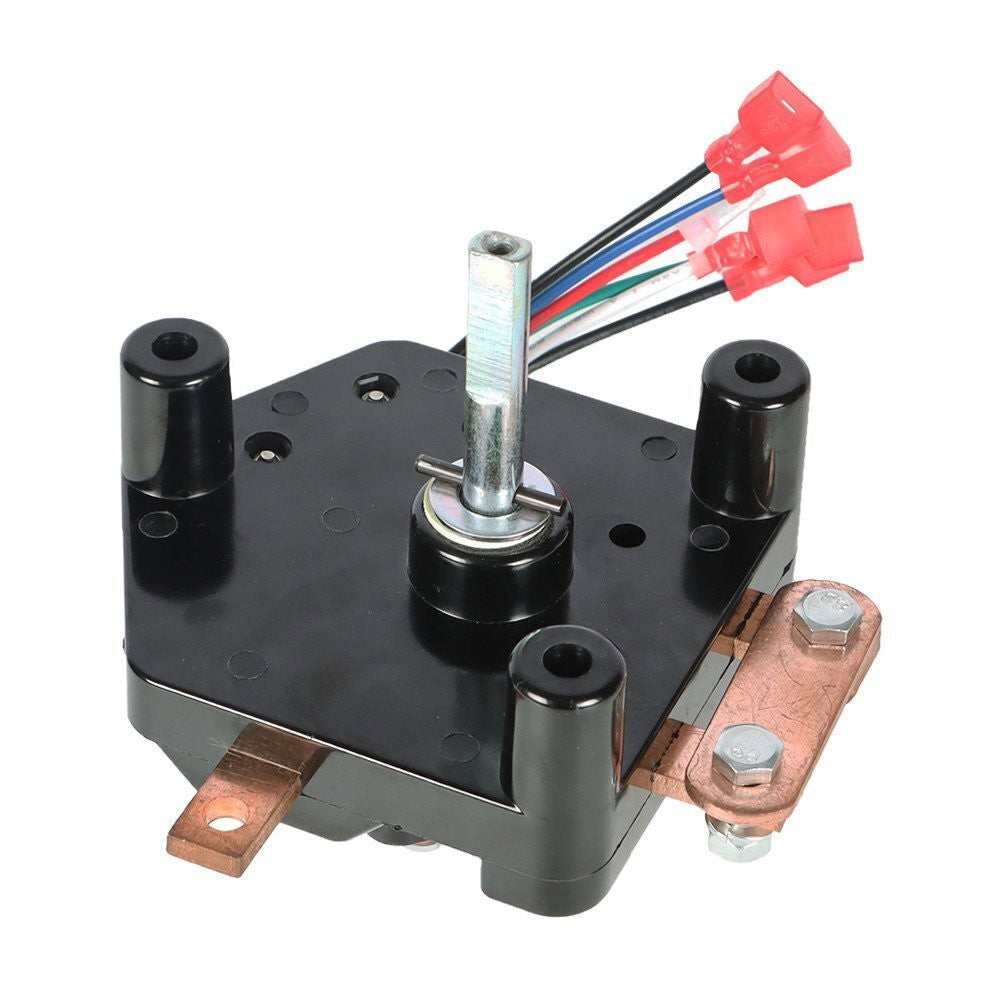

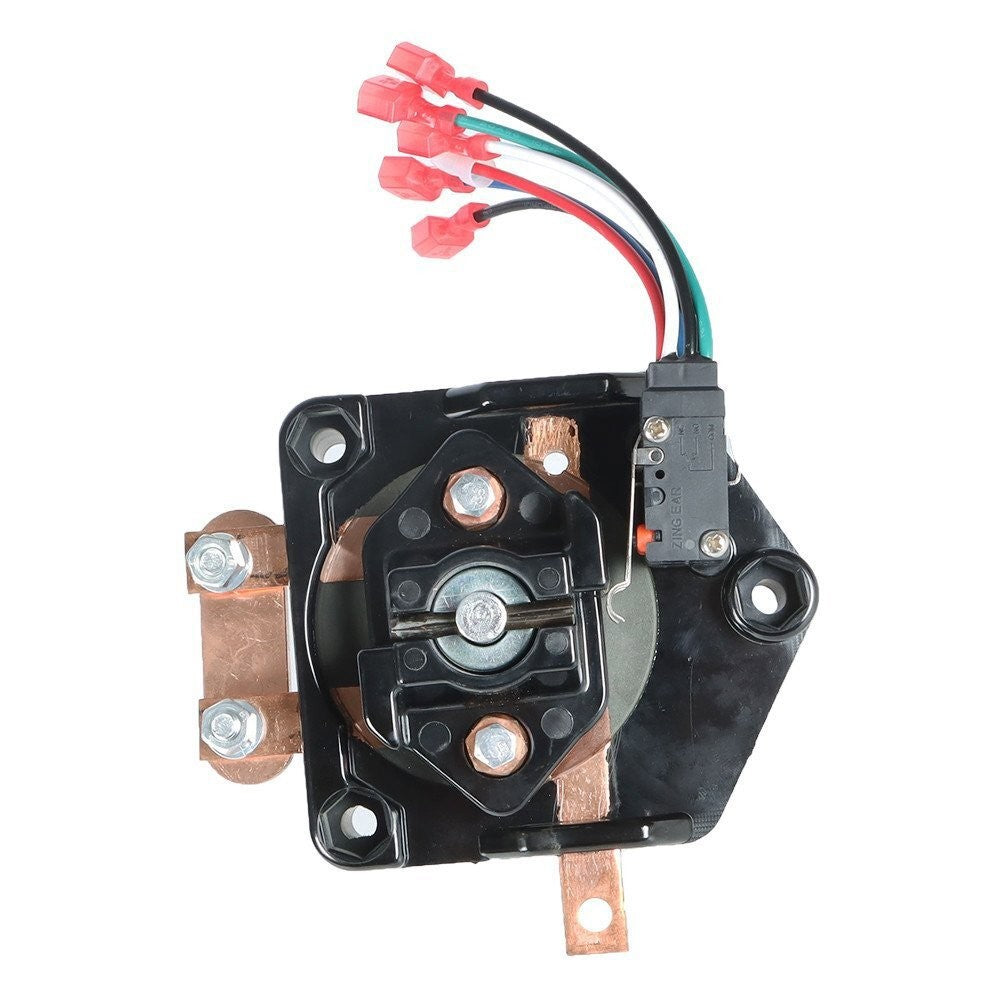

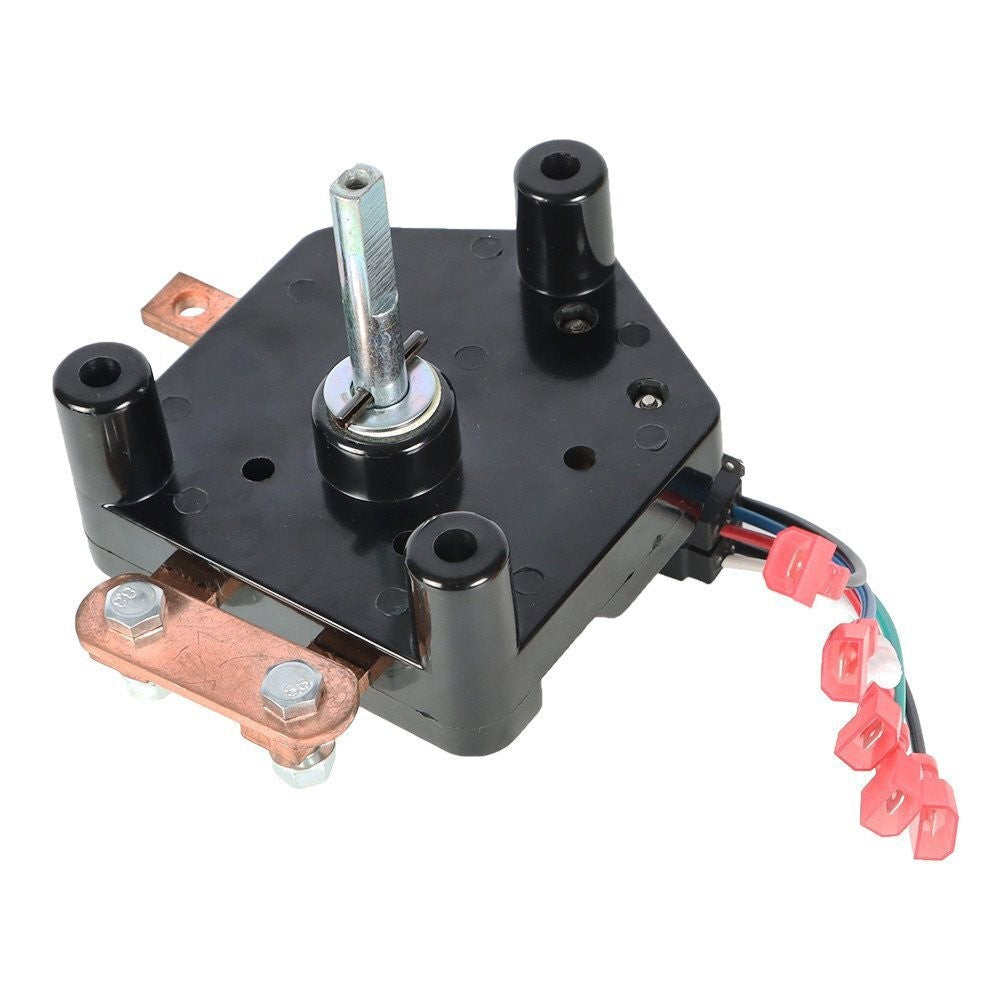

Club Car DS 36V Heavy-Duty Forward Reverse Switch 1011997
$64.99
In Stock
$64.99
Sale price
$64.99
Regular price
Heavy-duty forward-and-reverse switch assembly for compatible 1983.5-and-newer Club Car DS 36-volt resistor carts, replacing 1011997 and 1017530-03.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1983.5-and-newer Club Car DS 36V electric resistor carts using 1011997
- Compatible modified Club Car DS resistor carts requiring the heavy-duty switch
- Excludes 48V and controller systems using a different F/R assembly
Product Overview
A cart that runs in only one direction, cuts out when the lever moves, or shows melted plastic and burned copper contacts may have a failed F/R switch. Batteries, solenoid, controller or resistor circuit, motor fields, cables, and microswitch also need testing.
This manual switch reverses motor-field polarity on compatible resistor carts. Match 36 volts, resistor wiring, lever and microswitch arrangement, cable studs, and cart drive system.
Key Features & Performance
- Carries high motor current and reverses field polarity on a matching resistor cart
- Application-specific electrical function for the listed circuit
- Reference, connector, pinout, and mounting details support a safer match
- Cross-references 1011997, 1017530-03, FR-001, 693
Replaces Part Numbers
- 1011997
- 1017530-03
- FR-001
- 693
Common Uses
- Upgrading a heat-damaged switch on a modified or high-current Club Car
- Replacing an open, shorted, intermittent, or physically damaged unit after testing
- Restoring the affected control or charging circuit after wiring faults are repaired
Technical Specifications
- Part Type: Heavy-Duty Forward / Reverse Switch Assembly
- Electrical System: 36 V resistor cart
- Condition: New aftermarket
Installation & Fitment
- Disconnect the complete battery pack and photograph every heavy cable before removal
- Disconnect battery power and inspect plugs, grounds, terminals, and harness routing
- Test every affected function before returning the equipment to service
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Can this fix a cart that moves only in reverse? A: It can if the F/R contacts are burned, but cables, motor fields, solenoid, and microswitch must also be tested.
Q: Does this fit a 48-volt Club Car? A: No. This listing is for the matching 36-volt resistor-cart arrangement.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Club Car 1011997 forward reverse switch, DS 36V resistor cart, 1017530-03 F&R, golf cart runs one direction, heavy duty switch
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
