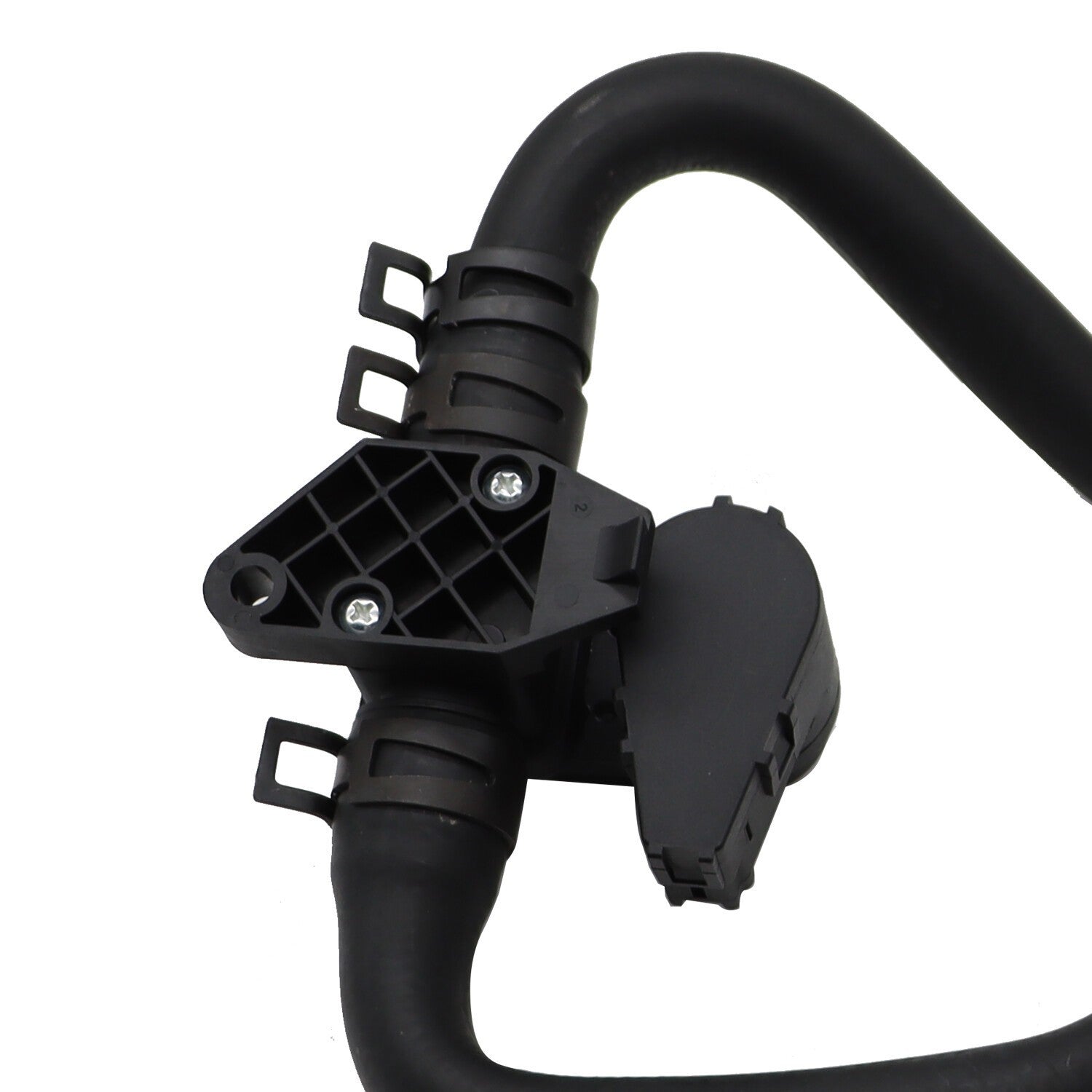

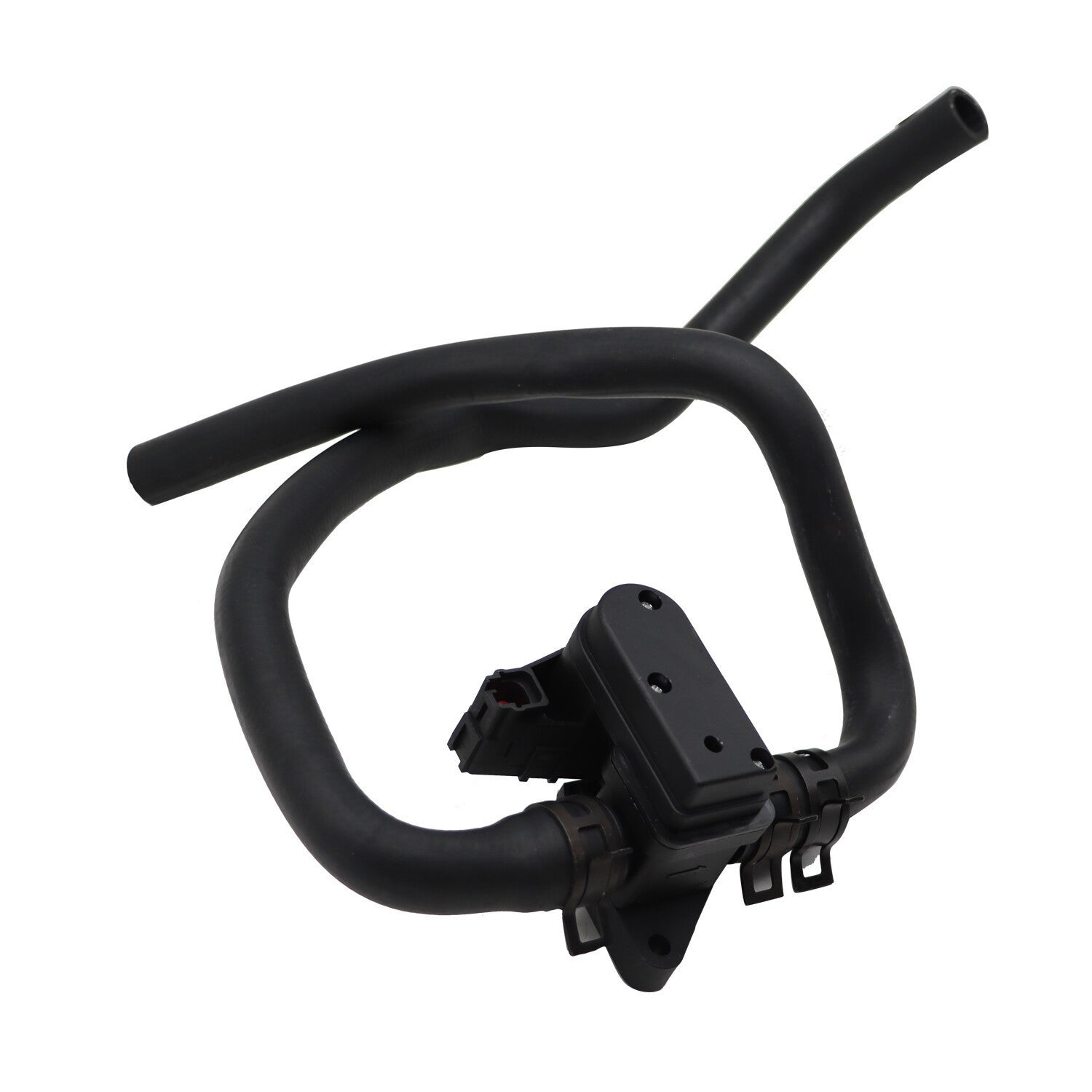

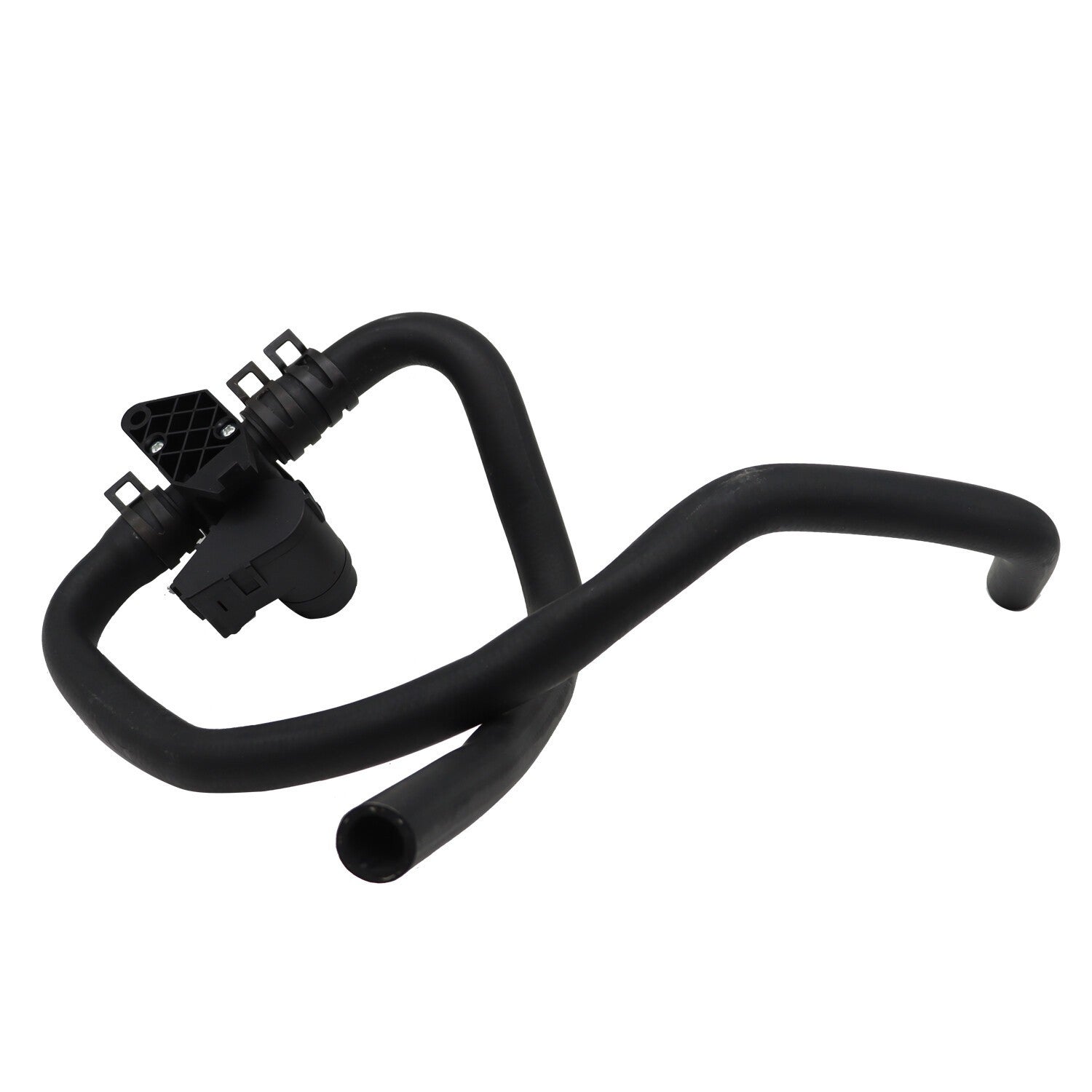

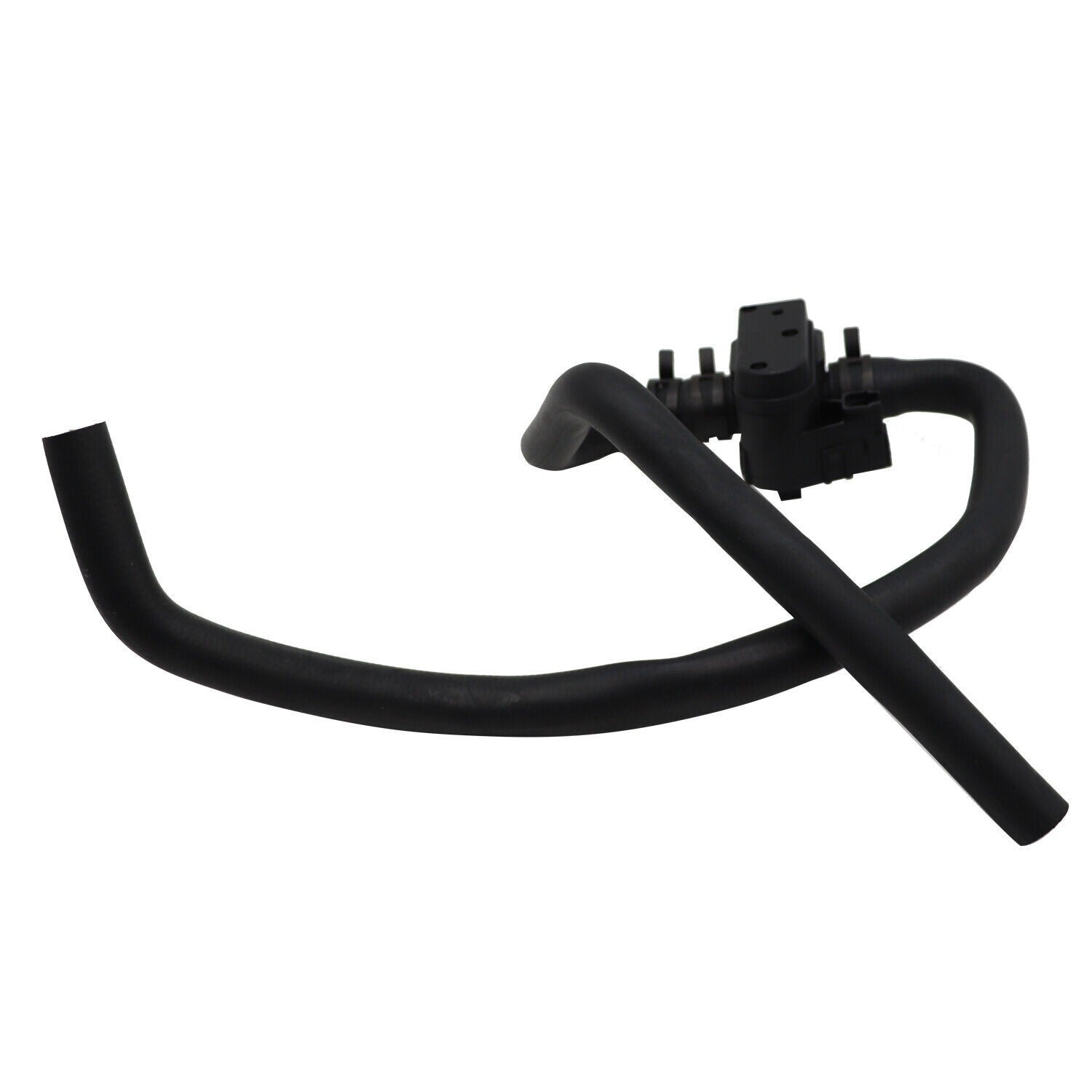

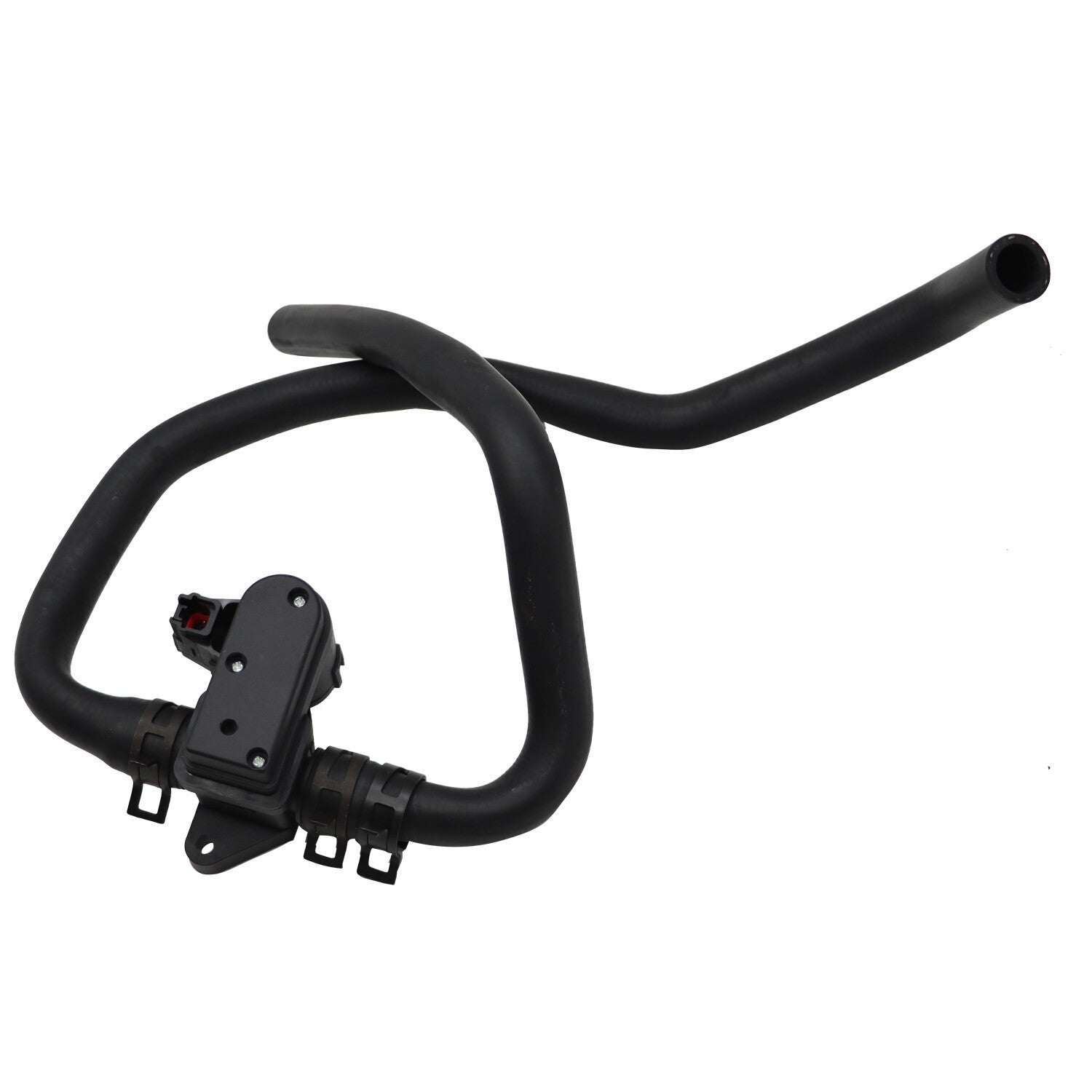

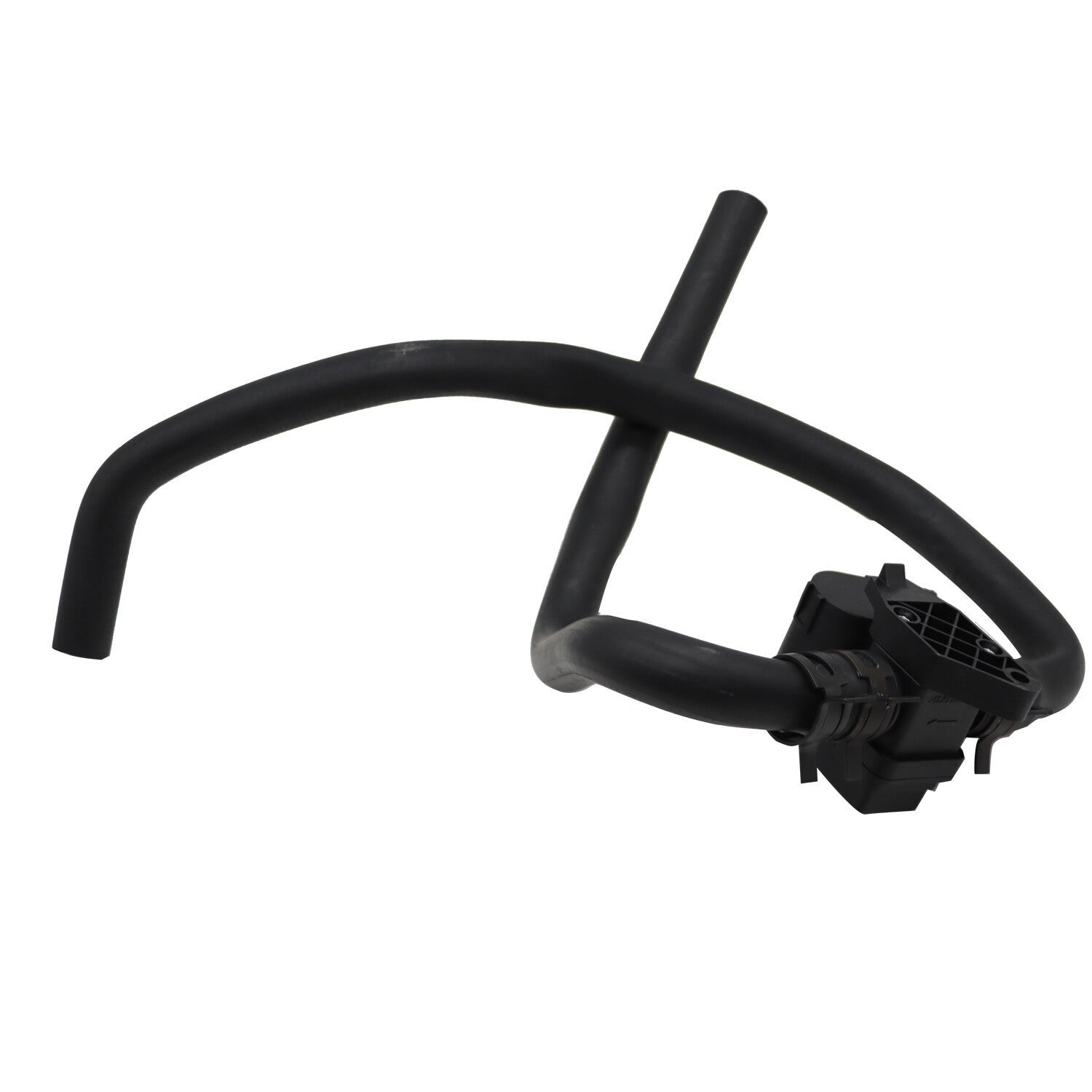

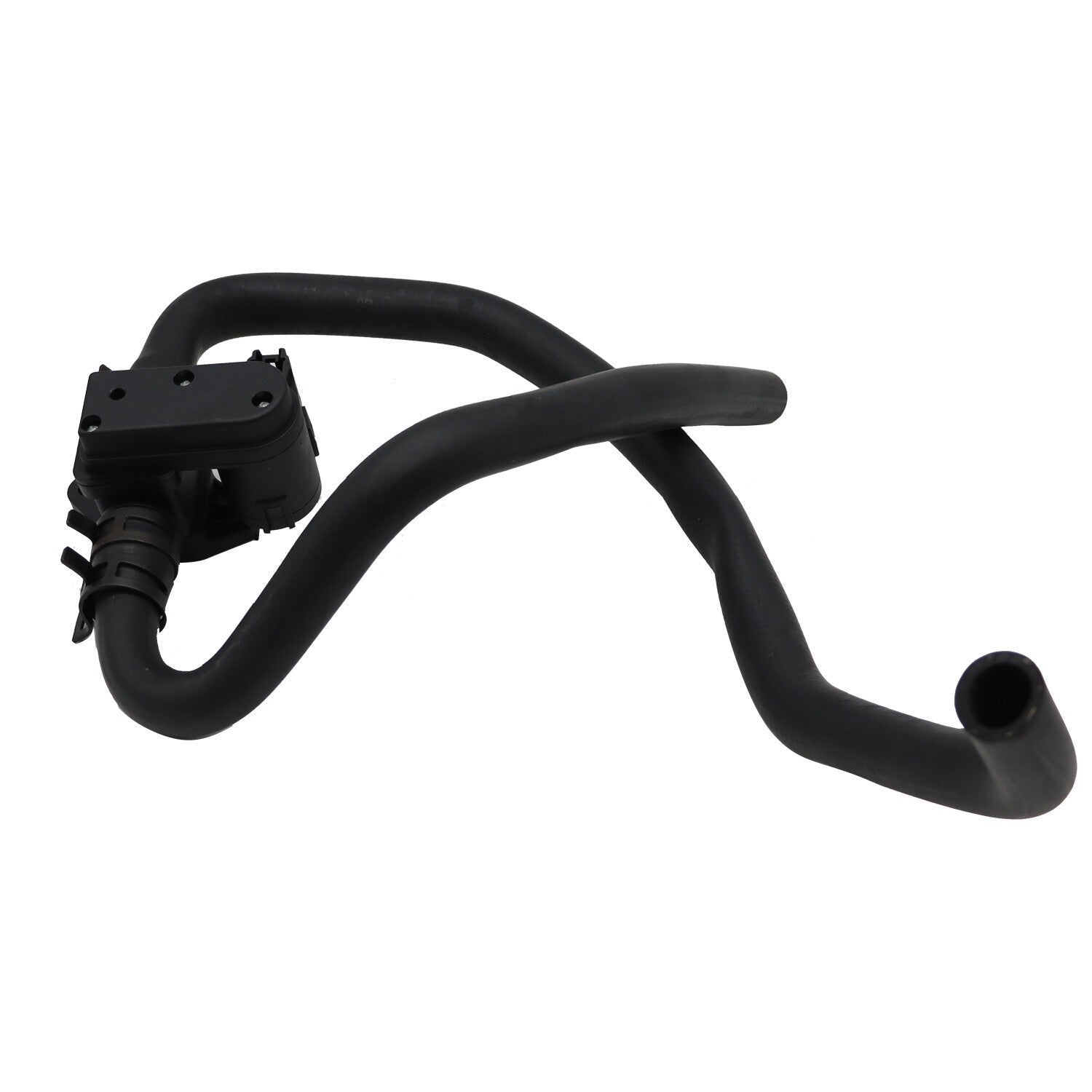

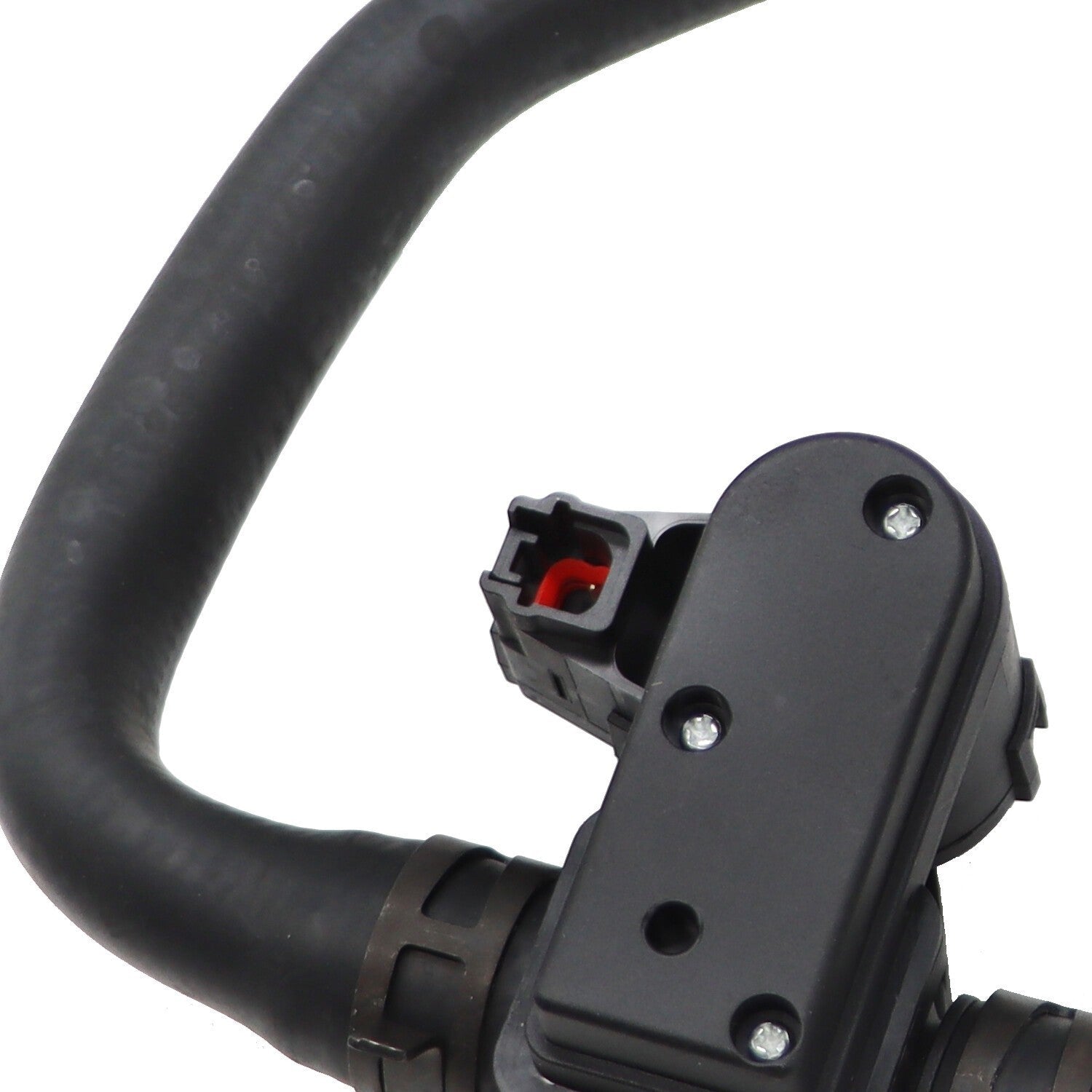

Heater Inlet Hose Assembly with Valve for Nissan Titan 5.6L 2006-2015 92400-ZT10A
$64.99
In Stock
$64.99
Sale price
$64.99
Regular price
Aftermarket HVAC heater inlet hose assembly with control valve for compatible 2006-2015 Nissan Titan 5.6L V8 models; replaces 92400-ZT10A, 92400-ZT00A, and 92400-ZH000.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Nissan Titan 5.6L V8 2006
- Nissan Titan 5.6L V8 2007
- Nissan Titan 5.6L V8 2008
- Nissan Titan 5.6L V8 2009
- Nissan Titan 5.6L V8 2010
- Nissan Titan 5.6L V8 2011
- Nissan Titan 5.6L V8 2012
- Nissan Titan 5.6L V8 2013
- Nissan Titan 5.6L V8 2014
- Nissan Titan 5.6L V8 2015
Product Overview
A coolant smell near the firewall, heater performance that changes unpredictably, or leakage from the molded valve and hose junction can point to this inlet assembly. It carries hot, pressurized coolant from the engine toward the heater core while the integrated hardware matches the original routing.
Verified Nissan references begin at 2006, correcting the old 2004 claim. Compare the valve body, branch lengths, quick connections, clamps, and firewall routing. Do not install a new hose against a corroded or damaged heater-core tube.
Key Features & Performance
- Molded heater inlet hose assembly
- Integrated control-valve configuration
- Routes pressurized engine coolant to the heater circuit
- Corrects the application start year to 2006
- Vehicle-specific bends and fittings must match
Replaces Part Numbers
- 92400-ZT10A
- 92400-ZT00A
- 92400-ZH000
Common Uses
- Repairing coolant leakage from a cracked valve body
- Replacing swollen or softened heater hose
- Correcting seepage at molded hose junctions
- Renewing the inlet line during heater-core or cooling-system service
Technical Specifications
- Product Type: HVAC Heater Inlet Hose Assembly
- Engine: 5.6L V8
- Compatible Model: Nissan Titan 2006-2015
- System: Heater-core coolant inlet
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Allow the cooling system to become completely cold before opening it
- Compare every bend, branch, and valve orientation
- Release old quick-connects without twisting the heater-core tubes
- Replace damaged seals and clamps and secure the hose away from exhaust heat
- Refill with approved coolant, bleed air, run the heater, and inspect under pressure
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, engine or equipment configuration, installed options, and previous repairs can affect fitment. Compare the original part, identifying numbers, dimensions, connections, and mounting details before purchase.
Frequently Asked Questions
Q: Why was 2004 removed from the title? A: Verified 92400-ZT10A references identify 2006-2015 Titan applications.
Q: Can this cause poor cabin heat? A: A restricted or malfunctioning valve/hose can affect flow, but low coolant, air, thermostat, blend-door, or heater-core faults can do the same.
Q: Is it only a short hose? A: No. It is the molded heater inlet assembly with the valve configuration shown.
Q: Can I work on it while the engine is warm? A: No. Hot pressurized coolant can cause severe burns. Let the system cool fully.
Part Summary
keywords: Nissan 92400-ZT10A heater hose, Titan 5.6L heater inlet assembly, 92400-ZT00A replacement, Nissan coolant valve leak, 2006-2015 Titan heater hose, VK56 heater core inlet, aftermarket Nissan HVAC hose
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
