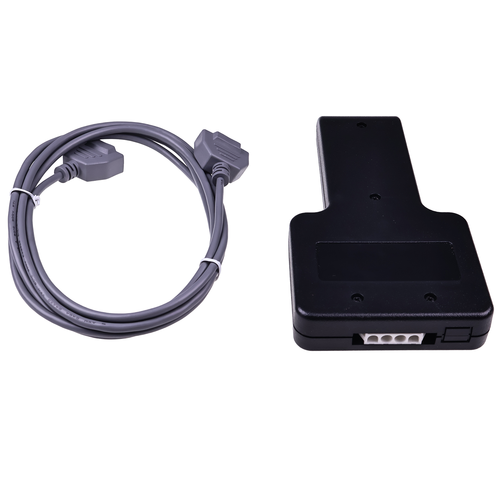

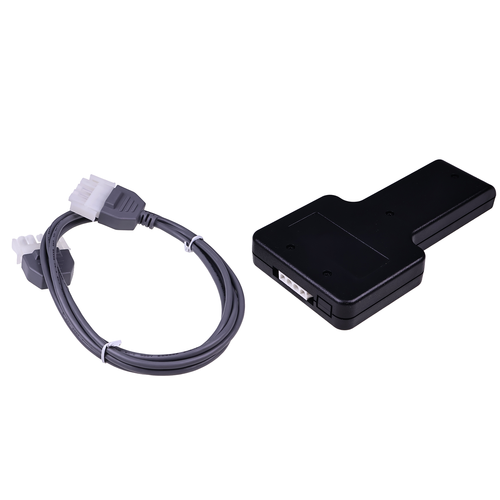

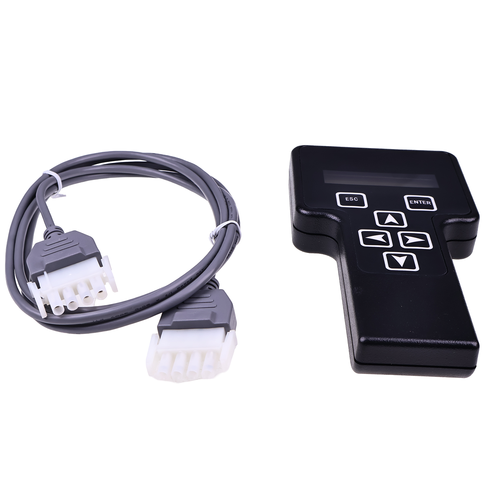

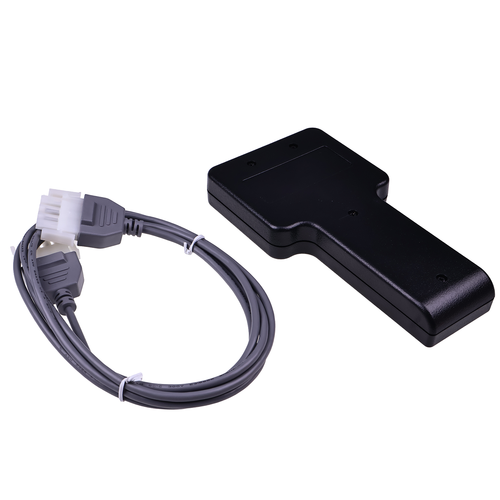

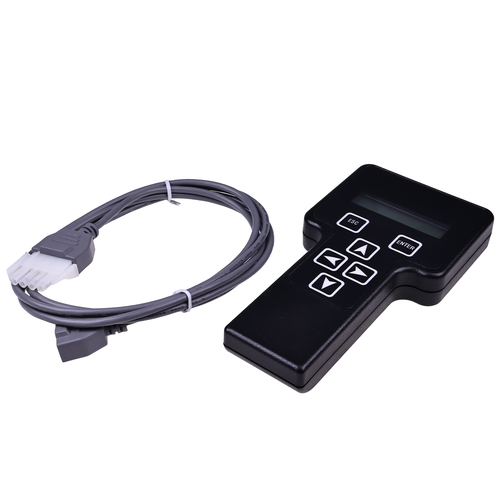

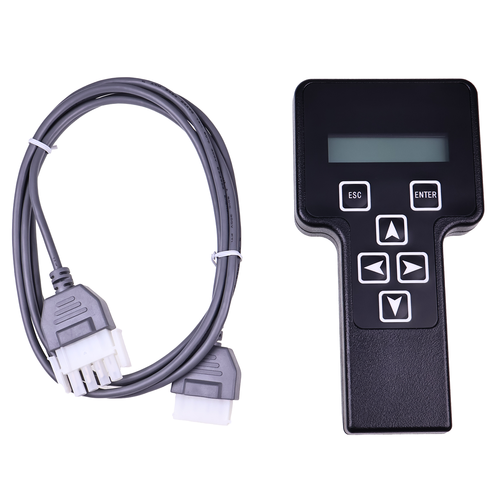

JLG Handheld Analyzer & Cable Kit 1001249695 Replaces 2901443 1600244
$429.09
In Stock
$429.09
Sale price
$429.09
Regular price
Handheld JLG analyzer and communication cable kit 1001249695 for troubleshooting and programming compatible JLG mobile elevating work platforms.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Fitment Notes |
|---|---|
| Compatible JLG boom and scissor lifts with supported control systems | Verify machine/control-system compatibility. |
| JLG 600S and other ADE-era applications | Use machine service documentation to confirm analyzer support. |
Product Overview
The analyzer connects to supported JLG control systems to read fault information, adjust permitted parameters and enable or disable supported machine options.
JLG lists 1001249695 as replacing earlier analyzer references 2901443 and 1600244. Compatibility depends on the machine control system, and the tool is not intended for every JLG product family.
Key Features & Performance
- Handheld diagnostic analyzer
- Communication cable included
- Reads fault information on supported JLG machines
- Replaces earlier references 2901443 and 1600244
Common Reasons for Replacement
- Diagnosing stored machine faults
- Programming supported machine parameters
- Service setup after control-system repair
Technical Specifications
- Part Type: Diagnostic Analyzer Kit
OE / Reference Numbers
- 1001249695
- 2901443
- 1600244
Frequently Asked Questions
How do I confirm compatibility? Confirm the JLG machine and control system support this analyzer before ordering. Some product families use different service tools.
Is this an OEM part? This listing is for a replacement part. Brand names and OE/reference numbers are used to identify fitment unless the listing specifically states that the item is genuine OEM.
