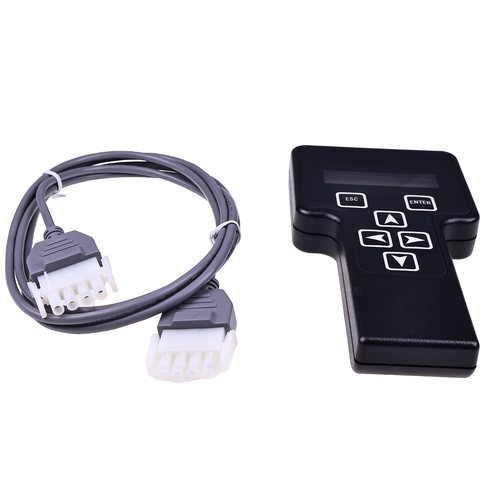

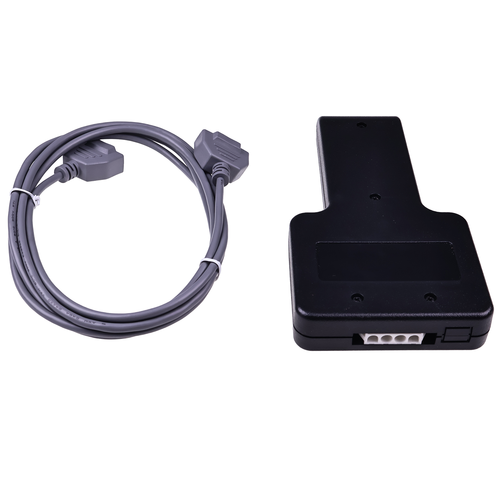

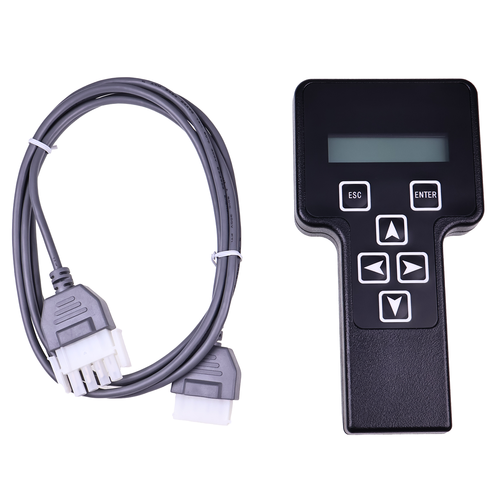

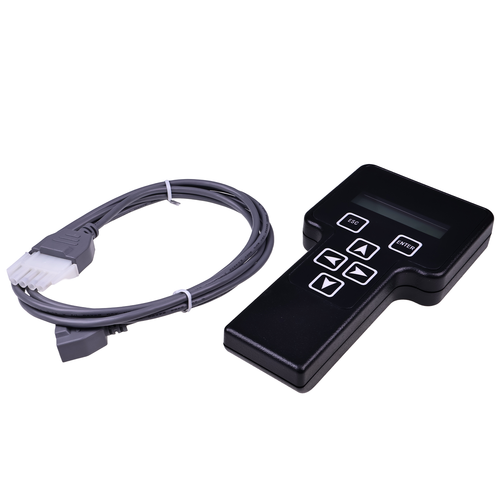

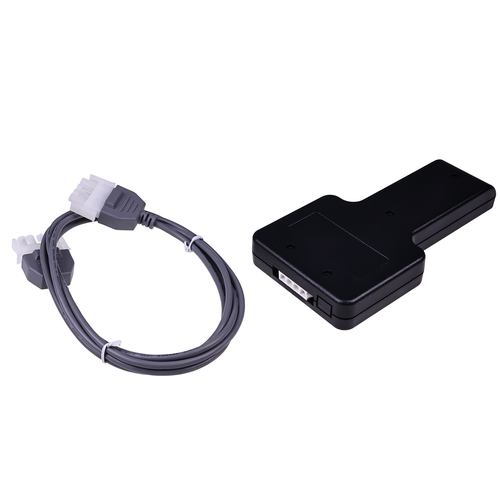

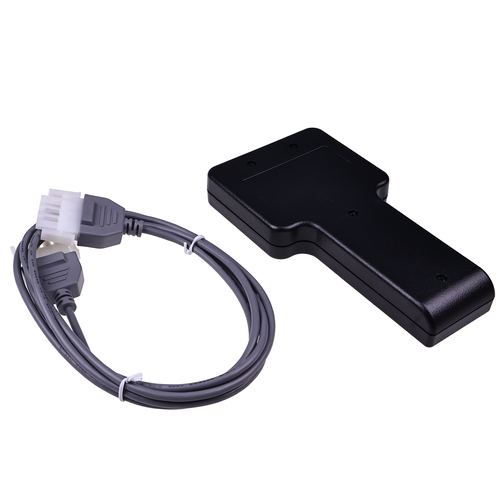

Handheld Analyzer and Cable Kit 1001249695 2901443 1600244 for JLG Boom Lift 1100S
$429.09
In Stock
$429.09
Sale price
$429.09
Regular price
This handheld analyzer and cable kit replaces part number #1001249695 for compatible JLG lift control systems. It helps service technicians read fault information and change supported machine settings.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- JLG lifts using the compatible ADE or SMART electronic control system
- JLG 1100S when ADE-equipped
Product Overview
The analyzer plugs into a compatible diagnostic connector and can assist with fault-code review, option settings and maintenance adjustments. It is a service tool, not a replacement for the lift’s control computer.
Troubleshooting electronically controlled JLG lifts or performing a supported service adjustment.
Key Features & Performance
- Handheld diagnostic analyzer and cable kit for the listed equipment
- The analyzer plugs into a compatible diagnostic connector and can assist with fault-code review, option settings and maintenance adjustments.
- Main part identification: 1001249695, 2901443, 1600244
Replaces / Cross-References
- 1001249695
- 2901443
- 1600244
What Is Included
One handheld diagnostic analyzer and cable kit. Confirm any small hardware or gaskets shown in the product images before ordering.
Fitment Notes
Check for the supported four-pin analyzer connection and control system; JLG specifically excludes compact crawler booms.
Frequently Asked Questions
When would I replace this part?
Troubleshooting electronically controlled JLG lifts or performing a supported service adjustment.
Is this a genuine OEM part?
No. This listing is for an aftermarket replacement unless explicitly stated otherwise. Manufacturer names and part numbers identify the intended application.
Part Summary
Keywords: handheld diagnostic analyzer and cable kit, JLG lifts using the compatible ADE or SMART electronic control system, 1001249695, 2901443, 1600244, Handheld Analyzer & Cable Kit 1001249695 2901443 1600244.
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
