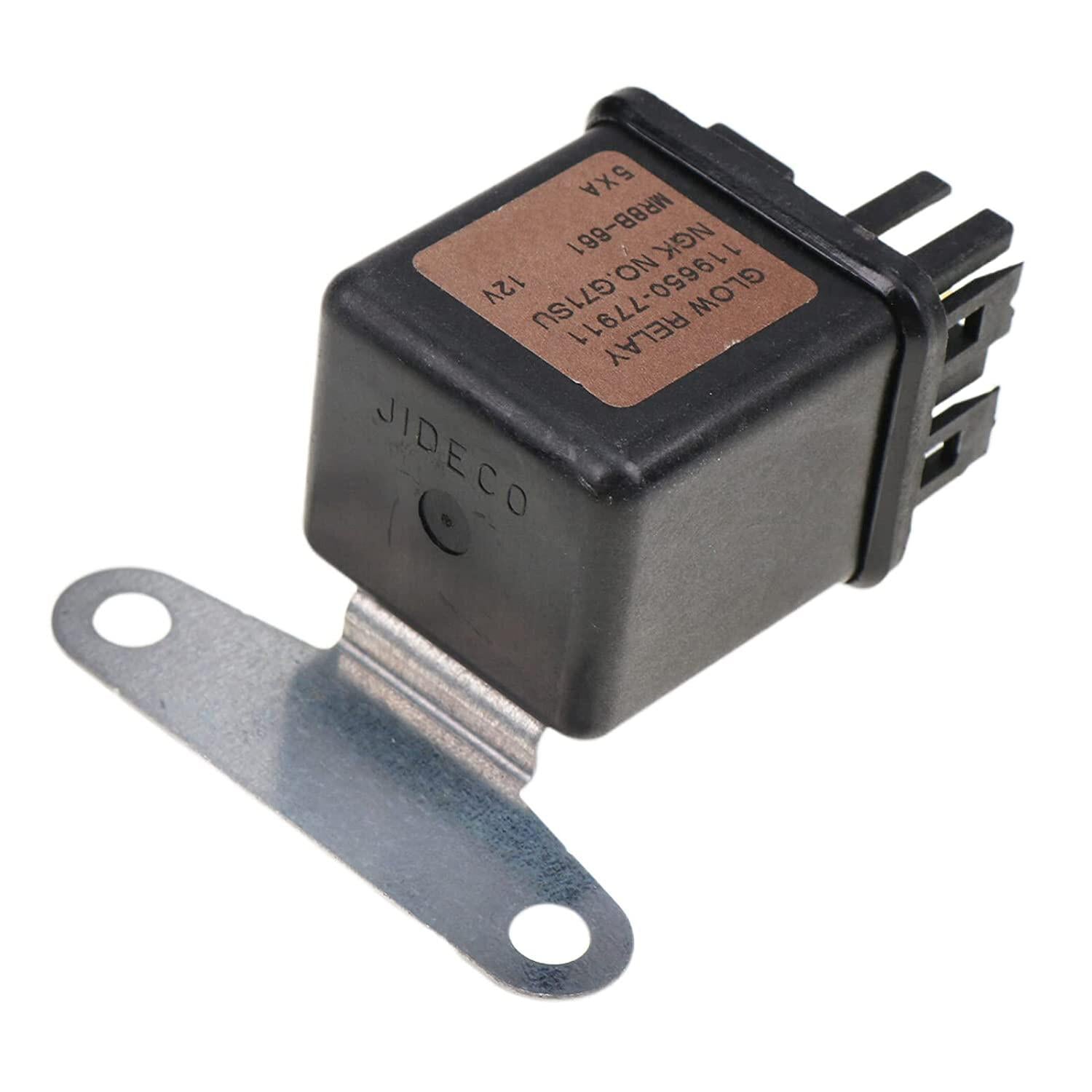

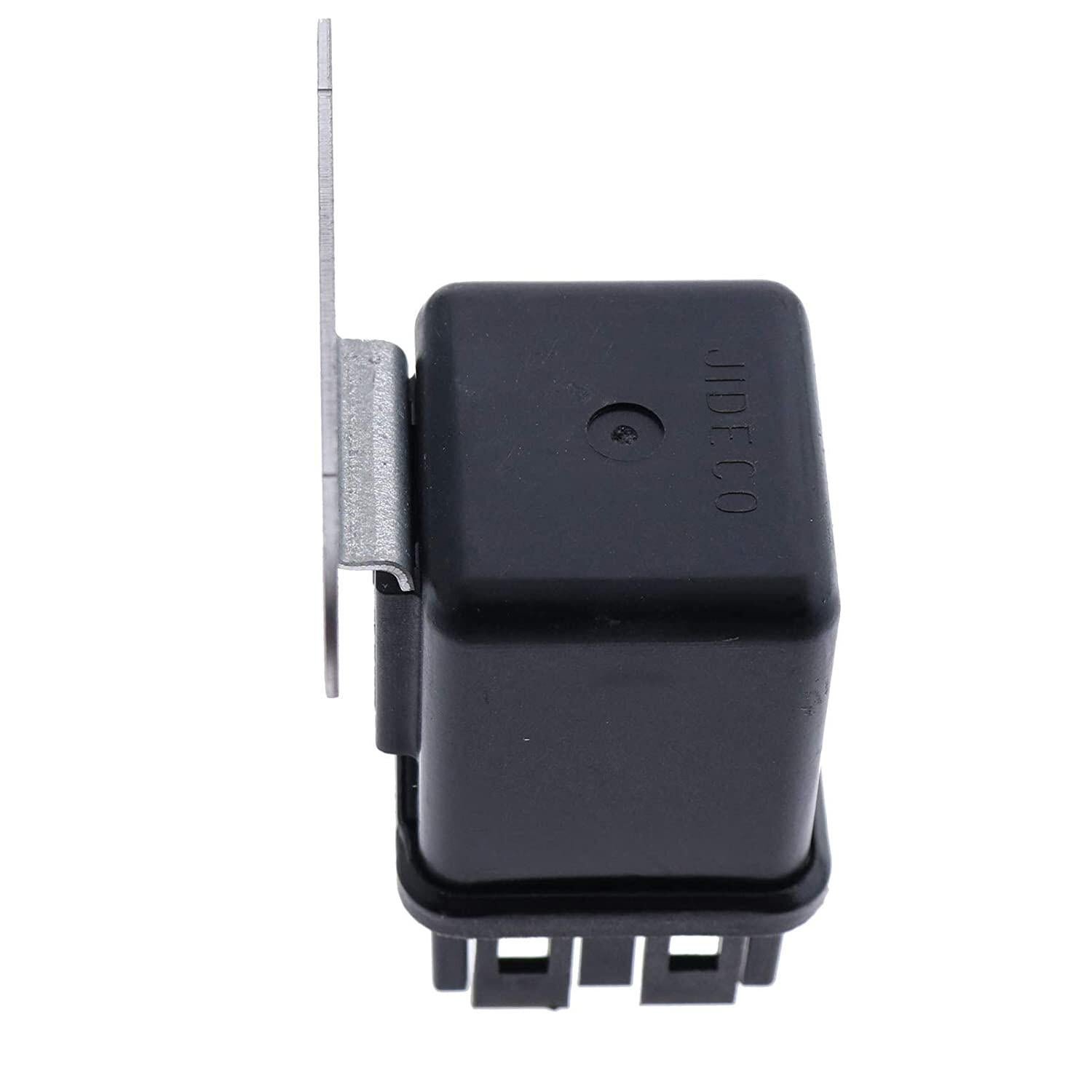

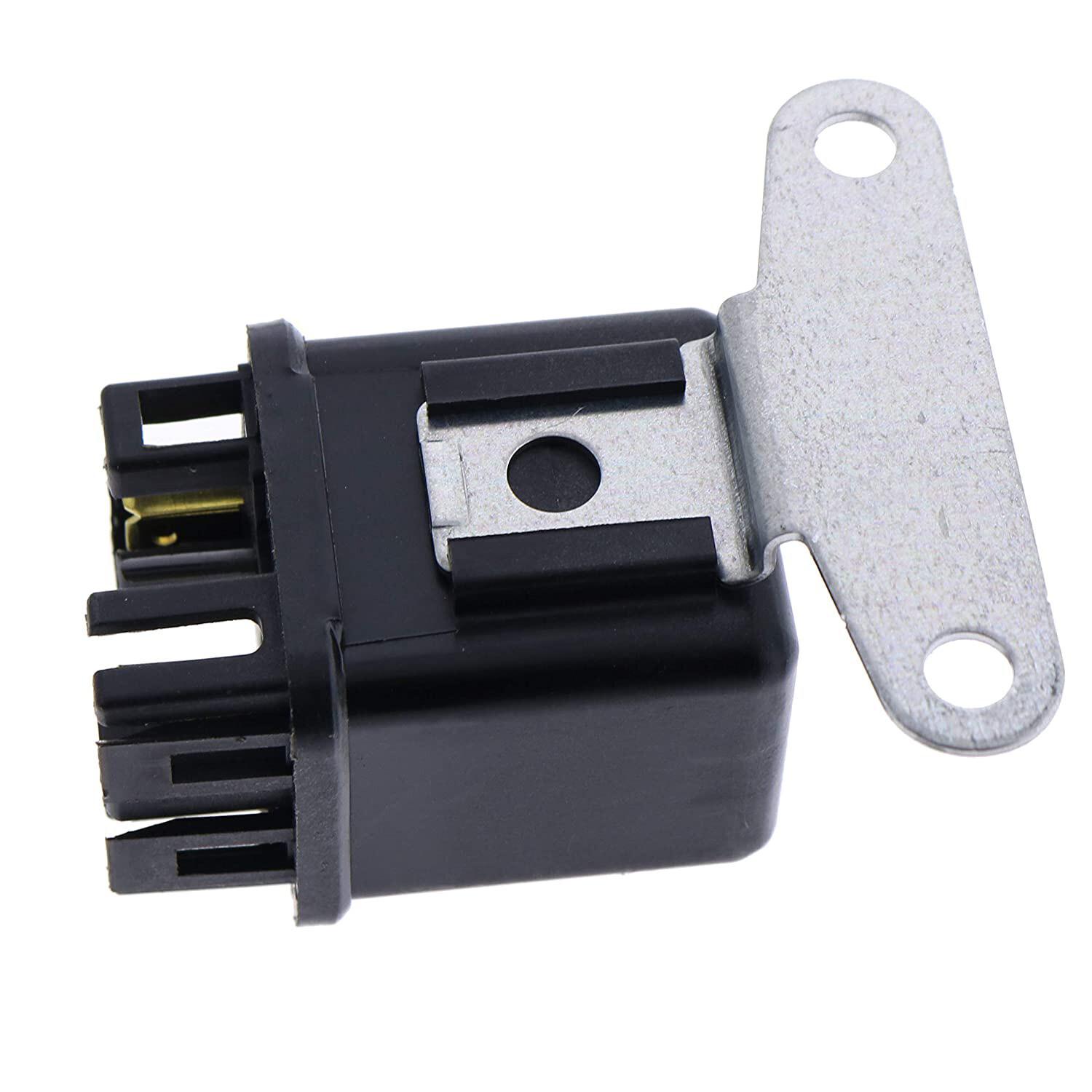

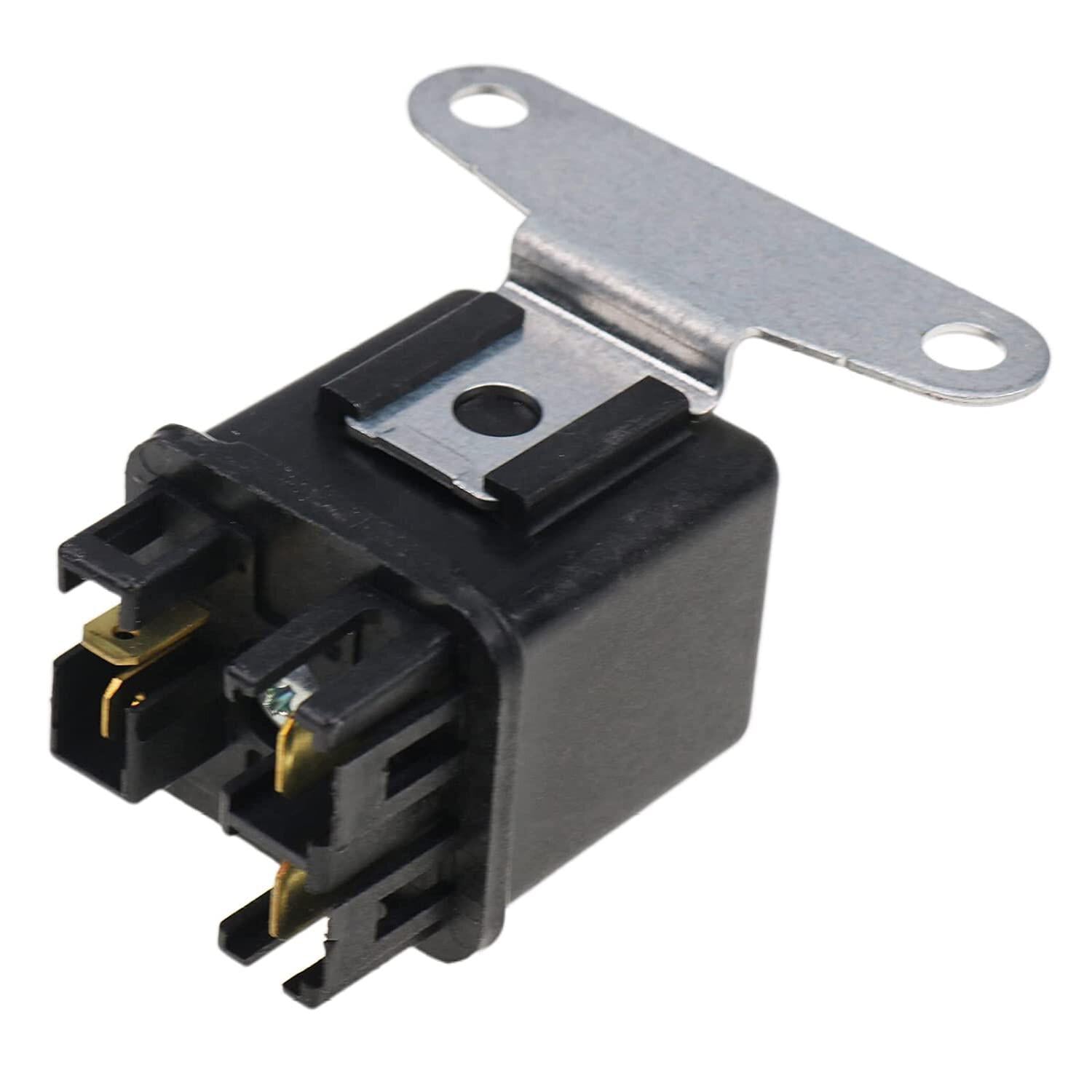

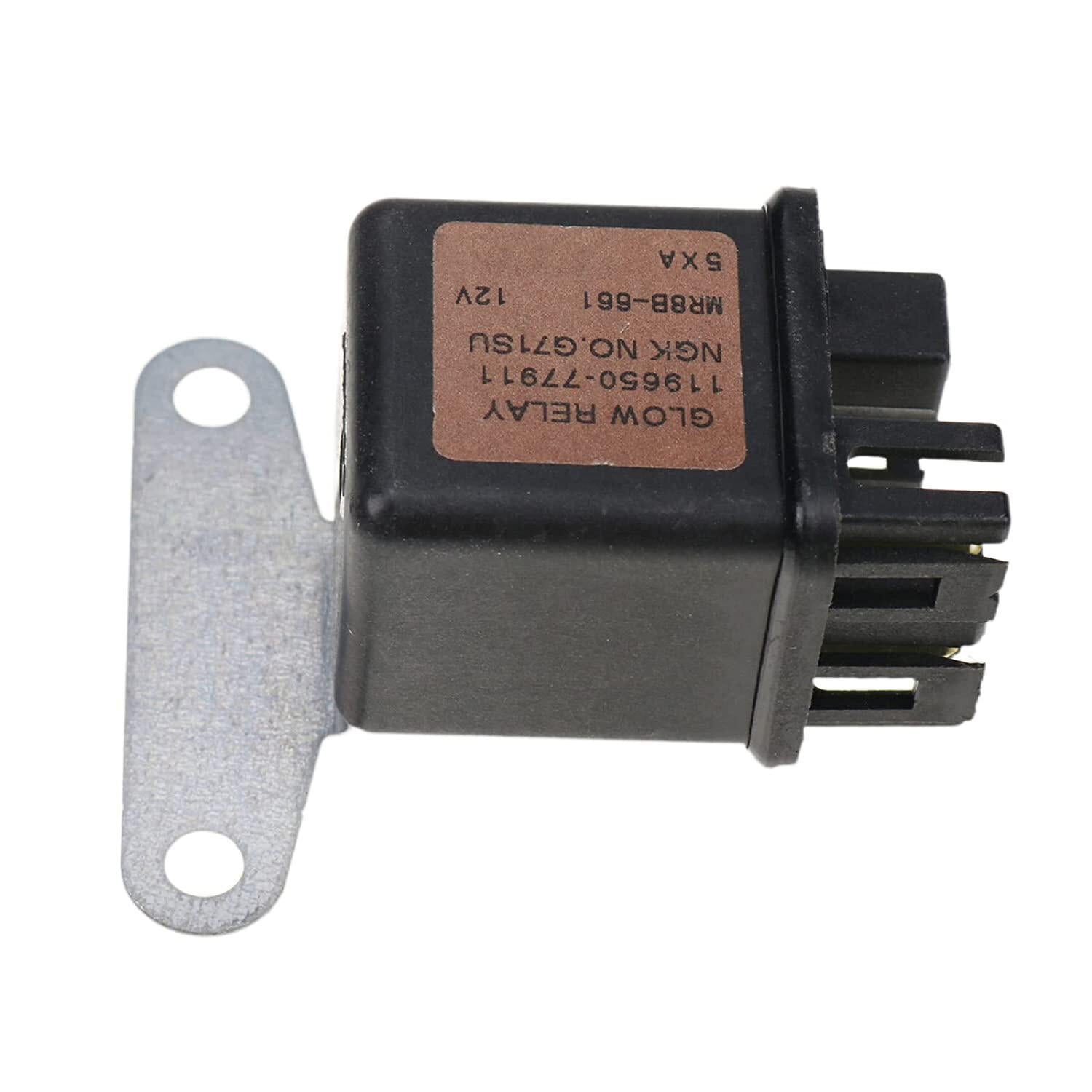

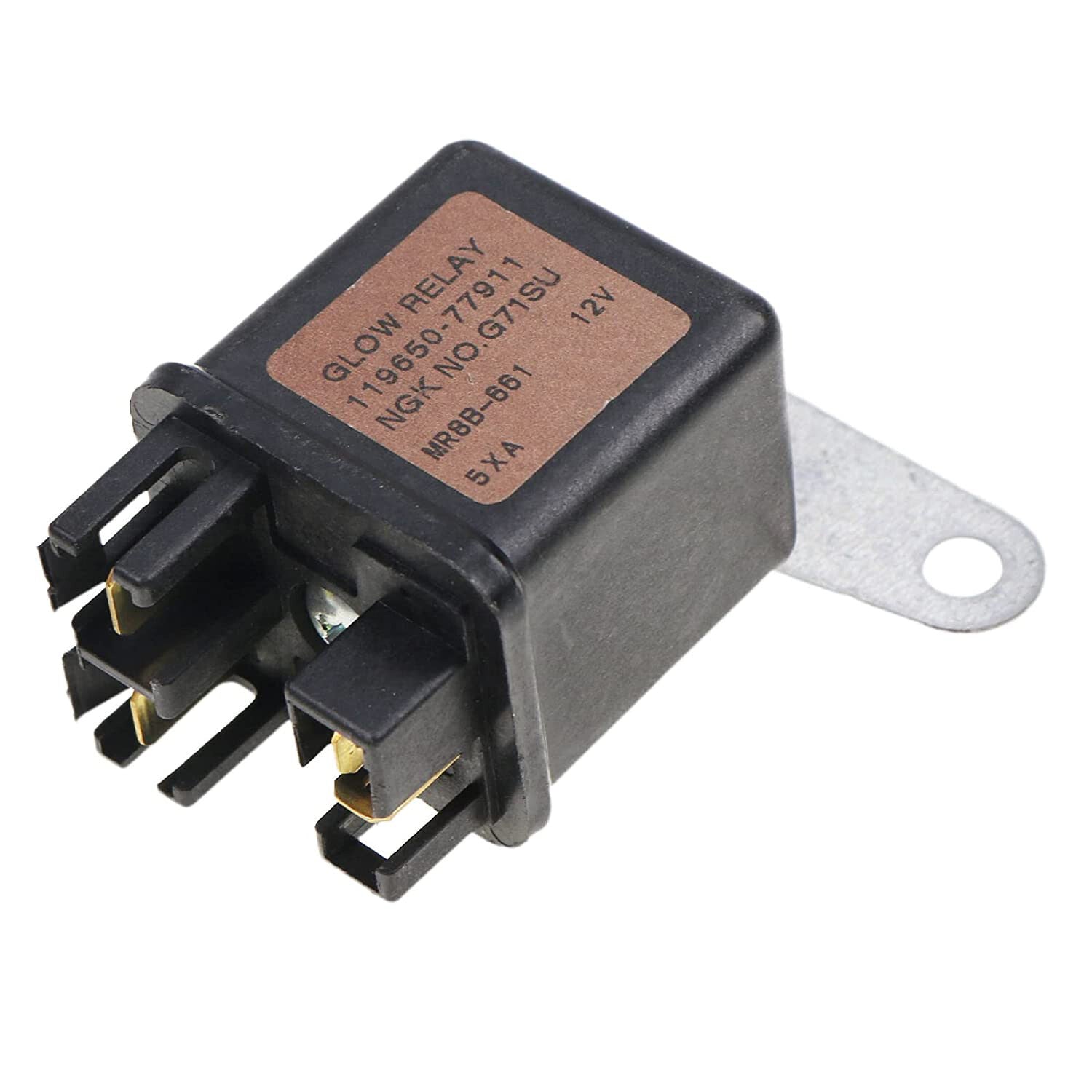

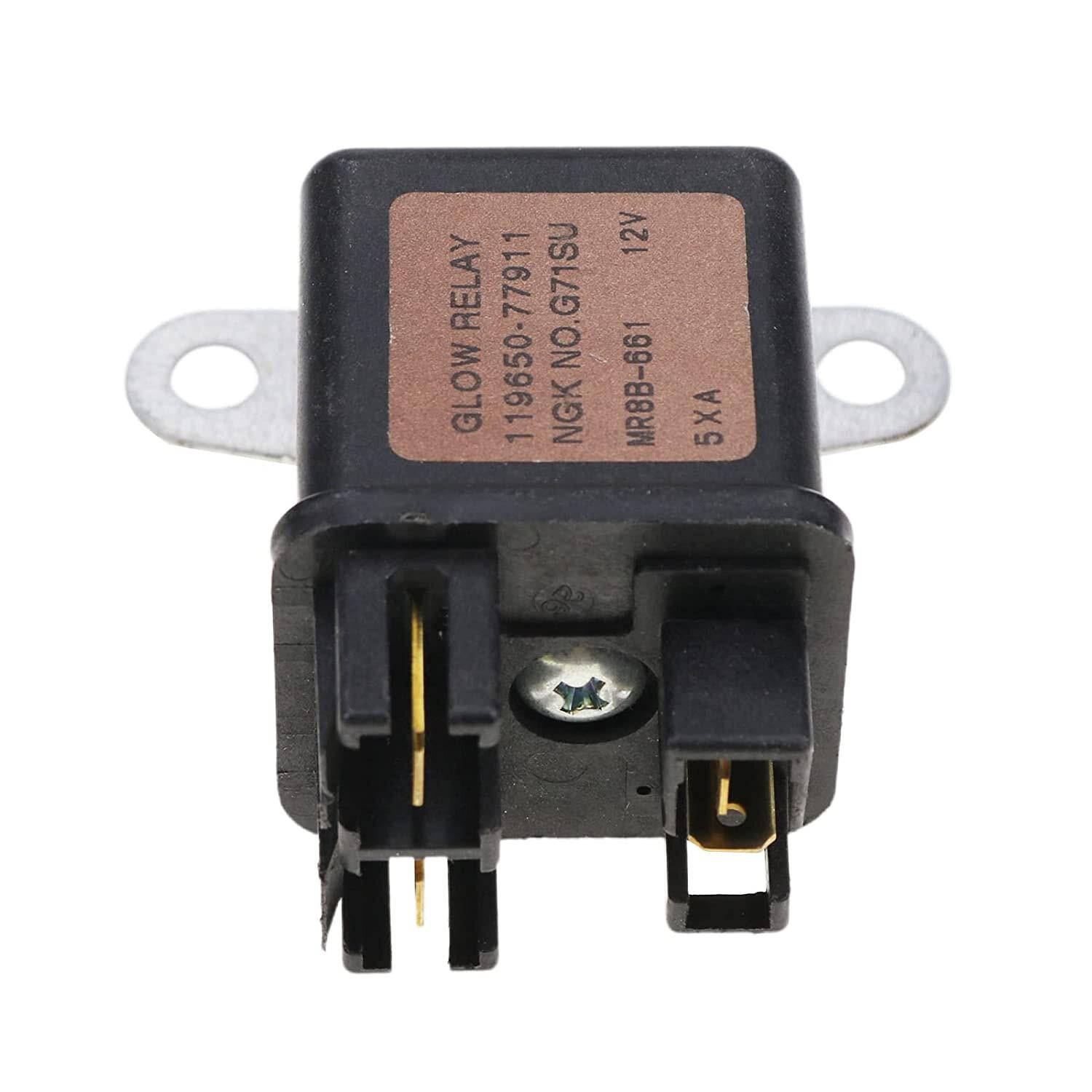

12V Glow Plug Timer Relay MR82BL-081 JIDECO 91008V for Kubota Yanmar
$23.99
In Stock
$23.99
Sale price
$23.99
Regular price
This aftermarket 12-volt four-pin glow plug timer relay replaces MR82BL-081 and JIDECO 91008V on compatible Kubota, Yanmar, Hitachi, and Isuzu-powered equipment.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Kubota L2900DT, L2900F, L3010F, L3300F, L35
- Kubota L3600DT, L4200DT, L4200F, L4310F, L48
- Kubota engines D722, D902, D905, D1105, V3300 when equipped with matching relay
- Hitachi EX27U, EX35U, EX50U, ZAXIS27U, ZAXIS35U, ZAXIS40U, ZAXIS50U when equipped with matching relay
- Yanmar and Isuzu C240/4JJ1 applications using MR82BL-081/91008V
Product Overview
Hard cold starts, no glow indicator, or glow plugs that stay powered too long can point to a failed time-delay relay. This module controls the preheat interval on compatible diesel equipment rather than serving as a simple always-on relay.
Test the glow plugs, bus bar, temperature input, wiring, and grounds before replacement. A shorted glow plug or poor connection can damage a new controller or create the same complaint.
Key Features & Performance
- Timed 12V glow-plug control
- Four-pin relay configuration
- Replacement for MR82BL-081 and JIDECO 91008V
- Supports correct diesel preheat duration
- Aftermarket module for matching wiring systems
Replaces Part Numbers
- MR82BL-081
- JIDECO 91008V
- 16415-65600
- 119650-77911
- 8942481610
Common Uses
- Repairing a no-glow condition
- Stopping glow plugs from remaining powered too long
- Correcting intermittent cold-start preheat
- Replacing a heat-damaged or corroded relay
Technical Specifications
- Part Type: Glow Plug Timer/Time-Delay Relay
- Voltage: 12V
- Pin Count: 4
- Application: Diesel preheat system
- Replacement Type: Aftermarket
Installation & Fitment
- Disconnect the battery
- Test glow-plug resistance and bus-bar condition
- Compare all four terminals and mounting points
- Repair corroded connectors or grounds
- Measure preheat timing and voltage after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Relay appearance is not enough. Match the printed numbers, voltage, pin layout, and machine wiring diagram.
Frequently Asked Questions
Q: Can this help a diesel that is hard to start only when cold? A: Yes, if testing shows the glow-plug timing circuit is not energizing correctly.
Q: Why do glow plugs keep burning out? A: Excessive on-time, incorrect plugs, wiring faults, or controller failure can overheat them.
Q: Is this a standard four-pin relay? A: No. It is a timed glow-plug control and should be matched by number.
Q: Is it OEM? A: No. It is an aftermarket replacement.
Part Summary
keywords: MR82BL-081 glow plug relay, JIDECO 91008V timer, Kubota L4200 preheat relay, Yanmar glow plug controller, 12V diesel time delay relay, Kubota hard cold start relay
