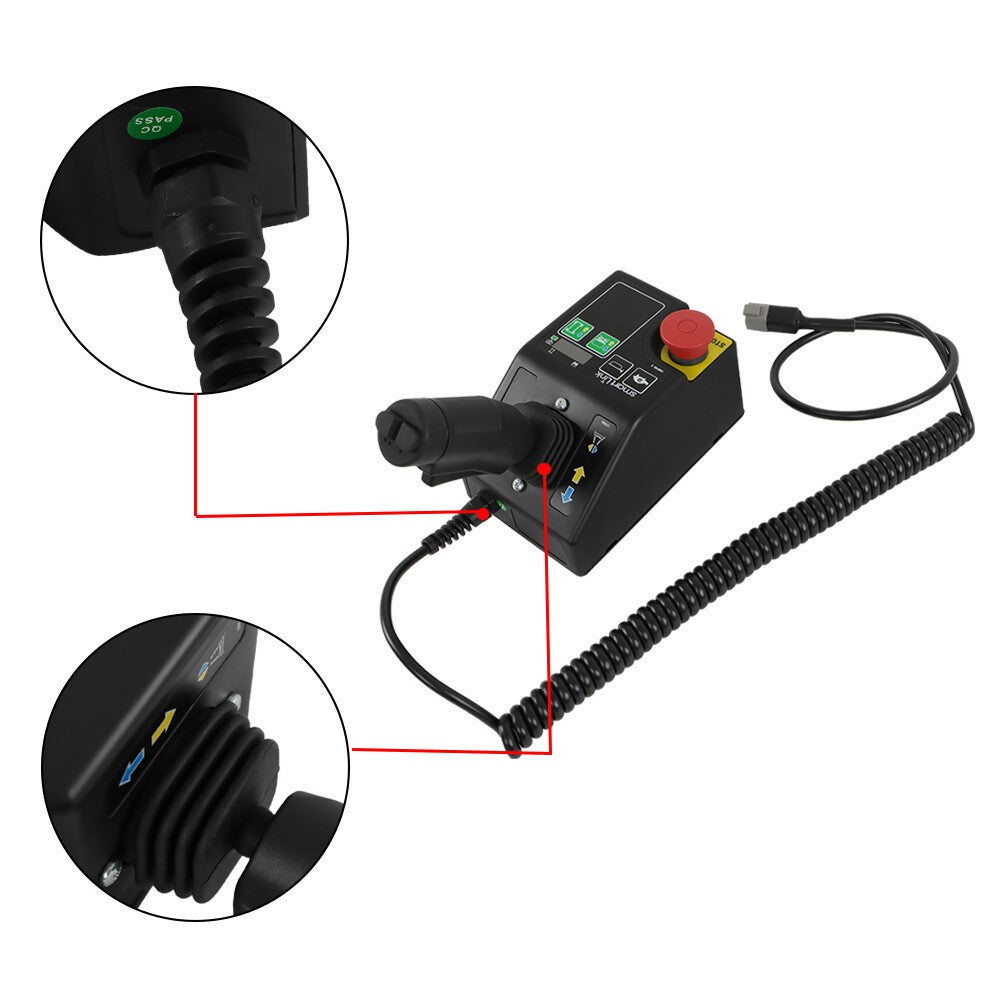

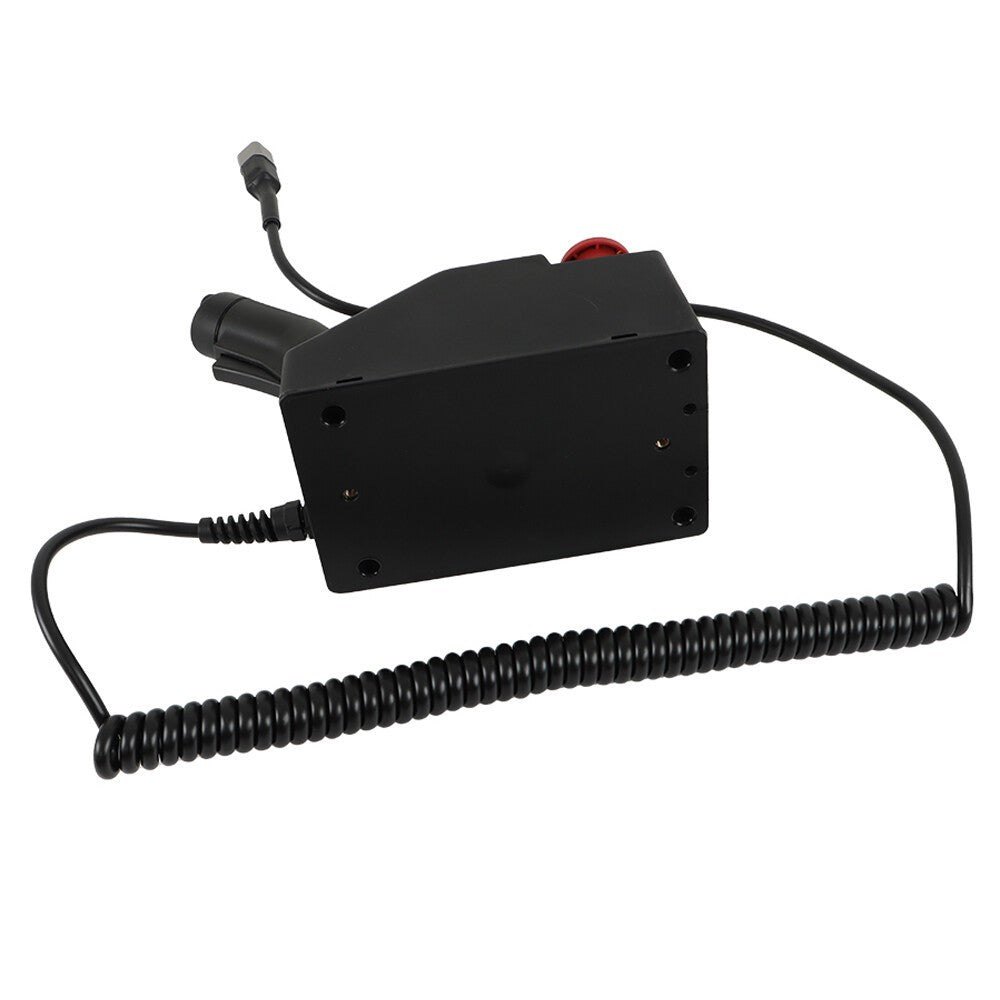

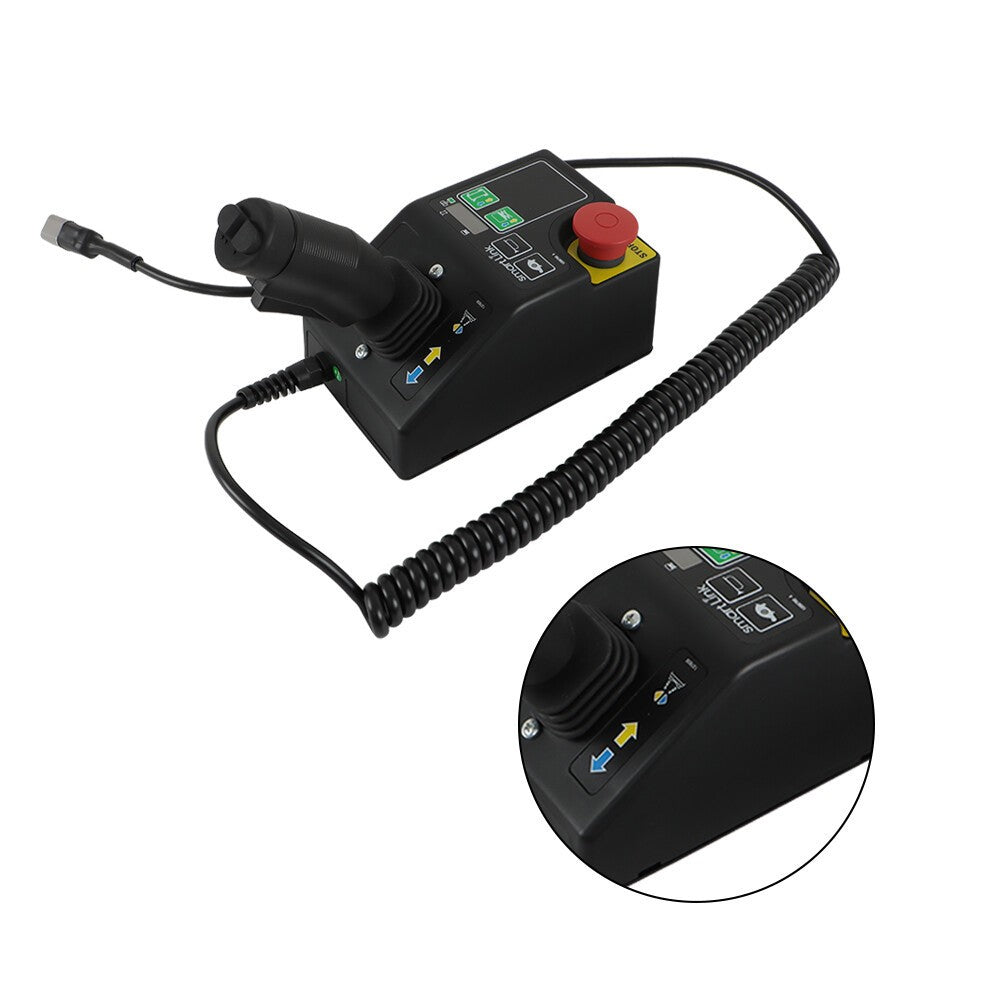

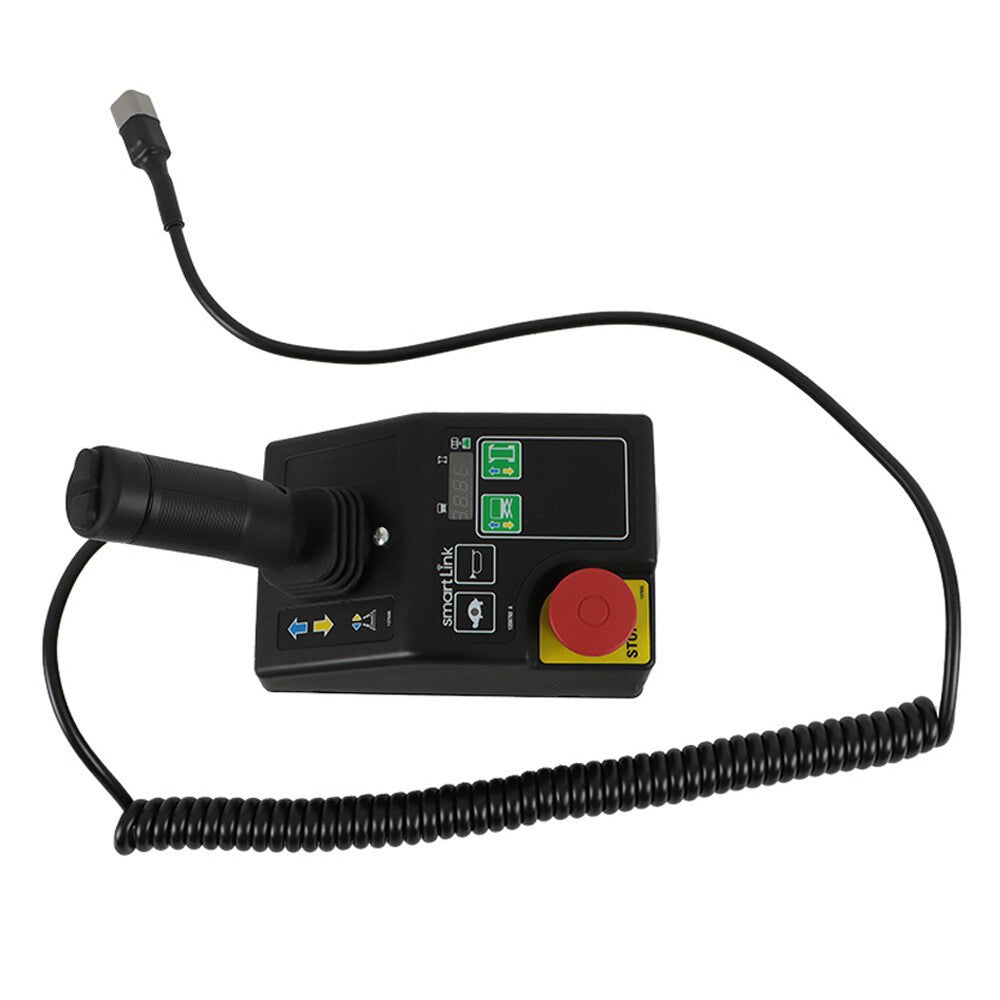

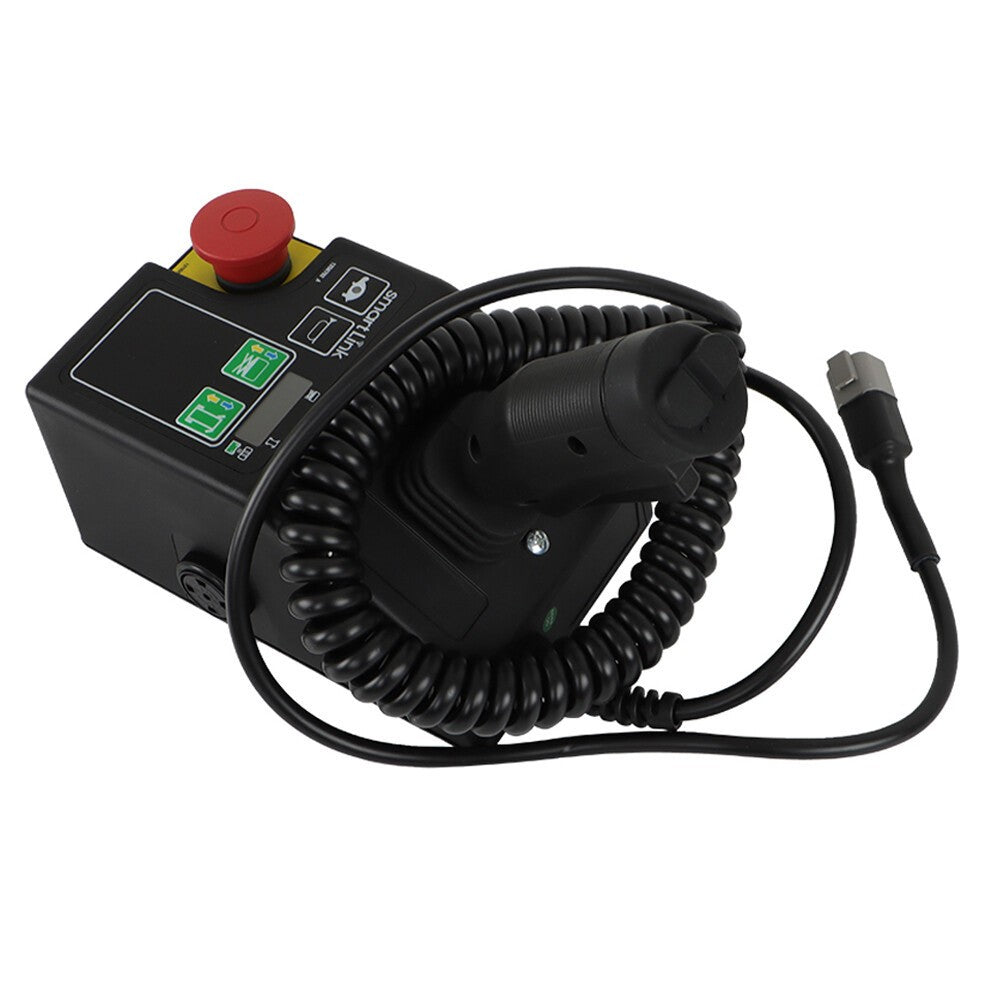

Genie 1256727GT Generation 6 Proportional Platform Control Box
$277.99
In Stock
$277.99
Sale price
$277.99
Regular price
Generation 6 proportional platform control box replacing Genie 1256727 and 1256727GT on compatible GR, GRC, and GS aerial-work-platform models within the correct serial range.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Genie GR-12, GR-15, and GR-20 within supported Generation 6 serial ranges
- Genie GRC-12 within supported Generation 6 serial ranges
- Genie GS-1530 and GS-1532 within supported serial ranges
- Genie GS-1930 and GS-1932 within supported serial ranges
Product Overview
A dead joystick, erratic proportional movement, missing platform functions, or a damaged enclosure may lead to the upper control box—but batteries, charger, grounds, harnesses, emergency-stop circuit, limit switches, interlocks, and machine calibration must be diagnosed first. This is a safety-critical lift control, not a plug-in guess.
The box provides platform commands for drive, steer, lift, enable, and related machine functions on supported Generation 6 systems. Model name is only the first filter; control generation, connector set, software or calibration requirements, options, and serial break must match Genie service information.
Key Features & Performance
- Generation 6 proportional platform controls for matching Genie lifts
- Cross-references 1256727 and 1256727GT
- Supports the intended proportional joystick and upper-control functions
- Built for specific model and serial-number ranges
Replaces Part Numbers
- 1256727
- 1256727GT
Common Uses
- Replacing a physically damaged platform control enclosure
- Repairing failed proportional commands after harness and sensor diagnosis
- Restoring upper controls after water or connector damage
- Servicing a supported Genie lift with a confirmed control-box fault
Technical Specifications
- Product Type: Proportional Platform Control Box
- Control Generation: Genie Generation 6
- Part Numbers: 1256727 / 1256727GT
- Machine Families: Matching GR, GRC, and GS lifts
- Condition: New aftermarket or replacement assembly as listed
- Serial Verification: Required
Installation & Fitment
- Record model, serial number, control generation, options, and fault codes before ordering
- Disable and secure the lift according to Genie service procedures

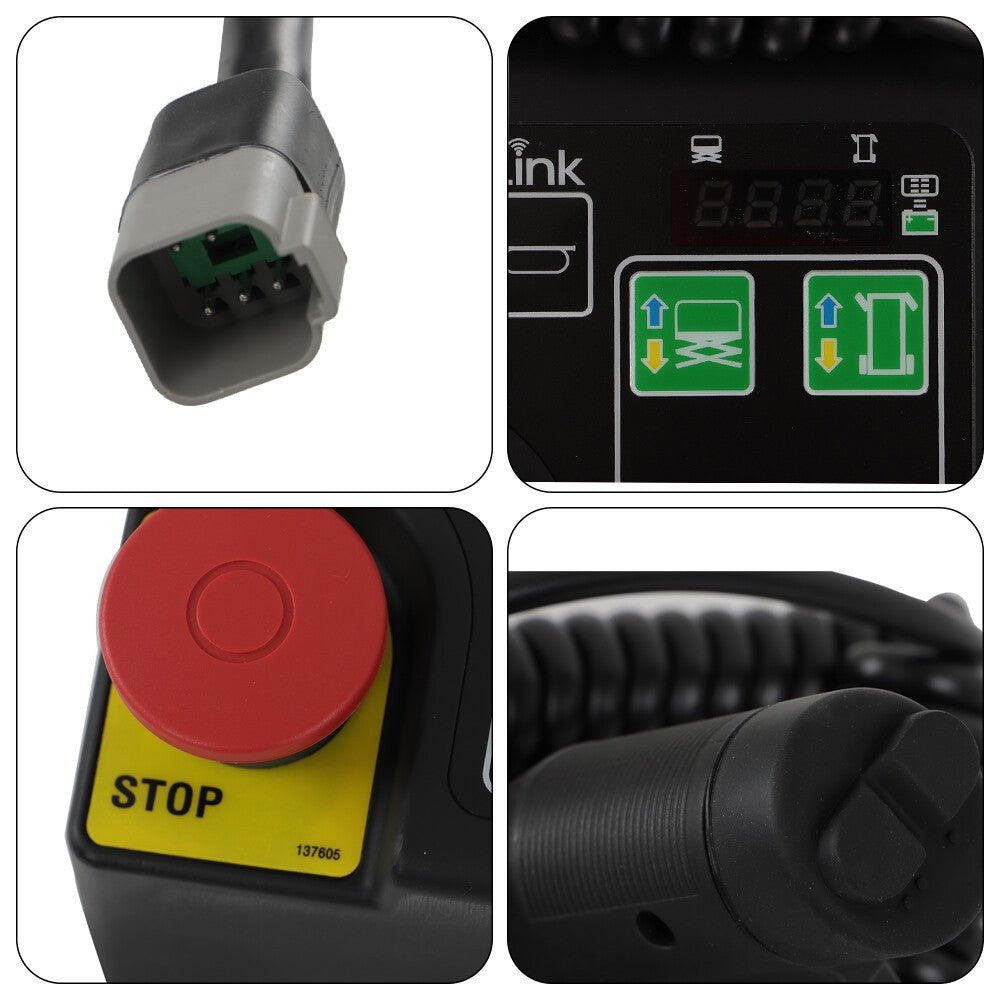

- Compare every connector, switch, joystick, decal, and enclosure mounting point
- Have a qualified technician complete calibration and test E-stops, alarms, interlocks, drive, steer, and lift functions
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Is matching the Genie model enough to confirm this control box? A: No. Serial range, control generation, connectors, options, and calibration requirements all matter.
Q: Can the machine return to service as soon as the box powers up? A: No. All safety interlocks, emergency stops, alarms, limits, and proportional functions require a documented functional test.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
