Genie Gen 6 SmartLink Platform Control Box 1256727GT
$560.99
In Stock
$560.99
Sale price
$560.99
Regular price
This new aftermarket Gen 6 SmartLink platform control box replaces Genie 1256727 and 1256727GT for compatible GS electric scissor lifts using the matching proportional-control system.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Genie GS-1530 and GS-1532
- Genie GS-1930 and GS-1932
- Genie GS-2032 and GS-2046
- Genie GS-2632 and GS-2646
- Genie GS-3246 and GS-4047
- Select Genie GR-12, GR-15 and GR-20 units only when the Gen 6 SmartLink control reference matches
Product Overview
A lift that powers up at the ground controls but has no platform drive or lift response, an erratic joystick, or damaged buttons may lead to the upper control box. A broken coil cord, low batteries, emergency-stop circuit, enable switch, controller code, or calibration issue can create the same complaint.

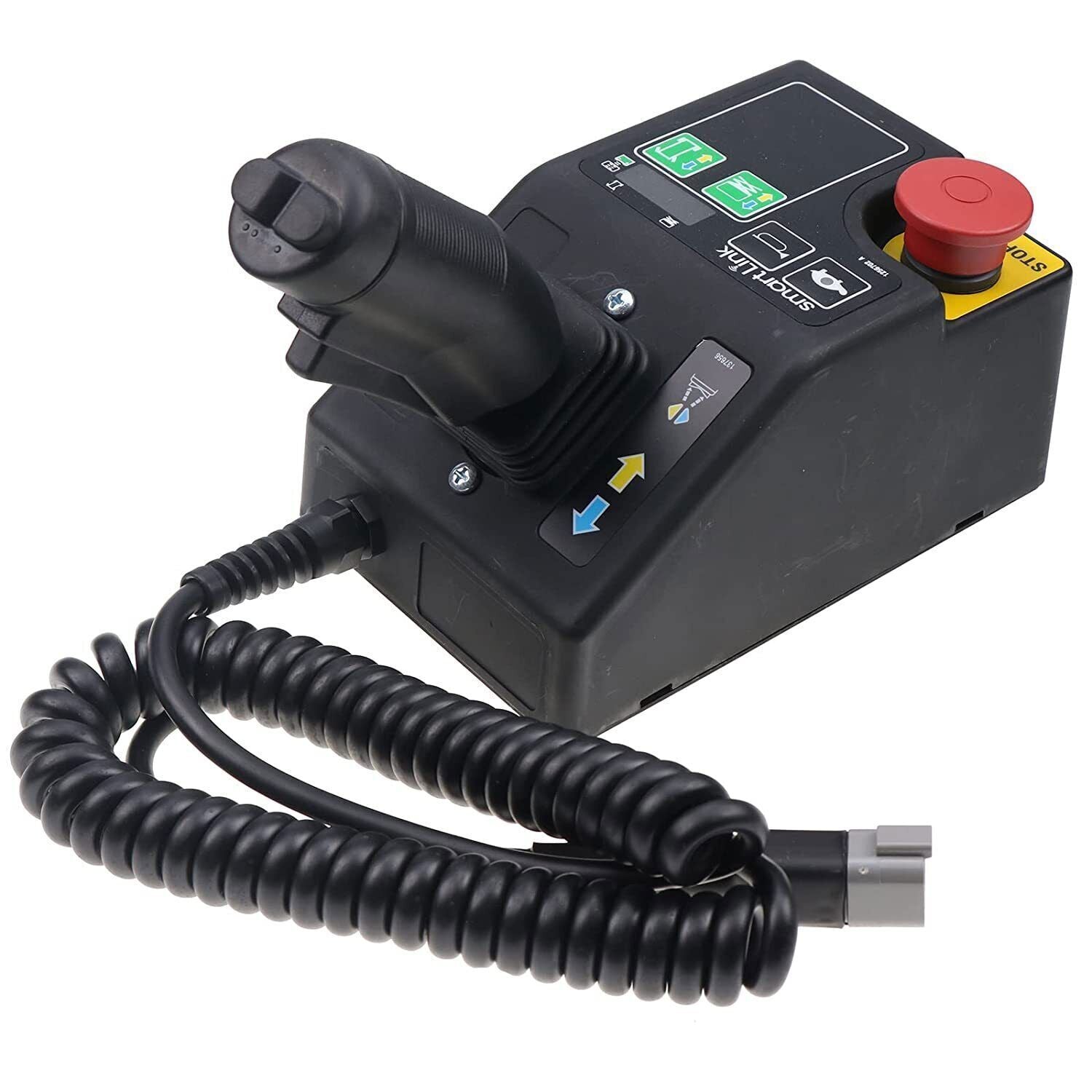

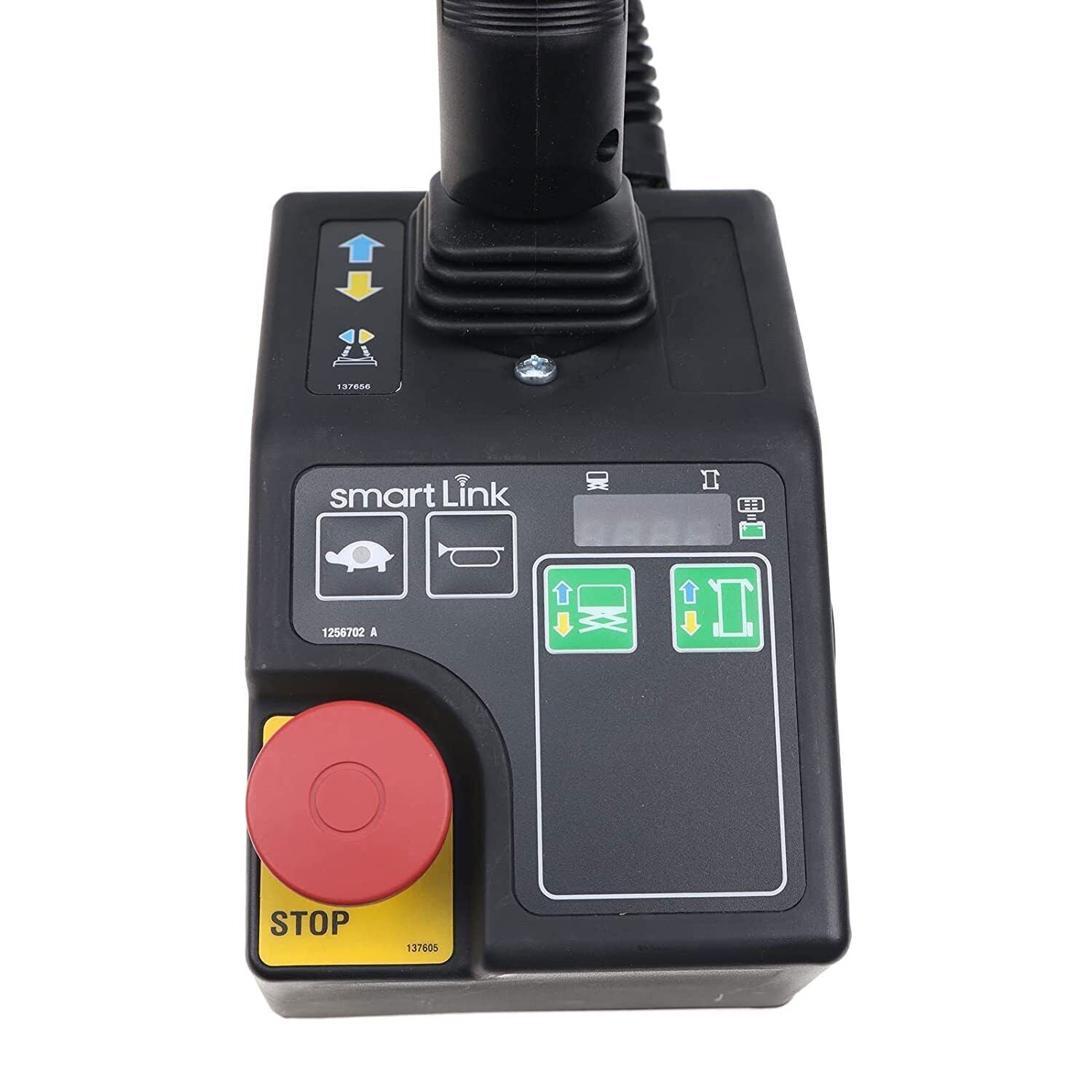

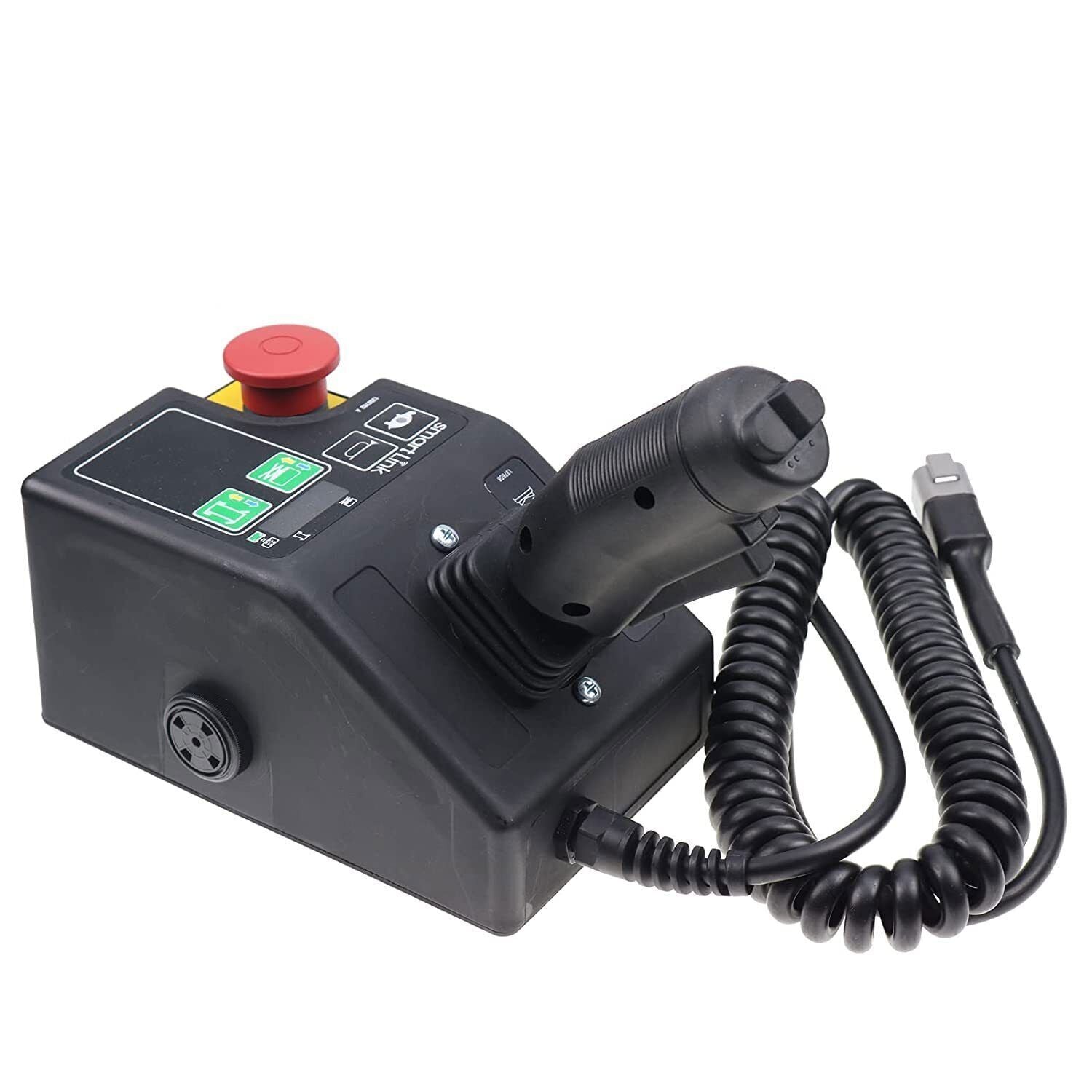

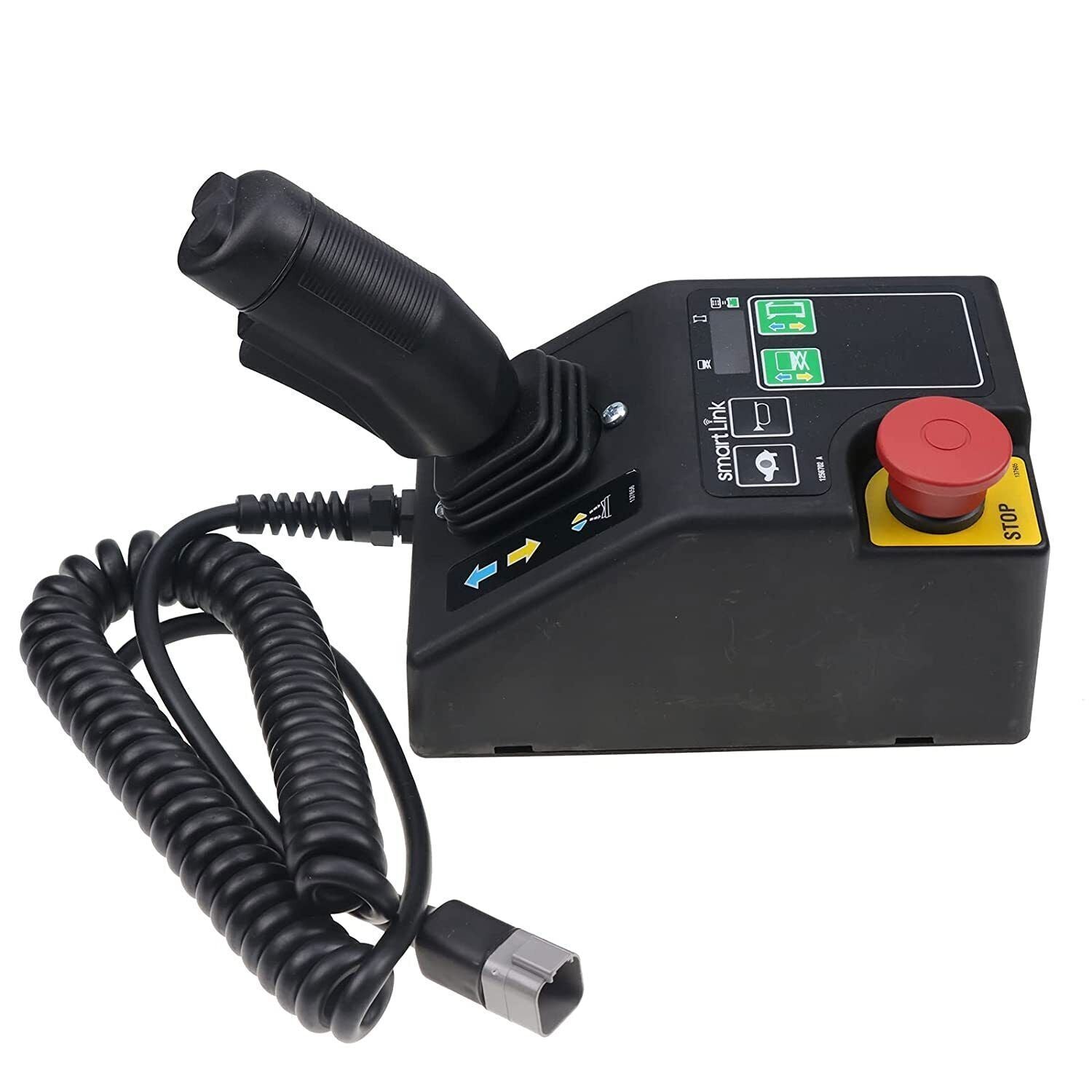

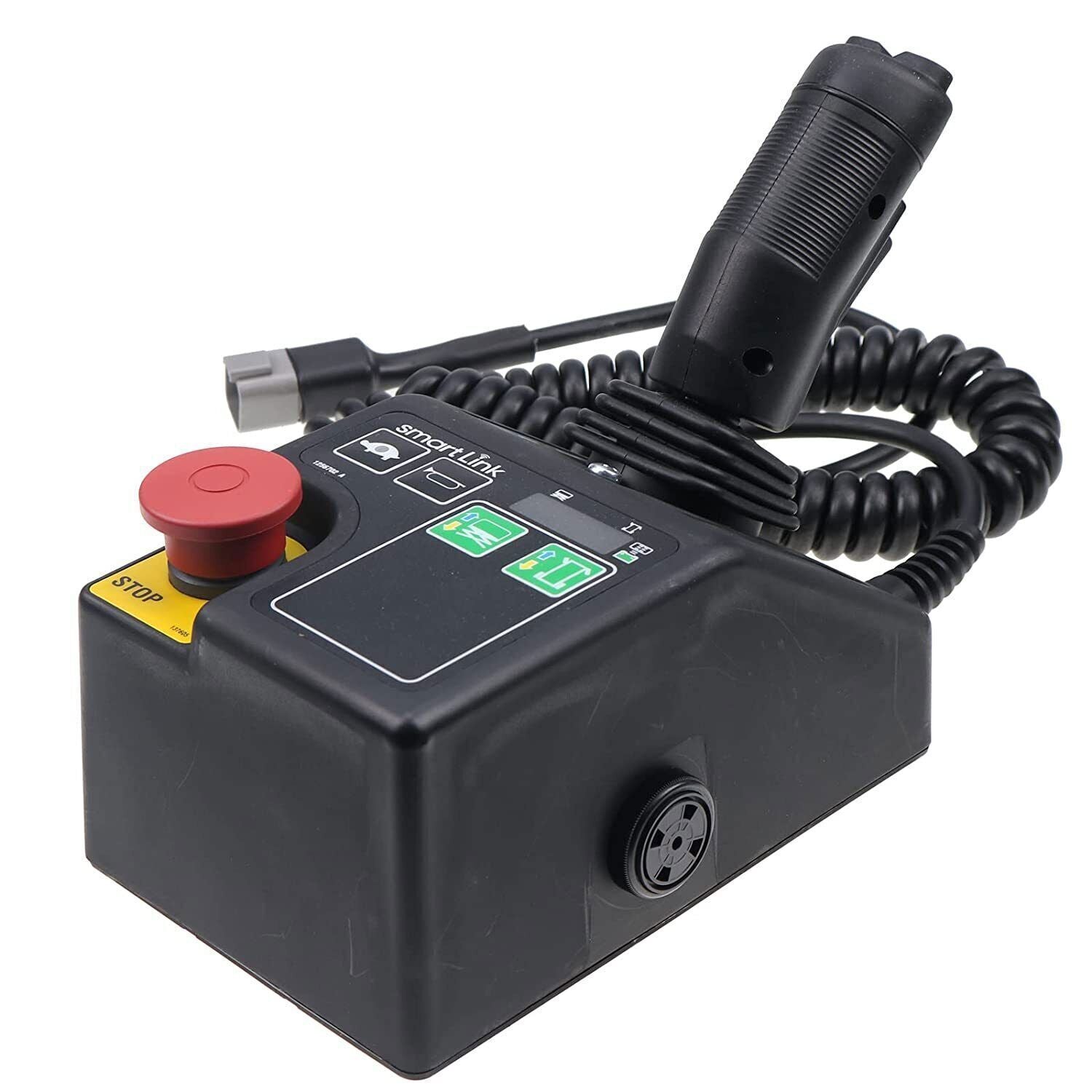

The enclosure combines the platform joystick, function selection, enable controls, and SmartLink operator interface for the matching generation. It is not interchangeable with every earlier or later Genie box even when the connector looks close.
Match 1256727GT, Gen 6 SmartLink layout, joystick and button decals, harness connector, mounting bracket, machine model, serial number, and software/calibration requirements. Confirm exactly which bracket, cord, and decal pieces are pictured.
Key Features & Performance
- Gen 6 SmartLink proportional platform-control layout
- Integrated joystick and operator function controls
- Replacement for a physically damaged or diagnostically failed upper box
- Matching reference provides a clear starting point for serial-number verification
Replaces Part Numbers
- 1256727
- 1256727GT
Common Uses
- Restoring platform drive and steer commands after signal testing
- Replacing a control box damaged by impact or weather
- Repairing worn joystick or enable controls as an assembly
Technical Specifications
- Product Type: Scissor-lift platform control box
- Control Generation: Gen 6 SmartLink
- Primary Reference: 1256727GT
- Condition: New aftermarket replacement
Installation & Fitment
- Lower and secure the platform and follow lift lockout procedures
- Disconnect main power and inspect the coil cord first

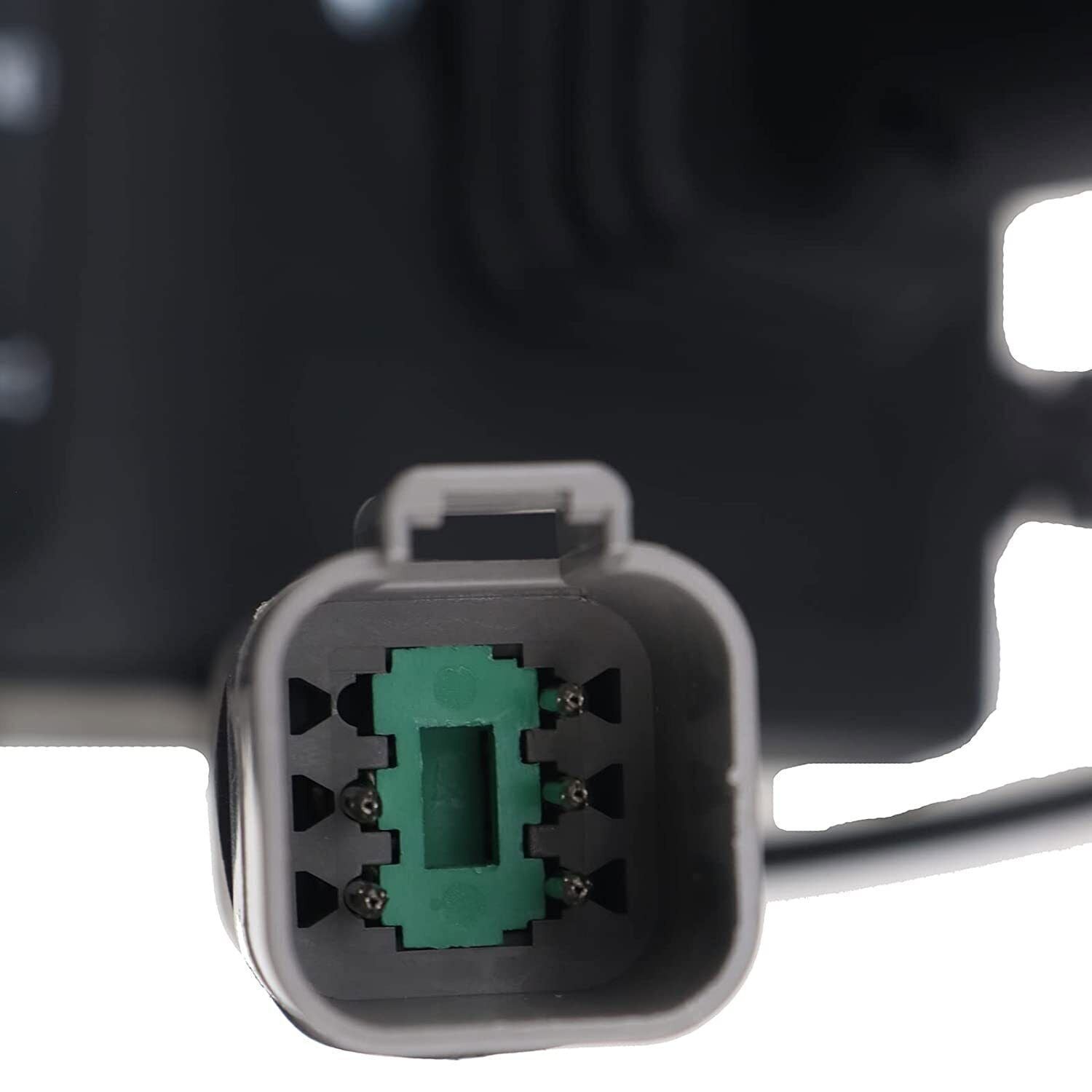

- Compare all connectors and control graphics
- Install without pinching or twisting the harness
- Perform required calibration and full function testing from ground and platform controls
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can this fix a lift that works only from the ground? A: It may if the platform box is proven faulty, but the cord, E-stop, enable circuit, batteries, and controller diagnostics should be checked first.
Q: Does it fit every GS-1930? A: No. Model generation and serial number determine the correct control box.
Q: Will it need calibration? A: A platform control replacement may require machine setup or calibration; follow the Genie service procedure.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
