Fuel Shutoff Valve 311292 for Ford 501 600-901 2000 4000 Tractors
$29.99
In Stock
$29.99
Sale price
$29.99
Regular price
This aftermarket 311292 tank fuel valve fits compatible four-cylinder Ford and New Holland tractor applications with the matching two-screw mount and 1/4-inch line.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford / New Holland 501 / 600 / 601 / 700 / 701 / 2000 (1955-1964 compatible applications)
- Ford / New Holland 800 / 801 / 900 / 901 before serial 126524
- Ford / New Holland 2000 / 4000 four-cylinder diesel (1958-1964 compatible applications)
- Select 1800-series and related tractors using the same 311292 valve
Product Overview
When fuel continues to seep with the valve closed, the handle will not turn, or the tank outlet leaks around the mounting flange, the shutoff should be replaced before fuel reaches the floor or floods the carburetor. Old varnish and rust need to be removed at the same time.
This broader application listing covers gas and diesel four-cylinder tractor families, but not every later tractor carrying the same series badge. Engine type, production year, serial number, tank mount, and 1/4-inch line are the real fitment checks.
Key Features & Performance
- Manual tank fuel shutoff with serviceable handle
- Two-screw flange and O-ring tank seal
- Compatible with selected gas and four-cylinder diesel tractors
- Replaces Ford / New Holland 311292
Replaces Part Numbers
- 311292
- 311292WORGV
- HF311292
- NCA9285B
Common Uses
- Replacing a valve that will not fully stop fuel flow
- Repairing leakage at the tank flange
- Adding reliable fuel isolation before carburetor service

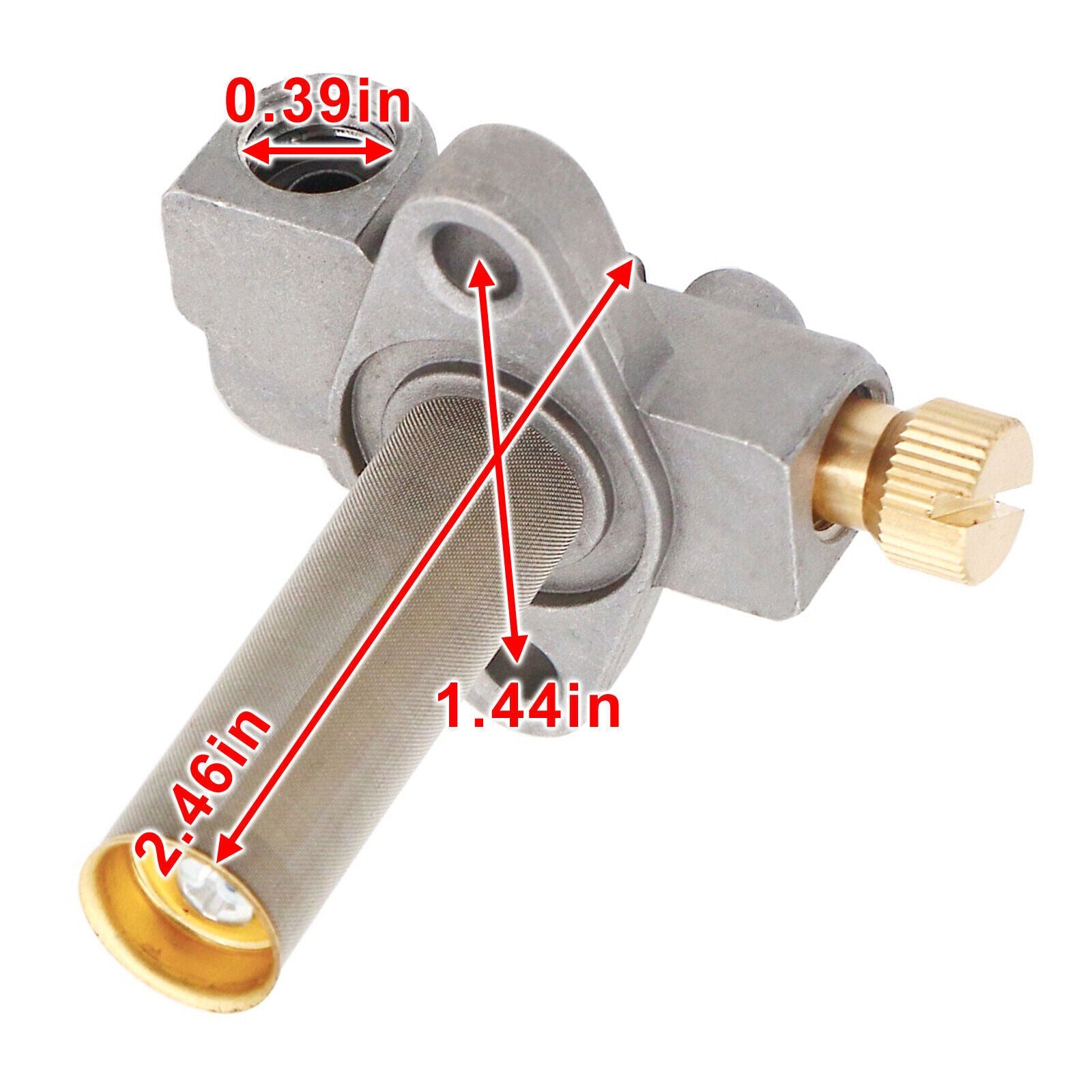

Technical Specifications
- Product Type: Tractor fuel shutoff valve
- Tank Mount: Two screw
- Fuel Line: 1/4 in compatible system
- Condition: New aftermarket replacement
Installation & Fitment
- Drain and capture fuel safely
- Inspect the tank flange for pitting or stripped threads
- Install the O-ring clean and square
- Confirm the tractor serial range and four-cylinder fuel-system layout
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Does this fit a later three-cylinder Ford 4000? A: Not by series name alone; this listing targets compatible earlier four-cylinder applications.
Q: Why will the carburetor still flood after the valve is replaced? A: The carburetor float or needle may also be worn or contaminated.
Q: What should I match first? A: Match 311292, the two-screw tank mount, O-ring seat, line size, and serial range.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Ford 2000 tractor fuel shutoff, Ford 4000 four cylinder fuel valve, 311292 tank tap, 501 600 700 tractor valve, Ford tractor leaking fuel outlet
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
