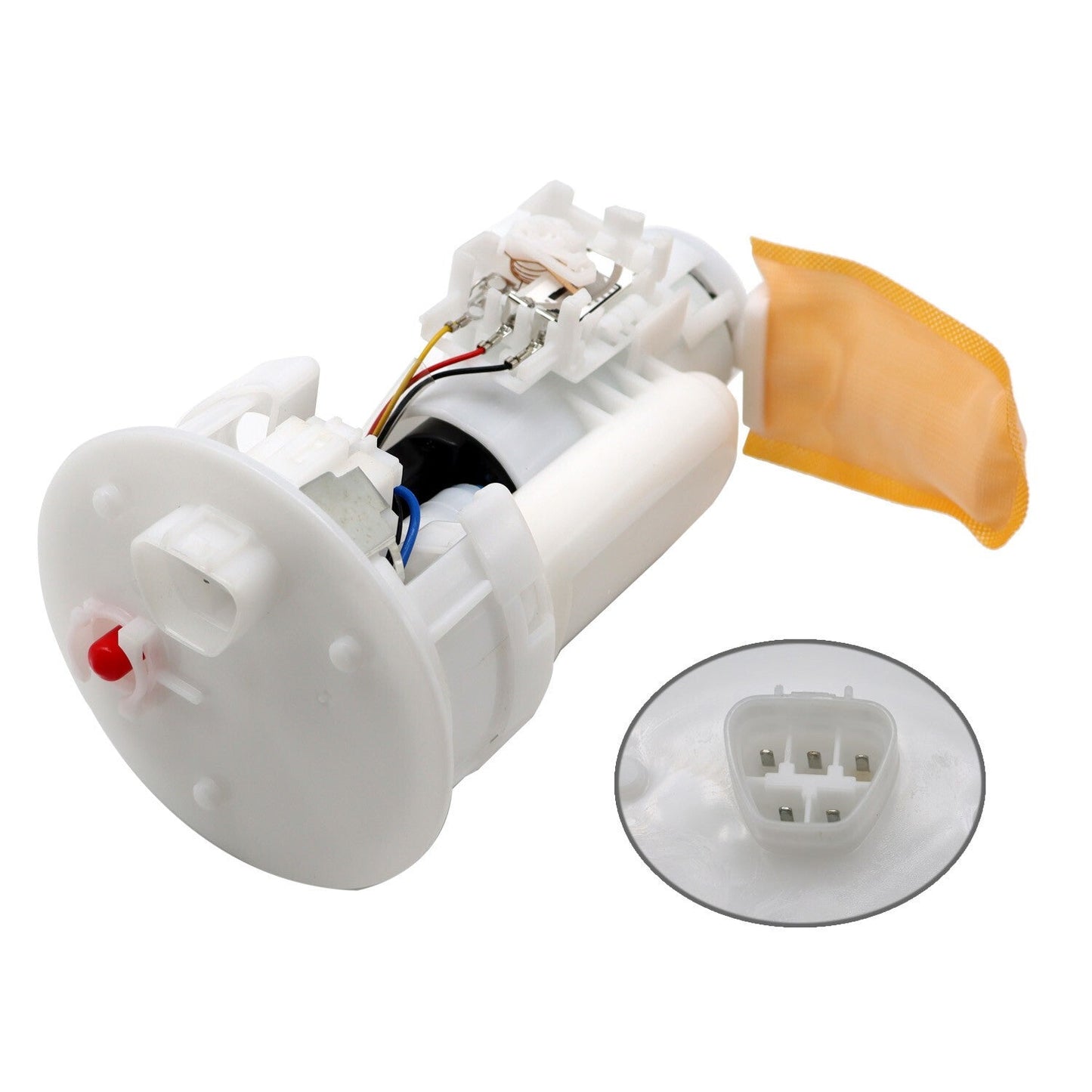

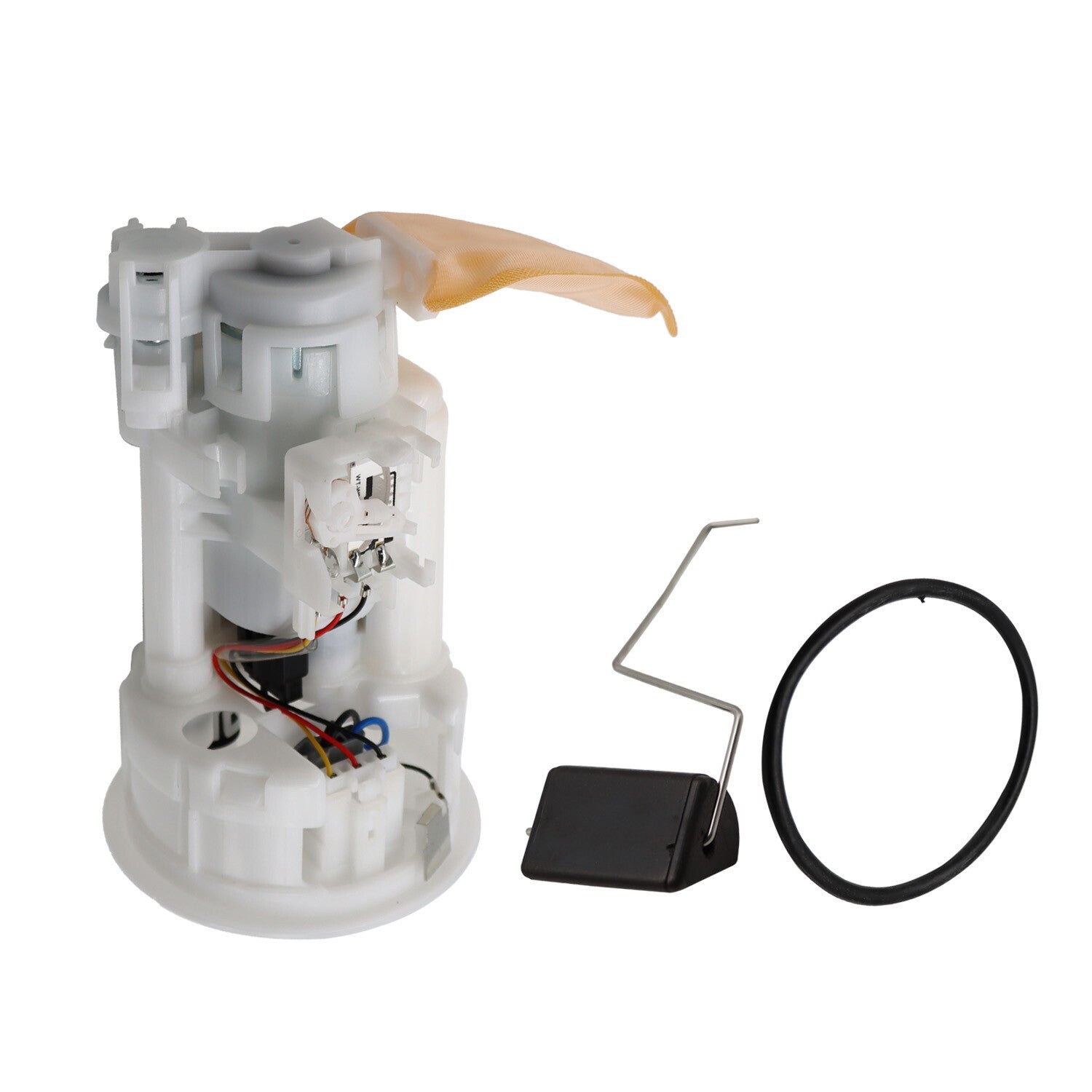

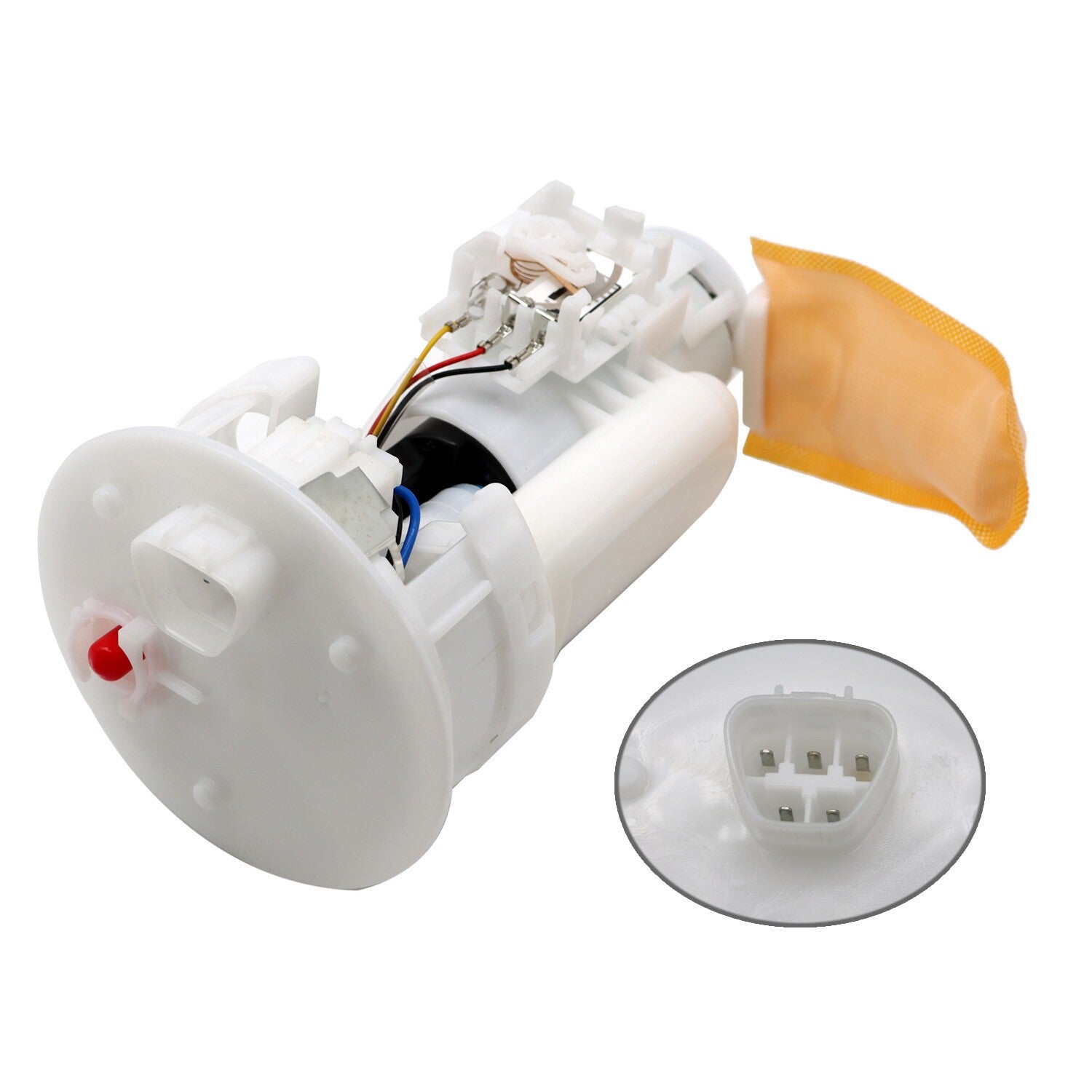

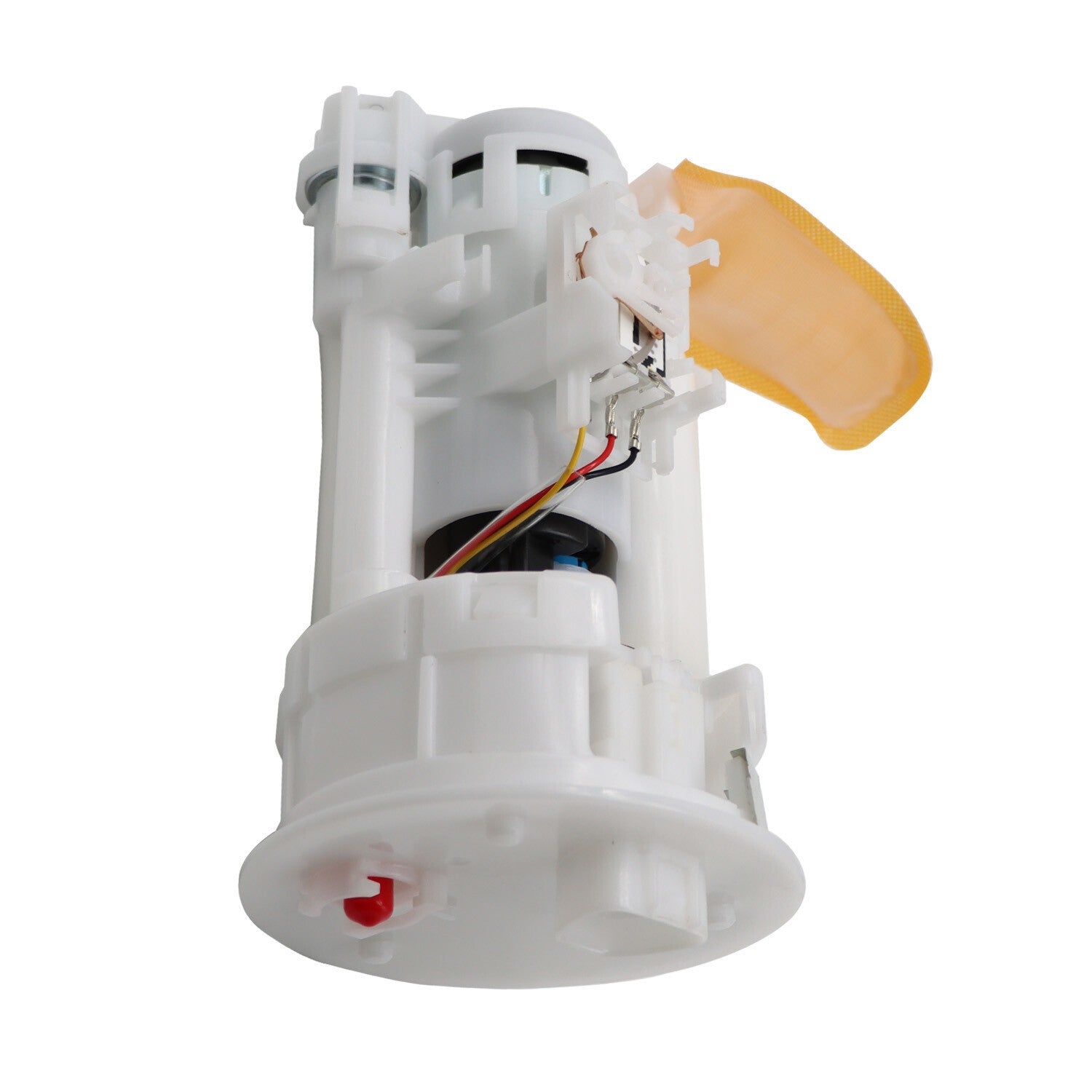

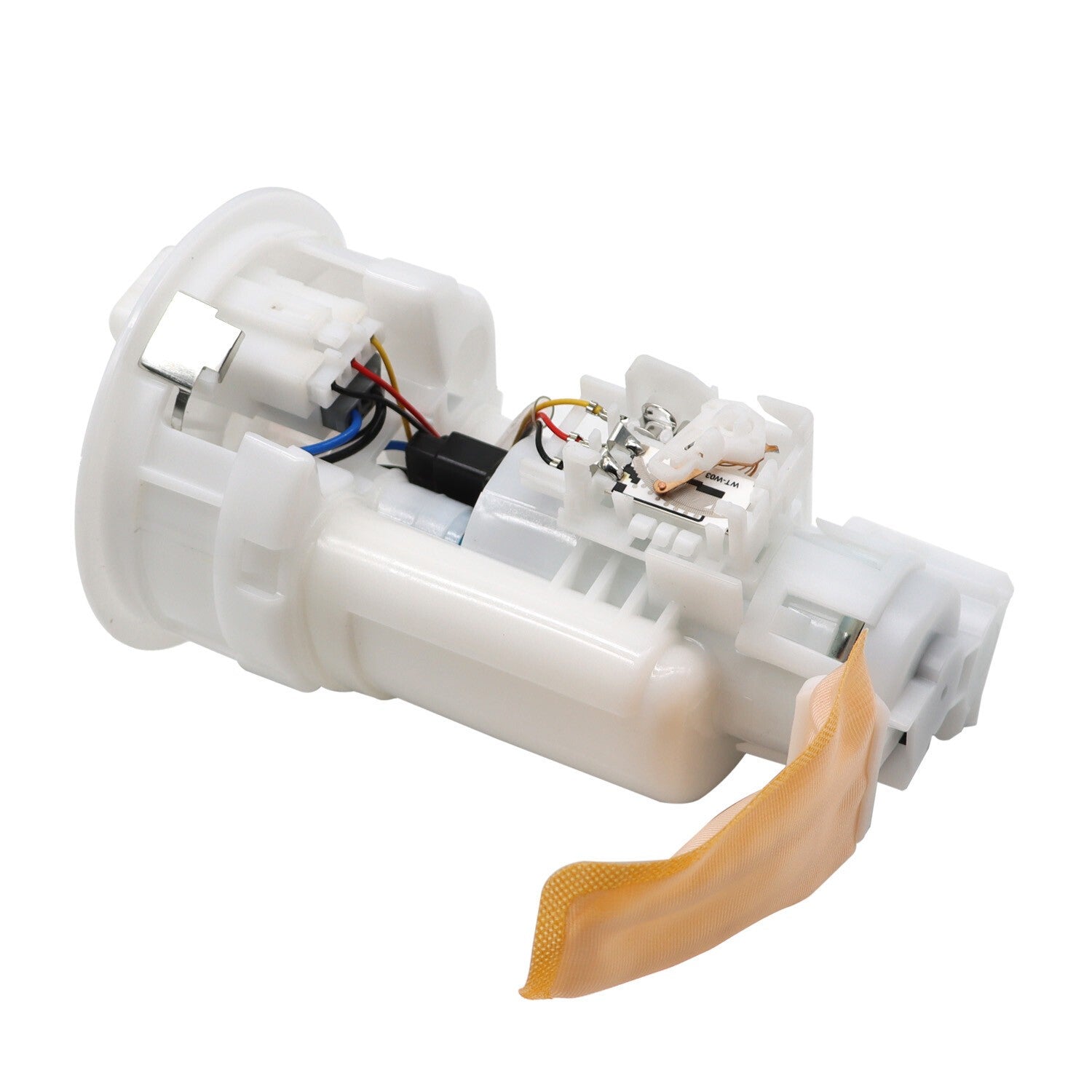

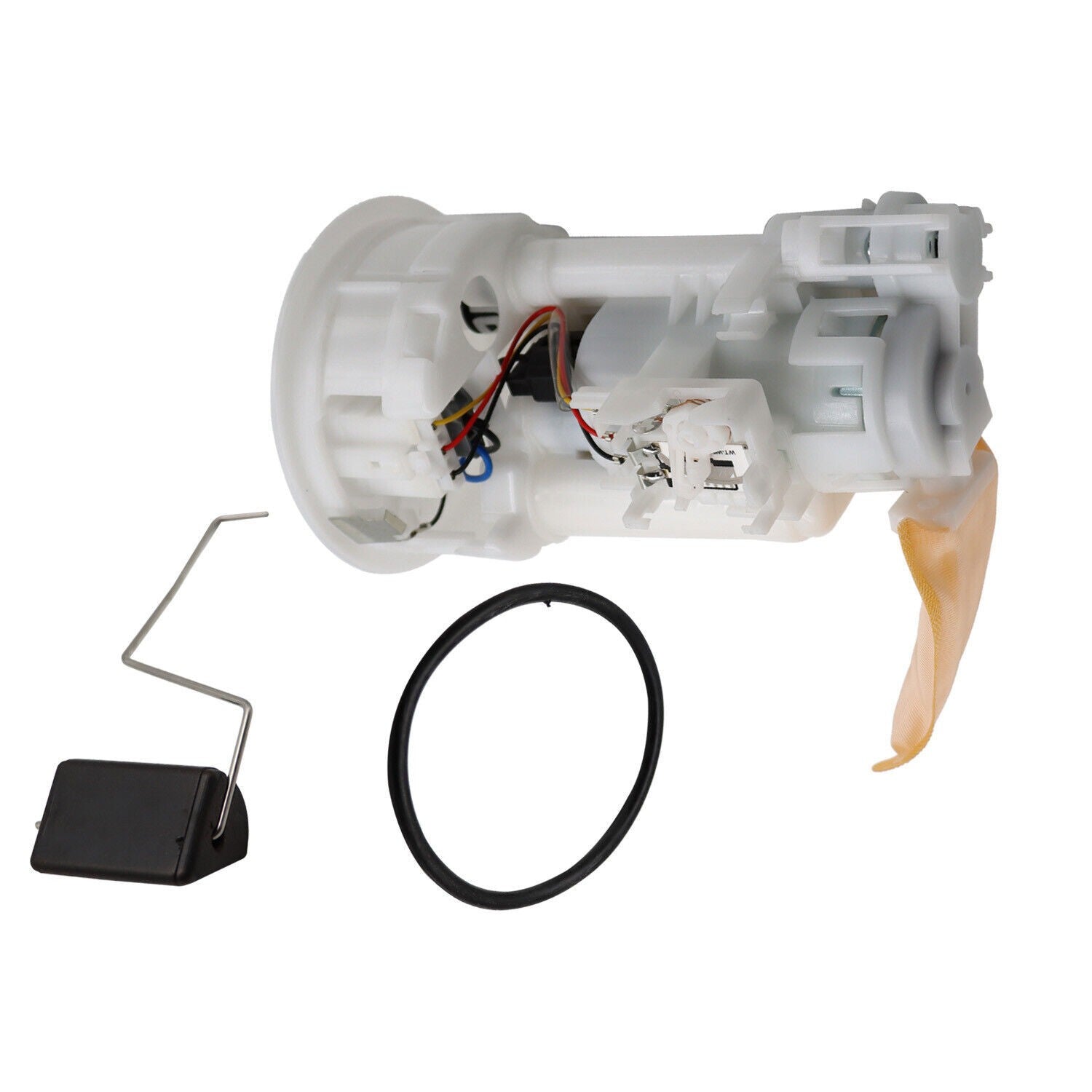

Fuel Pump Module Assembly for 2002–2005 Toyota Camry 2.4L – 77020-33110
$95.99
In Stock
$95.99
Sale price
$95.99
Regular price
New aftermarket in-tank fuel pump module assembly for compatible 2002–2005 Toyota Camry 2.4L four-cylinder models; replaces 77020-33110.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2002 Toyota Camry 2.4L
- 2003 Toyota Camry 2.4L
- 2004 Toyota Camry 2.4L
- 2005 Toyota Camry 2.4L—verify production date
Product Overview
A Camry that cranks but will not start, stalls when the tank is low, loses pressure, or has a failed sender may need module service after the relay, wiring, injectors, and pressure are tested. This assembly renews the in-tank pump and related module parts shown.
California/federal emissions, tank design, connector, sender, and production date can change the module. Compare the flange and plug.
Key Features & Performance
- In-tank pump module for 2.4L Camry
- Cross-reference 77020-33110
- Restores fuel pressure and module function
- Useful when the pump, hanger, or sender assembly is damaged
Replaces Part Numbers
- 77020-33110
Common Uses
- Repairing a no-prime or low-pressure condition
- Replacing an intermittent pump

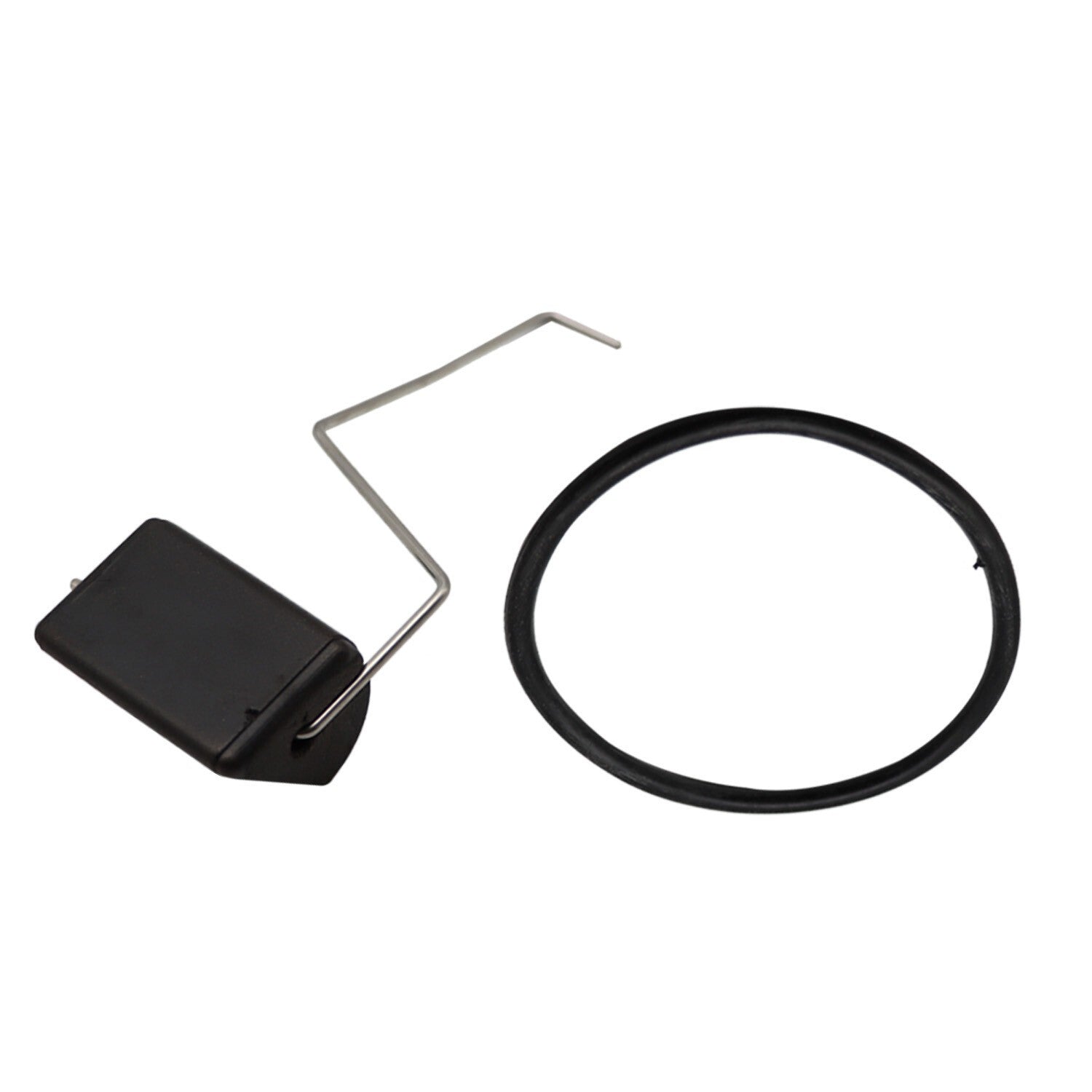

- Renewing a damaged tank-module flange or sender
Technical Specifications
- Product Type: Fuel pump module assembly
- Mounting: In tank
- Engine: 2.4L L4
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Test pressure and electrical supply before replacement
- Work with the tank below the service opening level
- Clean the tank and use a new seal
- Prime the system and inspect for leaks and correct gauge movement
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Engine, emissions package, build date, fuel tank, connector, and sender range affect compatibility. Match 77020-33110 and the removed module.
Frequently Asked Questions
Q: Does this fit the 3.0L V6 Camry? A: No. The listed application is the 2.4L four-cylinder.
Q: Can a bad fuel-pump relay cause no pressure? A: Yes. Test the circuit before replacing the module.
Q: Is the fuel-level sender included? A: Expect only the components shown in the listing assembly.
Q: Why replace the tank seal? A: A reused or damaged seal can leak fuel vapors or liquid fuel.
Part Summary
keywords: 77020-33110 fuel pump, 2002 2005 Camry pump module, Toyota Camry 2.4 no start, Camry in tank fuel pump, Toyota low fuel pressure repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
