SKU:
NLT2T03481
Ships for free in 2–4 business days.

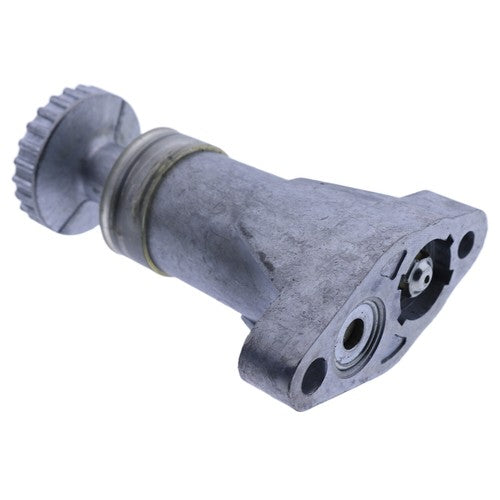

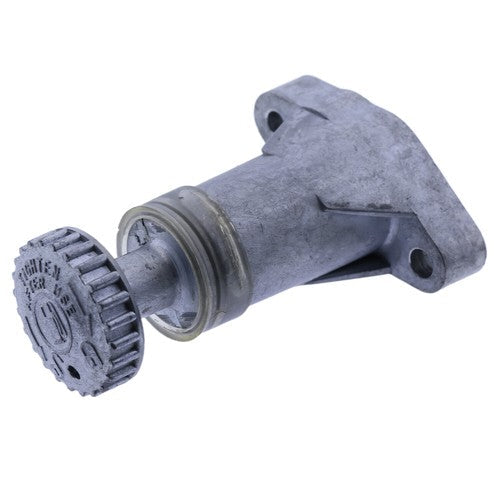

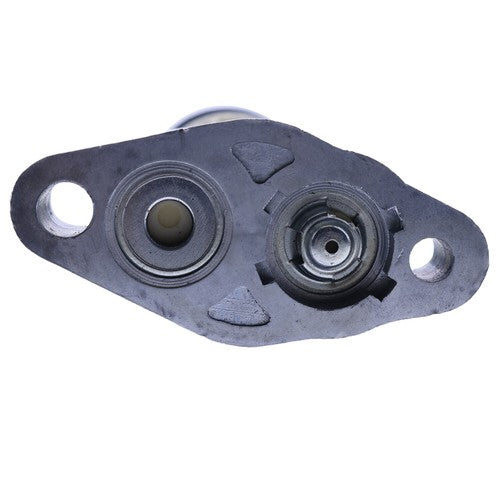

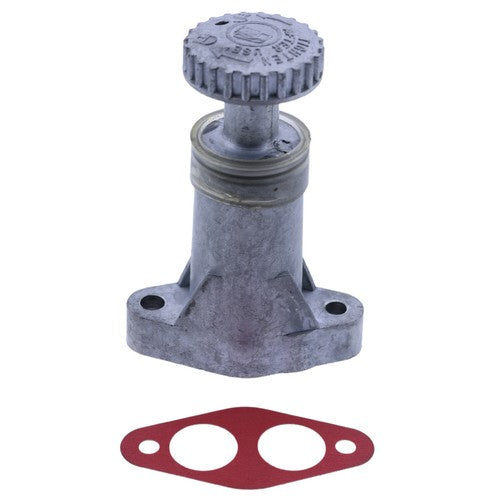

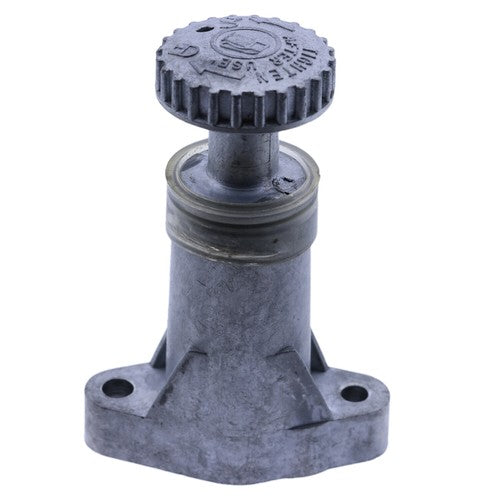

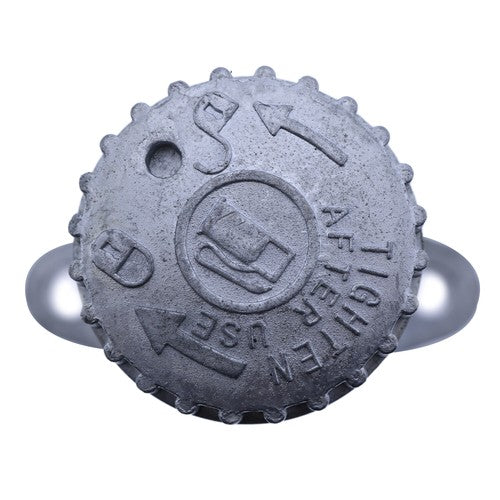

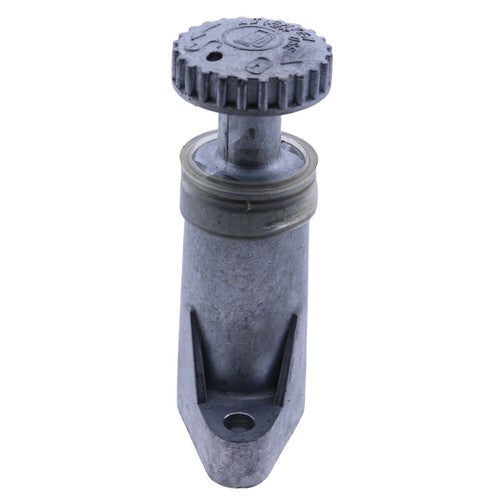

Fuel Priming Pump for Cat Challenger 65/75/85/95 Series Tractors
$65.79
In Stock
$65.79
Sale price
$65.79
Regular price
This hand fuel priming pump fits selected Caterpillar Challenger agricultural tractors in the 65, 75, 85 and 95 series using the matching fuel-filter and primer configuration. It helps refill the low-pressure fuel circuit after filter service or when air has entered the system.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Equipment | Compatible Applications |
|---|---|
| Caterpillar Challenger Tractors | 65, 65B, 65C, 65D, 65E |
| Caterpillar Challenger Tractors | 75, 75C, 75D, 75E |
| Caterpillar Challenger Tractors | 85C, 85D, 85E |
| Caterpillar Challenger Tractors | 95E |
| Additional Cat Challenger Applications | Selected 35, 45 and 70C configurations shown in Cat priming-pump application data |
Product Overview
A diesel engine can be difficult to restart after a fuel-filter change, an empty fuel system or service on the supply side because trapped air prevents the injection system from receiving a solid column of fuel. A hand priming pump gives the operator a simple way to draw fuel through the filter and supply circuit before cranking.
Caterpillar application data shows priming-pump service parts across the Challenger 65, 75, 85 and 95 tractor families, including 65B/65C/65D/65E, 75C/75D/75E, 85C/85D/85E and 95E models. Cat catalogs also show more than one priming-pump service number across these machines, including 569-4682 and 105-2508 in different configurations, so the original pump number and filter-head arrangement should be matched before ordering.
Key Features & Performance
- Manual fuel priming for the diesel low-pressure supply circuit
- Helps purge air after filter changes, fuel-system service or loss of prime
- Reduces unnecessary starter cranking when the supply side needs to be refilled
- Intended for selected Caterpillar Challenger agricultural tractor fuel-filter/primer arrangements
Part Numbers & Specifications
- Component: Hand fuel priming pump
- System: Diesel low-pressure fuel supply / primary filter area
- Catalog note: Caterpillar lists multiple priming-pump service numbers across these Challenger families, including 569-4682 and 105-2508 depending on configuration
Before You Order
Compare the part number on the original primer or filter-head assembly, the mounting/thread arrangement and your tractor model/serial configuration. Model family alone is not enough to distinguish every Cat priming-pump version used across these tractors.
Frequently Asked Questions
What does the hand primer do?
It manually moves fuel through the low-pressure side of the system so air can be displaced before the engine is cranked.
Why do I see different Cat part numbers for similar Challenger tractors?
Caterpillar used more than one priming-pump and filter-head configuration across these model families and production ranges. Matching the original service number is the safest way to confirm the correct pump.
When is a primer commonly used?
After replacing a fuel filter, opening a fuel line, running the machine out of fuel or diagnosing a supply-side loss of prime.
